Clock Click Wheels: The Unsung Heroes of Mechanical Timekeeping

Among the many precisely engineered components within mechanical clock movements, the clock click wheel and its accompanying click spring represent essential elements that enable the fundamental act of winding while preventing the catastrophic unwinding that would render timepieces useless. These small but critically important parts work in concert to create the distinctive clicking sound heard during winding while serving the crucial safety function of holding mainspring tension once winding is complete. Whether you're restoring an antique clock with a damaged click wheel, replacing a broken click spring that's lost its tension, sourcing period-appropriate components for authentic restoration work, or simply seeking to understand how these ingenious mechanisms function within traditional clockwork, knowledge of click wheels and their operation becomes essential to successful clock repair and maintenance. At Vintage Clock Parts, our 20+ years of specialization in mechanical clock components has positioned us as the trusted authority for collectors and restoration professionals seeking authentic click wheels, replacement click springs, and the technical expertise necessary to properly service these vital but often overlooked components that make mechanical clock ownership practical and safe across generations of daily winding and use.

Understanding Click Wheel Function and Mechanism

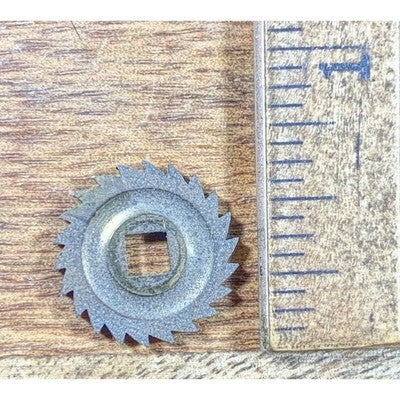

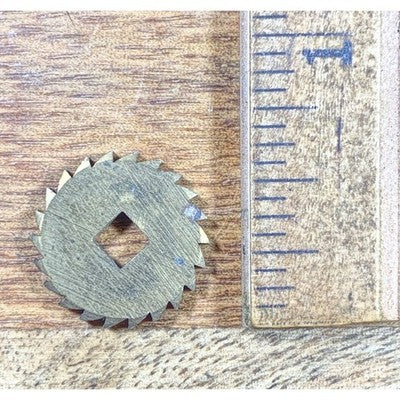

The clock click wheel represents a fundamental safety and operational component within spring-driven clock movements, working as part of the ratchet and pawl system that controls mainspring winding and prevents unwinding. This mechanism consists of several coordinated elements including the click wheel itself—a gear-like component with specially shaped teeth—and the click spring, sometimes called a pawl or dog, which engages those teeth to allow rotation in one direction while preventing movement in the opposite direction. When a clock is wound, the winding arbor rotates the click wheel, with each tooth passing under the click spring creating the familiar clicking sound that gives these components their name. The click spring rides up and over each tooth during winding but immediately drops behind the tooth once winding stops, preventing the mainspring's stored energy from unwinding the mechanism.

Understanding this simple but ingenious mechanism reveals why click wheels prove so essential to mechanical clock operation and why damaged or worn click components require immediate attention. Without a properly functioning click wheel and spring, the mainspring could unwind violently once winding stops, potentially damaging the movement, breaking other components, or in extreme cases causing injury to anyone holding the winding key. The click mechanism essentially serves as a one-way clutch, capturing and holding the energy stored in the mainspring during winding while releasing it gradually through controlled motion via the gear train and escapement. This combination of operational convenience and critical safety function makes the click wheel among the most important components in any spring-driven clock, despite its relatively small size and position within the movement where it often escapes notice during casual examination.

Common Click Wheel Problems and Identification

Clock click wheels and their associated springs fail through several common mechanisms that restoration specialists regularly encounter when servicing antique and vintage timepieces. The most frequent issue involves click spring failure, where the tempered steel spring loses tension over decades of use, breaks from metal fatigue, or wears thin where it contacts the click wheel teeth. A weakened click spring may allow slight backward rotation of the click wheel, producing irregular ticking sounds, causing the clock to lose time unpredictably, or in severe cases allowing partial unwinding that affects timekeeping or strike function. Broken click springs represent emergency situations requiring immediate attention, as they eliminate the safety mechanism preventing catastrophic mainspring release during winding or if the movement is jarred or dropped.

Click wheel tooth wear presents another common problem, particularly in clocks that have seen heavy use or inadequate maintenance over many decades. The constant engagement and disengagement of the click spring gradually wears the specially shaped teeth, rounding their edges and reducing the positive engagement that provides both reliable holding power and the characteristic clicking sound during winding. Severely worn click wheel teeth may allow the click spring to slip, particularly when mainspring tension is highest immediately after winding, resulting in partial unwinding, erratic timekeeping, or complete failure to maintain wind. Identifying click wheel problems requires careful movement examination, listening for unusual sounds during winding, checking for backward play in the winding arbor after winding is complete, and inspecting both the click wheel teeth and click spring for visible wear, damage, or improper engagement that indicates replacement or repair is necessary.

Click Wheel Variations Across Clock Types and Manufacturers

The diversity of clock click wheel designs throughout horological history reflects different manufacturing approaches, movement sizes, and engineering preferences across various clockmakers and production periods. American shelf clocks and mantle clocks from manufacturers like Seth Thomas, Ansonia, and Waterbury typically employed relatively simple click wheel designs with straight-cut teeth and basic leaf-spring type click springs mounted on the movement back plate. These utilitarian designs prioritized reliable function and economical manufacturing while providing adequate safety and operational characteristics for mass-market timepieces intended for household use where winding occurred daily or weekly depending on movement type and mainspring capacity.

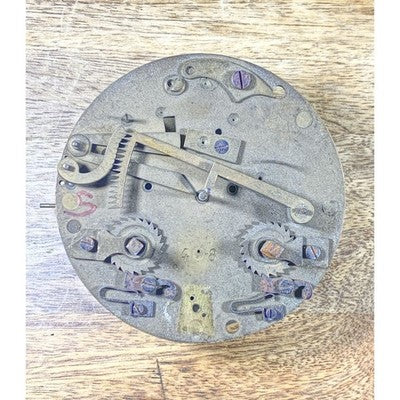

European clock movements, particularly quality pieces from German, French, and English makers, often featured more elaborate click wheel mechanisms including compound ratchet designs with multiple pawls, sophisticated spring geometries providing enhanced holding power, and finer tooth counts creating smoother winding feel and quieter operation appealing to discriminating customers. Weight-driven clocks including tall case clocks and regulators used different click wheel configurations adapted to their winding mechanisms, with some employing click wheels on cable drums or weight pulleys rather than on mainspring barrels as in spring-driven movements. Understanding these variations becomes crucial when sourcing replacement click wheels or click springs, as components must match not only the physical dimensions and mounting requirements of specific movements but also the tooth count, pitch, and engagement geometry that ensure proper function and safety in the particular mechanism being serviced or restored.

Selecting Appropriate Replacement Click Wheels and Springs

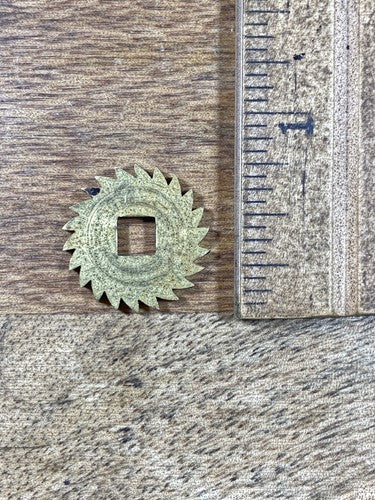

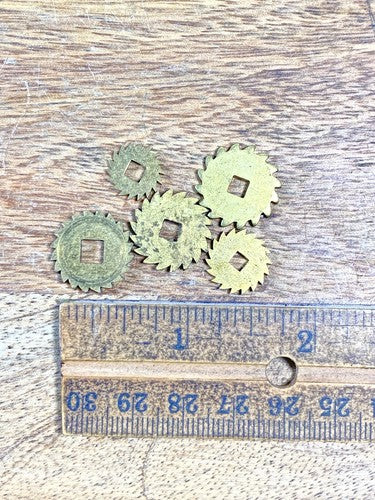

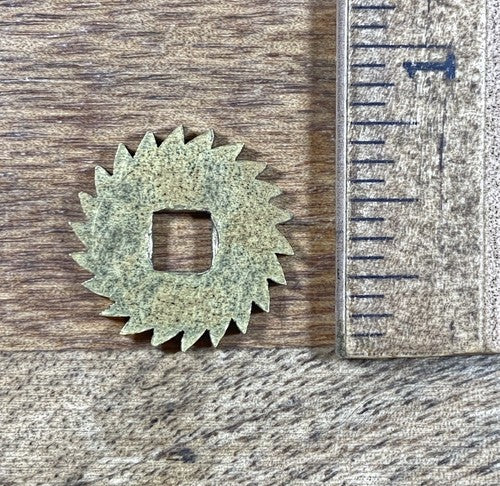

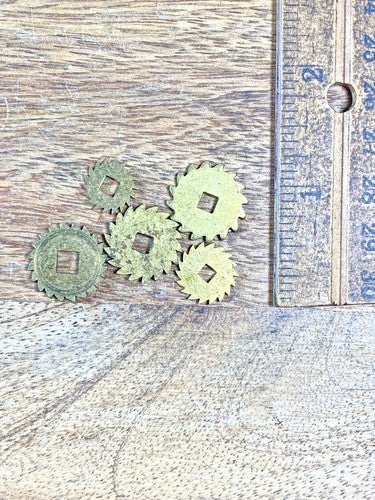

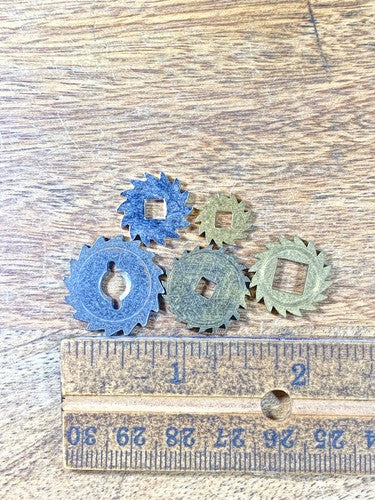

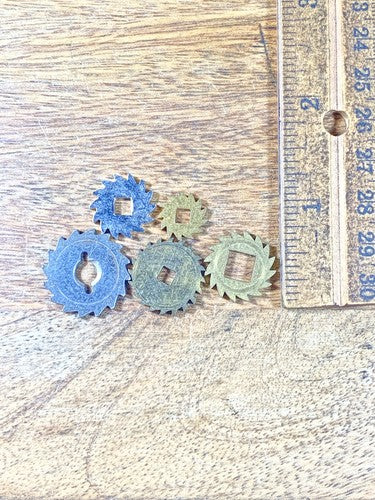

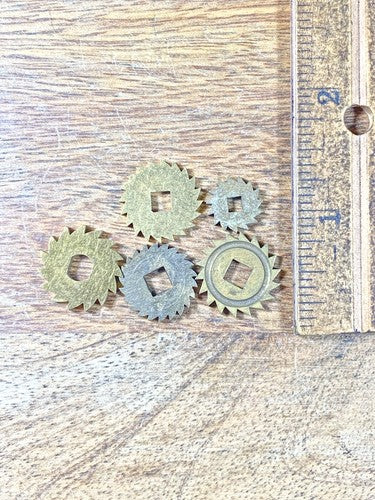

Successfully replacing damaged or worn click wheels requires careful attention to multiple specifications ensuring that replacement components match original parts and function properly within specific movement designs. Click wheel diameter represents the most obvious specification, as the component must fit properly on its arbor or mounting position while maintaining correct spacing relative to other movement parts and providing adequate clearance within the case. However, diameter alone proves insufficient for proper selection, as click wheels also vary in tooth count, tooth profile and angle, thickness, arbor bore diameter, and mounting method—all of which must correspond to the original component's specifications for proper engagement with the click spring and correct interaction with winding mechanisms and mainspring barrels.

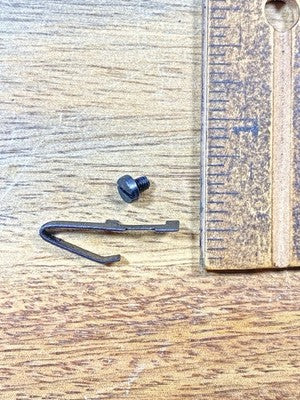

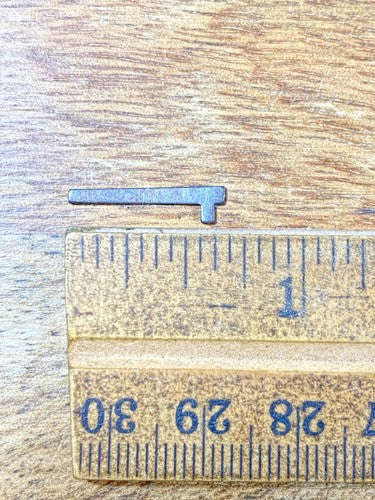

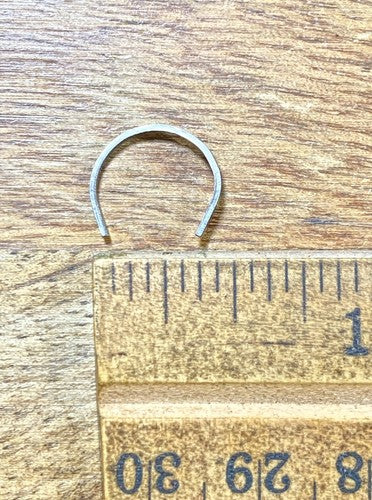

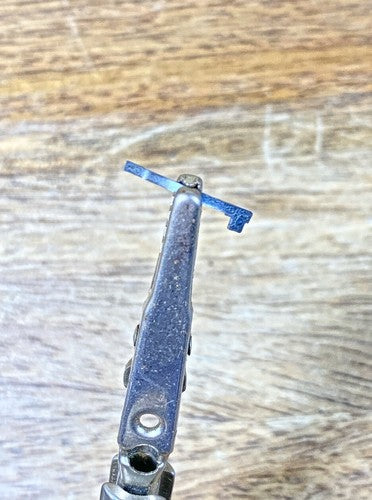

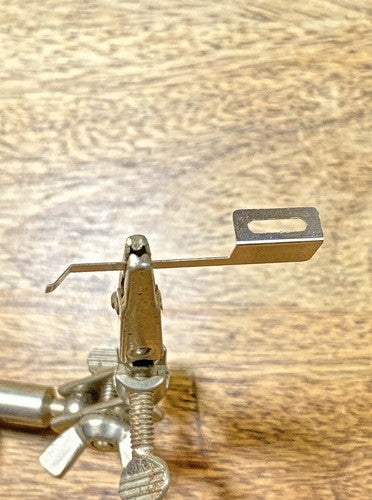

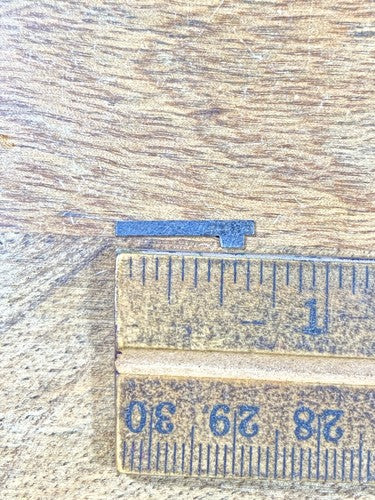

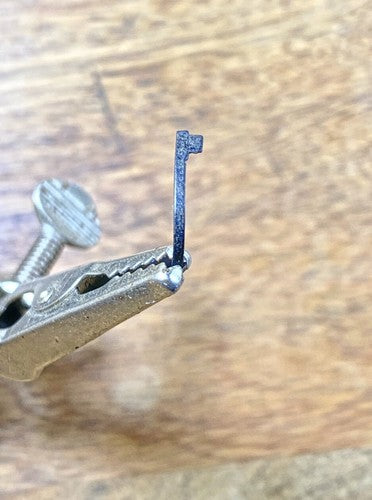

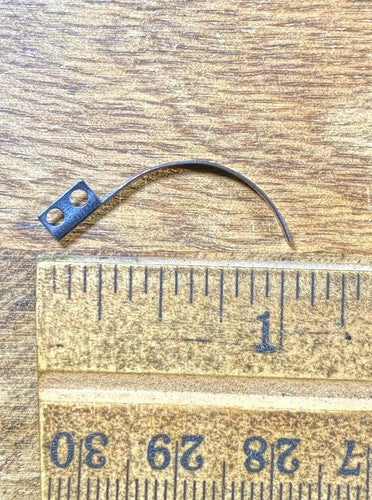

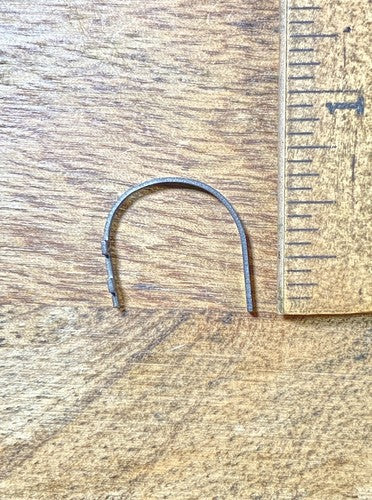

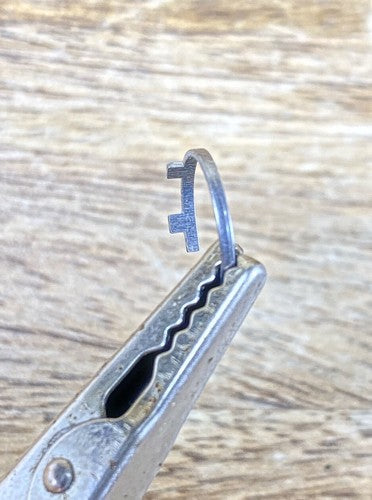

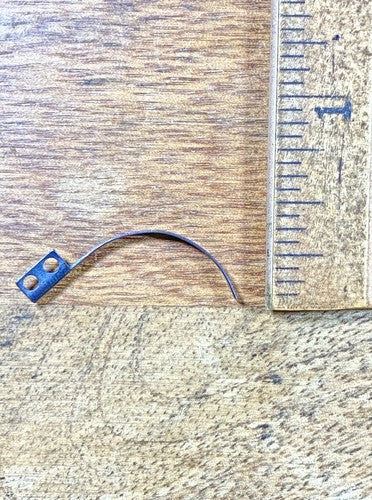

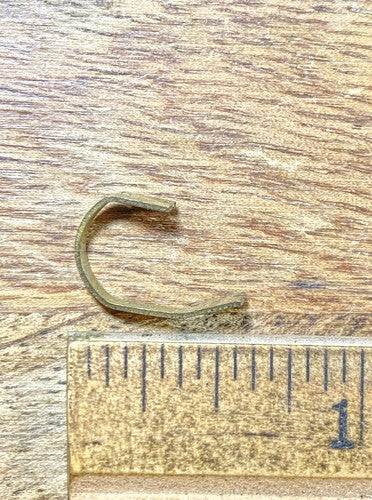

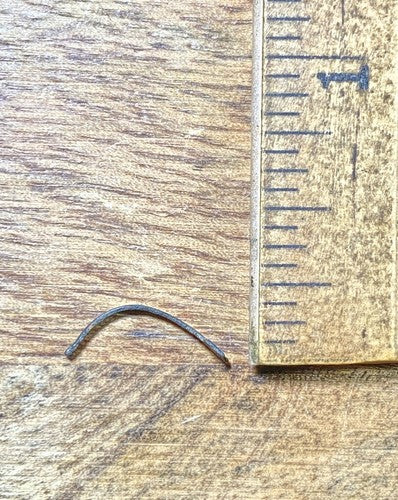

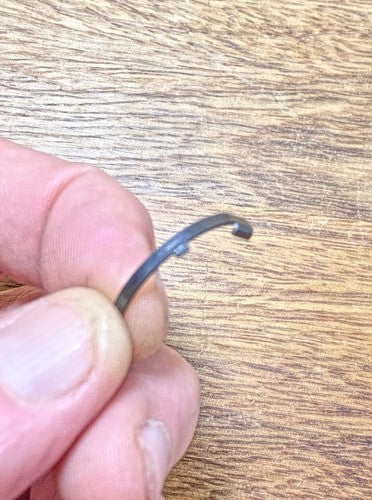

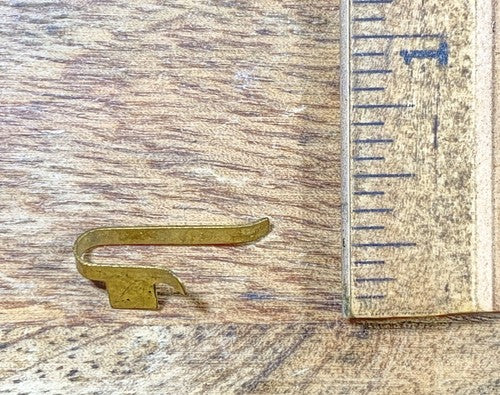

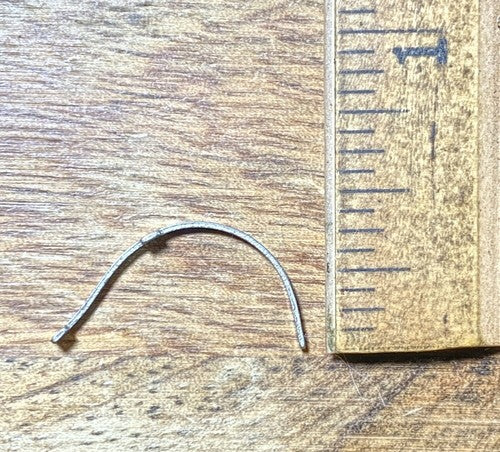

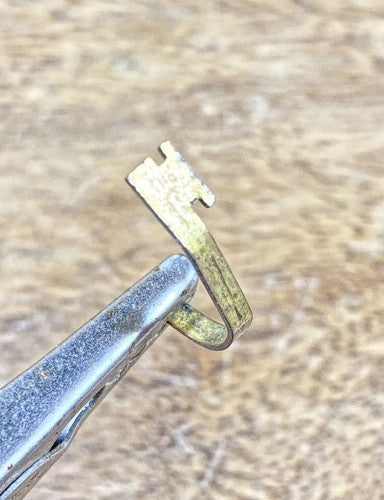

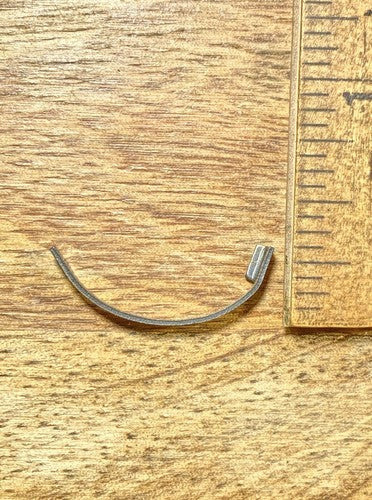

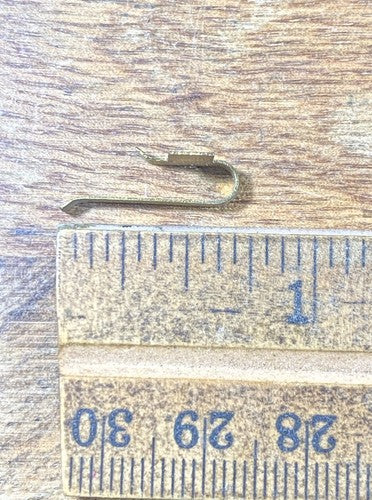

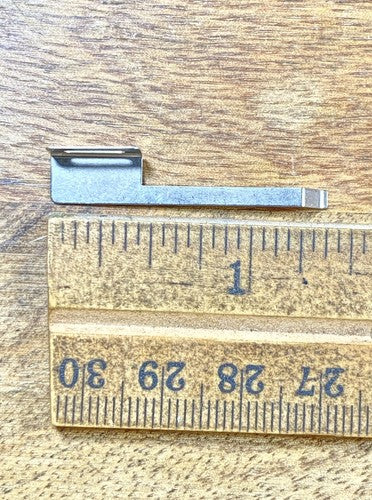

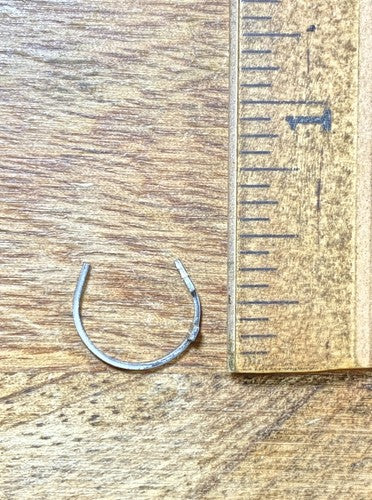

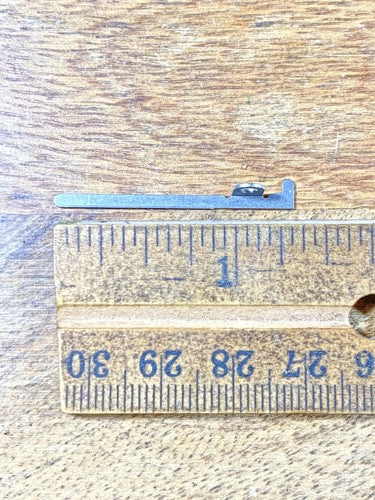

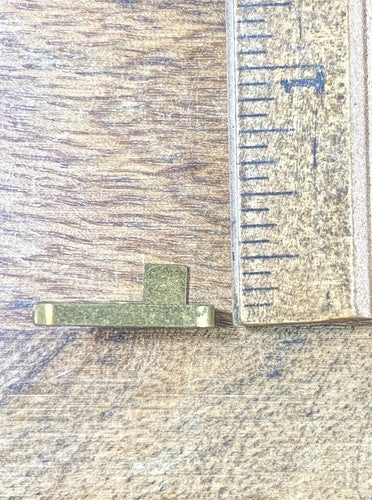

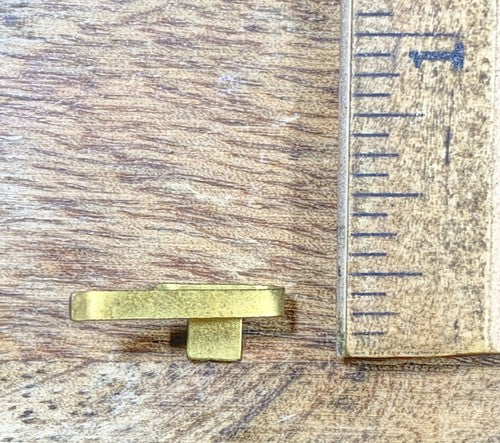

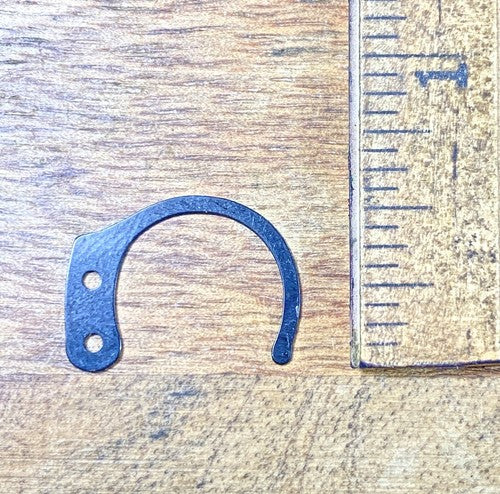

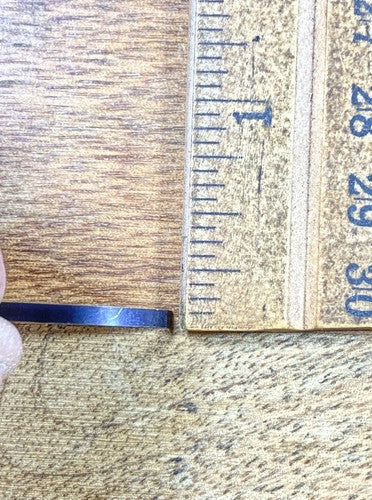

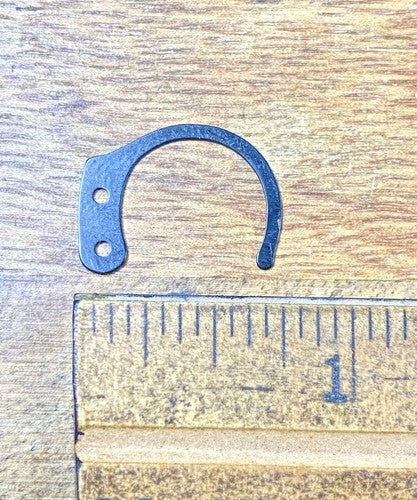

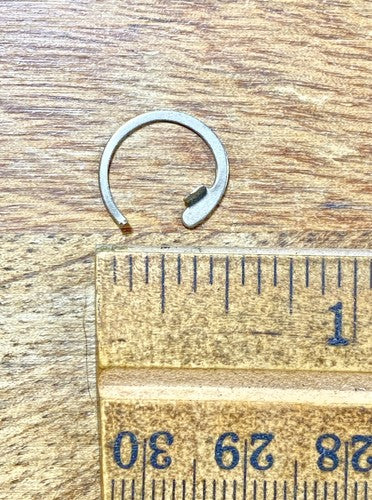

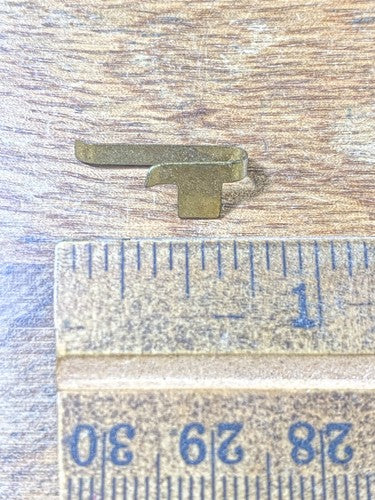

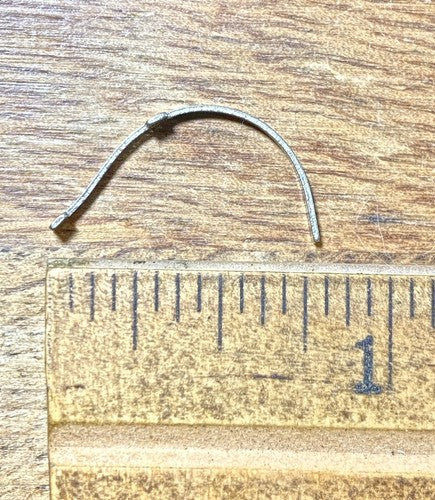

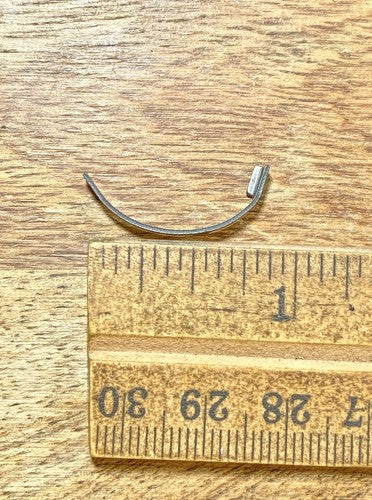

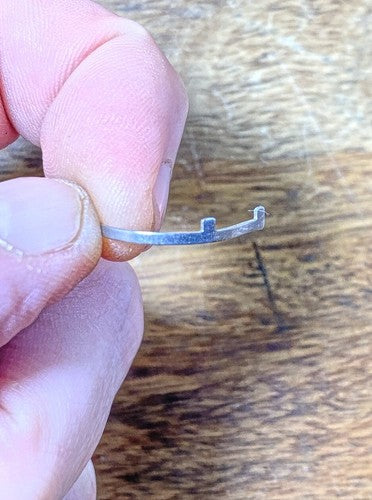

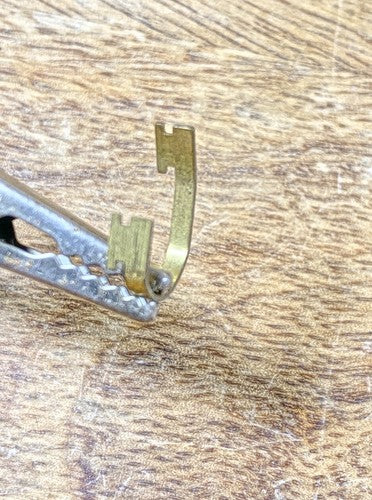

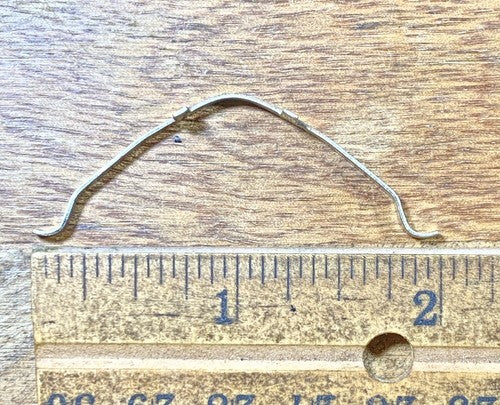

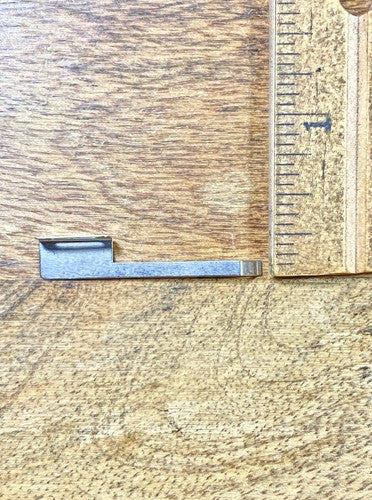

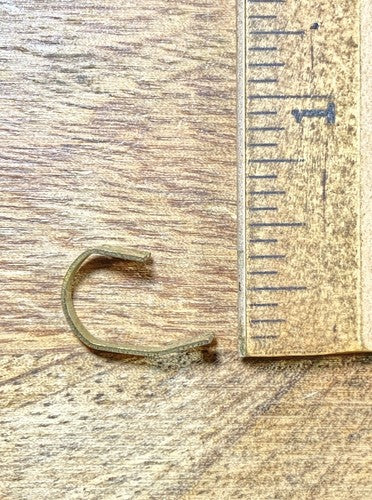

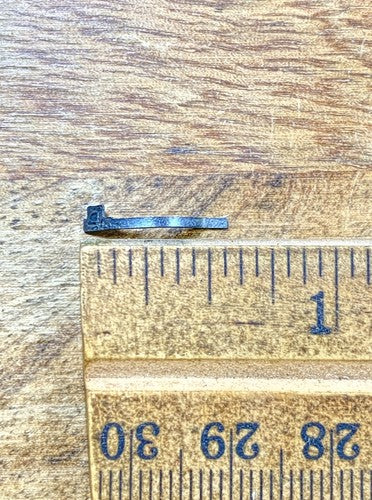

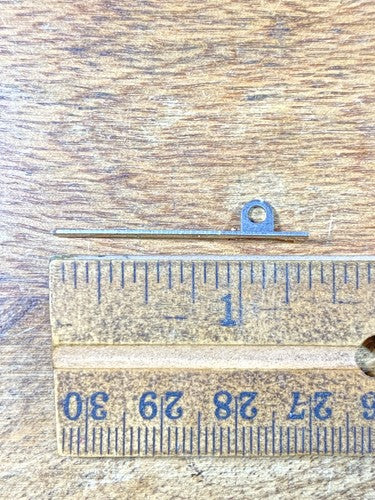

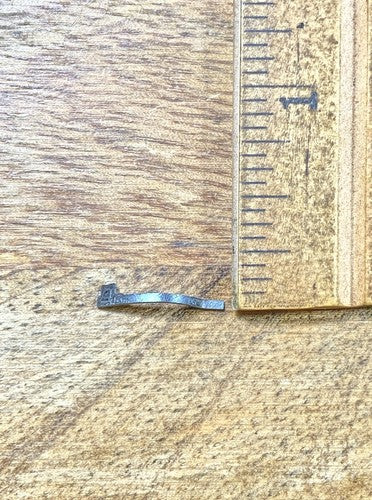

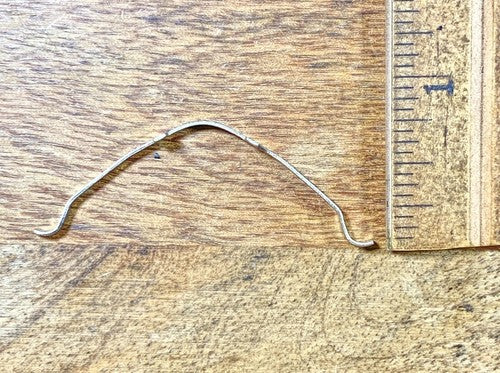

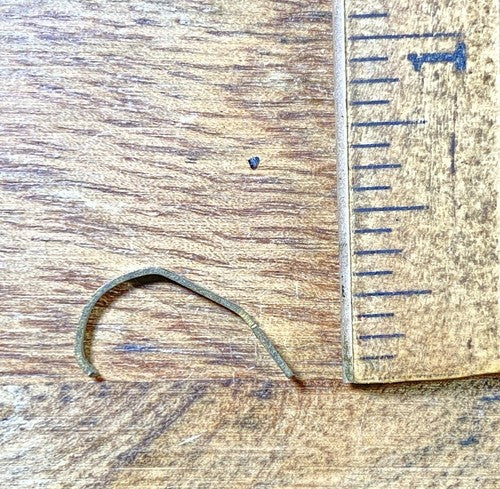

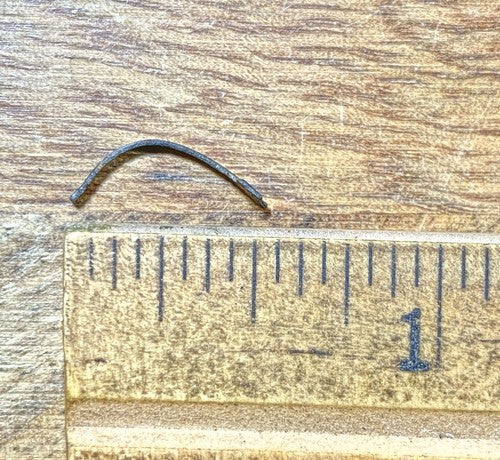

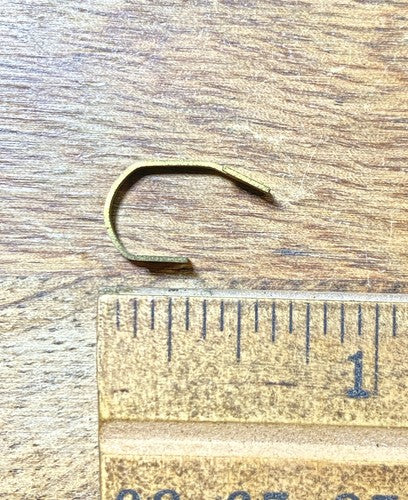

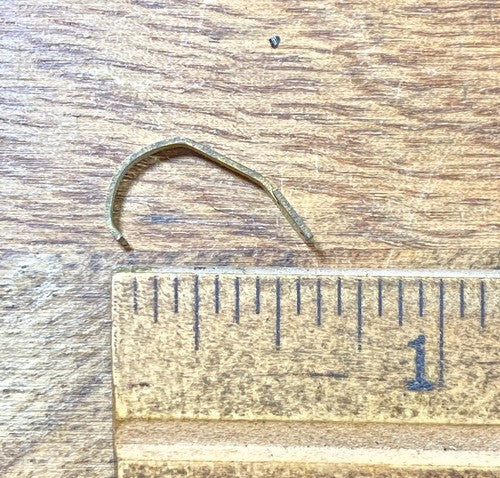

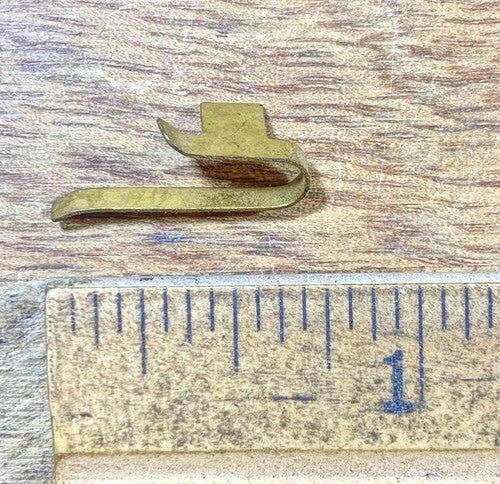

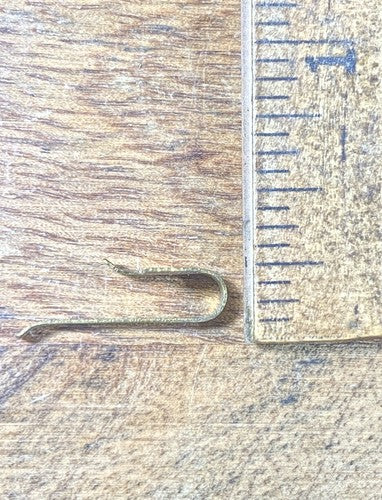

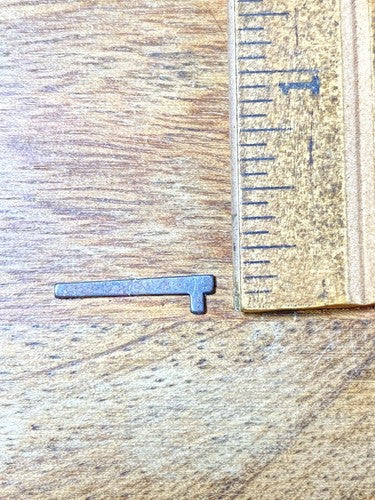

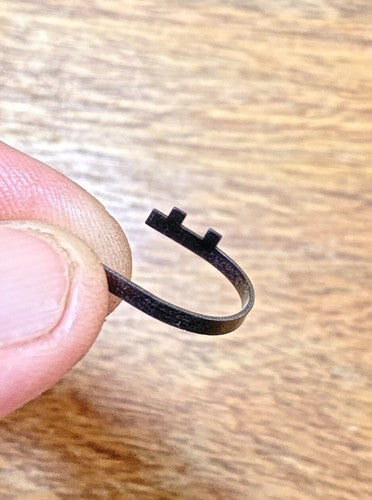

Click spring selection presents equally important considerations, as these components must provide proper tension against click wheel teeth, exhibit correct geometry for reliable engagement and disengagement during winding, and possess adequate strength and temper to perform their safety function reliably across years of regular use. Click springs vary in length, width, thickness, material composition, mounting hole position and size, and the critical spring rate that determines engagement pressure against click wheel teeth. Insufficient spring tension allows the click to slip under mainspring load, while excessive tension can cause premature wear on click wheel teeth or create difficult winding that discourages regular maintenance. Our two decades of experience in mechanical clock components has taught us that maintaining comprehensive inventory across various click wheel specifications and click spring types—from simple American shelf clock mechanisms to sophisticated European movement designs—represents the only viable solution for restoration professionals who regularly encounter the full spectrum of mechanical timepieces requiring click mechanism service and replacement components that ensure both proper function and continued safety.

Installing and Adjusting Click Mechanisms

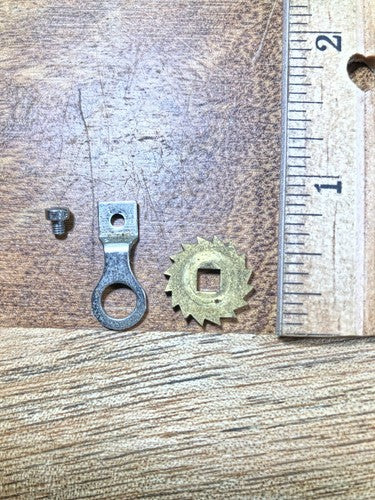

Proper click wheel and click spring installation requires technical understanding beyond simple component substitution, as these parts must be positioned, adjusted, and tested to ensure reliable operation and adequate safety margins under all operating conditions. Click wheel installation typically involves mounting the component on its designated arbor or shaft, ensuring proper orientation relative to winding mechanisms and mainspring barrels, verifying adequate clearance from other movement parts during full rotation, and confirming secure retention preventing axial movement that could affect engagement with the click spring. Many click wheels incorporate keyways, set screws, or friction-fit designs requiring specific installation techniques that avoid damage while ensuring components remain properly positioned during the stresses of regular winding and decades of operational cycles.

Click spring installation and adjustment demand particular attention to engagement geometry, spring tension, and mounting security that directly affect both operational characteristics and safety function. The click spring must be positioned so its engagement point contacts click wheel teeth at the optimal angle—typically allowing smooth upward deflection as teeth pass during winding while providing positive engagement preventing backward rotation when winding stops. Improper click spring position can cause excessive wear, unreliable engagement, difficult winding, or inadequate holding power that compromises the safety function these components provide. After installation, thorough testing should verify that the click mechanism produces consistent clicking sounds during winding, prevents any backward rotation when winding stops regardless of mainspring tension level, maintains engagement when the movement is tilted or gently shaken simulating handling during normal use, and exhibits no signs of binding, excessive friction, or irregular operation that could indicate improper adjustment requiring correction before returning the timepiece to service.

Maintenance and Preventive Care

Regular inspection and appropriate maintenance of click wheel mechanisms significantly extends component life while ensuring continued reliable operation and safety function that protects both movements and users throughout decades of clock ownership. During routine movement cleaning and servicing performed every three to five years depending on environmental conditions and usage patterns, click wheels should be carefully examined for tooth wear, damage to tooth profiles, scoring or galling on bearing surfaces, and any signs of stress or fatigue that could indicate impending failure requiring proactive replacement. Click springs deserve particular attention during servicing, as these components endure constant flexing during every winding cycle and gradually fatigue over time even when not showing obvious visible damage that would prompt immediate replacement.

Testing click spring tension provides crucial information about remaining service life and safety margins. A properly functioning click spring should hold firmly against click wheel teeth with no perceptible backward play when attempting to rotate the winding arbor opposite the winding direction, maintain consistent engagement across all teeth around the click wheel's circumference, and produce clear clicking sounds during winding without excessive force required to overcome click spring pressure. Weak or questionable click springs should be replaced rather than risked, as the minimal cost of replacement components proves insignificant compared to potential damage from mainspring failure if the click mechanism proves inadequate during critical situations. Lubrication of click mechanisms requires restraint, as excessive oil attracts dust and debris that can interfere with positive engagement, though a tiny amount of quality clock oil applied sparingly to click wheel pivot points helps reduce wear without compromising function.

Click Wheels in Different Movement Types

Understanding how click wheel mechanisms vary across different clock types helps restoration specialists and collectors properly service diverse timepieces while appreciating the engineering adaptations clockmakers developed for specific applications and operational requirements. Spring-driven shelf clocks and mantle clocks typically incorporate click wheels directly on mainspring barrels, with the click mechanism integrated into the barrel assembly where winding arbors engage through the movement's back plate. These designs place click wheels and springs in relatively protected positions within movements while providing convenient access during servicing when movements are removed from cases for cleaning and repair. The click wheels in these applications generally feature moderate tooth counts appropriate to typical winding key sizes and the spring tensions encountered in movements designed for weekly winding cycles.

Weight-driven tall case clocks and regulators employ click mechanisms in different configurations reflecting their distinct winding systems and operational characteristics. Some designs place click wheels on cable drums where weights attach, allowing the click mechanism to prevent weights from dropping if cables break or detach during handling or maintenance. Other weight-driven designs incorporate click wheels in the movement's gear train, preventing backward motion that could allow weights to fall while providing controlled descent as the movement runs between windings. Tower clocks and large public timepieces sometimes feature particularly robust click mechanisms designed to handle the substantial forces involved in winding heavy weights or large mainsprings, with oversized click wheels and heavy-duty click springs engineered to provide reliable safety function despite the challenging operational demands these impressive movements present. Recognition of these variations ensures that replacement click wheels and springs match not only dimensional requirements but also the strength and engagement characteristics appropriate to specific movement types and the operational stresses they encounter during normal use.

Troubleshooting Click Mechanism Problems

Diagnosing click wheel and click spring problems requires systematic evaluation of symptoms, careful examination of components, and understanding the relationship between various failure modes and the operational issues they produce. Clocks that won't hold winding, where the winding key immediately spins backward after winding attempts, clearly indicate click mechanism failure—most commonly a broken or completely fatigued click spring that no longer engages click wheel teeth. This situation demands immediate attention before attempting further winding, as the lack of click engagement means the mainspring can unwind violently with potentially damaging results. Temporary emergency measures might include carefully letting down the mainspring if already wound, or avoiding winding until proper click mechanism repair can be accomplished with appropriate replacement components.

Clocks exhibiting partial unwinding, where timekeeping becomes erratic or the movement stops running before expected time between windings, may indicate weak click springs allowing slight backward rotation under mainspring tension, or worn click wheel teeth that don't provide positive engagement preventing all backward motion. Unusual sounds during winding including scraping, grinding, or irregular clicking patterns suggest problems with click wheel tooth geometry, improper click spring adjustment, or accumulated debris interfering with smooth engagement and disengagement. Difficulty winding, where excessive force is required to turn the winding key, might result from overly strong click spring pressure, click spring binding against the click wheel, or improper geometry causing excessive friction during tooth engagement. Systematic evaluation of these symptoms combined with careful visual examination of click mechanism components when movements are accessible guides restoration specialists toward appropriate corrective actions whether involving adjustment, cleaning, or replacement of worn or damaged click wheels and springs.

Historical Development of Click Mechanisms

The evolution of clock click wheel designs throughout horological history reflects ongoing refinement of these essential safety and operational components as clockmakers balanced manufacturing economy against functional requirements and safety considerations. Early wooden movement clocks sometimes employed relatively crude click mechanisms with simple wooden pawls engaging wooden ratchet wheels, providing basic function while matching the technological constraints and material limitations of their era. The transition to brass movements in the mid-19th century enabled more sophisticated click wheel designs with precisely cut teeth, properly tempered steel click springs, and improved engagement geometries that enhanced both operational smoothness and safety margins—advances that contributed to the reliability and longevity that made mechanical clocks practical household items across all economic classes.

The late 19th and early 20th centuries saw continued click mechanism refinement as manufacturing technologies improved and competition among clockmakers drove innovation in even the smallest components. Some premium movements incorporated particularly elegant click designs including jeweled click pivots reducing friction and wear, compound ratchet mechanisms with multiple pawls providing redundant safety, and sophisticated spring geometries optimizing engagement characteristics. These refinements, while sometimes subtle to casual observation, contributed measurably to movement quality, operational smoothness, and the long-term reliability that distinguished premium timepieces from economy production. Understanding this historical development helps collectors appreciate the engineering embodied in seemingly simple components while guiding restoration specialists toward period-appropriate replacement parts that maintain authentic character in antique timepieces where historical accuracy enhances both educational value and collector interest.
