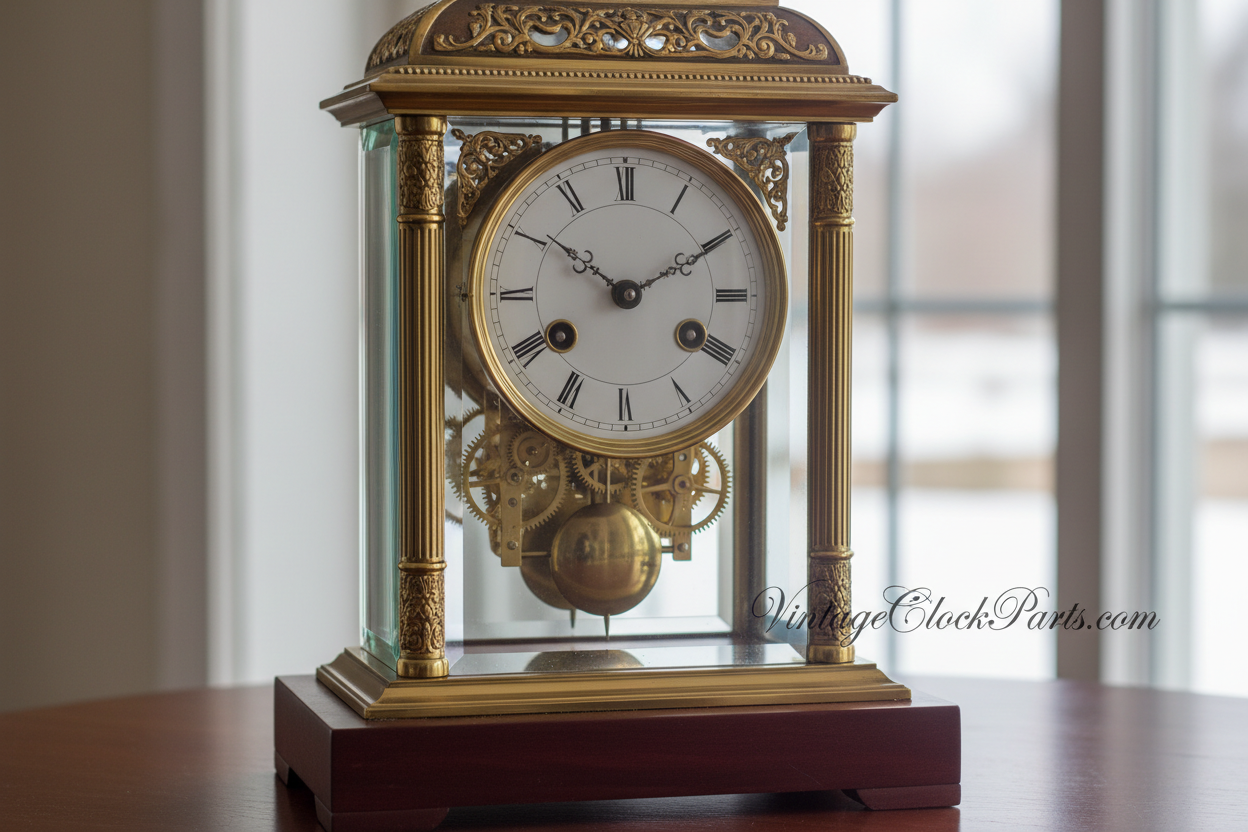

Ansonia crystal regulator clocks are some of the most elegant American timepieces ever produced. With their beveled glass panels, polished brass cases, and precision French‑style movements, they were designed to be both functional and decorative. Restoring one requires careful inspection, proper cleaning, and attention to the fine details that make these clocks visually striking and mechanically reliable.
Initial Inspection and Assessment
Before any restoration work begins, a thorough inspection helps determine the clock’s condition and what repairs are needed. Crystal regulators often suffer from tarnished brass, dirty or worn movements, and damaged suspension springs. Because the glass panels expose the movement, even minor issues become visible, making proper restoration essential.
Case and Glass Condition
Inspect the brass case for tarnish, oxidation, dents, or loose joints. Beveled glass panels should be checked for chips, cracks, or looseness in their frames. Many Ansonia regulators use friction‑fit glass retainers that can loosen over time.
Movement Condition
The movement is typically an 8‑day time and strike mechanism, often modeled after French designs. Look for:
- Dirty or dried oil on pivots
- Worn pivot holes requiring bushings
- Weak or set mainsprings
- Worn escape wheel teeth
- Loose or bent strike levers
Pendulum and Suspension
Crystal regulators commonly use a mercury‑style faux pendulum or a decorative grid pendulum. Inspect for:
- Damaged or incorrect suspension spring
- Pendulum misalignment
- Improper beat setting
Disassembly and Cleaning
Once inspection is complete, the clock can be safely disassembled. Remove the pendulum, dial, hands, and movement. Let down the mainsprings fully before separating the plates. Photographing the strike train and lever positions helps ensure accurate reassembly.
Cleaning the Movement
Crystal regulator movements must be spotless due to their visibility. Clean all brass plates, wheels, and pivots thoroughly. Polish pivots to a bright finish and inspect each pivot hole for wear. Install bushings where needed to restore proper gear alignment.
Mainspring Service
Remove, clean, and lubricate both mainsprings. Replace any that show cracks, deep pitting, or severe set. Strong, smooth mainsprings are essential for reliable 8‑day operation.
Case Restoration
The brass case is a defining feature of an Ansonia crystal regulator. Proper restoration enhances both appearance and value.
Brass Polishing
Polish the brass using a non‑abrasive metal polish to restore its shine without removing original material. Avoid polishing compounds that leave residue in corners or around glass edges.
Glass Panel Care
Clean beveled glass panels with a non‑ammonia cleaner to avoid streaking or damaging the brass frames. If a panel is loose, carefully reset it using appropriate retainers or adhesive designed for clock restoration.
Reassembly and Adjustment
After cleaning and servicing, reassemble the movement and reinstall it into the case. Oil only the proper pivot points using high‑quality clock oil. Avoid over‑oiling, as excess oil will attract dust and become visible through the glass.
Setting the Beat
Adjust the crutch so the tick and tock are even. Crystal regulators are sensitive to beat error due to their exposed movements, so precise adjustment is important.
Strike Train Setup
Ensure the strike train enters warning and releases correctly at the hour. Adjust the hammer so it strikes the gong cleanly without double‑striking or buzzing.
Final Testing
Test the clock on a level surface for several days. Confirm that it runs a full 8‑day cycle, keeps accurate time, and strikes properly. Make small adjustments to the pendulum length as needed.
Related Restoration Guides
- Diagnosing Problems on a Gilbert 8‑Day Clock Movement
- Repairing a 1950s Junghans 8‑Day Westminster Chime Clock
- Restoration of a One‑Weight Time‑Only Vienna Regulator Clock
- Restoring an 1860s Seth Thomas Ogee Clock
- Restoration of a Waterbury “Janeway” Kitchen Clock
Frequently Asked Questions
Why does my crystal regulator clock stop after a few minutes?
Most often the clock is out of beat or the movement has worn bushings that cause power loss. These clocks are sensitive to beat error due to their exposed pendulum and light case construction.
How do I clean the brass case without damaging it?
Use a non‑abrasive polish and avoid harsh chemicals. Do not use ammonia‑based cleaners on or near the brass, as they can cause discoloration or long‑term damage.
Why is the pendulum wobbling or swinging unevenly?
A bent crutch, damaged suspension spring, or incorrect beat setting can cause uneven pendulum motion. Inspect the suspension carefully and adjust the crutch for an even tick‑tock.
