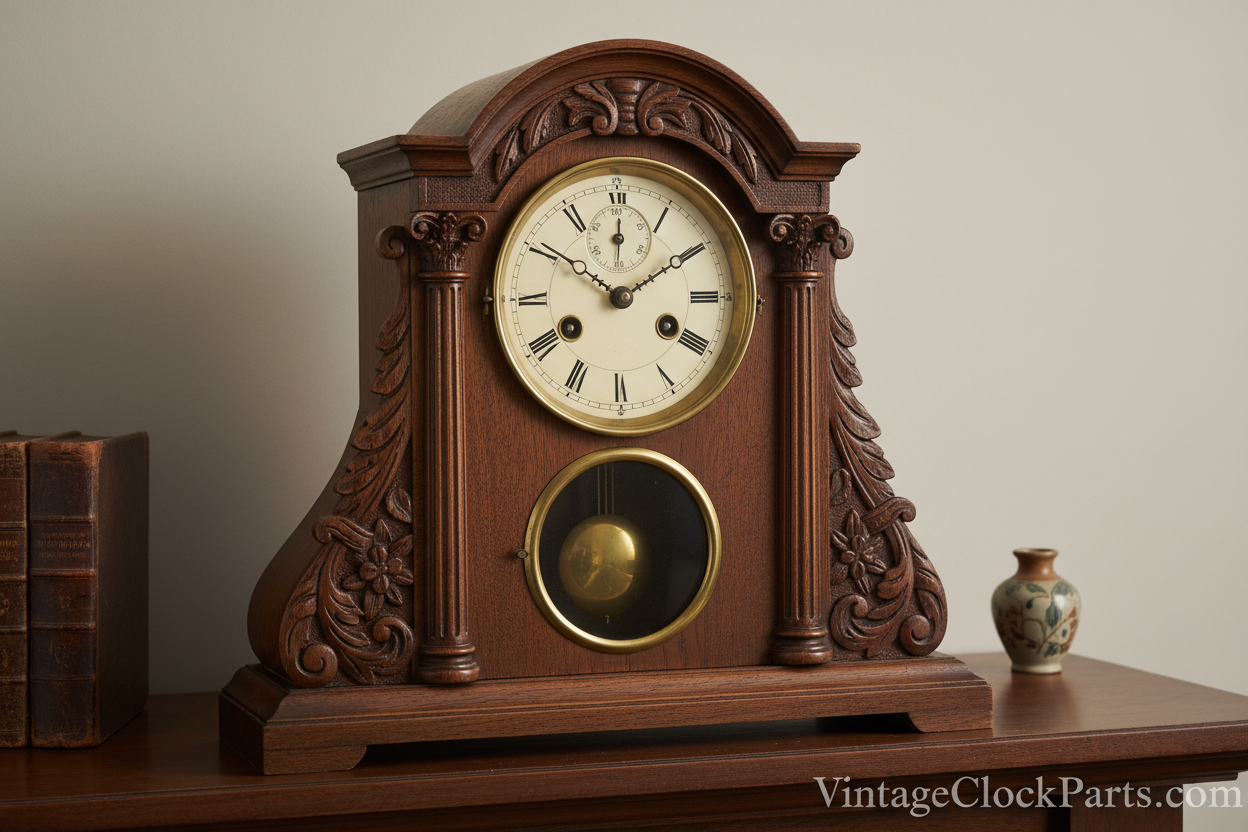

Diagnosing Problems on a Gilbert 8-Day Clock Movement

December 14, 2025

gilbert

Introduction

Gilbert 8-day clock movements are typical American brass time-and-strike mechanisms found in many mantel, kitchen, and wall clocks from the late 1800s through the early 1900s. They are sturdy and straightforward, but age, dirt, and wear eventually create familiar symptoms: the clock stops, runs weakly, miscounts the strike, or keeps poor time. The key is a systematic diagnostic approach that isolates the root cause instead of guessing.

This guide focuses on diagnosing problems on a typical Gilbert 8-day movement before and during restoration. We’ll group symptoms into categories—complete stoppage, runs then stops, strike issues, noisy operation, and timekeeping errors—and map each one to likely causes such as worn bushings, dried mainsprings, bent levers, escapement faults, or pendulum and beat problems. Once you know what to look for, these movements become predictable and relatively easy to cure.

Overview of a Gilbert 8-Day Movement

Basic layout and features

Most Gilbert 8-day movements share these traits:

Two mainsprings: one for the time train and one for the strike train.
Time train: drives the hands and escapement, usually a recoil escapement with a pendulum.
Strike train: countwheel-controlled hour strike on a gong or bell.
Brass plates and steel arbors with pinned wheels and levers.

Some variations exist, but the diagnostic principles are essentially the same across Gilbert 8-day models.

Symptom Group 1 – Clock Stops or Won’t Run

Clock will not run at all

If there is no tick when you try to start the pendulum:

Check that the time mainspring is wound enough to provide power.
Verify the pendulum is properly hung and free to swing without touching the case or backboard.
Look for obvious obstructions: bent teeth, jammed levers, or a verge locked against the escape wheel.

If the escape wheel does not move at all when you gently nudge the train, the problem is likely a hard bind—severely worn bushings, bent arbors, or a major obstruction.

Clock runs a short time, then stops

This is extremely common on worn Gilbert movements. Likely causes:

Out of beat: the tick and tock are uneven; the crutch needs adjustment.
Dirty oil and pivot wear: old oil has turned to sludge, and oval pivot holes increase friction.
Weak mainspring: a “set” spring delivers marginal power, especially toward the end of the run.
Case not level: marginal power combined with a tilted case causes intermittent stoppage.

Tilt-test: slightly tilt the clock left and right. If it runs more reliably tilted, you are likely dealing with beat error and wear in the pivot holes.

Runs freely without pendulum, stops with pendulum attached

If the train spins freely with the verge lifted but stops under pendulum load:

Escapement may have too little lock or too much drop, wasting power.
Pivots and bushings are worn enough that any added load pushes the system over its power limit.
The mainspring may be too weak to maintain amplitude under load.

Symptom Group 2 – Strike Train Problems

Strike does not run at all

If the time train runs but the clock never strikes:

Confirm the strike mainspring is wound.
Watch the movement as the hands approach the hour: does the lifting lever try to start the strike?
Check whether the warning wheel moves into warning, then locks.
Look for a bent stop lever or misaligned stop pin that prevents release.

If the strike train never enters warning, the problem is with the lifting cam, levers, or their relationship to the center arbor and minute hand.

Strike miscounts the hour

If strike sounds, but the number of blows is wrong:

The countwheel lever may not be dropping into the notches fully.
The countwheel may have been reinstalled out of phase during a previous repair.
Bent or worn levers may lift or drop at the wrong time.

Advance the minute hand through 12 hours and record which hours are wrong. A repeating pattern often reveals how far out of phase the countwheel is.

Strike runs on and will not stop

If the strike continues beyond the correct count:

The stop lever may not be catching the stop pin.
The countwheel notches may be rounded or clogged with dirt.
The timing between the count lever and stop pin may be off after incorrect reassembly.

Symptom Group 3 – Timekeeping and Escapement Issues

Clock runs but keeps poor time

If the movement runs but is consistently fast or slow:

Adjust the pendulum bob: up to go faster, down to go slower.
Verify you have the correct pendulum length for that Gilbert model.
Ensure the clock is in beat—if it’s badly out of beat, timing will be unstable.

If large timing errors remain even with the bob near its limit, check for escapement issues or non-original pendulum parts.

Uneven tick-tock or “double tick”

An irregular sound indicates:

Beat error: the crutch needs to be bent slightly to center the pendulum swing.
Poor escapement geometry: pallets too deep or shallow, causing heavy recoil or flutter.
Worn escape wheel teeth: individual teeth may be damaged or uneven.

Symptom Group 4 – Noise, Vibration, and Mechanical Disturbances

Loud ticking or rough running

If the clock runs but sounds harsh:

Worn bushings may allow gears to mesh loudly.
Escape wheel may be running with excessive recoil.
Hammer may be resting on the gong between strikes, transmitting vibration.

Case-related issues

Sometimes the movement is fine, but:

The pendulum rubs the backboard or glass.
The crutch touches the case or seatboard.
The case is not level or stable, causing intermittent stoppage.

Deeper Diagnostic Techniques

Train testing with mainsprings let down

With the movement out of the case and springs safely let down:

Apply gentle pressure to individual wheels to feel for rough spots.
Check for side shake and end shake on each arbor.
Spin wheels with your fingers—good wheels should coast smoothly.

On Gilbert movements, upper time- and strike-train pivots are frequent bushing candidates due to long-term wear.

Visual inspection of pivot holes

Look closely around each pivot:

If you see a crescent-shaped shiny area off-center, the hole is oval.
If the pivot moves visibly in the hole when you apply side pressure, it needs a bushing.

Worn bushings are a primary cause of power loss and intermittent stoppage in 8-day movements.

Mainspring condition checks

Even without full removal:

Let the spring down and observe how much it opens—minimal opening suggests a badly set spring.
Look for obvious rust or pitting at coils near the arbor or barrel hook.
Note any jerky power delivery when winding or unwinding.

A weak or fractured mainspring can make the movement very difficult to regulate or keep running for a full 8 days.

When the Diagnosis Calls for Full Overhaul

If you observe:

Multiple worn bushings.
Old, gummy oil throughout the movement.
Set or damaged mainsprings.
Chronic stoppage even after beat adjustment.

The most effective solution is a complete overhaul: disassembly, cleaning, mainspring service, pivot polishing, bushing installation, and careful reassembly. Gilbert 8-day movements respond very well to a proper overhaul and can run reliably for years afterward.

Parts and Resources for Gilbert 8-Day Movements

Accurate diagnosis often leads you to specific parts: mainsprings, bushings, replacement gears, strike levers, or suspension components. Using correct, well-fitted parts is critical to restore full power and reliable strike performance in a Gilbert movement.

Visit VintageClockParts.com to explore a carefully photographed inventory of Gilbert movements, wheels, mainsprings, suspension springs, hammers, and hardware. Each part is shown from multiple angles so you can visually match your Gilbert 8-day clock movement and choose the exact components you need for a long-lasting repair.

Related Restoration Guides

Frequently Asked Questions

My Gilbert 8-day clock runs for a day or two and stops. What is most likely wrong?

The most common causes are worn bushings, dried oil, and beat error. A clock that runs longer when tilted almost certainly has both pivot wear and beat issues and will need cleaning and bushing work in addition to proper beat adjustment.

Why does my Gilbert clock strike the wrong number of times?

On Gilbert countwheel strike movements, miscounting usually means the countwheel or strike levers were reassembled out of phase, or the count lever is not dropping fully into the notches due to wear or dirt. The relationship between the countwheel and stop lever must be reset.

Can I fix a non-running Gilbert movement just by oiling it?

Fresh oil on top of old dirt and worn pivot holes rarely helps and often makes things worse. A non-running Gilbert 8-day movement usually needs full disassembly, cleaning, mainspring inspection, and bushing work to run reliably for a full 8-day cycle.
