Introduction

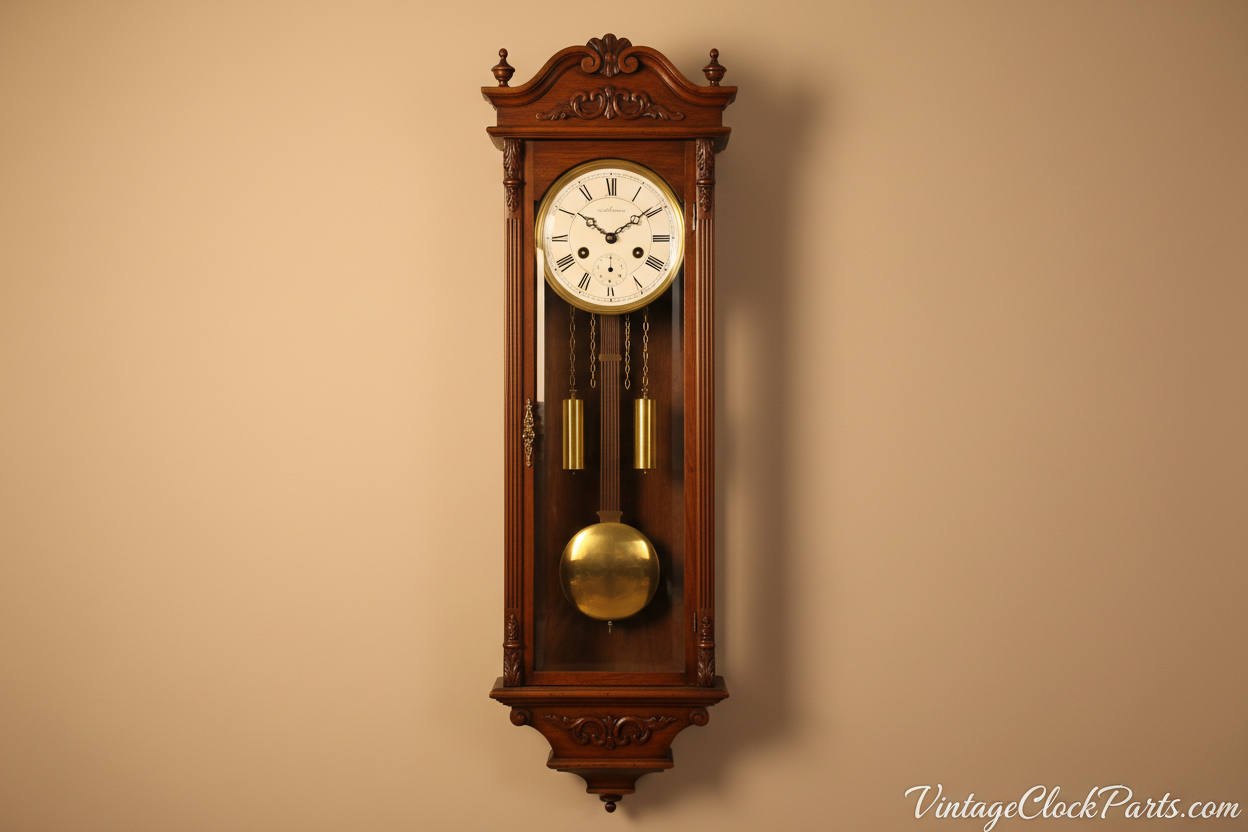

A loose strike‑hammer assembly in a Vienna regulator can cause weak strikes, inconsistent hammer return, or complete failure of the strike train. In this case, the owner discovered that the hammer arbor and its supporting hardware had developed excessive play. This guide explains what causes a loose hammer assembly and how to correct it without damaging the movement.
What Causes a Loose Strike‑Hammer Assembly
Worn hammer‑arbor pivot holes
Vienna regulators often develop oval pivot holes from decades of use, allowing the hammer arbor to wobble.
Loose hammer‑arm collet
The hammer arm is usually friction‑fitted or pinned; if the fit loosens, the hammer loses control and consistency.
Hammer return spring weakened
A fatigued spring allows the hammer to bounce or fail to return fully.
Loose mounting hardware
Screws or brackets holding the hammer assembly can loosen over time.
Movement alignment issues
If the movement shifts in the case, the hammer may not strike the gong squarely, exaggerating looseness.
Symptoms Reported in the Thread
Hammer wobbling on its arbor
The hammer did not maintain a consistent resting position.
Weak or inconsistent strike
The hammer was not hitting the gong with enough force.
Hammer bouncing after impact
Caused by excessive play and a weak return spring.
Strike timing drifting
Loose components caused the hammer to lift unpredictably.
Gong tone dull or muted
Hammer was striking off‑center due to the loose assembly.
How the Issue Was Diagnosed
Manual testing of the hammer arbor
Light side‑to‑side pressure revealed excessive pivot play.
Checking the hammer‑arm collet
The collet was found to be loose on the arbor, allowing rotation.
Inspecting pivot holes
Oval wear was visible, confirming the need for bushing work.
Testing hammer return
The spring lacked tension and allowed bounce.
Verifying movement position
The movement had shifted slightly, misaligning the hammer and gong.
What Actually Fixed the Problem
1. Tightening or re‑staking the hammer‑arm collet
This restored a firm connection between the hammer arm and arbor.
2. Installing a new bushing in the worn pivot hole
Eliminated wobble and restored proper hammer alignment.
3. Re‑tensioning or replacing the hammer return spring
Ensured the hammer returned cleanly without bounce.
4. Re‑centering the movement in the case
Allowed the hammer to strike the gong squarely and consistently.
5. Fine‑adjusting hammer‑to‑gong clearance
Set the hammer to rest just off the gong for maximum resonance.
Troubleshooting Flowcharts
If the hammer feels loose
Collet loose → Pivot hole worn → Arbor bent → Mounting screws loose
If the strike is weak
Hammer misaligned → Spring weak → Arbor wobble → Movement shifted
If the hammer bounces
Spring weak → Excess play → Off‑center strike → Gong vibration
If the tone is dull
Hammer touching gong → Off‑center strike → Loose rod block → Case resonance issues
If strike timing drifts
Hammer lift inconsistent → Lever drag → Arbor wobble → Movement misalignment
Common Mistakes to Avoid
Over‑tightening the hammer arm
Can distort the arbor or bind the hammer.
Ignoring pivot wear
Loose pivot holes must be bushed for long‑term reliability.
Setting the hammer too close
Resting on the gong kills resonance.
Using the wrong spring tension
Too strong causes harsh strikes; too weak causes bounce.
Skipping movement alignment
Even a perfect hammer assembly won’t work if the movement is off‑center.
Checklist for Final Verification
• Hammer arbor tight and true
• Pivot holes round and properly bushed
• Hammer arm secure
• Return spring correctly tensioned
• Movement centered in case
• Hammer strikes gong cleanly and consistently
FAQs
Why was the hammer assembly loose?
Pivot wear and a loose hammer‑arm collet were the primary causes.
Does pivot wear affect strike strength?
Yes—wobble reduces impact force and consistency.
Can a Vienna regulator run with a loose hammer?
It may run, but the strike will be weak, inconsistent, or fail entirely.
Do Vienna regulators commonly need bushing work?
Yes—many antique movements show pivot wear after decades of use.
Will re‑centering the movement help?
Absolutely—proper alignment ensures clean hammer‑to‑gong contact.
