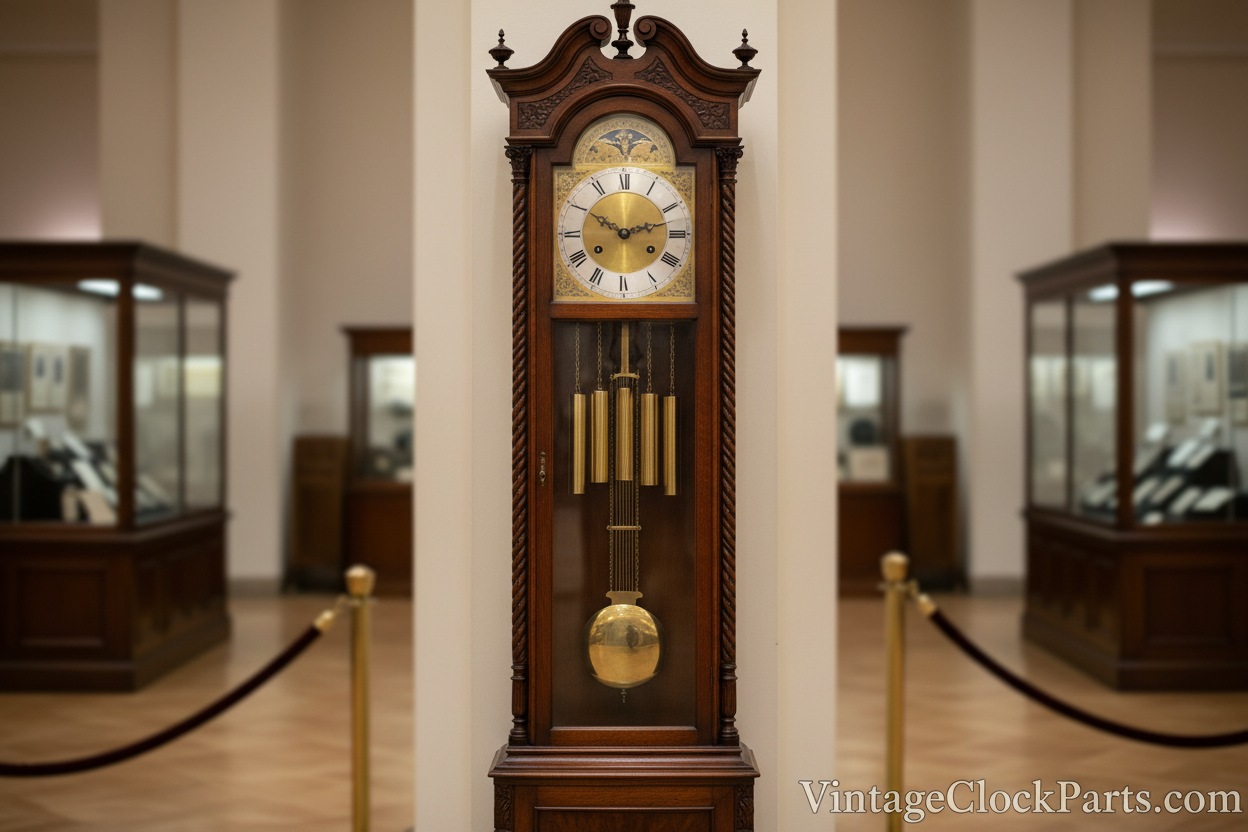

This article focuses on diagnosing and correcting common operational problems found in Urgos tube chime grandfather clock movements, especially those involving pin barrels, bevel gear drives, and cable systems.
These movements are powerful but unforgiving. Even minor wear, incorrect clearances, or improper lubrication can prevent reliable chiming. Understanding how each subsystem interacts is essential before attempting adjustments.
A common point of confusion is the pin barrel assembly. On many Urgos tube movements, the pin barrel is not rigidly fixed to its arbor. Instead, it slides laterally to allow melody selection while being driven rotationally by a locating pin or collet. If this interface is worn, binding, or incorrectly aligned, the chime train may stall entirely.
When troubleshooting a non-functioning chime train, it is often best to remove the hammer rack and pin barrel assembly first. This allows you to confirm whether the chime drive can run freely under load. If the weight drops without resistance, or the barrel refuses to rotate, the issue lies upstream in the bevel gear drive.
The three-bevel gear arrangement used on Urgos tube movements demands precise alignment. Any measurable side play at the center bevel gear shaft can cause intermittent binding, jumping, or total loss of drive. These movements will not tolerate looseness; proper bushing work is frequently required to restore stability.
Lubrication must be applied thoughtfully. Bevel gear faces experience high load and benefit from a small amount of grease that will remain in place. In contrast, arbors and components that rotate continuously should receive only oil. Excess lubricant, especially dried oil residue inside gear teeth, can accelerate wear and increase resistance.
Cable issues also surface frequently. Earlier Urgos movements commonly used 0.8 mm cables, while later replacements may use 1.0 mm cable. Installing oversized cable can cause overlapping on the drum, interfere with ratchet wheels, and introduce erratic power delivery. Cable length and diameter must match the original specification to avoid compounding mechanical problems.
Before final assembly, always verify smooth operation with the hammers disconnected. Once the train runs consistently, reconnect the hammers and adjust lift depth gradually. Excessive hammer force can overload the chime train and mask underlying friction problems.
Urgos tube chime movements reward careful, methodical work. When properly aligned, bushed, and lubricated, they can deliver powerful and reliable performance. When shortcuts are taken, they quickly become one of the most challenging modern movements to keep running.
Frequently Asked Questions
Why does the pin barrel slide side to side?
The lateral movement allows melody selection while a locating pin ensures the barrel rotates with the arbor.
Should bevel gears be greased or oiled?
Grease is appropriate for bevel gear faces due to high load; rotating pivots should be oiled only.
What causes the chime train to stall after reassembly?
Common causes include incorrect bevel gear clearance, worn bushings, or excess hammer load.
Can incorrect cable size affect chiming?
Yes. Oversized or incorrect cables can overlap on drums and interfere with proper power delivery.
