Introduction

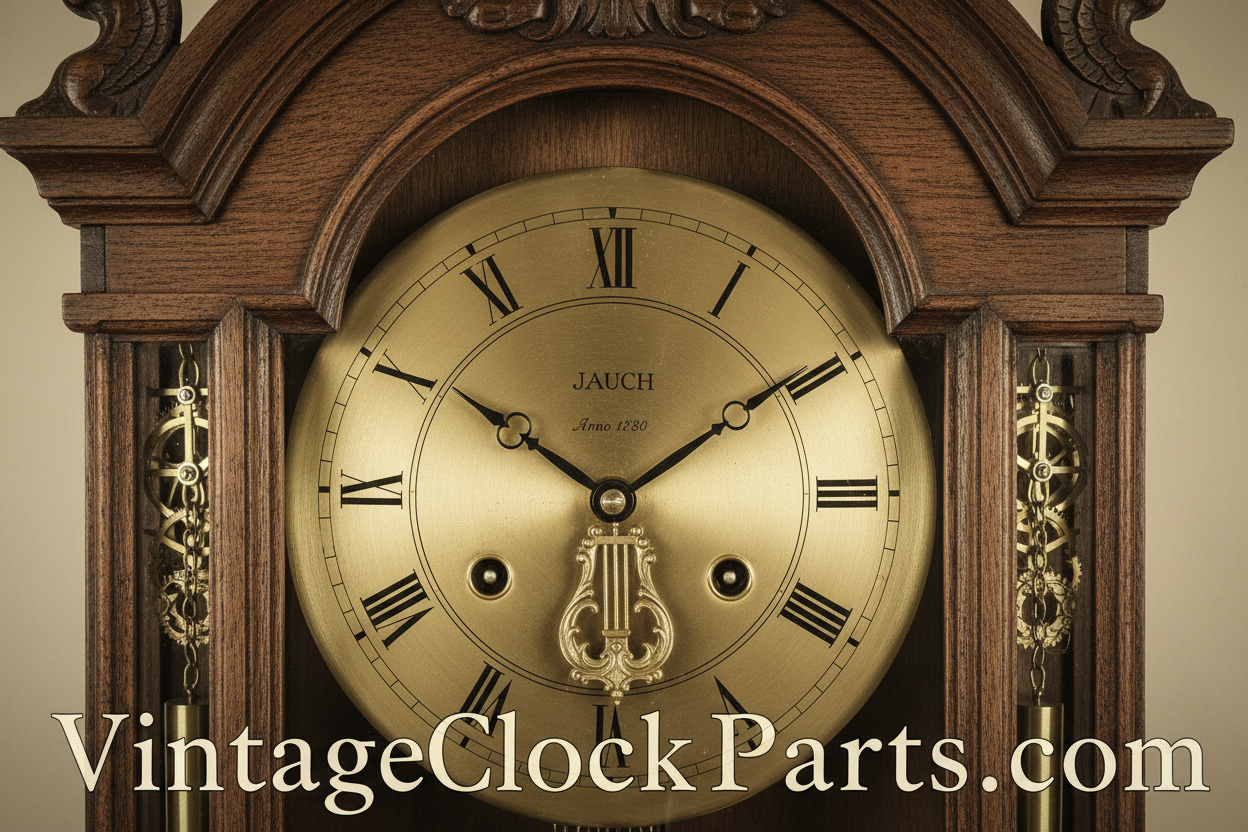

Jauch clock movements were widely used in mid‑century German mantel and wall clocks. While reliable when new, many Jauch movements now suffer from wear, power loss, and strike‑train issues due to age, dried oil, and weakened components. This guide explains how to diagnose and correct the most common problems found in Jauch clock movements, including power issues, strike malfunctions, and pivot wear.
Understanding the Jauch Movement
German construction
Jauch movements use thin plates and lightweight components, making them sensitive to wear and pivot friction.
Time, strike, and chime trains
Each train must run freely. Wear in any train affects overall performance.
Pendulum suspension
A bent or twisted suspension spring affects beat and exposes power issues.
Hammer and strike system
Hammers must lift smoothly and fall freely. Excessive lift causes power loss.
Common wear points
Pivots, escape wheel teeth, and strike‑train bushings often show significant wear in older Jauch movements.
Common Problems in Jauch Movements
Clock runs briefly then stops
Usually caused by pivot wear, dried oil, or weak mainsprings.
Strike train fails to start
Often due to worn bushings, misaligned levers, or excessive hammer lift.
Chime or strike out of sequence
Improper synchronization or bent lifting levers can cause timing issues.
Weak pendulum swing
Indicates power loss in the time train, often from worn pivots or dirty bushings.
Escapement flutter or skipping
Bent escape wheel teeth or poor lock and drop cause erratic timekeeping.
Diagnosing the Issue
Check pivot wear
Oval pivot holes or rough pivots reduce power and cause hesitation in all trains.
Inspect the escape wheel
Look for bent teeth, improper lock, or uneven drop.
Test the strike train by hand
With the movement let down, gently advance the strike train to feel for binding.
Evaluate hammer lift
Excessive lift increases load and can stall the strike train.
Check mainspring condition
Weak or set mainsprings reduce power and cause intermittent running.
Correcting the Problem
Rebush worn pivot holes
Properly centered bushings restore depthing and improve power transmission.
Straighten escape wheel teeth
Use magnification and gentle pressure to correct bent teeth.
Clean and polish pivots
Dirty or rough pivots dramatically reduce power. Clean and polish for smooth operation.
Adjust hammer lift
Reduce lift to the minimum needed for a clean strike.
Service or replace mainsprings
Old mainsprings may need replacement or cleaning and lubrication.
Troubleshooting Flowcharts
If the clock stops randomly
Check pivots → Check bushings → Check mainsprings → Check escapement → Clean movement
If the strike train won’t start
Check hammer lift → Check levers → Check pivots → Check bushings
If the chime or strike is out of sequence
Check synchronization → Check lifting levers → Check drum pins
If the escapement flutters
Check escape wheel → Check lock → Check drop → Check pivot wear
If the pendulum swing is weak
Check power → Check pivots → Check mainsprings → Check depthing
Common Mistakes to Avoid
Oiling worn bushings
Oil cannot compensate for wear. Bushings must be replaced.
Over‑lifting the hammers
Too much lift dramatically increases load on the strike train.
Ignoring pivot polishing
Dirty or rough pivots are a major cause of power loss.
Forcing the strike train
Forcing can bend pins or damage the count or chime components.
Skipping mainspring service
Weak mainsprings cause inconsistent running and poor power delivery.
Checklist for Final Verification
• Pivots polished and clean
• Bushings properly centered
• Escape wheel teeth straight
• Hammer lift correctly adjusted
• Mainsprings serviced
• Strike and chime synchronized
• Movement runs reliably through full cycle
FAQs
Why does my Jauch clock stop after a few minutes?
Usually due to pivot wear, dried oil, or weak mainsprings.
Why won’t the strike train start?
Often caused by excessive hammer lift or worn bushings.
Can worn bushings stop a Jauch movement?
Yes. Oval pivot holes are a major cause of power loss.
Should I oil the movement heavily?
No. Oil pivots lightly only. Over‑oiling attracts dirt.
Why is the escapement fluttering?
Often due to bent escape wheel teeth or poor lock and drop.
