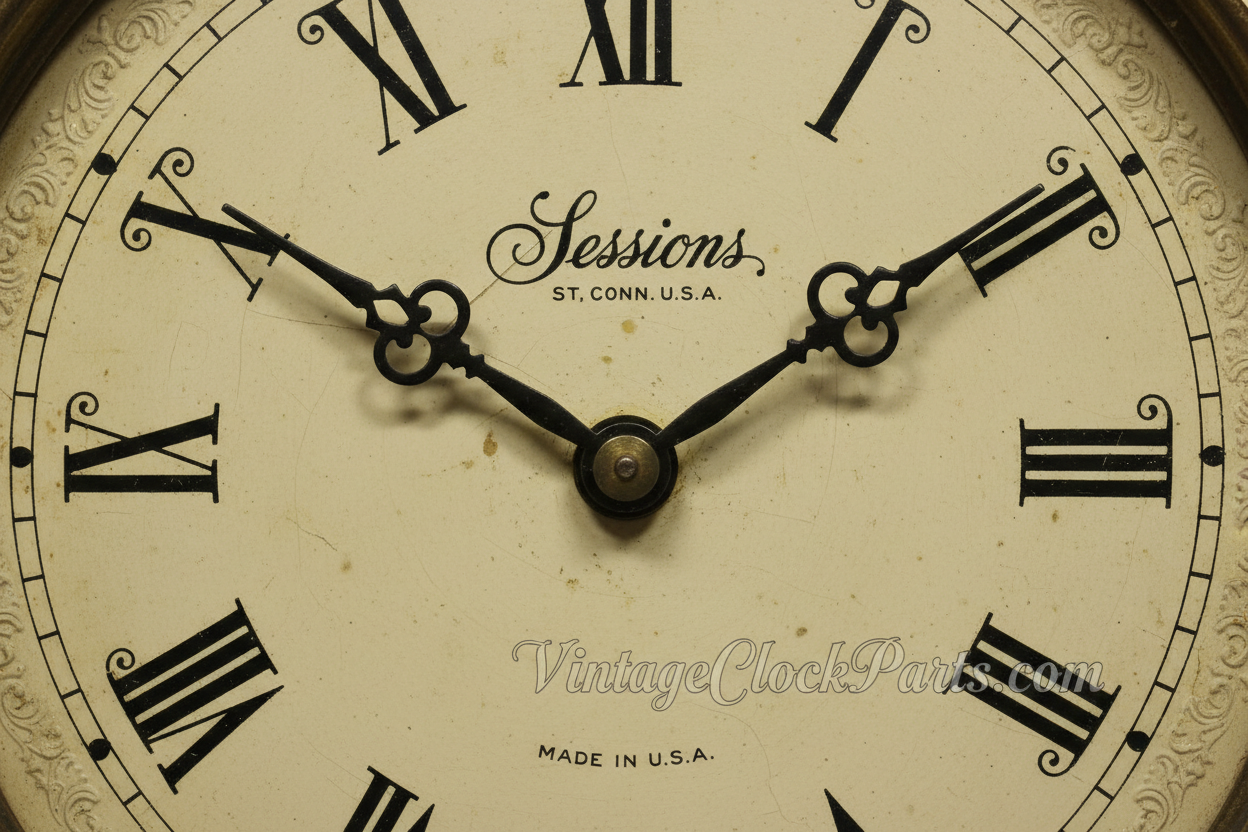

Straightening Bent Brass Clock Dials

This article focuses on straightening bent brass clock dials resulting from drops or impacts achieving acceptable flatness for remounting while minimizing paint or engraving damage, covering understanding that brass dials are relatively soft and pliable material responding to careful manipulation with proper technique preventing further damage, critical preliminary step removing dial feet (pillars screwed from front or soldered from back) before attempting straightening since leaving feet attached risks breaking mounting points or creating stress concentrations during bending process, proper straightening technique using padded surface (folded towel on concrete floor or workbench) protecting dial face from scratches while applying controlled pressure through wide distribution board (2x4 or 4x4 lumber) spreading force across bend area preventing localized marking or dimpling, progressive approach starting with hand pressure assessing pliability and required force then advancing to clamping method (two 2x4s clamped over good area with fold at edge, additional 2x4s over bent section, gentle downward pressure on bent portion) allowing controlled gradual correction, realistic expectations accepting slight ripple or kink remaining after straightening as historical character rather than pursuing perfect flatness risking paint cracking number damage or metal fatigue, and addressing engraved versus painted dials differently since engraved numbers tolerate more aggressive straightening (wax filling replaceable if lost) while painted surfaces crack easily requiring extra caution and potential touch-up by professional dial painter if damage occurs during straightening process.

Understanding brass dial characteristics

Material properties affecting repair

Brass dial composition and behavior: Brass is copper-zinc alloy relatively soft compared to steel or iron, dials typically use brass formulation optimized for engraving and forming not structural strength, and material yields under modest pressure allowing straightening without specialized equipment. Age-related changes: antique brass work-hardens over decades from thermal cycling and vibration, work-hardened brass is stiffer than new brass but still pliable with proper technique, and centuries-old dials sometimes show brittleness requiring extra caution during manipulation. Thickness variations: dial thickness ranges from thin sheet brass (0.5-1.0mm) to substantial plate (2-3mm), thicker dials require more force but resist rippling better than thin dials, and assessing thickness guides force application preventing over-stressing thin dials or under-correcting thick ones. Painted versus engraved surface considerations: painted dials have fragile paint layer prone to cracking during bending, engraved dials are more forgiving since numbers are cut into metal surface, wax or paint filling engraved numbers is replaceable if lost during straightening, and painted surfaces require extra protection and conservative approach accepting less-than-perfect results to preserve decoration.

Common damage patterns from drops

Typical bend configurations: horizontal crease across dial where mounting feet attach to movement (common failure point during face-first drops), diagonal bend from corner impact creating twist in dial plane, and center depression from direct impact with pointed object. Bend severity assessment: slight bend (visible but dial still mostly planar) straightens easily with hand pressure, moderate bend (pronounced crease dial no longer flat) requires padded pressure or clamping, severe bend (dial folded or multiple creases) may not fully straighten requiring acceptance of residual distortion. Associated damage: dial feet bent or broken requiring repair before remounting, paint cracking along bend line needing touch-up, and movement plate damage if drop transmitted force through dial feet into plate holes. Structural integrity: single smooth bend preserves dial integrity better than multiple sharp creases, work-hardening along bend line may create weak spot prone to re-bending, and excessive straightening attempts risk metal fatigue causing eventual crack at bend location.

Engraved versus painted dial differences

Engraved dial characteristics: numbers and markings cut into brass surface creating recessed channels, channels filled with black wax or paint providing contrast, and metal substrate intact regardless of filling condition. Straightening advantages: engraved surface tolerates aggressive manipulation, lost wax filling easily replaced by melting new wax into channels, paint touch-up simple using black enamel or acrylic paint, and engraving itself undamaged by bending since cut into metal. Painted dial characteristics: numbers and decorations applied as surface layer on brass substrate, paint may be oil-based enamel (durable but inflexible) or more fragile medium, and paint bond to brass fails under stress creating cracks or flaking. Straightening challenges: bending causes paint to crack along stress lines, cracked paint may lift or flake during handling, touch-up requires matching original paint color and finish, and severely damaged paint may require complete dial refinishing by specialist. Decision making: engraved dials allow more aggressive straightening attempts, painted dials require conservative approach accepting residual bend to preserve decoration, and economic value determines whether professional dial restoration justifies expense versus accepting imperfect straightening result.

Preparation and safety considerations

Removing dial feet before straightening

Critical preliminary step prevents damage: Dial feet types—threaded pillars screwing into dial from front (visible screw heads on dial face), or feet soldered to dial back (no front-side fasteners). Screw-type removal: turn screws counterclockwise using proper-fitting screwdriver, soft brass threads strip easily if wrong screwdriver size used, apply penetrating oil if screws seized from decades of corrosion, and support dial preventing flexing while removing screws. Soldered feet considerations: unsolder requires heat risking paint damage, evaluate whether straightening with feet attached is acceptable alternative, and feet attachment points concentrate stress potentially breaking solder joints during bending anyway. Why removal matters: feet act as levers during bending creating stress concentration at attachment points, attached feet risk breaking off or pulling through dial during straightening, and removing feet allows even pressure distribution across entire bent area. Post-straightening reinstallation: threaded feet reattach easily after straightening, broken or damaged feet require repair or replacement, and ensuring feet align properly with movement mounting holes confirms straightening was adequate.

Protecting dial surface during work

Surface protection strategy: Work surface preparation—clean level concrete floor ideal providing solid support without give, workbench acceptable if sufficiently rigid preventing bounce during pressure application, and avoid soft or uneven surfaces allowing dial to flex rather than straighten. Padding selection: folded bath towel provides adequate cushioning for painted dial faces, hand towel offers protection for engraved dials needing less cushioning, multiple towel layers if dial has raised decorations or applied numerals, and avoid textured fabrics potentially imprinting pattern into soft brass. Tool padding: place additional towel between 2x4 and dial back preventing wood grain impression, smooth plywood sheet between clamp and dial distributes pressure evenly, and drill holes in plywood allowing clearance for dial feet if straightening without removing feet. Handling precautions: support dial edges not just center preventing additional bending, avoid gripping dial face where fingerprints or oils damage paint, and work in clean environment minimizing grit or debris potentially scratching surface during manipulation.

Hand straightening technique

Initial assessment and gentle approach

Starting with minimal intervention: Hand pressure test—place dial face-down on padded surface, apply gentle downward pressure on bent area with palms, and observe whether brass yields or remains rigid. Force assessment: soft pliable response indicates straightening will be easy, stiff resistance suggests more aggressive approach needed, and springback (brass returning partway to bent position when pressure released) indicates need for over-correction. Progressive technique: start with light pressure gradually increasing, pause frequently assessing progress, and avoid sudden forceful pushing causing unpredictable results. Bend direction consideration: push opposite direction of bend (if dial bent upward push downward), work from bend edges toward center gradually reducing curvature, and multiple gentle cycles better than single aggressive attempt. Monitoring for problems: watch for paint cracking along bend line, listen for any popping or cracking sounds indicating metal fatigue or paint separation, and stop immediately if resistance suddenly increases suggesting imminent crack formation.

Using board for pressure distribution

Wide-surface pressure application: Board selection—2x4 lumber (1.5" x 3.5" actual dimensions) provides adequate width for most dials, 4x4 timber for large dials needing wider pressure distribution, and board length should span entire bent area plus 2-3 inches each side. Positioning technique: lay board across bent area perpendicular to bend line, center board ensuring even contact across full bend, and verify board doesn't rock indicating uneven dial surface. Pressure application: start with body weight leaning gently on board, increase pressure gradually watching dial response, and maintain steady pressure 10-15 seconds allowing brass to yield rather than springing back. Multiple passes: first pass achieves partial correction, subsequent passes progressively flatten remaining distortion, and diminishing returns indicate approaching practical limit of hand-straightening technique. Avoiding over-correction: stop when dial is reasonably flat not pursuing perfection, slight residual bend acceptable if dial mounts properly to movement, and excessive working risks paint damage or metal fatigue outweighing cosmetic improvement.

Clamping method for stubborn bends

Setting up controlled clamping

Clamping configuration for precise control: First clamp set—position two 2x4s clamping flat portion of dial on either side of bend, place fold line (transition from flat to bent) at edge of lower 2x4, upper 2x4 extends just past fold line into bent area, and secure with bar clamps or C-clamps providing firm but not crushing pressure. Second clamp set—position two more 2x4s over bent section of dial, these boards will receive downward pressure for straightening, and padding between boards and dial prevents marking. Workbench mounting: clamp first set of 2x4s (holding flat dial area) to solid workbench edge, orient assembly so bent portion extends upward from bench allowing downward pressure application, and ensure secure attachment preventing movement during straightening. Pressure application: push downward on upper 2x4 set with steady controlled force, observe dial bending toward flat through gap between board sets, and increase pressure gradually until dial reaches desired flatness. Safety considerations: excessive clamping pressure cracks brittle paint or crushes thin brass, inadequate pressure fails to straighten requiring repositioning, and balance between effective straightening and avoiding new damage.

Progressive correction approach

Incremental straightening prevents overshooting: Initial correction—straighten 50-60% of bend on first attempt, release clamps and assess result, and dial will spring back slightly from clamped position. Repositioning clamps—move clamping point closer to remaining bend area, repeat clamping and pressure process, and address diminishing curvature through multiple cycles. When to stop: dial reasonably flat (within 2-3mm across surface), mounting holes align properly with movement pillars, and pursuing perfect flatness risks cracking paint or fatiguing brass. Residual distortion acceptance: slight ripple or wave across dial surface is cosmetic imperfection, does not affect clock function if dial mounts securely, and represents honest repair preserving historical character. Over-correction risks: pushing brass past flat creates opposite bend requiring reverse correction, repeated bending work-hardens brass increasing brittleness, and eventual result may be worse than accepting initial less-than-perfect straightening.

Dealing with multiple bends or complex distortion

Compound damage requires strategic approach: Multiple bend lines—straighten primary bend first addressing most severe distortion, move to secondary bends working from worst to least significant, and accept that perfect correction of multiple bends may be impossible without professional equipment. Twisted dial (corners out of plane)—requires diagonal clamping or selective pressure at corners, more difficult to correct than simple horizontal or vertical bends, and professional dial flattening service may be justified for valuable clocks. Center depression—place dial face-up on rigid flat surface, use padded tool (rubber mallet, padded hammer, wooden block) tapping gently from back pushing depression outward, and work from depression edges toward center gradually raising low area. Local dimples or dents—small localized damage sometimes responds to careful hammer and dolly work, place steel block under dimple, tap gently from face side using padded punch or hardwood dowel, and this technique requires experience avoiding worsening damage through excessive force.

Finishing and remounting

Addressing paint damage from straightening

Repairing inevitable surface damage: Crack assessment—examine bent area under magnification identifying cracks in paint, determine whether cracks are through paint only or extend into brass substrate, and brass cracks are structural problems requiring professional repair while paint cracks are cosmetic. Paint stabilization—apply thin cyanoacrylate (super glue) to lifted or flaking paint edges preventing further loss, wick glue under loosened areas using fine applicator, and allow complete drying before proceeding. Touch-up for minor damage—match original paint color mixing black acrylic or enamel, apply with fine brush (000 or smaller) filling cracks and chips, and blend edges feathering new paint into old. When professional restoration needed—extensive paint loss across multiple numbers, damage to maker's name or decorative elements, and historical or valuable clock justifying specialist dial painter expense. Engraved dial wax replacement: melt black wax (beeswax with lamp black or commercial engraving wax), flow into engraved channels using heated tool, allow cooling then wipe excess from surface with soft cloth, and reapplication as needed maintains crisp black lettering.

Test fitting before final installation

Verification prevents rework: Dry fit to movement—position straightened dial over movement front plate, align dial feet holes with corresponding mounting points, and observe whether dial sits flat without rocking or gaps. Clearance checking—verify dial doesn't contact any motion work components, ensure minute hand clears dial surface throughout rotation, and confirm hour hand arbor passes through dial center hole without binding. Foot alignment—if feet slightly misaligned from straightening consider elongating mounting holes marginally (file or ream carefully), severe misalignment requires additional straightening or foot repositioning, and forcing misaligned dial onto movement risks re-bending or breaking feet. Flatness assessment: place straightedge across dial surface checking for high or low spots, minor irregularities acceptable if dial mounts securely, and severe residual bend visible to eye may warrant additional straightening attempt. Final decision point: dial good enough for intended use (running clock versus museum restoration), cost-benefit of additional work versus accepting current condition, and whether clock's historical or monetary value justifies professional dial restoration.

FAQs

How do I straighten bent brass clock dial from dropped clock?

Remove dial feet (unscrew from front or evaluate if soldered from back can remain). Place dial face-down on folded towel on concrete floor or solid workbench. Apply gentle hand pressure on bent area assessing pliability. Use 2x4 board laid across bent area for pressure distribution—push down gradually watching progress. For stubborn bends clamp two 2x4s over flat dial area with fold at edge. Clamp to bench. Apply downward pressure on bent section using additional padded 2x4s. Work progressively straightening 50-60% per cycle. Accept slight residual ripple rather than risk paint cracking from excessive straightening.

Will straightening bent dial damage painted numbers?

Painted dials risk paint cracking during straightening—paint is inflexible surface layer that fractures under stress. Engraved dials tolerate more aggressive straightening since numbers cut into brass with replaceable wax filling. Minimize paint damage by using adequate padding, applying gradual pressure not sudden force, and accepting less-than-perfect flatness to preserve decoration. Engraved numbers—lost wax refills easily. Painted numbers—cracks may require touch-up by professional dial painter if extensive. Conservative approach better for painted dials. Slight residual bend preferable to destroyed decoration.

Should I remove dial feet before straightening?

Yes strongly recommended. Dial feet act as levers during bending concentrating stress at attachment points. Attached feet risk breaking off or pulling through dial during straightening. Removal allows even pressure distribution across entire bent area. Screw-type feet unthread from front using proper screwdriver—avoid stripping soft brass threads. Soldered feet require heat for removal risking paint damage—evaluate if straightening with feet attached acceptable alternative. Removing feet is critical preliminary step preventing additional damage during repair process. Feet reinstall easily after straightening completed.

What tools do I need for straightening clock dial?

Minimal tools required: Folded bath towel (padding for dial face), concrete floor or solid workbench (rigid work surface), 2x4 or 4x4 lumber boards (pressure distribution), bar clamps or C-clamps if using clamping method, and screwdriver for removing dial feet. Optional: smooth plywood sheet with holes for dial feet clearance, additional hand towels for extra padding, rubber mallet for tapping out depressions. No specialized metalworking equipment needed. Most repairs accomplish with hand pressure or board-distributed pressure. Clamping provides control for stubborn bends. Professional dial flattening equipment unnecessary for typical repairs.

Can I completely flatten severely bent dial?

Depends on damage severity. Single smooth bend straightens well with careful technique achieving near-flat result. Multiple sharp creases difficult straightening completely—accept slight residual rippling. Twisted dials (corners out of plane) resist simple straightening requiring diagonal correction. Center depressions need different approach—tapping from back with padded tools. Realistic expectation: reasonably flat dial mounting properly to movement achievable. Perfect museum-quality flatness may require professional dial restoration service with specialized equipment. Slight ripple or kink remaining after straightening represents honest repair preserving historical character. Pursuing perfection risks paint damage or metal fatigue. Accept good-enough result for functional clock.

How much pressure can brass dial take without cracking?

Brass is ductile material yielding under pressure rather than cracking. Paint layer cracks before brass does—paint is brittle surface coating. Metal cracking rare unless brass work-hardened from age or previous damage created weak spot. Start with gentle hand pressure assessing material response. Gradual pressure safer than sudden force—allows brass to yield rather than shocking into crack. If dial resists straightening after moderate pressure stop—excessive force risks creating new damage. Professional assessment warranted for valuable or historically significant dials. Century-old brass sometimes brittle requiring extra caution. Test with minimal pressure first increasing gradually based on material response.

What if dial won't stay flat after straightening?

Springback is normal—brass returns partially toward bent position when pressure released. Over-correct slightly anticipating springback—straighten dial slightly past flat. Multiple straightening cycles progressively reduce springback. Clamp dial flat while cooling if heated during straightening. Persistent springback indicates work-hardening along bend line creating memory. Solutions: additional straightening cycles gradually overcome memory, light annealing (heating then slow cooling) relieves stresses but risks paint damage, or accept residual bend if dial mounts adequately. Remounting to movement often constrains dial preventing return to bent position. Functional mounting more important than free-standing flatness. Slight residual curve acceptable if clock operates properly.
