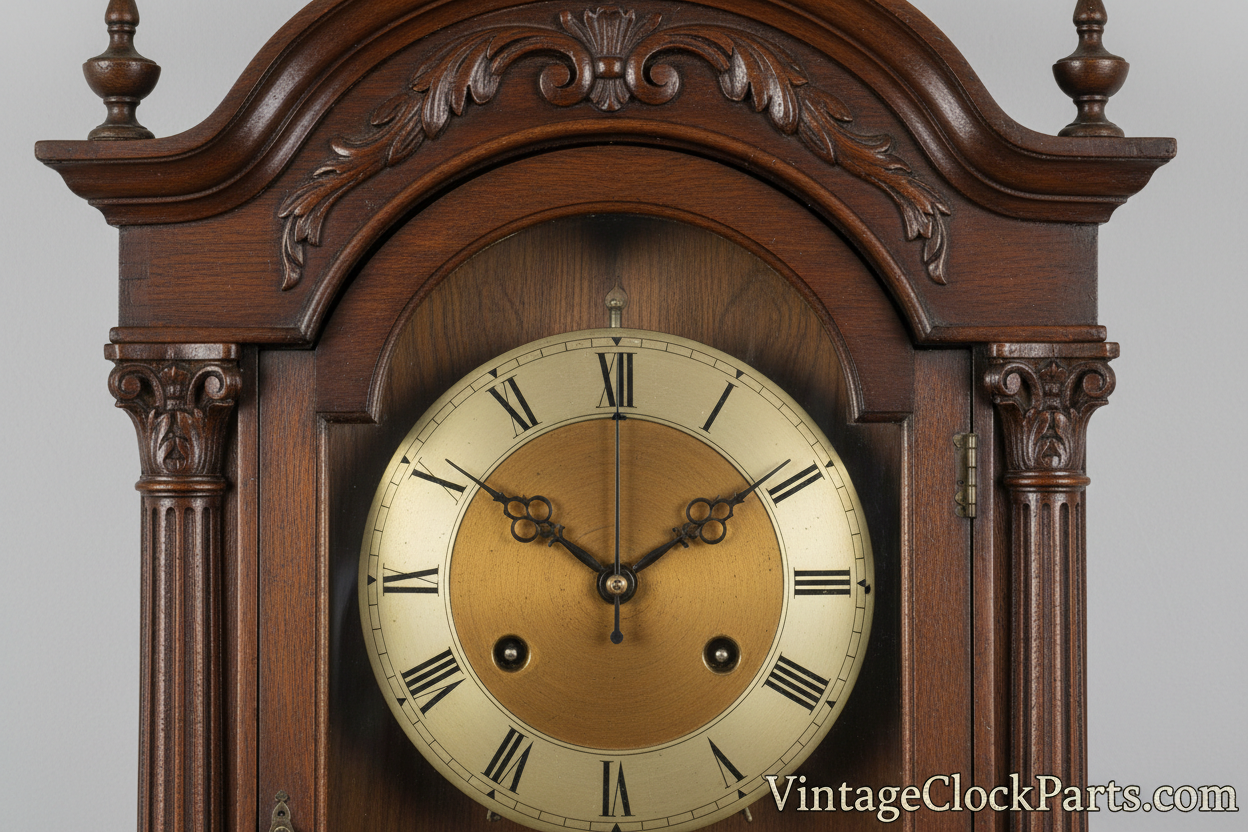

Stabilizing Wood Movement in Veneered Clock Case Panels

This article focuses on stabilizing wood movement in veneered clock case panels showing warping and veneer loss, covering drying disassembled panels to equal moisture content around 8% using moisture meter monitoring, sealing interior raw wood surfaces with flat varnish preventing future moisture absorption, understanding that proper construction requires veneering both sides of substrate preventing differential movement, recognizing that dissimilar woods (pine substrate with walnut veneer) expand and contract at different rates creating stress, and accepting that simple joinery with hide glue and square nails provides minimal resistance to wood movement requiring environmental control for long-term stability.

Understanding veneered panel problems

Why single-sided veneer creates warping

Proper veneered panel construction requires veneer on both sides of substrate creating balanced construction. When only one side is veneered (common in period furniture and clock case construction), unbalanced panel results. Veneered face remains relatively stable; unsealed back face responds dramatically to humidity changes swelling and shrinking. This differential movement warps panel as back expands or contracts while veneered face resists. The problem intensifies with wide panels (tall case fronts, large drawer bottoms) where even slight humidity-driven expansion creates visible bow.

Dissimilar wood complications

Period case construction often used inexpensive softwood (pine) as substrate with exotic hardwood veneer (walnut, mahogany) on visible surfaces. Different species expand and contract at different rates. Pine substrate responds more dramatically to humidity than dense walnut or mahogany veneer. This mismatch amplifies warping tendency—substrate wants to move significantly while veneer resists creating internal stress. Eventually, something gives—either panel warps severely or veneer debonds. The fundamental construction method is problematic by modern standards though it was standard period practice.

Environmental factors and storage

Clocks stored in damp basements or uncontrolled environments experience extreme humidity fluctuations. High humidity causes wood to swell; low humidity causes shrinkage. Unsealed interior substrate surfaces absorb and release moisture freely while veneered exterior resists. Decades of cycling between wet and dry conditions progressively worsen warping and loosen glue joints. Additionally, wet conditions weaken hide glue causing joint failure. The combination—warped panels plus failed joints—creates structural collapse. Proper environment (stable moderate humidity) prevents problems; poor environment guarantees deterioration.

Assessing and disassembling damaged cases

Identifying moisture-related damage

Warped panels show obvious visual bow—sighting along panel edge reveals curvature. Loose veneer indicates differential movement—substrate moved while veneer stayed put causing debonding. Failed glue joints (case sides separating, back panel loose) suggest moisture cycling weakening hide glue. Check for musty odor indicating prolonged dampness. These symptoms collectively point to moisture problems requiring intervention before reassembly. Attempting to reassemble without addressing underlying moisture and stability issues guarantees repeated failure.

Strategic disassembly

Disassemble case carefully removing back panel, separating loose joints, and isolating damaged panels. This allows complete drying and treatment of all surfaces before reassembly. Document original construction photographically noting joint types, nail placement, and assembly sequence. Save all original nails and hardware for reuse maintaining authenticity. The disassembly, while seemingly drastic, provides only opportunity to properly address moisture problems—attempting repairs with case assembled leaves interior surfaces inaccessible preventing effective treatment.

Moisture meter monitoring

Use moisture meter measuring wood moisture content throughout drying process. Period furniture and clocks equilibrate around 6-8% moisture in heated homes; 10-12% in unheated controlled spaces. Target 8% as reasonable goal for most situations. Check multiple locations on each panel—thick sections dry slower than thin edges. All parts must reach similar moisture content before reassembly. Rushing reassembly before complete equilibration wastes effort—panels will warp again as drying continues. Patience during acclimation period (weeks to months) ensures stable reassembly.

Sealing interior surfaces

Why sealing prevents future problems

Unsealed wood absorbs and releases moisture freely responding to environmental humidity changes. Sealing interior surfaces with finish creates vapor barrier reducing moisture exchange. While not completely preventing movement, sealing dramatically slows response to humidity fluctuations. Panel experiencing rapid humidity change (moving from damp basement to dry heated room) would warp severely if unsealed; sealed panel changes slowly allowing gradual equilibration without catastrophic warping. The sealing doesn't fix existing damage but prevents recurrence after proper drying and flattening.

Finish selection for interior sealing

Flat (matte) varnish or shellac works excellently for interior sealing. Flat sheen is invisible under normal circumstances—interior surfaces aren't scrutinized so gloss level doesn't matter. Oil-based spar varnish provides excellent moisture barrier though longer drying time. Water-based polyurethane dries faster but provides slightly less moisture protection. Shellac (multiple coats) also works though less moisture-resistant than varnish. Apply multiple thin coats (2-3 minimum) ensuring complete coverage especially in rough-planed areas. The goal is functional moisture barrier not aesthetic finish.

Application technique

Brush finish liberally over all interior surfaces including edges, corners, and rough areas. Don't worry about drips or brush marks—functionality matters, appearance doesn't. Let each coat dry completely before next application. Build finish thickness gradually—multiple thin coats provide better moisture barrier than single heavy coat. After final coat dries, test with moisture meter confirming that finished surface doesn't absorb moisture when exposed to damp conditions. Successful seal shows minimal moisture content increase after several days exposure to high humidity.

Flattening warped panels

Moisture content equalization first

Never attempt flattening until panel reaches target moisture content (8% typically). Flattening wet panel wastes effort—it will warp again as drying continues. Additionally, clamping pressure damages wet wood more easily than properly dried wood. Only after complete drying and sealing should flattening begin. This patience testing discipline but attempting shortcuts produces poor results. Proper sequence: thorough drying, interior sealing, moisture content verification, then flattening.

Clamping and caul technique

Place warped panel between rigid straight cauls (thick plywood, MDF, or hardwood planks). Apply clamps progressively from center outward forcing panel flat. Use multiple clamps spacing 6-8 inches apart for even pressure. Don't over-tighten crushing wood—firm pressure suffices. Let panel remain clamped minimum several days (week is better) allowing wood fibers to "set" in flat position. For severely warped panels, progressive clamping works better—flatten partially, let rest, flatten more, creating gradual correction rather than forcing immediate flatness risking wood damage.

When flattening isn't sufficient

Extremely warped panels may not flatten completely with clamping alone. Options include: planing panel thinner removing most distorted material (loses thickness but gains flatness), applying cleat or batten to back side providing structural reinforcement, or replacing panel entirely with properly constructed balanced substrate. For historically significant pieces, accept some warpage rather than aggressive intervention destroying originality. For common clocks, practical repairs (planing, cleats, replacement) may be appropriate. Honest assessment of clock's value guides restoration approach.

Reassembly with period-appropriate methods

Hide glue for authentic joints

Reassemble case using hot hide glue maintaining period authenticity. Hide glue advantages: bonds to old hide glue without complete cleaning, remains reversible for future conservation, provides appropriate strength for furniture joints. Mix fresh hide glue (192-gram strength typical) heating to 140°F working temperature. Apply to cleaned joint surfaces, clamp firmly, let cure 24+ hours. The hide glue recreates original construction methods respecting clock's historical character. For structural reinforcement where original simple joints proved inadequate, discrete internal blocking provides strength without visible alteration.

Reusing original hardware

Salvage and reuse all original square nails maintaining authenticity. Period clocks used hand-forged square-cut nails—replacing with modern wire nails creates obvious non-original appearance. Clean rust from original nails with wire brush. For nails too corroded to reuse, source period-appropriate square-cut nails from specialty suppliers (Tremont Nail Company, Horton Brasses). Drive nails carefully avoiding splits—pre-drill pilot holes slightly smaller than nail diameter. The attention to authentic hardware details preserves clock's integrity even when significant structural work was necessary.

Long-term stability and maintenance

Environmental control recommendations

After restoration, maintain stable environment preventing recurrence. Target 40-50% relative humidity year-round—neither too dry (causing shrinkage and checking) nor too damp (causing swelling and mold). Use dehumidifier in damp basements; humidifier in very dry heated spaces. Avoid placing clock near heat sources (radiators, fireplaces, sunny windows) creating localized dry zones. Avoid damp locations (basements without dehumidification, bathrooms). Stable moderate environment preserves restoration work indefinitely; poor environment destroys finest restoration within years.

Monitoring for problems

Inspect clock periodically checking for warping recurrence, veneer loosening, or joint separation. Catching problems early allows simple intervention; ignoring until major failure requires complete re-restoration. Use moisture meter annually checking case panels confirming moisture content remains appropriate. Dramatic changes indicate environmental problems requiring correction. This vigilant monitoring, combined with good environment, ensures restoration longevity. The investment in proper restoration deserves protection through adequate long-term care.

FAQs

Why do veneered clock case panels warp?

Single-sided veneer creates unbalanced construction. Veneered face remains stable while unsealed back responds to humidity changes swelling and shrinking. This differential movement warps panel. Additionally, dissimilar woods (pine substrate with walnut veneer) expand at different rates amplifying problem. Proper construction requires veneering both sides creating balanced panel.

How do I dry warped case panels properly?

Disassemble case isolating damaged panels. Place in stable controlled environment (heated home typically). Monitor with moisture meter until reaching target 8% moisture content. All parts must reach similar moisture before reassembly. This takes weeks to months depending on initial condition and thickness. Rushing reassembly before complete equilibration wastes effort.

What should I use to seal interior raw wood surfaces?

Flat (matte) varnish or shellac creates moisture barrier slowing humidity response. Apply 2-3 coats to all interior surfaces including edges and rough areas. Oil-based varnish provides excellent moisture protection. Water-based polyurethane dries faster but slightly less protective. The seal isn't visible under normal circumstances but dramatically improves long-term stability.

How do I flatten severely warped panels?

Only after complete drying to 8% moisture and interior sealing. Place panel between rigid straight cauls. Apply multiple clamps from center outward creating even pressure. Leave clamped minimum several days (week better). For extreme warpage, use progressive clamping—flatten partially, rest, flatten more. Some extremely warped panels may require planing, cleats, or replacement.

Should I veneer the back side of panels?

Proper construction requires veneering both sides preventing differential movement. However, adding back veneer to period piece deviates from original construction potentially affecting value. For historically significant clocks, seal interior instead maintaining originality. For common clocks where functionality outweighs authenticity concerns, adding back veneer creates truly stable panel.

What moisture content should I target?

Target 8% moisture content for reassembly in typical heated home. Period furniture and clocks equilibrate 6-8% in heated spaces; 10-12% in unheated controlled storage. All parts must reach similar moisture content before reassembly. Use moisture meter monitoring multiple locations—thick sections dry slower than thin edges.

How do I prevent problems from recurring?

Maintain stable 40-50% relative humidity year-round. Use dehumidifier in damp spaces; humidifier in very dry heated areas. Avoid placing clock near heat sources or in damp locations. After proper restoration with complete drying, interior sealing, and controlled reassembly, stable environment preserves work indefinitely. Poor environment destroys finest restoration within years.
