Introduction

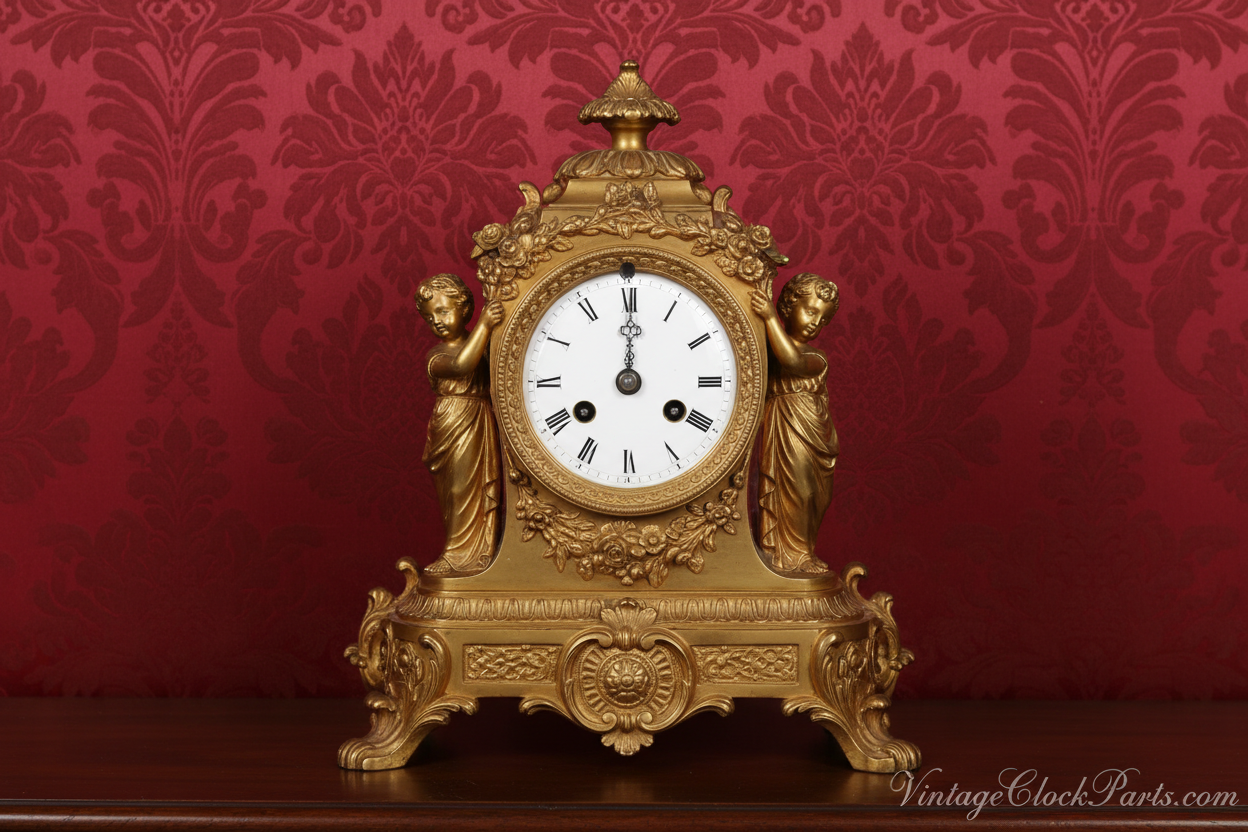

Antique French clocks with Brocot escapements require precise setup to run reliably. These movements are beautifully engineered but sensitive to pendulum length, beat alignment, and escapement geometry. This guide explains the essential steps for setting up a Brocot-equipped French clock, including how to align the escapement, adjust the pendulum, and avoid common mistakes.
Understanding the Brocot Escapement
Adjustable pallets
The Brocot escapement uses adjustable pallets accessible from the front, allowing fine control of lock and drop.
Suspension and pendulum interface
The suspension spring and pendulum must be aligned perfectly for proper beat and amplitude.
Front-mounted regulation
Many Brocot clocks allow rate adjustment through the dial using a small arbor.
High sensitivity
Even small errors in pallet position or pendulum length can cause fast running, stoppage, or erratic beat.
Precision engineering
These movements reward careful setup and penalize shortcuts.
Essential Steps for Setting Up a Brocot Clock
1. Verify suspension spring condition
A bent or twisted spring prevents proper beat and reduces amplitude.
2. Center the crutch on the pendulum rod
Side pressure from the crutch causes uneven beat and weak running.
3. Set the beat by adjusting the crutch
Move the crutch slightly left or right until the tick and tock are even.
4. Adjust pallet depth
Too deep causes flutter or stoppage; too shallow causes skipping or weak impulse.
5. Confirm pendulum length
Ensure the pendulum bob is fully seated and the suspension is the correct length.
Common Problems and Their Causes
Clock runs too fast
Pendulum too short → Bob not seated → Suspension too thick → Shallow pallet lock
Clock stops after a few minutes
Crutch off-center → Pallet depth incorrect → Suspension twisted → Low amplitude
Beat cannot be set
Crutch bent → Suspension misaligned → Pendulum rod rubbing
Escapement flutter
Lock too shallow → Excessive impulse → Weak pendulum swing
Erratic rate changes
Pendulum interference → Loose bob → Suspension fatigue
Fine Adjustment Techniques
Adjusting the pallets
Turn the pallet adjustment screws in tiny increments—small changes have large effects.
Regulating through the dial
Use the front arbor to raise or lower the pendulum bob for fine rate control.
Improving amplitude
Ensure the movement is level, the crutch is centered, and the suspension is straight.
Checking for pendulum interference
Ensure the pendulum swings freely without touching the case or movement.
Verifying lock and drop
Healthy lock and even drop ensure stable timekeeping and strong impulse.
Troubleshooting Flowcharts
If the clock runs fast
Pendulum short → Bob high → Suspension thick → Shallow lock
If the clock runs slow
Pendulum long → Bob low → Excess lock → Pendulum drag
If the beat is uneven
Crutch off-center → Suspension twisted → Movement not level
If the escapement skips
Pallets too shallow → Weak amplitude → Crutch friction
If the clock stops randomly
Suspension fatigue → Pallet misalignment → Pendulum interference
Common Mistakes to Avoid
Over-adjusting the pallets
Large adjustments cause instability—use tiny increments.
Ignoring suspension condition
A twisted or fatigued spring ruins beat and amplitude.
Assuming the pendulum length is correct
Many antique clocks have replacement parts that alter geometry.
Setting beat before fixing geometry
Beat cannot be set correctly if the crutch or suspension is misaligned.
Running the clock unlevel
Brocot escapements are extremely sensitive to leveling.
Checklist for Final Verification
• Crutch centered
• Suspension straight
• Pallet depth correct
• Pendulum length correct
• Beat even
• Amplitude strong
• Rate adjustable through dial
FAQs
Why are Brocot clocks hard to set up?
They are highly sensitive to pendulum geometry and pallet alignment.
Can pallet adjustments fix rate issues?
Only indirectly—pendulum length is the primary rate control.
Why does the clock stop after leveling?
Crutch or suspension misalignment often becomes more noticeable when leveled.
Do these clocks require specific suspension springs?
Yes—thickness and length affect both beat and rate.
Can Brocot escapements be made very accurate?
Yes—when properly set up, they keep excellent time.
