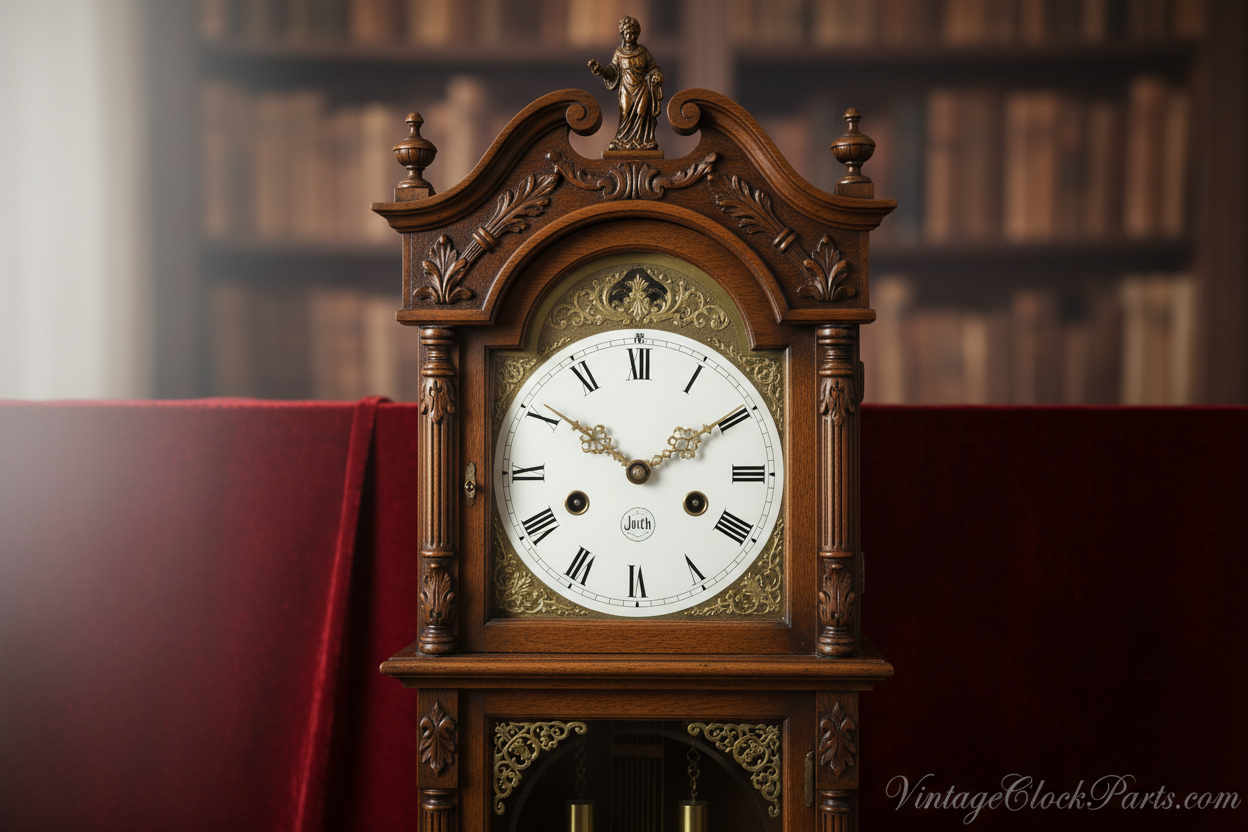

Setting the Beat on Jauch Grandfather Clock Movements

This article focuses on setting beat on Jauch grandfather clock movements (particularly model 77) achieving even tick preventing clock from stopping, covering understanding that Jauch movements use friction-fit crutch on verge arbor (brown plastic clutch visible on arbor allowing gross adjustment through finger pressure) combined with fine adjustment wheel at crutch bottom providing precise beat correction within limited range, critical pendulum leader seating requirement ensuring wire loop at leader top properly rests on crutch with folded-over tabs seated correctly (not riding too high) preventing instability in effective length and beat characteristics, proper adjustment sequence beginning with clock level both side-to-side and front-to-back then centering fine adjuster wheel followed by pushing crutch sideways overcoming friction fit until resistance gives way repositioning crutch relative to verge for gross correction, fine-tuning technique using adjustment wheel at crutch bottom after gross positioning achieved targeting even metronome-like tick audible by ear or measured using beat timer app (ClockMaster similar) aiming for minimal beat error typically under 10 milliseconds, and troubleshooting weak pendulum impulse through systematic diagnosis checking for worn pivot holes causing excessive friction (second wheel particularly prone requiring bushing), verifying proper pallet depth and escapement wheel freedom, and recognizing that movements unused for decades may require extended running period allowing fresh oil to distribute and cleaning pallet faces before achieving strong consistent impulse driving pendulum reliably.

Understanding Jauch beat adjustment mechanisms

Friction-fit crutch for gross adjustment

Jauch movements employ distinctive two-stage beat adjustment: Brown plastic clutch on verge arbor—visible component gripping verge shaft allowing crutch repositioning, friction fit holds crutch position during normal operation but yields under deliberate sideways pressure, and design allows major beat correction without tools or disassembly. How friction fit works: plastic clutch compresses slightly around verge arbor creating holding force, decades of use may reduce grip requiring firmer push for adjustment, and proper technique applies steady pressure until sudden slip indicates crutch has moved on arbor. Adjustment mechanism: pushing crutch left or right relative to verge changes relationship between escapement and pendulum swing, movement shifts effective center point of pendulum arc, and repositioning brings beat into adjustment range of fine-tuning mechanism. Common misconception: clutch appears fixed leading users to assume crutch cannot move, actually designed for periodic adjustment throughout clock's life, and hesitation to apply adequate force prevents successful beat setting. Visual identification: clutch appears as brown or tan plastic component surrounding verge arbor just above crutch attachment point, some variations use different color or material but function identically.

Fine adjustment wheel mechanism

Secondary adjustment provides precise beat control: Wheel location—mounted at bottom of crutch where visible through case back or rear access door, gear-driven mechanism shifts crutch position incrementally, and limited adjustment range (typically 5-10 degrees total travel) handles minor beat errors. Adjustment procedure: rotate wheel clockwise or counterclockwise depending on beat error direction, each rotation changes crutch angle slightly altering pendulum center position, and incremental nature allows precise tuning impossible with gross crutch repositioning alone. Keyhole-shaped slot: wheel mount pin travels in elongated slot allowing lateral movement, pin position within slot indicates remaining adjustment range, and pin centered in slot provides maximum adjustment capability both directions. When adjuster reaches limit: pin contacts slot end preventing further rotation, indicates gross crutch position incorrect requiring friction-fit repositioning, and attempting force adjustment beyond limit risks damaging mechanism. Proper use sequence: always perform gross adjustment first centering fine adjuster, complete major beat correction through crutch repositioning, then use fine wheel for final precision tuning, and reserve adjuster range for future minor corrections as clock settles or case shifts slightly.

Pendulum leader seating importance

Proper pendulum connection is critical for beat stability: Leader wire loop—top of pendulum rod forms loop fitting over crutch, two small folded-over tabs at loop top should rest firmly on crutch providing secure connection, and improper seating allows pendulum to ride high creating unstable pivot point. Consequences of improper seating: effective pendulum length varies as leader shifts on crutch, beat changes unpredictably during operation, clock may stop randomly as connection binding, and successful beat adjustment becomes impossible due to unstable reference. Inspection technique: view from side observing whether tabs contact crutch surface, properly seated leader shows tabs resting flat against crutch, high-riding leader shows visible gap between tabs and crutch surface. Correction method: carefully bend pendulum leader tabs slightly outward opening loop, lower pendulum allowing loop to drop fully onto crutch, tabs should now rest properly, and verify secure fit by gently lifting pendulum confirming leader doesn't slip upward easily. Common problem: stiff or tight leader loop prevents full seating, solution involves careful filing of tab edges and slight bending achieving proper fit, but excessive modification risks irreversible damage since Jauch leader parts are scarce.

Systematic beat adjustment procedure

Leveling clock case properly

Foundation for successful beat setting: Side-to-side level—most critical dimension affecting beat, use quality spirit level placed on movement mounting board or case top, adjust until bubble centered indicating perfect level, and shim under case base if needed achieving level. Front-to-back level—secondary but still important, excessive tilt forward or backward affects pendulum swing, level in this dimension reduces stress on suspension spring, and contributes to overall stability. Plumb vertical alignment: clock should stand vertically not leaning in any direction, leaning clock creates compound angle complicating beat adjustment, and vertical case positioning ensures pendulum swings in true plane. Stability verification: rock case gently confirming solid footing without wobble, unstable case allows beat to change during operation, and firm flooring (not deep carpet) provides better long-term stability. Why level matters: escapement geometry assumes pendulum swings in vertical plane perpendicular to movement plate, tilted clock changes effective relationship between pallet faces and escape wheel, and attempting correct with beat adjustment compensates for unlevel rather than achieving true beat.

Centering fine adjuster before gross adjustment

Starting point provides maximum adjustment range: Remove pendulum—allows clear observation and manipulation of crutch without pendulum interference, exposes fine adjustment wheel for easy access, and eliminates confusion from pendulum movement during adjustment. Rotate adjustment wheel—turn until pin reaches center of keyhole slot, center position visible as pin equidistant from both slot ends, provides equal adjustment capability clockwise and counterclockwise, and establishes known reference point. Why centering first: attempting gross adjustment with fine adjuster at extreme limits slot damage risk if pushed further, prevents discovering adjuster is maxed out after completing gross repositioning, ensures full fine-tuning range available after gross correction. Documentation: photograph adjuster position before beginning, note which direction provides coarse versus fine adjustment, and mark crutch position relative to case or movement providing reference if multiple adjustment attempts needed. Alternative if pendulum removal difficult: some grandfather clocks allow access to adjustment wheel with pendulum installed, requires working carefully around pendulum avoiding disturbance, and visual verification of centered adjustment more challenging but possible with flashlight and mirror.

Gross crutch repositioning technique

Overcoming friction fit requires proper method: Identify high side—observe or listen to beat noting which direction tick is longer, tilt clock slightly if uncertain until even beat occurs noting tilt direction, push crutch toward high side (tilting direction) for correction. Application of force: grasp crutch wire firmly near friction clutch, apply steady sideways pressure not jerking motions, maintain pressure until feeling sudden slip indicating clutch released, and crutch moves to new position on verge arbor. Degree of movement: initial repositioning typically requires substantial movement (10-20 degrees), movement should bring beat into reasonable range (audibly close to even), and precise positioning comes from fine adjustment not gross repositioning. Testing after movement: manually rock escapement observing tick pattern, listen for approximately even tick-tock timing, and if grossly out of beat repeat pushing procedure in correct direction. Common errors: insufficient force failing to overcome friction clutch, jerky pressure causing excessive movement overshooting target, and pushing wrong direction worsening beat error. Success indicators: resistance suddenly gives way as clutch slips, crutch visibly shifts to new angular position, and subsequent ticking shows improvement toward even beat.

Fine-tuning beat precision

Using adjustment wheel effectively

Precision tuning achieves final beat accuracy: Install pendulum—secure leader properly on crutch ensuring tabs seated correctly, verify stable connection that doesn't slip during swing, and start pendulum with moderate amplitude (not excessive). Observe beat—listen carefully to tick-tock pattern, even beat sounds like metronome with equal intervals, uneven beat shows distinct syncopation with one interval longer. Adjustment direction: if tick-tick-TOCK pattern (second tick longer) rotate wheel moving crutch toward TOCK side, if tick-TOCK-tick pattern (middle interval longer) rotate opposite direction, and small incremental adjustments prevent overcorrection. Iteration: adjust slightly, observe result for 30-60 seconds allowing pendulum to stabilize, continue small adjustments homing in on even beat, and patience prevents overshooting and hunting back and forth. Electronic measurement option: beat timer apps (ClockMaster similar) provide numerical beat error reading, target beat error under 10 milliseconds considered acceptable, under 5 milliseconds excellent, and perfect zero not necessary for reliable operation. When fine adjuster insufficient: if even beat unachievable despite full fine adjustment range problem is elsewhere (case not level worn pivots improper pendulum seating), and gross crutch repositioning may need revision.

Audible versus measured beat assessment

Two validation approaches each with merits: Audible assessment—traditional method clockmakers used for centuries, trained ear detects subtle syncopation indicating beat error, acceptable when tick sounds regular and steady like metronome, and no equipment required making accessible to anyone. Electronic measurement—modern smartphone apps analyze escapement timing, ClockMaster and similar apps use microphone detecting tick intervals, calculate beat error in milliseconds providing objective measurement, and useful for learning to correlate audible quality with numerical accuracy. Practical consideration: perfectly even beat (0ms error) unnecessary for reliable operation, 5-10ms beat error inaudible to most people and functionally equivalent to perfect, pursuing perfect beat wastes time with diminishing returns, and clock running reliably for days indicates adequate beat regardless of measurement. When to rely on each method: use audible for initial setup and periodic checks, employ electronic measurement when teaching yourself correlating sound with accuracy, and trust audible assessment once experienced recognizing good beat, remembering that clocks predated electronic measurement by centuries yet kept excellent time. Beat stability: beat that remains constant over hours and days more important than instantaneous perfect measurement, and stable slightly-imperfect beat superior to fluctuating near-perfect readings.

Troubleshooting weak pendulum impulse

Worn pivot holes and friction

Inadequate impulse often indicates mechanical wear: Symptom identification—pendulum amplitude decreases over minutes, clock stops after short running time (2-5 minutes), manually spinning escape wheel shows sluggish rotation, and removing pendulum shows escapement barely sustaining motion. Worn pivot diagnosis: rock second wheel arbor laterally with tweezers, excessive play indicates oval worn holes, watch for pivot jumping or lifting from hole during rocking, and worn pivots are most common cause of weak impulse in older movements. Why second wheel critical: second wheel carries escape wheel through pinion engagement, worn second wheel pivots allow arbor tilting causing pinion to bind, binding absorbs power preventing transmission to escapement, and even slight wear creates noticeable impact on pendulum drive. Bushing requirement: worn holes must be bushed restoring proper pivot support, temporary fixes (additional weight on train) mask problem without addressing cause, and professional bushing ensures long-term reliable operation. Alternative causes: mainspring weakness (rare but possible if very old), excessive pivot friction from dirt or dried oil, pallet face contamination creating drag, and escapement depth problems preventing proper impulse delivery.

Cleaning and lubrication revival

Movements stored inactive for years require reconditioning: Initial poor performance common—clock unused 20-25 years develops thick oxidized lubricant, pallet faces accumulate contamination, and pivots develop corrosion requiring cleaning action before restoration. Extended running therapy: continue operating clock despite initially weak performance, movement of parts gradually redistributes fresh oil, mechanical action removes surface contamination from pallets, and performance improves over days or weeks. Proper cleaning approach: remove movement from case, spray pivots with quality clock cleaning solution, apply fresh clock oil to each pivot, and avoid over-lubrication attracting dirt. Pallet face cleaning: gently clean pallet jewels with pith wood or plastic sliver, remove any visible contamination or film, avoid abrasive cleaning damaging polished surfaces, and clean escape wheel tooth tips ensuring proper engagement surfaces. Success indicators: pendulum amplitude increases over initial running period, clock transitions from barely running to strong reliable operation, and eventually sustains pendulum swing comparable to properly-maintained movement. When cleaning insufficient: if extended running period shows no improvement worn pivots or escapement damage likely, professional assessment guides whether repair economically viable, and sometimes "running it in" resolves what initially appears serious problem.

FAQs

How do I set beat on Jauch grandfather clock movement?

Ensure clock case is level side-to-side and front-to-back. Remove pendulum. Center fine adjustment wheel at crutch bottom. Push crutch sideways overcoming friction fit on verge arbor—apply steady firm pressure until clutch slips. Push toward "high" side (direction producing longer tick interval). Reinstall pendulum ensuring leader tabs properly seated on crutch. Use fine adjustment wheel for precision tuning rotating until beat sounds even. Target beat error under 10ms measured with app or even tick-tock by ear. Fine adjuster handles minor corrections—gross repositioning needed if adjuster reaches limit without achieving beat.

What is friction clutch on Jauch crutch and how does it work?

Brown plastic component visible on verge arbor gripping shaft with friction fit. Allows crutch repositioning for gross beat adjustment without disassembly. Apply steady sideways pressure on crutch until clutch releases allowing movement. Friction holds crutch during normal operation but yields under deliberate adjustment force. Not meant to be permanent fixed position—designed for periodic adjustment throughout clock's life. If clutch won't slip increase pressure gradually—decades of use may require firmer push. Moving crutch changes relationship between escapement and pendulum establishing coarse beat setting before fine-tuning.

Why won't my Jauch clock stay in beat despite adjustment?

Most common cause: pendulum leader not properly seated on crutch. Check that wire loop tabs rest firmly on crutch not riding high. Improper seating creates unstable connection varying effective pendulum length. Also verify clock case is truly level—unlevel case prevents proper beat regardless of crutch adjustment. Check that fine adjuster pin is properly positioned in keyhole slot not jammed at extreme. Worn pivot holes (especially second wheel) allow arbor movement affecting beat under different spring tensions. Ensure case is stable not rocking on uneven floor. Beat that changes over time suggests mechanical problem not simple adjustment issue.

How do I know which direction to push Jauch crutch for beat?

Listen to tick pattern identifying longer interval. If tick-TOCK pattern (second interval longer) push crutch toward TOCK side. Alternative: tilt clock slightly until beat becomes even—note tilt direction then push crutch that direction. With pendulum removed manually rock escapement left and right—push crutch toward side producing wider ticking range. Some trial and error acceptable—if wrong direction beat worsens immediately obvious requiring reverse correction. After gross repositioning fine adjustment wheel handles precision tuning. Center adjuster before gross repositioning ensuring full fine-tuning range available afterward.

Why does my Jauch clock have weak pendulum impulse and stops running?

Common causes: Worn pivot holes (especially second wheel) creating excessive friction and binding. Test by rocking arbors laterally checking for excessive play—worn holes require bushing. Dirty or dried lubricant from years of inactivity. Movement stored 20+ years may need extended running period allowing fresh oil to distribute and cleaning pallet faces. Improper escapement depth preventing proper impulse delivery. Contaminated pallet jewels creating drag. Mainspring weakness (rare). Solution: Remove movement clean/oil all pivots thoroughly. Check second wheel pivot condition bushing if needed. Clean pallet faces gently. Allow extended running period—performance often improves over days as oil distributes and surfaces clean through operation.

Should I use beat timer app or adjust by ear?

Either method works. Clockmakers used audible assessment for centuries before electronic measurement existed. Beat timer apps (ClockMaster similar) provide objective numerical measurement useful for learning. Target under 10ms considered acceptable under 5ms excellent. Perfect 0ms unnecessary for reliable operation. Once experienced recognizing even tick audible assessment sufficient for routine adjustments. Electronic measurement helpful when training ear to correlate sound quality with numerical accuracy. Beat stability over time more important than instantaneous perfect reading. Clock running reliably for days indicates adequate beat regardless of measurement method chosen.

Can I adjust Jauch beat without removing pendulum?

Gross adjustment easier with pendulum removed—allows clear crutch access and observation. However possible to work with pendulum installed if removal difficult. Center fine adjuster first. Carefully reach around pendulum grasping crutch near friction clutch. Apply steady sideways pressure overcoming friction fit. More challenging preventing pendulum disturbance but feasible. Fine adjustment definitely possible with pendulum installed—simply rotate adjustment wheel at crutch bottom observing beat changes. Some grandfather cases allow rear access simplifying adjustment with pendulum in place. If frequently adjusting beat consider improving case leveling and leader seating eliminating need for repeated corrections.
