The Seth Thomas 86T is a specialized "time-only" 30-day movement known for its precision, thanks largely to its deadbeat escapement design. Unlike more common recoil escapements, a deadbeat escapement prevents the escape wheel from moving backward during the unlocking phase, which significantly improves timekeeping accuracy over a long 30-day wind cycle. However, this precision comes with a need for very exact adjustments of the pallets and escape wheel teeth to ensure the clock doesn't "trip" or lose power.
Quick Diagnostic Flow: Seth Thomas Deadbeat Escapement
-
1. Is the escape wheel moving backward when the pendulum swings?
- → Yes: This is a recoil, not a deadbeat. Check if you have a standard 8-day movement instead of the 86T.
- → No: Proceed to Locking Check.
-
2. Does the escape wheel tooth "trip" or skip past the pallet?
- → Yes: There is insufficient "lock." The pallets need to be adjusted closer to the escape wheel to catch the teeth properly.
- → No: Proceed to Drop & Impulse Check.
-
3. Does the movement stop even with a strong mainspring?
- → Yes: Check for "drop" issues where the tooth hits the impulse face too early or late, causing a loss of energy transfer.
- → No: Escapement geometry is likely correct.

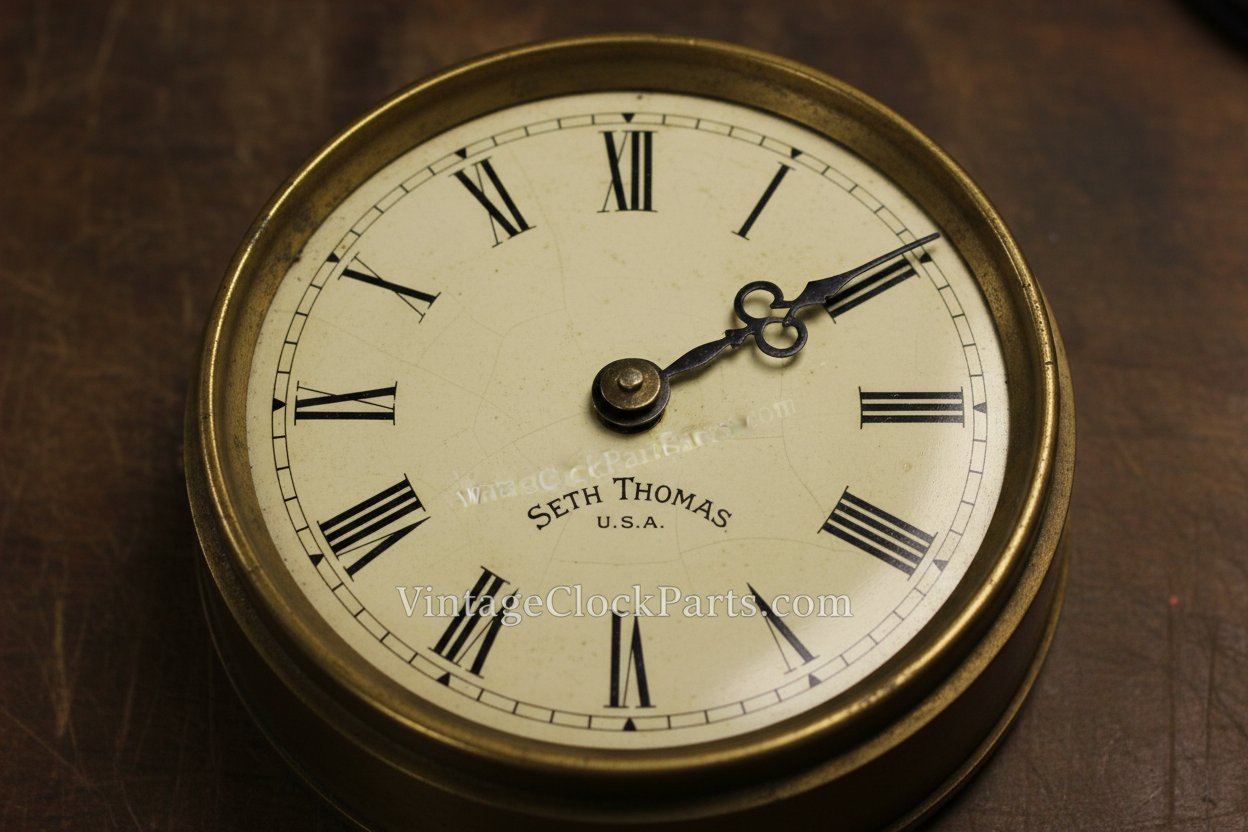

When restoring these high-grade movements, ensuring the integrity of the [Seth Thomas 86T movement](https://mb.nawcc.org/threads/seth-thomas-86t-deadbeat-escapement-adjustment.198818/) requires a deep dive into pallet geometry. After cleaning and polishing pivots, the focus shifts to "lock" and "drop." On a deadbeat escapement, the tooth should fall onto the dead face of the pallet with just enough clearance to prevent tripping, but not so much that energy is wasted. If the clock is housed in a case with a delicate seth thomas paper dial, extreme care must be taken during disassembly to avoid staining the original paper with clock oil or grease.
A critical but often overlooked component in the 86T's 30-day performance is the seth thomas pendulum rod and spring assembly. Because this movement is designed for a long run-time, any friction or "wobble" in the suspension spring will lead to significant time loss by the third week of operation. Ensure the suspension spring is perfectly straight and not kinked. If the pendulum bob is heavy, as is common with these precision wall clocks, the rod must be seated firmly in the crutch to translate every bit of impulse from the escapement into the pendulum's swing.
What makes a deadbeat escapement different from a recoil escapement?
In a deadbeat escapement, the "dead" faces of the pallets are arcs of a circle centered on the pallet arbor. This means that while a tooth is resting on the pallet, the escape wheel does not move at all, eliminating the "recoil" seen in cheaper seth thomas 8 day movement designs.
How do I fix a Seth Thomas 86T that keeps stopping?
First, verify that the pivots are clean and properly bushed. If the mechanical train is smooth, the issue is likely in the escapement adjustment. Even a fraction of a millimeter of over-locking can cause enough friction to stop a 30-day movement as the spring tension drops over time.
Can I use standard 8-day clock oil for a 30-day movement?
While standard clock oil works, many restorers prefer a slightly lighter synthetic oil for the escapement pallets of a 30-day clock to minimize drag, which is essential for maintaining a consistent beat over the full month of operation.
