Introduction

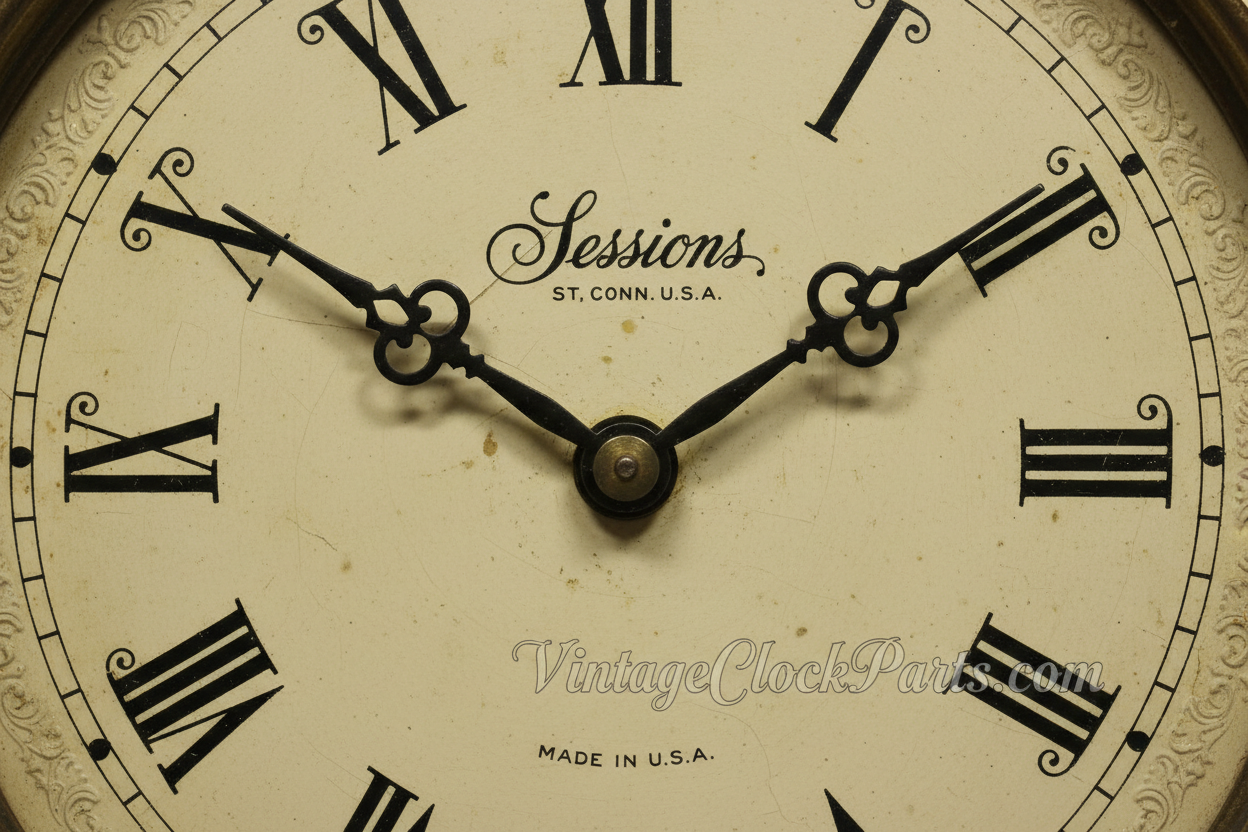

Sessions clocks use a simple but precise motion‑works system to drive the hour and minute hands. When the hands slip, bind, or fail to track correctly, the cause is usually found in the friction clutch, the hour‑hand pipe, or wear in the motion‑works wheels. This guide explains how the system works and how to diagnose the most common issues.
How the Sessions Motion Works Operates
Minute‑hand arbor
Drives the motion works and carries the friction clutch that allows hand setting.
Friction clutch
Provides resistance so the hands move with the train but can still be set manually.
Hour‑hand pipe
Friction‑fit onto the cannon pinion; too loose or too tight causes tracking issues.
Intermediate wheel
Transfers motion from the minute arbor to the hour pipe.
Dial fitment
Dial thickness and hand clearance affect smooth rotation.
Common Problems With the Hour–Minute Assembly
Hands slipping out of sync
Friction clutch too loose or hour‑hand pipe worn.
Hands binding
Hands rubbing each other, the dial, or the bezel.
Minute hand won’t stay tight
Loose hand nut or worn square on the minute arbor.
Hour hand too loose
Pipe expanded or worn from repeated adjustments.
Hour hand too tight
Pipe squeezed too far, causing drag in the motion works.
How to Diagnose the Issue
Check hand clearance
Ensure the minute and hour hands do not rub each other or the dial.
Test friction clutch
Hands should move with moderate resistance when setting the time.
Inspect hour‑hand pipe fit
The hour hand should push on firmly but not excessively tight.
Check motion‑works wheels
Look for wear, bent teeth, or contamination.
Verify minute‑hand nut tension
Too loose causes slippage; too tight causes binding.
Correcting the Problem
Step 1: Adjust the friction clutch
Tighten or loosen the clutch so the hands move smoothly but stay synchronized.
Step 2: Correct hour‑hand pipe fit
Slightly crimp a loose pipe or open a tight one for proper friction.
Step 3: Set hand clearance
Bend hands gently to ensure they do not rub each other or the dial.
Step 4: Service the motion works
Clean, inspect, and correct any wear or bent teeth in the wheels.
Step 5: Secure the minute‑hand nut
Tighten just enough to hold the hand without binding.
Troubleshooting Flowcharts
If the hands slip
Clutch loose → Hour pipe loose → Nut loose → Motion‑works wear
If the hands bind
Hands rubbing → Dial interference → Pipe too tight → Wheel drag
If the hour hand lags
Pipe loose → Clutch weak → Wheel wear → Friction loss
If the minute hand drifts
Nut loose → Square worn → Clutch slipping → Wheel drag
If setting the time feels rough
Clutch too tight → Pipe distorted → Wheel teeth damaged → Contamination
Common Mistakes to Avoid
Over‑tightening the minute‑hand nut
Causes binding and motion‑works drag.
Crimping the hour pipe too much
Excessive force distorts the pipe and causes friction.
Ignoring wheel wear
Even slight wear causes tracking issues.
Forcing the hands
Always set the time gently to avoid damaging the clutch.
Skipping clearance checks
Hand interference is one of the most common causes of binding.
Checklist for Final Verification
• Hands move freely
• No rubbing or binding
• Clutch tension correct
• Hour pipe properly fitted
• Motion works clean and free
• Hands stay synchronized over time
FAQs
Why do my hands drift apart?
The friction clutch or hour‑hand pipe is too loose.
Why do the hands bind?
They are rubbing each other or the dial.
Why does the minute hand wobble?
The hand nut or arbor square is worn.
Can the motion works wear out?
Yes—worn wheels cause slippage and poor tracking.
Is this common in Sessions clocks?
Yes—hand‑assembly issues are frequent due to age and wear.
