Introduction
Waterbury hall clocks are well-built American longcase clocks known for their strong 8-day movements, large pendulum assemblies, and elegant paper dials. When these clocks stop running, strike incorrectly, or lose power, the cause is usually wear, dirt, or misalignment within the movement. This guide explains how to diagnose and repair common issues while protecting the dial, pendulum assembly, and case components.
Understanding the Waterbury Hall Clock Movement
8-day movement design
The Waterbury 8-day movement uses large mainsprings and a tall train layout. Wear or dirt in the upper train often causes stoppage.
Rack-and-snail strike system
The strike count is controlled by a rack-and-snail mechanism that must be correctly timed for proper hour striking.
Hammer and rod assembly
The hammer must lift and fall freely. If it binds or rests on the rod, the strike becomes weak or fails.

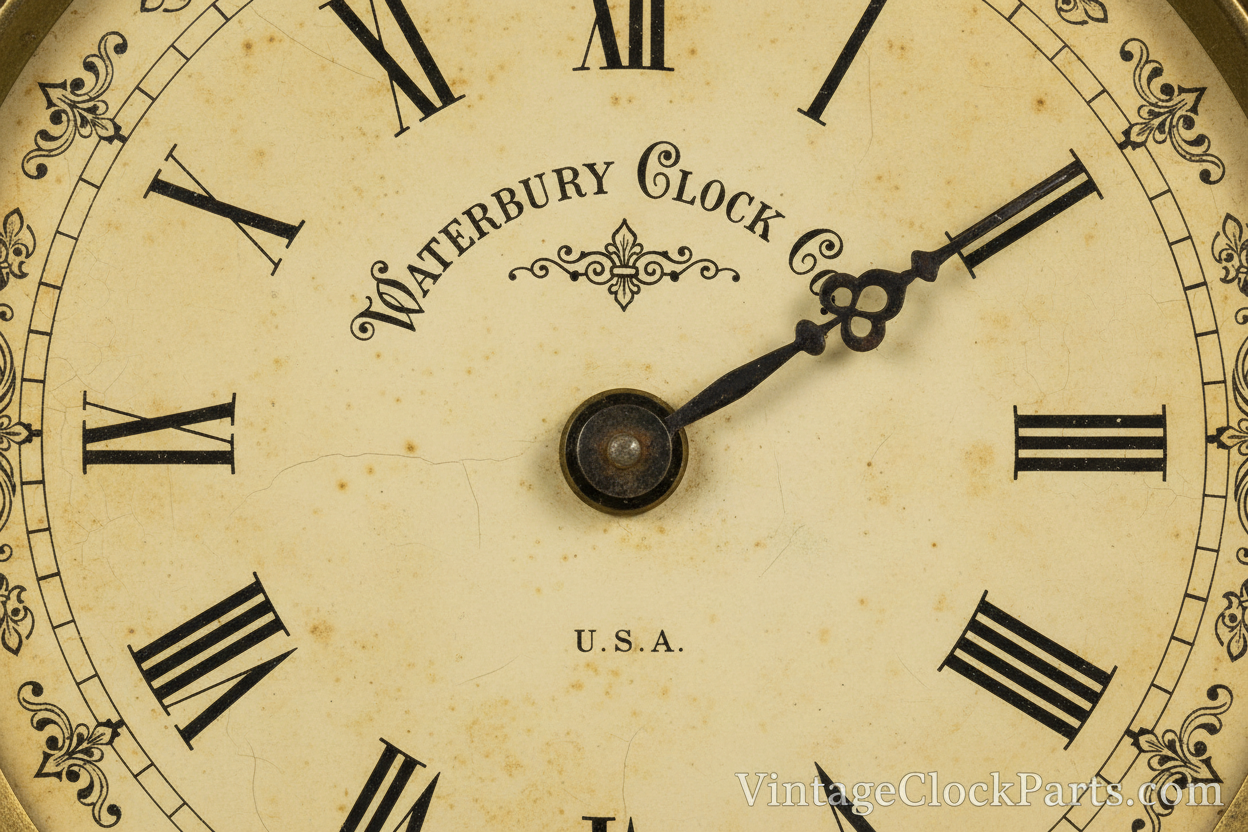

Dial construction
Many Waterbury hall clocks use a paper dial mounted to a metal pan, requiring careful handling during repair.
Pendulum assembly
The pendulum rod and suspension spring must be intact and properly aligned for stable timekeeping.
Diagnosing Common Problems
Clock stops after a few minutes
Often caused by worn bushings, dirty pivots, or friction in the escape wheel or upper train.
Strike out of sequence
Indicates rack tail misalignment or a stop lever that is not dropping correctly.
Weak or muted strike
Hammer tail may be too close to the rod, or the rod may be loose in the block.
Pendulum won’t maintain swing
Usually caused by a bent crutch, worn suspension spring, or poor beat adjustment.
Hands rubbing the dial
Improper hand clearance or a shifted dial pan can cause drag and stoppage.
Restoring the Waterbury Movement
Cleaning and pivot preparation
Remove old oil, polish pivots, and inspect for grooves or taper. Dirty pivots are a major cause of power loss.
Bushing installation
Worn pivot holes must be bushed to restore proper depthing and reduce friction.
Escapement inspection
Check verge depth, escape wheel tooth condition, and beat alignment.
Reassembling the train
Ensure all wheels seat correctly and rotate freely before tightening the plates.
Lubrication
Apply clock-grade oil sparingly to pivots only—never to the hammer tails or strike rods.
Setting Up the Strike System
Aligning the rack and snail
Ensure the rack tail lands on the correct snail step and the rack drops the proper distance.
Adjusting hammer lift
Hammers should lift evenly and fall freely without resting on the rods.
Setting rod clearance
Each rod must vibrate freely without touching the case or movement.
Balancing hammer volume
Adjust hammer tails so the strike is clear and consistent.
Testing half-hour and hour strike
Verify that the half-hour produces a single strike and the hour produces the full count.
Case and Dial Considerations
Protecting the paper dial
Support the dial pan during removal and avoid touching the printed surface.
Cleaning the bezel
Use mild cleaners to avoid damaging lacquered brass.
Repairing dial stains or wear
Light touch-ups may be possible, but severe damage may require dial replacement.
Case refinishing
Clean gently and preserve original finish whenever possible.
Reinstalling the dial
Ensure the dial pan seats evenly and the hands clear the surface.
Troubleshooting Flowcharts
If the clock stops after a few minutes
Check pivots → Check bushings → Check escapement → Check pendulum spring
If the strike is incorrect
Check rack → Check snail → Check stop lever → Check hammer lift
If the strike is weak
Check hammer tails → Check rod clearance → Check rod tightness → Check lift pins
If the pendulum won’t hang
Check suspension spring → Check rod hook → Check crutch alignment
If the dial shifts or rubs
Check dial pan screws → Check hand clearance → Check bezel alignment
Common Mistakes to Avoid
Over-oiling the movement
Excess oil attracts dirt and causes premature wear.
Bending hammer rods too far
Small adjustments are enough to correct tone and clearance.
Forcing the hands
Forcing hands can bend the hour tube or damage the dial.
Ignoring worn bushings
Worn pivot holes reduce power and cause strike issues.
Removing the dial without support
Paper dials crease easily and must be handled carefully.
Checklist for Final Verification
• Strike system synchronized
• Pendulum rod and spring aligned
• Waterbury 8-day movement runs full cycle
• Dial protected and reinstalled correctly
• Case stable with no rod interference
• Hammer lift and tone balanced
FAQs
Why does my Waterbury hall clock stop after a few minutes?
Likely due to worn bushings, dirty pivots, or escapement issues.
Why is the strike weak?
Hammer alignment or rod clearance is usually the cause.
Can I clean the paper dial?
Only very gently. Paper dials are fragile and easily damaged.
Why won’t the pendulum stay swinging?
Check the suspension spring, crutch alignment, and escapement power.
Does the Waterbury 8-day movement require bushings?
Most older movements show pivot wear and benefit from bushing work.
