Introduction
Seth Thomas clocks from the 1800s are prized for their craftsmanship, reliability, and distinctive American design. Restoring one of these early clocks requires careful attention to the movement, pendulum assembly, and fragile paper dial. This guide explains how to diagnose common issues, preserve original components, and restore a Seth Thomas 8-day movement to dependable operation.
Understanding the 1800s Seth Thomas Movement
8-day movement design
These movements use strong mainsprings and a tall train layout. Wear or dirt in the upper train often causes stoppage.
Count-wheel strike system
The strike count is controlled by a count wheel rather than a rack-and-snail system. Proper alignment is essential for correct striking.
Hammer and rod assembly
The hammer must lift and fall freely. If it binds or rests on the rod, the strike becomes weak or fails.

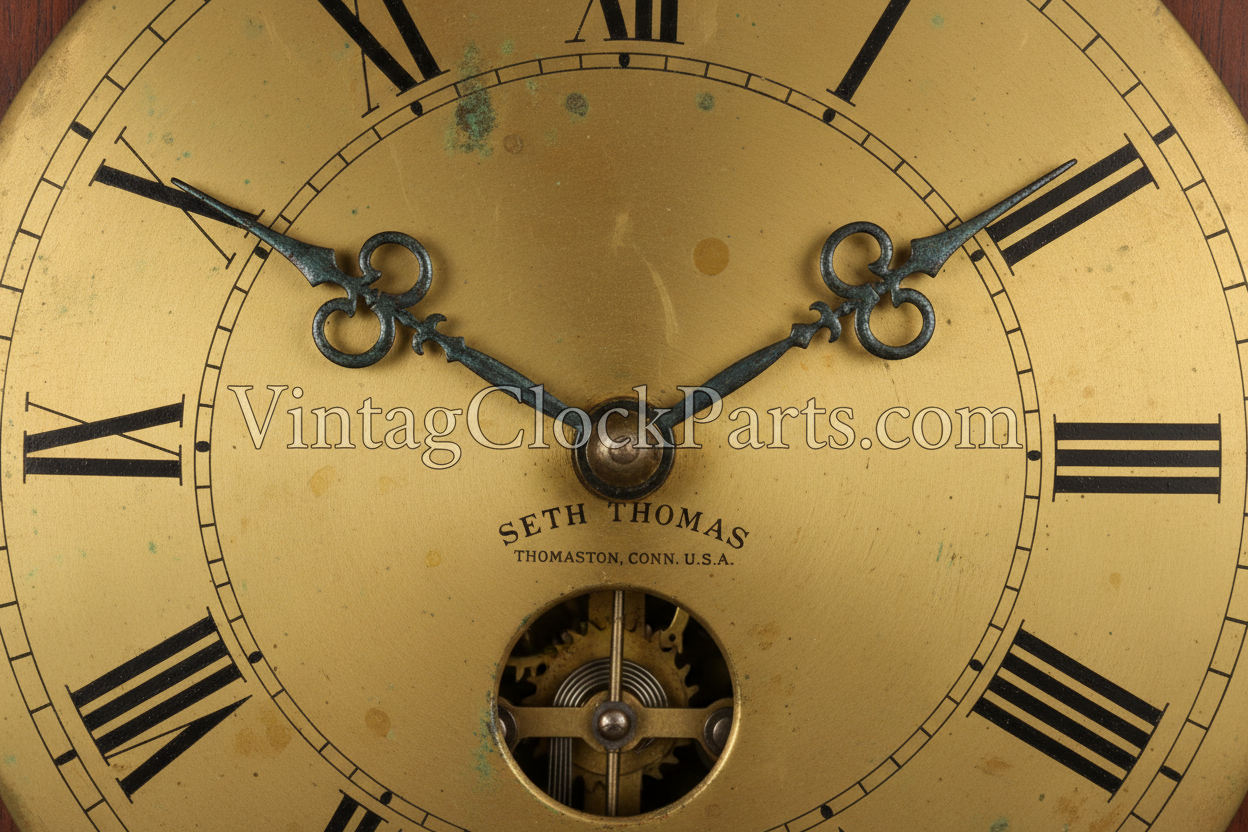

Dial construction
Many Seth Thomas clocks use a paper dial mounted to a metal pan. These dials are fragile and easily damaged during restoration.
Pendulum assembly
The pendulum rod and suspension spring must be intact and properly aligned for stable timekeeping.
Diagnosing Common Problems
Clock stops after a few minutes
Often caused by worn bushings, dirty pivots, or friction in the escape wheel or upper train.
Strike out of sequence
Indicates count-wheel misalignment or a stop lever that is not dropping correctly.
Weak or muted strike
Hammer tail may be too close to the rod, or the rod may be loose in the block.
Pendulum won’t maintain swing
Usually caused by a bent crutch, worn suspension spring, or poor beat adjustment.
Hands rubbing the dial
Improper hand clearance or a shifted dial pan can cause drag and stoppage.
Restoring the Seth Thomas Movement
Cleaning and pivot preparation
Remove old oil, polish pivots, and inspect for grooves or taper. Dirty pivots are a major cause of power loss.
Bushing installation
Worn pivot holes must be bushed to restore proper depthing and reduce friction.
Escapement inspection
Check verge depth, escape wheel tooth condition, and beat alignment.
Reassembling the train
Ensure all wheels seat correctly and rotate freely before tightening the plates.
Lubrication
Apply clock-grade oil sparingly to pivots only—never to the hammer tails or strike rods.
Setting Up the Strike System
Aligning the count wheel
Ensure the stop lever drops into the correct notch at the end of each strike sequence.
Adjusting hammer lift
Hammers should lift evenly and fall freely without resting on the rods.
Setting rod clearance
Each rod must vibrate freely without touching the case or movement.
Balancing hammer volume
Adjust hammer tails so the strike is clear and consistent.
Testing half-hour and hour strike
Verify that the half-hour produces a single strike and the hour produces the full count.
Case and Dial Considerations
Protecting the paper dial
Support the dial pan during removal and avoid touching the printed surface.
Cleaning the bezel
Use mild cleaners to avoid damaging lacquered brass.
Repairing dial stains or wear
Light touch-ups may be possible, but severe damage may require dial replacement.
Case refinishing
Clean gently and preserve original finish whenever possible.
Reinstalling the dial
Ensure the dial pan seats evenly and the hands clear the surface.
Troubleshooting Flowcharts
If the clock stops after a few minutes
Check pivots → Check bushings → Check escapement → Check pendulum spring
If the strike is incorrect
Check count wheel → Check stop lever → Check hammer lift → Check wheel depthing
If the strike is weak
Check hammer tails → Check rod clearance → Check rod tightness → Check lift pins
If the pendulum won’t hang
Check suspension spring → Check rod hook → Check crutch alignment
If the dial shifts or rubs
Check dial pan screws → Check hand clearance → Check bezel alignment
Common Mistakes to Avoid
Over-oiling the movement
Excess oil attracts dirt and causes premature wear.
Bending hammer rods too far
Small adjustments are enough to correct tone and clearance.
Forcing the hands
Forcing hands can bend the hour tube or damage the dial.
Ignoring worn bushings
Worn pivot holes reduce power and cause strike issues.
Removing the dial without support
Paper dials crease easily and must be handled carefully.
Checklist for Final Verification
• Strike system synchronized
• Pendulum rod and spring aligned
• Seth Thomas 8-day movement runs full cycle
• Dial protected and reinstalled correctly
• Case stable with no rod interference
• Hammer lift and tone balanced
FAQs
Why does my Seth Thomas clock stop after a few minutes?
Likely due to worn bushings, dirty pivots, or escapement issues.
Why is the strike weak?
Hammer alignment or rod clearance is usually the cause.
Can I clean the paper dial?
Only very gently. Paper dials are fragile and easily damaged.
Why won’t the pendulum stay swinging?
Check the suspension spring, crutch alignment, and escapement power.
Does the Seth Thomas 8-day movement require bushings?
Most older movements show pivot wear and benefit from bushing work.
