Introduction

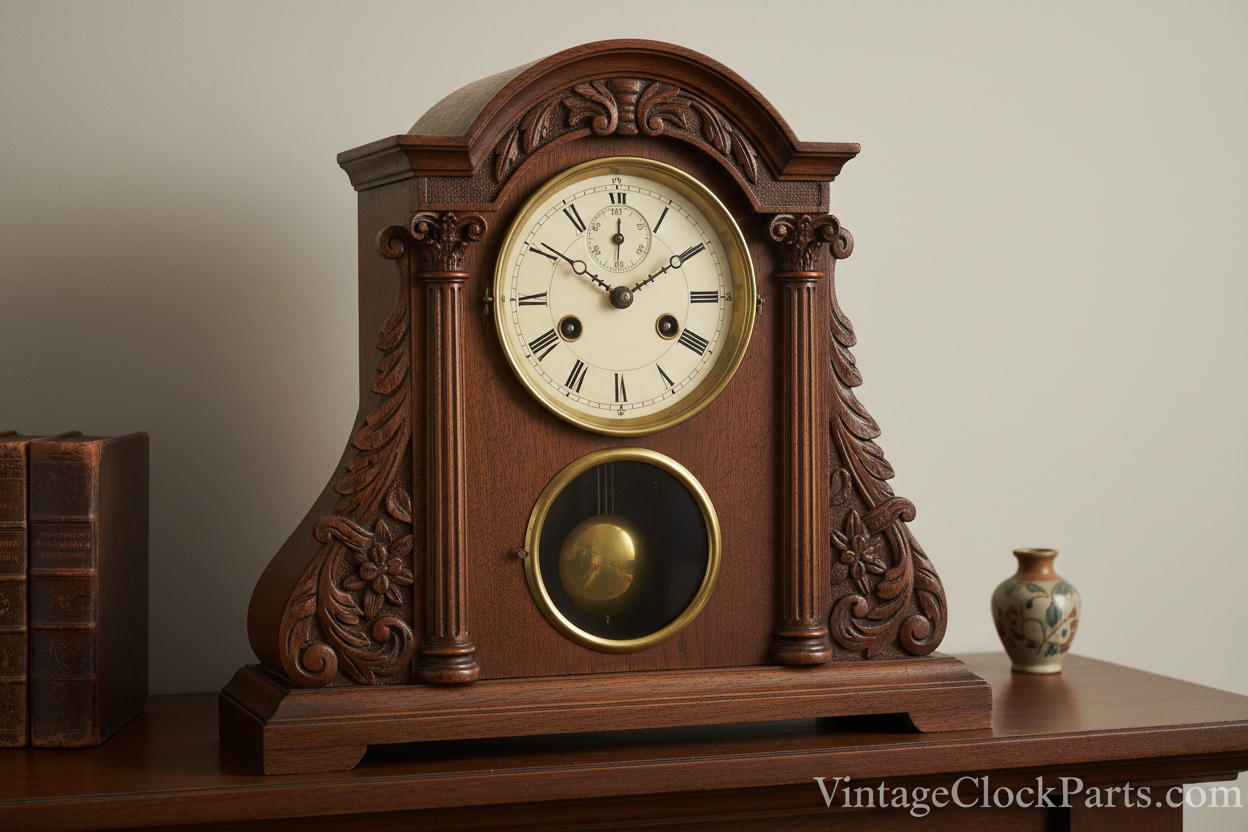

Gilbert mantel clocks from the 1920s are known for their distinctive Bim‑Bam strike, solid American construction, and reliable 8‑day movements. Restoring one of these clocks requires careful attention to the movement, strike timing, dial preservation, and pendulum assembly. This guide explains how the system works and how to bring a vintage Gilbert mantel clock back to dependable operation.
Understanding the Gilbert Bim‑Bam System
Two‑tone strike design
The Bim‑Bam sound is produced by two hammers striking two rods in alternating sequence.
Strike train layout
The strike train uses a count‑wheel system that must be correctly timed for proper hour and half‑hour striking.
Hammer lift pins
Lift pins on the strike wheel raise the hammers in the correct order to produce the characteristic tone.
Dial and bezel assembly
Many Gilbert clocks use a paper dial mounted to a metal pan, requiring careful handling during restoration.
Pendulum assembly
The pendulum rod and suspension spring must be intact and properly aligned for accurate timekeeping.
Diagnosing Common Problems
Clock runs but loses power
Often caused by dirty pivots, worn bushings, or friction in the upper train.
Strike out of sequence
Indicates count‑wheel misalignment or worn stop‑lever components.
Weak or uneven Bim‑Bam sound
Hammer tails may be misaligned or the rods may be loose in the block.
Pendulum won’t maintain swing
Usually caused by a bent crutch, worn suspension spring, or friction in the escapement.
Dial damage during disassembly
Paper dials are fragile and easily creased or stained if not properly supported.
Restoring the Gilbert Movement
Cleaning and pivot preparation
Remove old oil, polish pivots, and inspect for grooves or taper.
Bushing installation
Worn pivot holes must be bushed to restore proper depthing and reduce friction.
Escapement inspection
Check verge depth, escape wheel tooth condition, and beat alignment.
Reassembling the train
Ensure all wheels seat correctly and rotate freely before tightening the plates.
Lubrication
Apply clock‑grade oil sparingly to pivots only—never to the strike rods or hammer tails.
Setting Up the Bim‑Bam Strike
Aligning the count wheel
Ensure the stop lever drops into the correct notch at the end of each strike sequence.
Adjusting hammer lift
Hammers should lift evenly and fall freely without resting on the rods.
Setting rod clearance
Each rod must vibrate freely without touching the case or movement.
Balancing hammer volume
Adjust hammer tails so both tones are clear and balanced.
Testing half‑hour and hour strike
Verify that the half‑hour produces a single tone and the hour produces the full Bim‑Bam sequence.
Case and Dial Restoration
Protecting the paper dial
Support the dial pan during removal and avoid touching the printed surface.
Cleaning the bezel
Use mild cleaners to avoid damaging lacquered brass.
Repairing dial stains or wear
Light touch‑ups may be possible, but severe damage may require dial replacement.
Case refinishing
Clean gently and preserve original finish whenever possible.
Reinstalling the dial
Ensure the dial pan seats evenly and the hands clear the surface.
Troubleshooting Flowcharts
If the strike won’t stop
Check count wheel → Check stop lever → Check hammer lift → Check wheel depthing
If the Bim‑Bam sounds weak
Check hammer tails → Check rod clearance → Check rod tightness → Check lift pins
If the clock stops after a few minutes
Check pivots → Check bushings → Check escapement → Check pendulum spring
If the pendulum won’t hang
Check suspension spring → Check rod hook → Check crutch alignment
If the dial shifts or rubs
Check dial pan screws → Check hand clearance → Check bezel alignment
Common Mistakes to Avoid
Over‑oiling the movement
Excess oil attracts dirt and causes premature wear.
Bending hammer rods too far
Small adjustments are enough to correct tone and clearance.
Forcing the hands
Forcing hands can bend the hour tube or damage the dial.
Ignoring worn bushings
Worn pivot holes reduce power and cause strike issues.
Removing the dial without support
Paper dials crease easily and must be handled carefully.
Checklist for Final Verification
• Bim‑Bam strike clear and balanced
• Rack and count wheel synchronized
• Pendulum rod and spring aligned
• Gilbert 8‑day movement runs full cycle
• Dial protected and reinstalled correctly
• Case stable with no rod interference
FAQs
Why is my Bim‑Bam strike uneven?
Hammer alignment or rod clearance is usually the cause.
Does the Gilbert 8‑day movement require bushings?
Most 1920s movements show pivot wear and benefit from bushing work.
Can I clean the paper dial?
Only very gently. Paper dials are fragile and easily damaged.
Why won’t the pendulum stay swinging?
Check the suspension spring, crutch alignment, and escapement power.
Is the Bim‑Bam system difficult to adjust?
Not difficult, but it requires careful timing and balanced hammer lift.
