Introduction

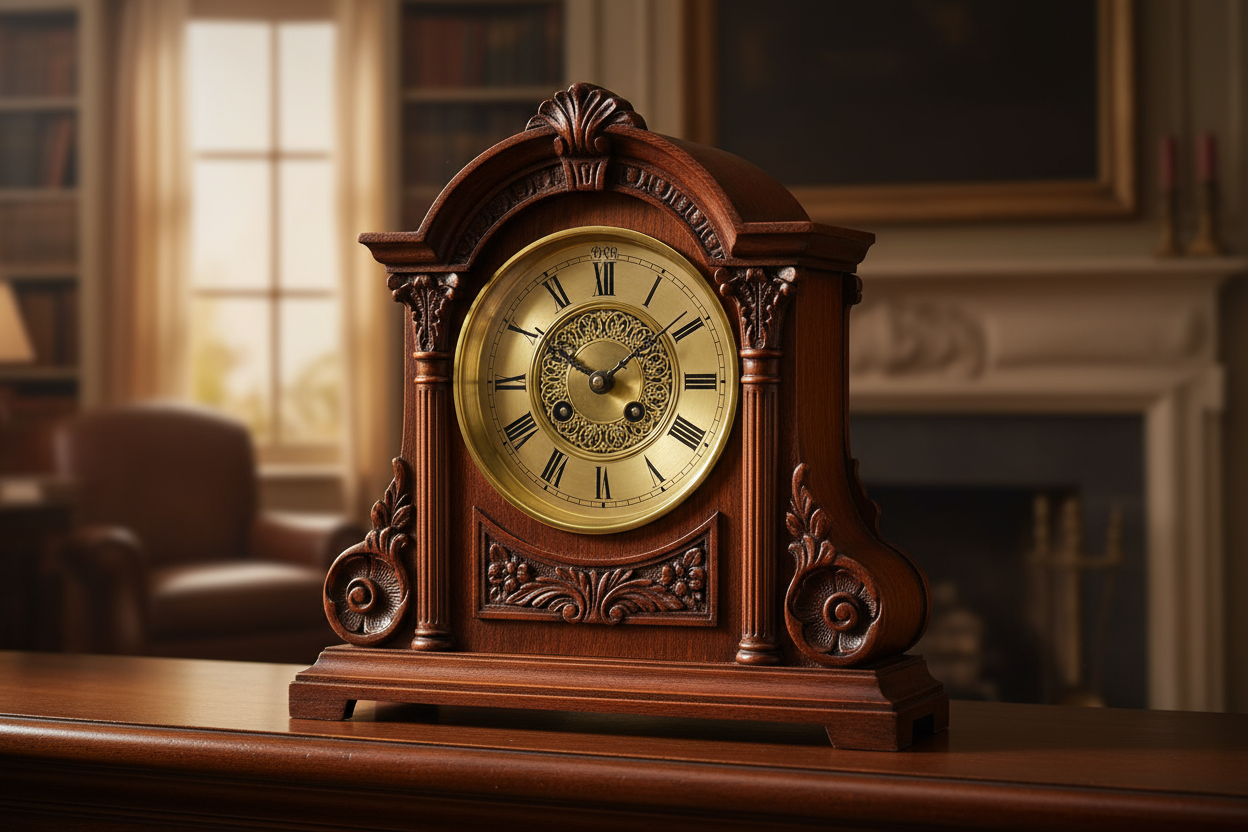

The repair and restoration of an early Ingraham mantel clock from 1932 provides a fascinating look into the engineering, craftsmanship, and mechanical design principles that defined American clockmaking during the early 20th century. Ingraham clocks from this era were built with durable materials, reliable movements, and distinctive styling that made them popular household timepieces. Restoring one of these clocks today is not only a technical process but also an opportunity to preserve a piece of horological history that has survived nearly a century.
This long‑form guide explores the history of the E. Ingraham Company, the mechanical operation of their time‑and‑strike movements, the common issues found in 1930s mantel clocks, and the restoration techniques used to bring them back to life. It also highlights the importance of using high‑quality replacement parts and where restorers can find them, including trusted suppliers such as VintageClockParts.com.
History of the E. Ingraham Company
Early beginnings
The E. Ingraham Company traces its roots to the early 19th century, when Elias Ingraham, a skilled cabinetmaker and designer, began producing clock cases for various manufacturers. His innovative case designs quickly gained attention, and by the mid‑1800s, the Ingraham name had become synonymous with quality craftsmanship and elegant styling.
Acknowledgement: Video demonstration provided by Mark, the clock repair guy
Growth and industrial expansion
By the late 19th century, the company had expanded into full clock production, manufacturing both cases and movements. Ingraham clocks became known for their affordability, reliability, and distinctive American styling. Their mantel clocks, in particular, were popular in homes across the United States.
The 1932 production era
Clocks produced in the early 1930s reflect a transitional period in American manufacturing. Despite the economic challenges of the Great Depression, Ingraham continued to produce well‑engineered mechanical clocks with robust brass movements and attractive wooden cases. The 1932 mantel clock models often featured time‑and‑strike movements, pendulum regulation, and durable mainsprings designed for long‑term operation.
Understanding Ingraham Time‑and‑Strike Movements
What defines a time‑and‑strike movement
A time‑and‑strike movement performs two functions:
- Keeps time through a regulated gear train and pendulum
- Strikes the hour (and sometimes the half‑hour) using a separate strike train
This dual‑train design requires precise synchronization between the time train and the strike train.
Key components of an Ingraham movement
A typical 1932 Ingraham mantel clock includes:
- Brass plates with machined pivot holes
- Hardened steel pivots
- A recoil escapement
- A pendulum regulated for accurate timekeeping
- A count wheel or rack‑and‑snail strike system (depending on the model)
- A mainspring for the time train
- A separate mainspring for the strike train
- Hammer and gong assembly for the hourly strike
Each component plays a critical role in the movement’s operation, and understanding how they interact is essential for proper restoration.
How the Movement Operates
Power delivery
The movement contains two mainsprings:
- One powers the time train
- One powers the strike train
When wound, each mainspring stores energy and releases it gradually through the gear train.
The time train
The time train regulates the clock’s ticking and drives the hands. It includes:
- The center wheel
- The third wheel
- The escape wheel
- The escapement
- The pendulum
The time train must operate smoothly for the clock to keep accurate time.
The strike train
The strike train controls the hourly striking sequence. It includes:
- The strike mainspring
- The strike wheels
- The count wheel or rack system
- The hammer and gong
The strike train must be synchronized with the time train to ensure the correct number of strikes.
The escapement
The escapement regulates the release of energy from the time train. Ingraham clocks typically use a recoil escapement, which is durable and forgiving but requires precise adjustment.
The pendulum
The pendulum determines the rate at which the clock runs. Its length and swing must be properly calibrated for accurate timekeeping.
The count wheel
Many Ingraham clocks use a count wheel to control the strike sequence. The count wheel determines how many times the hammer strikes the gong each hour.
Common Issues Found in Early Ingraham Mantel Clocks
Worn bushings
Pivot holes become elongated over time, causing gears to mesh improperly and reducing power efficiency.
Dirty or dried lubrication
Old oil becomes sticky and increases friction, leading to poor performance or stoppage.
Weak or set mainsprings
A mainspring that has lost its elasticity cannot deliver consistent power, affecting both the time and strike trains.
Escapement wear
Wear on the pallets or escape wheel teeth can cause uneven ticking or stoppage.
Strike train misalignment
If the strike train is out of synchronization, the clock may strike the wrong number of times or fail to strike at all.
Bent or damaged pivots
Bent pivots increase friction and reduce power transmission.
Suspension spring fatigue
A weakened suspension spring can cause erratic pendulum motion.
Count wheel wear
Worn count wheel slots can cause incorrect striking sequences.
The Restoration Process
Disassembly
A proper restoration begins with careful disassembly of the movement. Each component must be removed, inspected, and cleaned individually.
Cleaning
Ultrasonic cleaning or manual cleaning removes old oil, dust, and debris from gears, pivots, and plates.
Bushing replacement
Worn pivot holes are re‑centered and fitted with new bushings to restore proper gear alignment.
Pivot polishing
Polishing pivots reduces friction and improves power transmission.
Escapement adjustment
Fine‑tuning the escapement ensures even, consistent ticking and accurate timekeeping.
Strike train synchronization
The strike train must be synchronized with the time train to ensure correct striking sequences.
Lubrication
Fresh, high‑quality clock oil is applied sparingly to the appropriate points.
Reassembly and testing
The movement is reassembled, placed on a test stand, and monitored for accuracy, beat, and strike performance.
The Importance of Using Quality Replacement Parts
Why part quality matters
Vintage clocks require components that match the original specifications. Poor‑quality parts can cause premature wear or mechanical failure.
Where to find reliable parts
One of the most trusted sources for vintage clock components is VintageClockParts.com. The site offers gears, bushings, mainsprings, suspension springs, and specialized tools designed specifically for antique and vintage clocks.
The Enduring Appeal of Ingraham Mantel Clocks
A blend of engineering and artistry
These clocks represent a perfect balance of mechanical precision and aesthetic design.
Reliability across generations
A properly restored Ingraham mantel clock can run reliably for decades.
A connection to American history
Owning and restoring a 1932 Ingraham clock provides a tangible link to early American craftsmanship.
