Introduction
Removing an Ansonia 8‑day movement requires care, especially because these clocks often use delicate paper dials, thin pendulum rods, and fragile suspension springs. The NAWCC discussion highlighted several practical precautions that prevent damage during removal. This guide summarizes those steps so you can safely extract the movement without harming the dial, case, or internal components.
Key Risks When Removing an Ansonia Movement

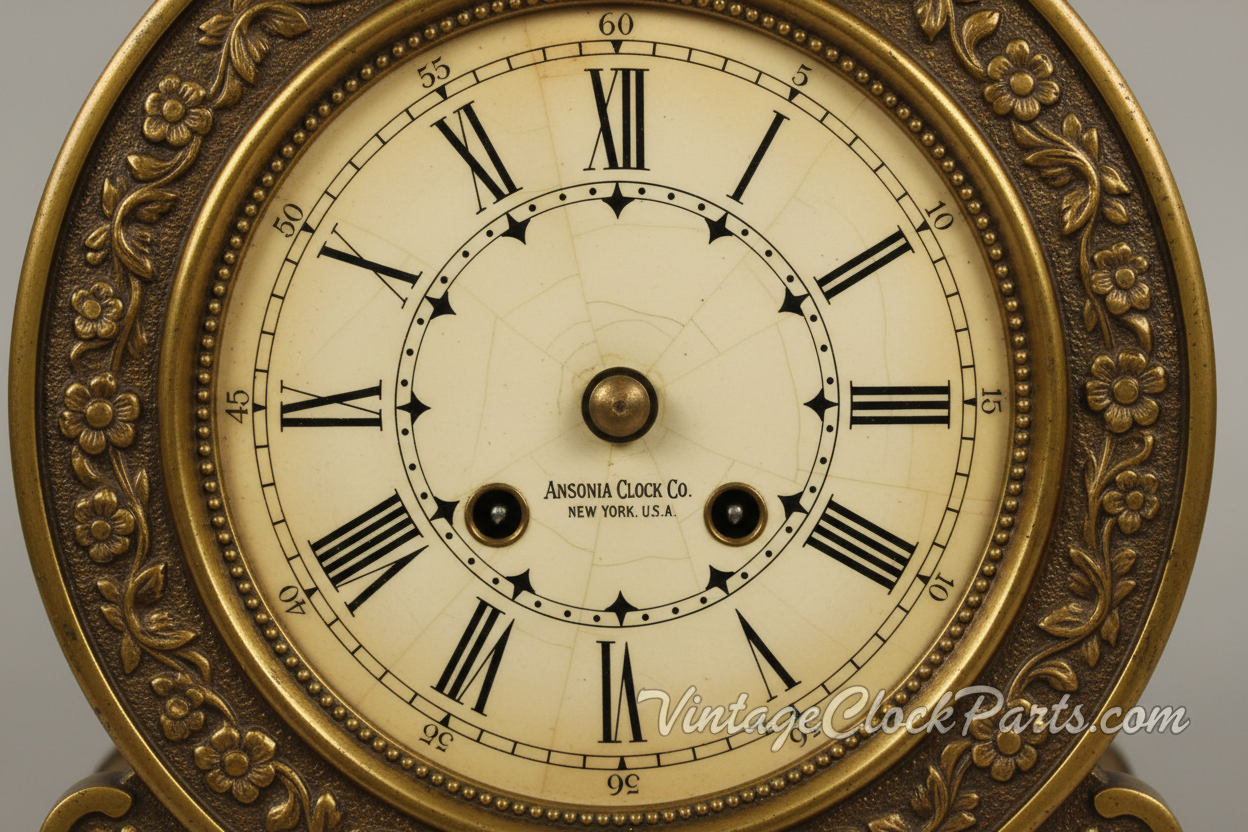

Paper dial damage
Ansonia paper dials tear easily around the winding holes and center arbor if the movement is forced out.
Pendulum rod bending
The thin steel rod can kink or twist if not disconnected properly.
Suspension spring breakage
The spring is fragile and snaps easily if the movement is tilted or pulled abruptly.
Hands binding or bending
Removing the hands incorrectly can distort the minute hand collet or scratch the dial.
Case screws stripping
Old wood or soft brass screws can strip if over‑torqued.
Precautions Before Removing the Movement
1. Remove the pendulum first
Always unhook the pendulum bob and rod before loosening the movement. This prevents bending or twisting.
2. Support the suspension spring
Hold the spring steady as you remove the rod to avoid tearing or snapping it.
3. Remove the hands carefully
Use a hand puller or gentle rocking motion; avoid prying against the paper dial.
4. Protect the dial surface
Place a thin card or plastic sheet over the dial while working to prevent scratches.
5. Check for hidden screws
Ansonia often used rear mounting tabs or side screws—ensure all are removed before lifting the movement.
How to Safely Remove the Movement
Step 1: Remove the bezel and glass
Open or detach the bezel to access the hands and dial area.
Step 2: Remove the hands
Pull the minute hand straight off, then remove the hour hand with gentle pressure.
Step 3: Disconnect the pendulum rod
Lift the rod off the suspension spring block and remove it from the crutch loop.
Step 4: Loosen mounting screws
Support the movement with one hand while removing screws to prevent sudden drop.
Step 5: Lift the movement straight out
Pull evenly to avoid scraping the paper dial or bending the center arbor.
Troubleshooting During Removal
If the movement won’t come out
Hidden screws → Dial cup interference → Hands not fully removed → Case swelling
If the dial starts to lift or wrinkle
Hands rubbing → Movement angled → Paper dial adhesive failing
If the pendulum rod catches
Rod still in crutch → Suspension spring hooked → Rod bent
If screws strip
Use proper driver → Apply downward pressure → Replace with correct size
If the movement tilts forward
Support with hand → Remove screws evenly → Avoid pulling from one side
Common Mistakes to Avoid
Prying against the paper dial
This causes permanent damage and tearing.
Forcing the movement out
Always check for missed screws or obstructions.
Leaving the pendulum attached
Guaranteed to bend the rod or break the suspension spring.
Using oversized screwdrivers
They slip and damage the dial or case.
Tilting the movement during removal
Can crease the dial or bend the center arbor.
Checklist for Final Verification
• Hands removed cleanly
• Pendulum rod and spring intact
• Paper dial undamaged
• All screws accounted for
• Movement removed without force
• Case and bezel unharmed
FAQs
Why is the paper dial at risk?
It tears easily around the arbor holes if the movement is tilted or forced.
Do I need to remove the pendulum rod?
Yes—leaving it attached almost always causes damage.
Can the suspension spring break?
Yes, it is fragile and must be supported during removal.
Are Ansonia movements difficult to remove?
Not usually, but hidden screws and delicate dials require caution.
Does this apply to all Ansonia 8‑day movements?
Yes—most share similar mounting and dial construction.
