Introduction

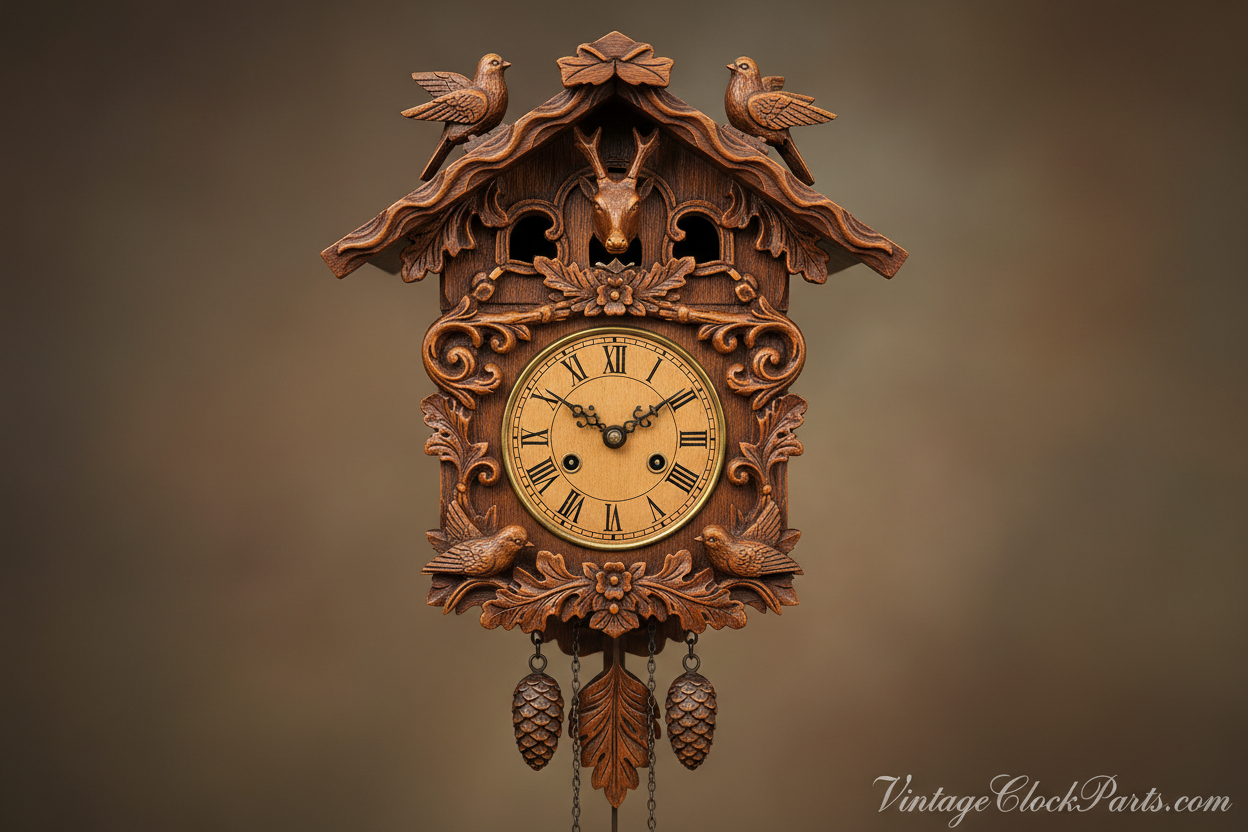

Ludwig Nowak cuckoo clocks use a movement and lift system similar to Regula‑style designs. When the bird fails to travel fully, the bellows don’t lift correctly, or the call sequence is weak or incomplete, the cause is usually misalignment in the bird arm, lift wires, or strike‑train timing. This guide explains how the system works and how to diagnose the most common issues.
How the Bird & Bellows System Works
Bird arm
Controls the bird’s travel in and out of the case and must move freely without rubbing.
Door linkage
The door must open fully and close smoothly; any drag affects the bird and bellows.
Lift wires
Each bellow is raised by a wire connected to the movement’s lift arms.
Strike‑train timing
The strike train determines when the bird moves and when each bellow lifts.
Weight‑driven power
Insufficient power or chain drag weakens the call sequence.
Common Problems
Bird won’t come out fully
Bird arm misaligned, door hinge tight, or linkage rubbing the case.
Bellows lift too low
Lift wires too short, bent, or dragging on the case.
Bellows lift too high
Wires too long or shaped incorrectly, causing over‑travel.
Weak or incomplete call
Bellows tops leaking, misaligned, or not lifting fully.
Strike stalls or misfires
Timing off or interference from the bird mechanism.
How to Diagnose the Issue
Check bird‑door operation
The door must open fully and close freely without dragging.
Inspect lift wires
Wires must lift straight up and not rub the case or movement.
Verify movement mounting
The movement must sit square and centered in the case.
Check bellows tops
Ensure tops are sealed, intact, and not dragging on the case.
Test strike‑train freedom
Any drag in the train reduces lift power and bird travel.
Correcting the Problem
Step 1: Align the bird arm
Ensure the bird moves freely and the door opens fully without resistance.
Step 2: Shape the lift wires
Adjust each wire so the bellows lift fully but not excessively.
Step 3: Correct door alignment
Make sure the door opens and closes smoothly with no drag.
Step 4: Repair or replace bellows tops
Leaks or loose tops reduce sound and lift efficiency.
Step 5: Test through multiple cycles
Advance the hands manually to confirm proper timing and lift height.
Troubleshooting Flowcharts
If the bird sticks
Door binding → Bird arm misaligned → Lift wire rubbing → Case interference
If the bellows lift too low
Wire too short → Wire rubbing → Lift arm bent → Bellows top dragging
If the bellows lift too high
Wire too long → Wire shape incorrect → Lift arm over‑travel
If the call is weak
Bellows leak → Lift too low → Top misaligned → Train drag
If timing is off
Lift pins worn → Wire shape incorrect → Strike timing drift
Common Mistakes to Avoid
Over‑bending lift wires
Small adjustments only—large bends cause binding.
Oiling the bird or bellows
Oil attracts dirt and causes sticking.
Ignoring door alignment
A dragging door is one of the most common causes of cuckoo failure.
Mounting the movement crooked
Even slight tilt causes beat issues and stoppage.
Skipping full‑cycle testing
Always test through several hours to confirm proper operation.
Checklist for Final Verification
• Bird moves freely
• Bellows lift correctly
• Movement centered
• Door aligned
• Strike and call in sync
• Clock runs full cycle
FAQs
Why won’t my bird come out?
Likely due to misaligned linkage or door drag.
Why don’t the bellows sound?
Wire length or alignment is incorrect.
Why does the strike misfire?
Timing or lift‑pin engagement is off.
Why is the call weak?
Bellows tops leaking or not lifting fully.
Is this common in these clocks?
Yes—alignment issues are frequent in this style of movement.
