Introduction

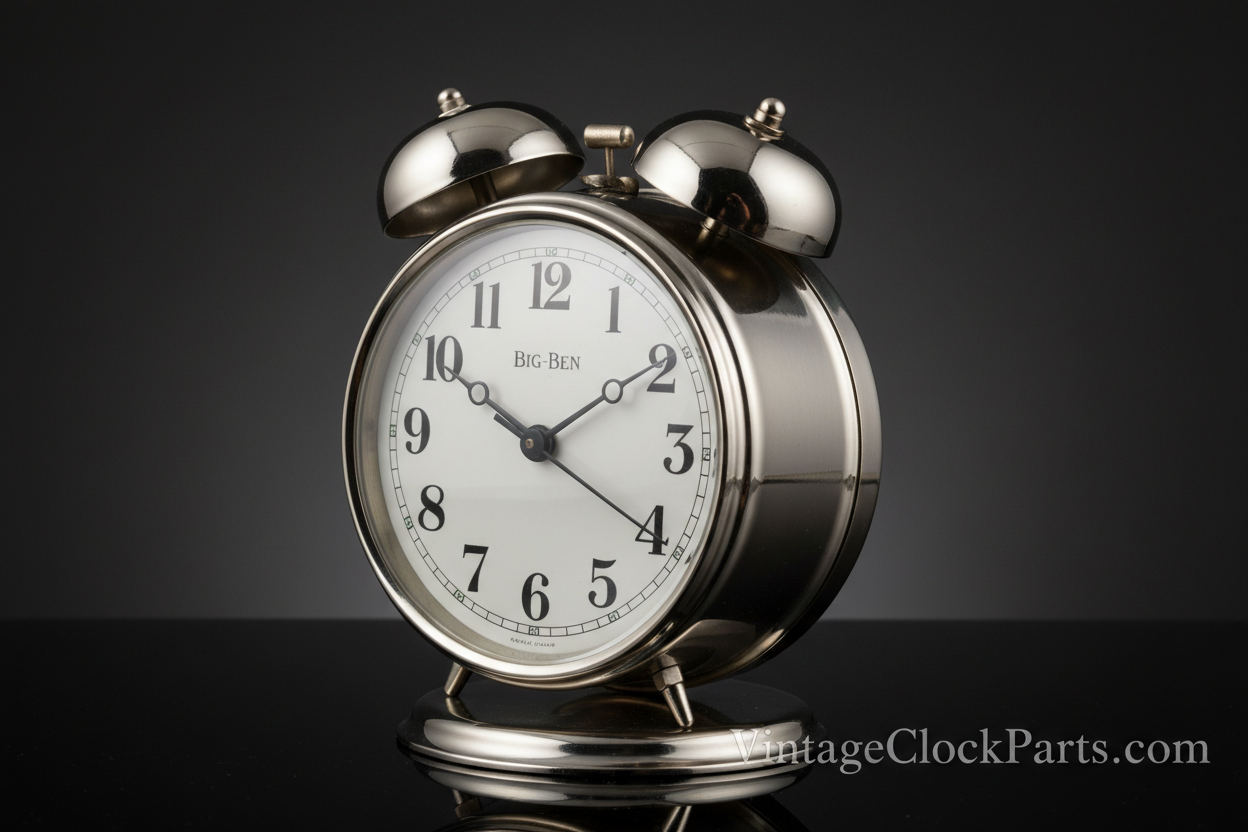

Westclox alarm clocks such as the Big Ben and Baby Ben are iconic American timepieces. Their simple but rugged movements can run for decades, but dirt, dried oil, and weakened mainsprings eventually cause them to stop or run erratically. This guide explains how to diagnose and repair common problems in Westclox alarm clocks, including balance issues, mainspring power loss, and cleaning procedures.
Understanding the Westclox Movement
Pin‑pallet escapement
Westclox movements use a pin‑pallet escapement, which is durable but sensitive to dirt and wear.
Balance wheel assembly
The balance wheel provides timekeeping regulation. Dirt or weak hairsprings cause poor amplitude.
Single‑plate construction
Many Westclox models use a single‑plate design with staked arbors, making disassembly different from traditional clocks.
Mainspring power
Weak or dirty mainsprings reduce power and cause the clock to stall.
Alarm mechanism
The alarm train is simple but must be clean and properly aligned to function correctly.
Common Problems in Big Ben and Baby Ben Clocks
Clock runs briefly then stops
Usually caused by dirt in the balance assembly or weak mainspring power.
Low balance amplitude
Dried oil or dirt on the balance pivots reduces swing.
Escapement skipping or fluttering
Worn pallet pins or dirty escape wheel teeth cause erratic operation.
Alarm not working
Misaligned alarm levers or dirty alarm gears prevent proper engagement.
Clock runs fast or slow
Balance hairspring issues or incorrect regulator position are common causes.
Diagnosing the Issue
Check balance wheel freedom
The balance should swing freely with good amplitude. Any hesitation indicates dirt or pivot wear.
Inspect the escapement
Check pallet pins for wear and ensure the escape wheel teeth are clean and undamaged.
Evaluate mainspring condition
Weak or dirty mainsprings reduce power and cause intermittent running.
Check for dirt and dried oil
Westclox clocks often fail simply due to old, hardened oil.
Test alarm function
Ensure the alarm lever engages properly and the alarm wheel rotates freely.
Correcting the Problem
Clean the movement thoroughly
Disassemble as needed and clean all parts to remove old oil and dirt.
Lubricate sparingly
Use minimal oil on pivots only. Over‑oiling attracts dirt and reduces performance.
Service or replace mainsprings
Weak mainsprings should be replaced or cleaned and lubricated.
Polish balance pivots
Smooth pivots improve amplitude and accuracy.
Adjust the regulator
Fine‑tune the balance regulator to correct fast or slow running.
Troubleshooting Flowcharts
If the clock stops after a few minutes
Check balance → Check pivots → Check mainspring → Check escapement → Clean movement
If the clock runs fast
Check regulator → Check hairspring → Check balance amplitude
If the clock runs slow
Check regulator → Check dirt on balance → Check mainspring power
If the alarm won’t ring
Check alarm lever → Check alarm wheel → Check dirt → Check alignment
If the escapement skips
Check pallet pins → Check escape wheel → Check pivot wear
Common Mistakes to Avoid
Over‑oiling the movement
Too much oil attracts dirt and causes premature wear.
Bending pallet pins
Pallet pins are delicate and easily damaged.
Forcing the balance wheel
Forcing can distort the hairspring or damage pivots.
Ignoring mainspring condition
Weak mainsprings are a major cause of poor performance.
Skipping cleaning
Most Westclox problems are caused by dirt and dried oil.
Checklist for Final Verification
• Balance wheel swings freely
• Escapement clean and functioning
• Mainspring provides adequate power
• Alarm engages and rings properly
• Movement clean and lightly lubricated
FAQs
Why does my Westclox stop after a few minutes?
Usually due to dirt in the balance assembly or weak mainspring power.
Why is my Big Ben running fast?
Often caused by regulator position or hairspring issues.
Why won’t my Baby Ben alarm ring?
Likely due to misaligned alarm levers or dirt in the alarm train.
Do Westclox clocks need oil?
Yes, but only a very small amount on pivots after cleaning.
Can mainsprings be replaced?
Yes. Weak or set mainsprings should be serviced or replaced.
