Introduction

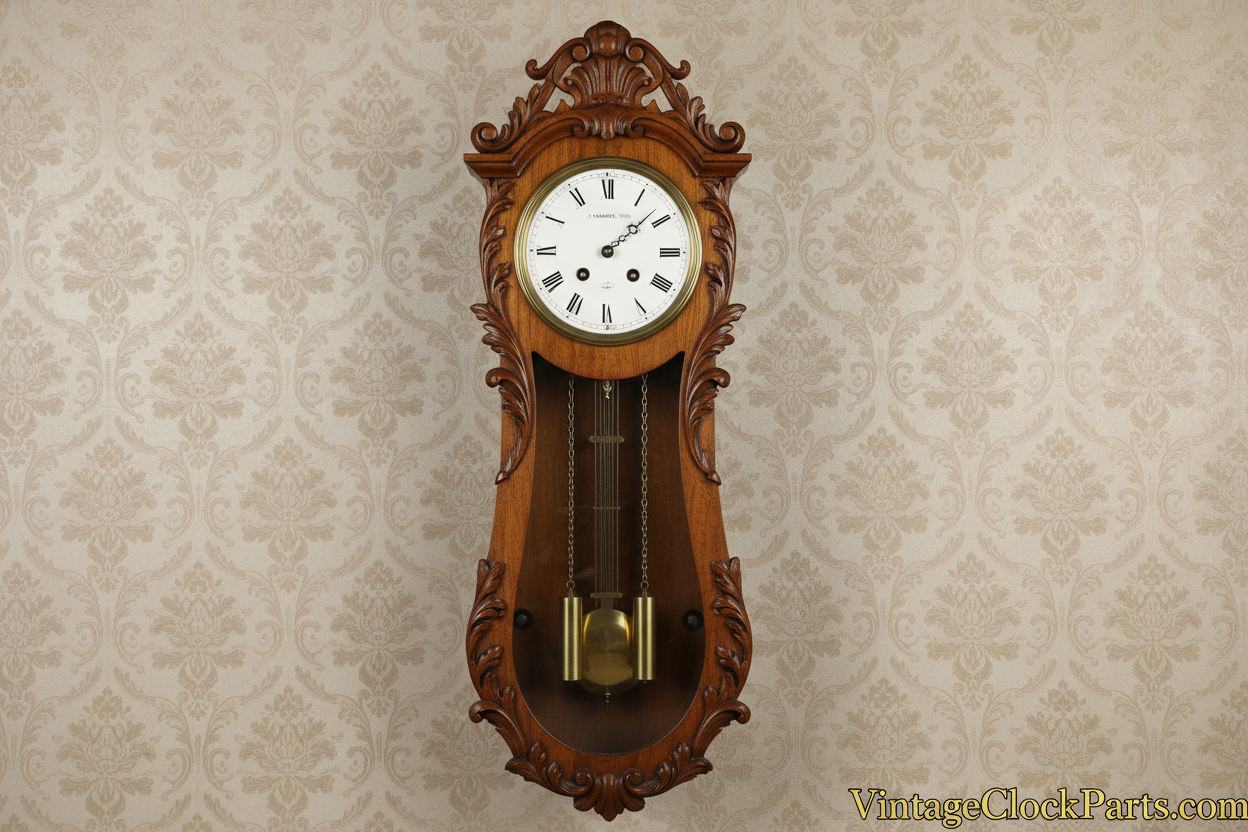

Vienna regulator clocks are precise, weight-driven movements that rely on a perfectly aligned pendulum system. A twisted pendulum is a common issue, especially after shipping, mishandling, or incorrect reassembly. This guide explains how to diagnose and correct a twisted pendulum, how the suspension spring interacts with the crutch, and how to ensure the Vienna regulator movement runs freely.
Why Pendulums Twist on Vienna Regulators
Shipping or movement handling
Even slight twisting of the suspension spring causes the pendulum to hang crooked.
Incorrect crutch engagement
If the crutch loop grips the pendulum rod too tightly, it forces the rod to twist.
Suspension spring deformation
Vienna suspension springs are thin and easily bent or twisted.
Pendulum rod rotation
The rod may rotate inside its top block if not seated correctly.
Case alignment issues
If the movement is not mounted squarely, the pendulum appears twisted even when the spring is correct.
How to Diagnose the Twist
Check the suspension spring first
Look for bends, twists, or a spring that is not hanging flat.
Inspect the pendulum rod
Ensure the rod is straight and not rotated inside the top block.
Check crutch clearance
The crutch loop should have slight side-to-side play and not pinch the rod.
Verify movement alignment
Ensure the movement is mounted squarely and the beat board is straight.
Check weight alignment
Uneven Vienna regulator clock weights can pull the movement slightly off-center.
How to Fix a Twisted Pendulum
Step 1: Remove the pendulum
Lift gently upward to release it from the suspension spring.
Step 2: Inspect and flatten the suspension spring
Lay it on a flat surface. If twisted, gently straighten it with fingers or smooth pliers.
Step 3: Re-seat the pendulum rod
Ensure the rod sits squarely in the top block and does not rotate freely.
Step 4: Adjust the crutch loop
Open the loop slightly so the rod moves freely without twisting.
Step 5: Rehang the pendulum and check beat
Set the beat by gently bending the crutch until the tick and tock are even.
Troubleshooting After Adjustment
If the pendulum still twists
Check suspension spring again → Check crutch tension → Check rod seating.
If the clock stops after a few minutes
Beat off → Crutch too tight → Suspension bent → Pivot wear.
If the pendulum swings unevenly
Movement not level → Case tilted → Weights uneven.
If the escape wheel flutters
Pallet depth incorrect → Beat off → Power loss.
If the clock runs but loses time
Adjust rating nut → Check pendulum length → Verify suspension spring thickness.
Common Mistakes to Avoid
Twisting the pendulum to “straighten” it
This damages the suspension spring—always fix the spring, not the rod.
Pinching the crutch loop
Too much friction forces the pendulum to twist and stops the clock.
Ignoring case leveling
Vienna regulators are extremely sensitive to being out of plumb.
Over-bending the suspension
These springs are delicate—use minimal force.
Reassembling without checking beat
An uneven beat is the most common cause of stoppage after repair.
Checklist for Final Verification
• Suspension spring flat and untwisted
• Pendulum rod seated correctly
• Crutch loop adjusted with slight play
• Movement level and square
• Weights hang straight
• Beat even and stable
• Clock runs full duration
FAQs
Why does my Vienna regulator pendulum twist?
Usually due to a twisted suspension spring or a tight crutch loop.
Should I replace the suspension spring?
Replace it only if cracked or permanently bent.
Why does the clock stop after fixing the pendulum?
Beat may be off or the crutch may still be too tight.
Do Vienna regulators need special weights?
Yes—Vienna regulator clock weights must match the movement’s design.
Are antique Vienna regulator parts available?
Yes—many suppliers carry reproduction and antique Vienna regulator clock parts.
