Introduction

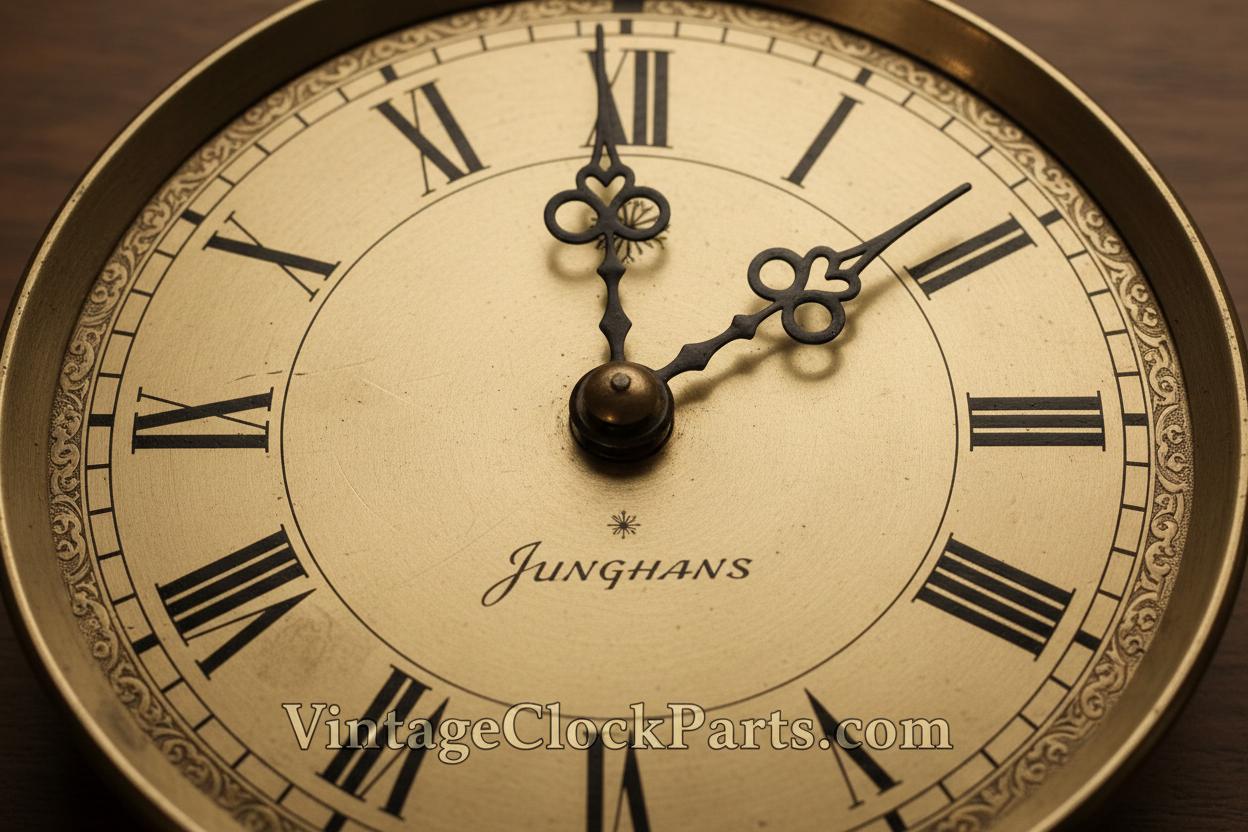

The hand nut secures the minute hand to the cannon pinion and controls the pressure applied to the hand stack. If the hand nut is incorrect—wrong thread size, wrong depth, or wrong shoulder design—the minute hand will slip, bind, wobble, or stop. This guide explains how to choose the correct hand nut for your mechanical clock.
Understanding What the Hand Nut Does
Secures the minute hand
The hand nut threads onto the cannon pinion to hold the minute hand firmly in place.
Controls hand pressure
Proper tension prevents slipping while allowing smooth hand setting.
Stabilizes the hand stack
The nut keeps the minute hand aligned with the hour hand and dial.
Key Features of Hand Nuts
Thread size
Must match the cannon pinion’s threaded tip exactly.
Nut depth
Determines how much pressure is applied to the minute hand.
Shoulder design
Some nuts include a built‑in washer surface for smoother pressure distribution.
How to Identify the Correct Hand Nut
Match the thread size
Even slight differences prevent the nut from threading properly.
Check the nut depth
Too shallow causes slipping; too deep causes binding or hand drag.
Verify shoulder style
Flat‑shoulder nuts provide even pressure; narrow‑shoulder nuts fit recessed hands.
Matching Hand Nuts to the Movement
Identify the movement manufacturer
Hermle, Urgos, and Kieninger use specific thread sizes and nut profiles.
Match the cannon pinion
The nut must thread smoothly onto the cannon pinion without cross‑threading.
Check hand‑stack spacing
The nut must secure the minute hand without rubbing the hour hand or dial.
Common Hand Nut Materials
Brass hand nuts
Most common and ideal for smooth threading and stable pressure.
Steel hand nuts
Provide added durability for high‑use clocks.
Alloy nuts
Used in modern clocks for improved wear resistance.
Common Mistakes When Choosing Hand Nuts
Incorrect thread size
Prevents proper tightening and may damage the cannon pinion.
Wrong nut depth
Causes slipping hands or excessive hand pressure.
Incompatible shoulder design
Leads to uneven pressure or poor hand alignment.
Recommended Internal Links
- How to Choose the Correct Clock Cannon Pinions
- How to Choose the Right Clock Hour Tubes
- How to Choose the Right Clock Minute Wheels
- How to Choose the Correct Clock Motion‑Works Bridges
FAQs
How do I know which hand nut my clock needs?
Match the thread size, nut depth, and shoulder design to the original movement.
Why is my minute hand slipping?
The hand nut may be too shallow, worn, or the wrong thread size.
Can I reuse an old hand nut?
Only if the threads are clean and the nut tightens securely.
Do hand nuts from different brands interchange?
Only if the thread size and nut depth match exactly.
Why is my minute hand binding?
An incorrect nut depth or shoulder style may be applying too much pressure.
