Introduction

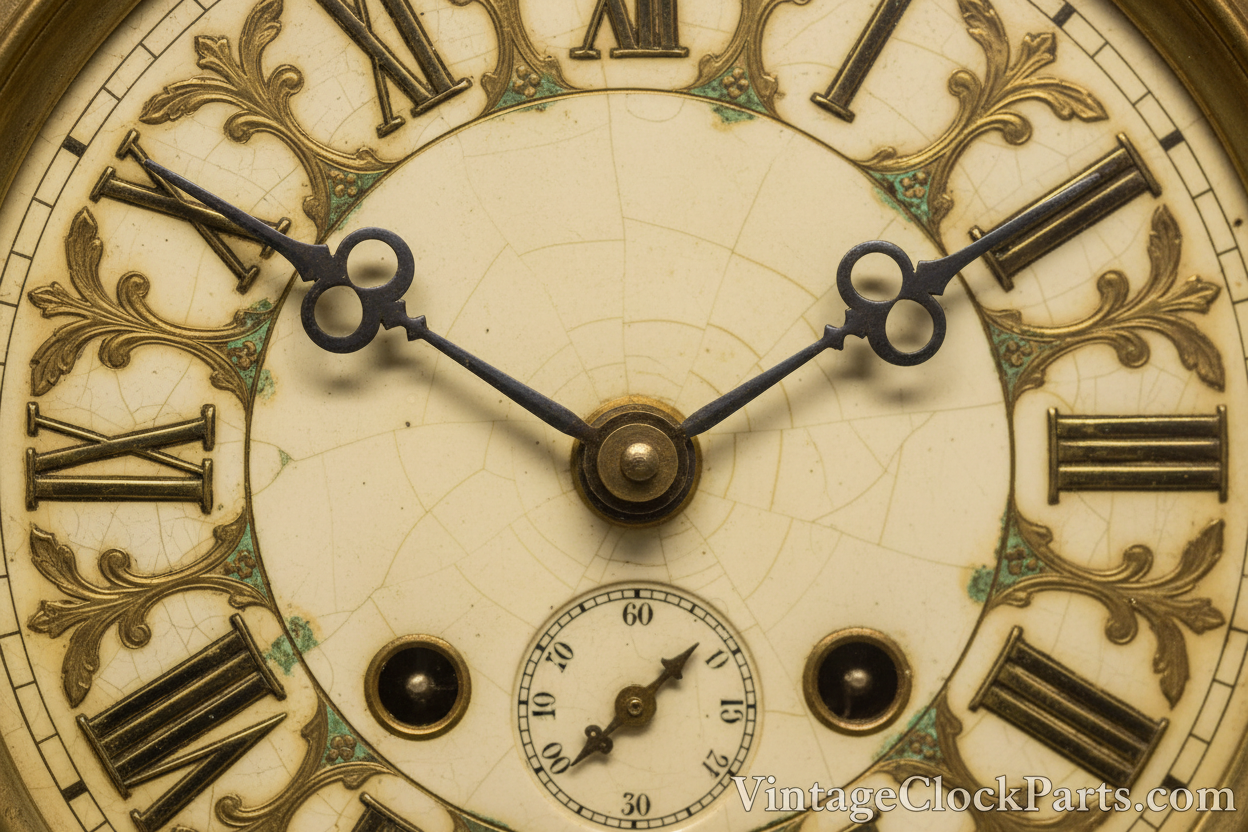

The clock dial is the visual centerpiece of the clock and must fit the bezel, hands, and movement perfectly. Choosing the wrong size or mounting style leads to clearance issues, misaligned hands, or a dial that simply won’t fit the case. This guide explains how to choose the correct clock dial for your mechanical clock.
Understanding Clock Dial Sizing
Overall dial diameter
This is the full width of the dial, measured edge to edge. It must match the bezel opening.
Chapter ring diameter
The chapter ring is the printed or engraved minute track. Hands must reach this area without touching it.
Visible opening vs. full dial size
Some dials hide behind a bezel lip. Always measure both the visible area and the full diameter.
How to Measure Your Clock Dial
Measure the bezel opening
Open the bezel and measure the inside diameter where the dial sits.
Measure the dial pan or mounting surface
This determines the maximum dial size that will fit the case.
Check hand clearance
Hands must clear the dial surface and any raised numerals.
Choosing the Correct Dial Material
Paper dials
Used on many American clocks. Affordable and easy to replace.
Metal dials
Common on German clocks. Durable and available in multiple finishes.
Porcelain or enamel dials
Used on antique clocks. Require careful handling and exact sizing.
Matching the Dial to the Movement
Check the hand shaft hole size
The center hole must match the movement’s hand shaft diameter.
Match winding hole spacing
Time and strike clocks require two winding holes; triple-chime clocks require three.
Ensure proper alignment
Winding holes must align perfectly with the movement’s arbors.
Dial Mounting Styles
Adhesive-backed dials
Common for paper dials. Applied directly to a dial pan.
Pinned dials
Used on many antique clocks. Require matching pin holes.
Screw-mounted dials
Metal dials often use screw holes that must match the case or dial pan.
Common Mistakes When Choosing a Clock Dial
Measuring only the visible area
This leads to ordering a dial that is too small for the bezel.
Ignoring winding hole spacing
Misaligned holes make the dial unusable.
Choosing the wrong material
Paper, metal, and porcelain dials behave differently and must match the clock’s design.
Recommended Internal Links
FAQs
How do I know what size dial my clock needs?
Measure the bezel opening and the dial pan to determine the correct diameter.
Do all dials fit all movements?
No. Winding hole spacing and center hole size must match the movement.
Can I trim a dial to make it fit?
Paper dials can be trimmed; metal and porcelain dials cannot.
Why don’t my winding holes line up?
The dial may be the wrong model or incorrectly sized for your movement.
What material should I choose?
Match the original dial material or choose based on the clock’s style and age.
