Introduction

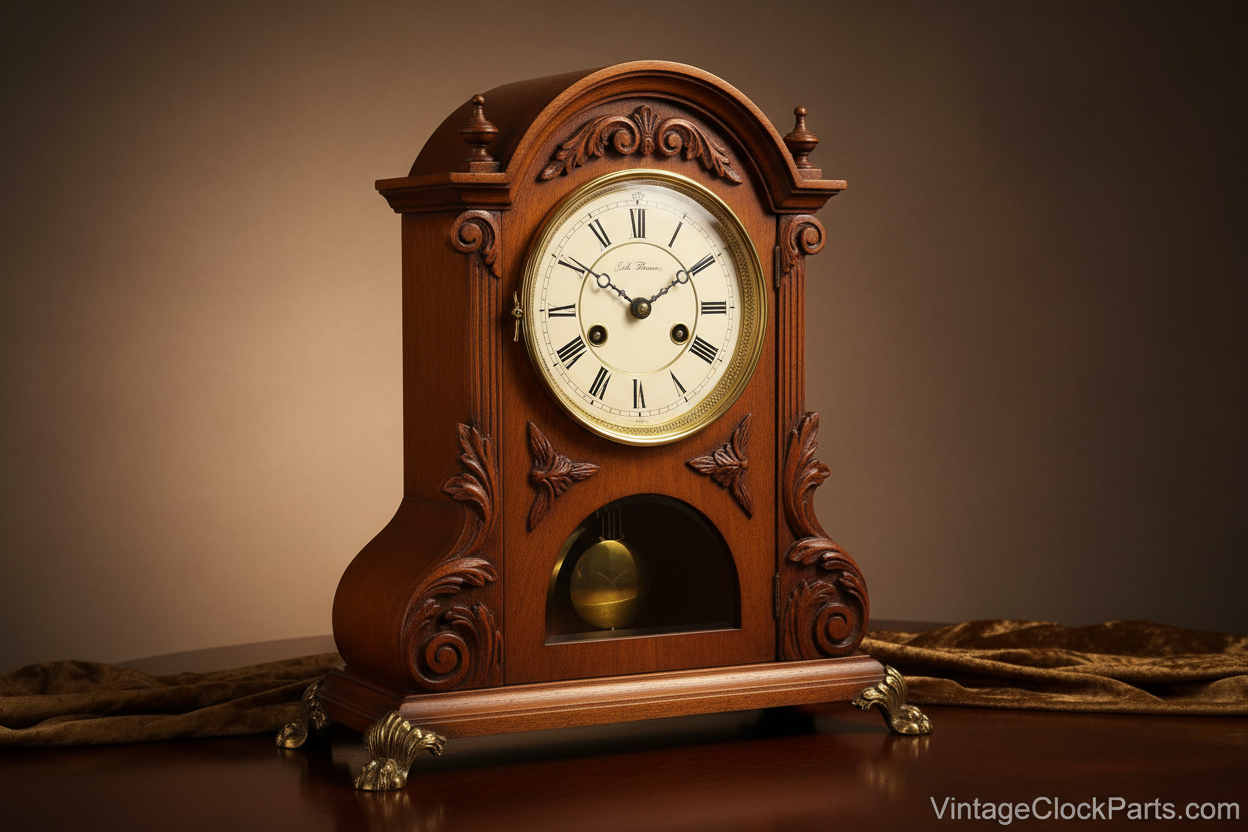

The Seth Thomas 124 is a compact, high‑quality 8‑day chime movement, but it is also one of the most sensitive to beat alignment. Even slight crutch misalignment or pendulum‑spring twist can cause the clock to stop. This guide explains how to properly adjust the beat on a Seth Thomas 124 movement and diagnose related issues involving the pendulum rod, suspension spring, and crutch.
How the Seth Thomas 124 Beat System Works
The crutch
The crutch pushes the pendulum rod back and forth. If bent or misaligned, the beat becomes uneven.
The pendulum rod and spring
The suspension spring must hang straight. Any twist or bend affects beat symmetry and amplitude.
The verge and escape wheel
Proper lock and drop are essential. Wear or dirt in the escapement reduces power and exposes beat issues.
The 8‑day movement design
The 124 is compact and efficient, but its short pendulum makes it more sensitive to beat errors than larger clocks.
Case leveling
Even slight case tilt can throw the beat off, especially in mantel clocks.
Why the Beat Goes Out of Adjustment
Crutch bent during handling
Movement removal or shipping often bends the crutch slightly.
Twisted suspension spring
A twisted spring causes the pendulum to swing unevenly.
Pendulum rod rubbing
Rubbing against the case, chime rods, or crutch loop reduces amplitude.
Wear in the escape wheel or verge
Worn teeth or pivots cause inconsistent impulse and beat drift.
Case not level
Even a small tilt affects the short pendulum of the 124 movement.
How to Adjust the Beat on a Seth Thomas 124
Step 1: Level the case
Use a small level or listen for an even tick‑tock. Adjust the case until the beat is close.
Step 2: Inspect the suspension spring
Ensure the spring hangs straight with no twist. Replace if kinked or fatigued.
Step 3: Center the pendulum rod in the crutch loop
The rod must move freely without rubbing either side of the loop.
Step 4: Adjust the crutch
Gently bend the crutch left or right to correct the beat. Small adjustments make a big difference on the 124.
Step 5: Listen for an even beat
The tick and tock should be evenly spaced. If not, repeat small adjustments.
Diagnosing Beat‑Related Stoppage
If the clock stops after a few minutes
Beat likely off → Check crutch → Check suspension → Check rod clearance
If the pendulum amplitude is weak
Check for rubbing → Check escapement → Check pivot wear
If the beat drifts over time
Check suspension twist → Check crutch friction → Check verge wear
If the clock only runs when tilted
Beat off → Adjust crutch → Verify case level
If the escape wheel flutters
Check lock and drop → Check pivot wear → Check crutch alignment
Common Mistakes to Avoid
Bending the crutch too far
Small adjustments are enough. Over‑bending causes binding.
Ignoring suspension spring condition
A twisted or fatigued spring prevents proper beat adjustment.
Letting the pendulum rod rub
Even slight rubbing reduces amplitude and stops the clock.
Oiling the suspension spring
Never oil the spring. Oil causes sticking and beat instability.
Skipping escapement inspection
Worn escape wheel teeth or verge surfaces cause beat drift and poor impulse.
Checklist for Final Verification
• Case level
• Suspension spring straight
• Pendulum rod centered
• Crutch adjusted correctly
• Even tick‑tock beat
• Movement runs full cycle without stopping
FAQs
Why is the Seth Thomas 124 so sensitive to beat?
Its short pendulum and compact design make small errors more noticeable.
How do I know if the beat is correct?
The tick and tock must be evenly spaced with no hesitation.
Can a twisted suspension spring cause beat problems?
Yes. Even slight twist affects beat symmetry.
Why does my 124 stop after a few minutes?
Usually due to beat error, pendulum rubbing, or escapement wear.
Should I oil the suspension spring?
No. Oil causes sticking and destroys beat stability.
