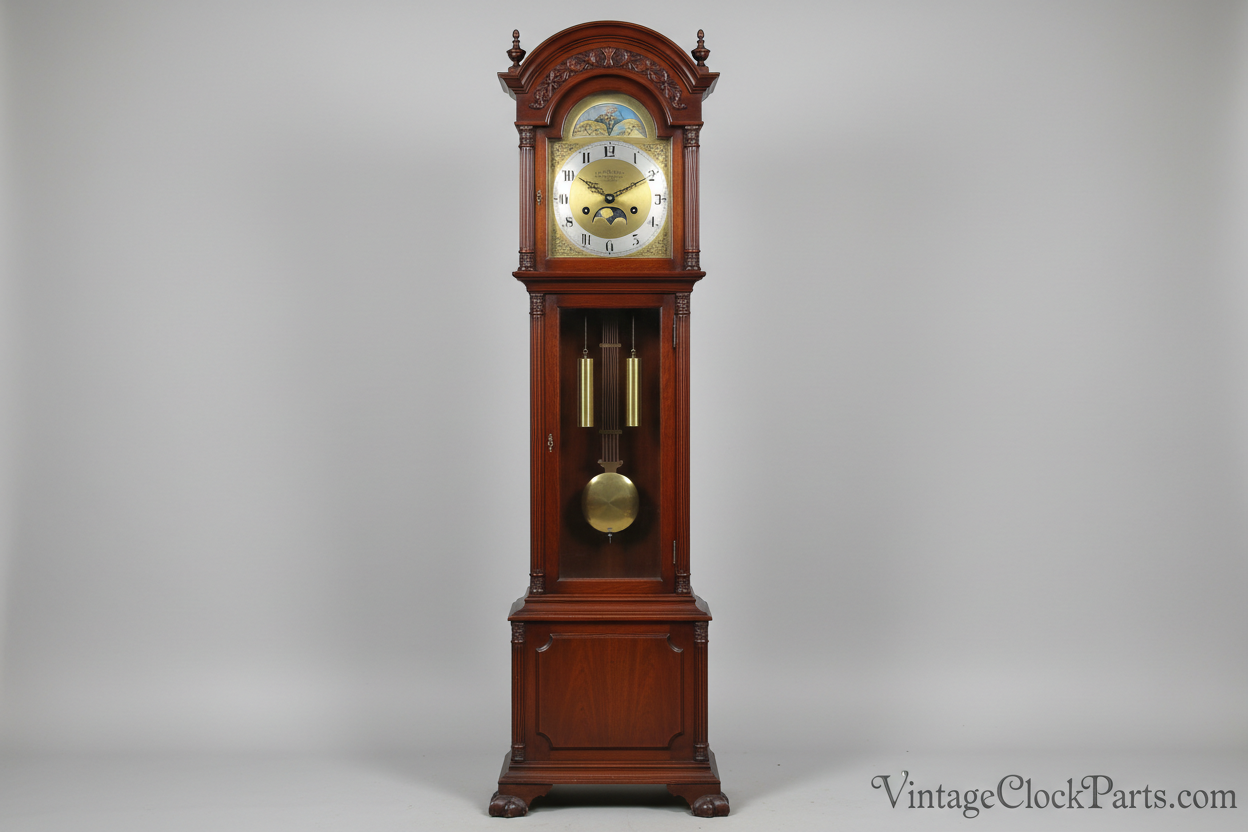

Herschede Grandfather Clock Chime Synchronization Repair

Herschede tubular chimes and bells grandfather clocks with incorrect quarter chiming sequences present one of the most challenging repair scenarios in American clockmaking. When your Herschede plays the first quarter correctly but subsequent quarters play wrong notes or incorrect numbers of notes, you're dealing with complex timing issues involving the quarter rack gathering system. This frustrating problem rarely self-corrects and often worsens without proper intervention. This guide covers complete diagnosis and repair of Herschede chime synchronization problems. You'll learn how the quarter rack and gathering pallet system determines note count for each quarter hour, proper warning pin positioning at three and nine o'clock positions for chime and strike coordination, diagnosing quarter rack slippage that prevents proper tooth gathering, spring tension adjustments on the double lever and rack components, and self-correction mechanism positioning near the chime barrel surface. The key to solving erratic Herschede chiming is understanding that the quarter rack must gather one tooth at a time for quarters requiring multiple rotations, and any slippage in this gathering process causes the chime barrel to under-rotate and play incorrect note sequences.

Understanding Herschede Tubular Bell Chime Operation

Quarter Rack and Gathering Pallet Basics

Herschede movements use a quarter rack system to control how many notes play at each quarter hour. The rack has teeth that engage with a gathering pallet. At the first quarter, the rack falls slightly and the gathering pallet collects one tooth. This allows the chime barrel to rotate enough to play four notes. At the second quarter, the rack falls farther and the gathering pallet must collect two teeth for eight notes. Third quarter requires three teeth for twelve notes. The hour requires four teeth for sixteen notes.

A rotating disc with four segments of increasing depth controls how far the rack falls. As the minute hand advances through each quarter hour, this disc rotates to present progressively deeper segments. The rack tail rests on this disc. Deeper segments allow the rack to fall farther, exposing more teeth for the gathering pallet to collect.

The gathering pallet rotates as the chime train runs. Each rotation collects one tooth from the rack. After collecting the required number of teeth, the rack hook engages and stops the gathering process. The chime barrel has now rotated the correct amount for that quarter's note sequence. This system works reliably when all components function properly, but multiple points of potential failure exist.

Warning Pin and Strike Coordination

Herschede movements use separate warning systems for chime and strike trains. The chime warning pin should lock with the gathering pallet at the three o'clock position. The strike warning pin should lock at nine o'clock. These positions ensure proper timing sequence where chime plays first, then strike follows after chime completes.

When warning pins position incorrectly, the strike may fire simultaneously with the chime or the chime may jam during operation. The strike train must be held in warning while the chime plays. Only after the chime completes should the strike release and sound the hour count. This coordination requires precise warning pin positioning relative to the gathering pallets.

Warning pin position isn't permanent. Pins can shift if someone has adjusted gathering pallet positions during previous repair attempts. Pins may also shift if the movement experienced impact damage during moving. Always verify warning pin positions as part of diagnosing chime problems. Incorrect positions create symptoms that look like other issues, leading repair attempts down wrong paths.

Chime Barrel Rotation and Note Selection

The chime barrel contains pins that lift hammers striking the tubular bells. The barrel must rotate specific amounts to play correct note sequences. First quarter requires one-quarter rotation for four notes. Second quarter needs one-half rotation for eight notes. Third quarter demands three-quarter rotation for twelve notes. The hour requires full rotation for sixteen notes plus four more for twenty total.

If the quarter rack doesn't allow proper tooth gathering, the chime barrel under-rotates. Under-rotation means the wrong section of the barrel presents to the hammers. You hear incorrect notes or too few notes. The problem appears as inconsistent chiming where sometimes it plays correctly but usually plays wrong sequences.

The barrel must also stop in exactly the right position after each quarter. A self-correction mechanism helps with this, but it can't compensate for severe under-rotation caused by rack slippage. The self-correction lever skims across the chime barrel surface. It catches in a notch to ensure proper barrel positioning when the next quarter begins. This mechanism works only if the barrel rotates close to the correct amount.

Diagnosing Quarter Rack Slippage

Symptoms of Rack Problems

Quarter rack slippage creates characteristic symptoms. The first quarter often plays correctly because it requires gathering only one tooth. This simpler operation succeeds even when the system has problems. Subsequent quarters fail because they require gathering multiple teeth in sequence. Each tooth gathering attempt may slip, causing cumulative errors.

The chime may play four notes at first quarter, then only four notes at second quarter instead of eight. Third quarter may play four notes instead of twelve. The hour might play eight instead of sixteen or twenty. Sometimes you get partial success where it plays six notes instead of eight or ten instead of twelve. These partial successes indicate the gathering pallet is collecting some teeth but not all required teeth.

Erratic behavior is another key symptom. One cycle might play almost correctly while the next cycle plays completely wrong. The hour chime might play sixteen notes on one attempt and twenty-four on another. This inconsistency proves that components aren't maintaining proper engagement. Consistent problems suggest adjustment issues. Inconsistent problems point to slippage or wear.

Observing the Gathering Process

Watch the quarter rack and gathering pallet during chime operation. Slow the chime fly with your finger so you can observe the gathering process clearly. The gathering pallet should rotate and engage one rack tooth at a time. Each tooth should hold securely until the pallet advances to the next tooth. You should see definite clicks as each tooth engages.

Look for slippage where the gathering pallet appears to engage a tooth but then slips off before collecting it properly. The rack may jump or vibrate during gathering attempts. The gathering pallet may rotate multiple times while collecting what should be a single tooth. These visible signs indicate that the engagement between pallet and rack teeth isn't secure.

Check whether the rack falls the correct distance for each quarter. The rack tail should rest on progressively deeper sections of the rotating disc as quarters advance. If the rack doesn't fall far enough, insufficient teeth are exposed for gathering. If the rack falls too far, it may jam or cause gathering problems. Compare rack fall distance between quarters to verify proper disc operation.

Testing Rack and Pallet Engagement

With the movement stopped, manually test rack and pallet engagement. Position the rack at various fall depths representing different quarters. Try to engage the gathering pallet with rack teeth. The engagement should feel positive and secure. The pallet should click definitely into each tooth space with no play or looseness.

Check for wear on rack teeth and gathering pallet surfaces. Microscopic wear from years of operation can reduce engagement quality. Even slight rounding of teeth edges or pallet corners creates slippage potential. Hold components under good light and use magnification if available. Look for polished or rounded surfaces that should be sharp and crisp.

Verify that the rack spring provides adequate tension. The spring must hold the rack firmly against the gathering pallet during tooth collection. Weak spring tension allows the rack to bounce or vibrate, creating slippage. Test spring tension by pulling the rack against spring pressure. It should resist firmly but not so hard that the gathering pallet can't advance through the teeth.

Warning Pin Position Adjustment

Locating Current Pin Positions

Observe where warning pins actually lock during operation. Advance the minute hand slowly through a quarter hour. Watch the chime side first. The warning pin should engage the gathering pallet just before the quarter hour. Note the clock position where this engagement occurs. Ideally it should be at three o'clock, but it may be significantly off if someone has made previous adjustments.

Check the strike side warning pin position separately. Advance through the hour position and note where the strike warning pin engages its gathering pallet. This should occur at nine o'clock. If both pins are significantly off their target positions, you'll need to reposition gathering pallets to correct timing.

Use a marker or piece of tape to note current positions before making any changes. This allows you to return to the starting point if adjustments don't improve operation. Take photos of current setup from multiple angles. These references prove invaluable if you need to backtrack after unsuccessful adjustment attempts.

Moving Gathering Pallets

Gathering pallets typically mount on their arbors with friction fit allowing repositioning. To move a pallet, loosen any set screws securing it. Grasp the pallet firmly and rotate it to the new position on its arbor. The goal is positioning the pallet so the warning pin engages at the correct clock position relative to the minute hand.

Make small adjustments. Moving the pallet just a few degrees can shift warning pin engagement significantly. Adjust, test, and observe results before making additional changes. Trying to achieve perfect position in one large adjustment usually overshoots and requires backing up.

After repositioning, verify that the pallet still engages rack teeth properly. Moving the pallet changes its relationship to the rack. Ensure adequate engagement exists throughout the full gathering cycle. The pallet must collect teeth reliably while also properly engaging the warning pin at the correct moment.

Coordinating Chime and Strike Timing

Once warning pins lock at proper positions, verify the timing sequence during actual operation. The chime should complete fully before the strike begins. If the strike fires during chiming, the strike warning isn't holding long enough. The strike train must remain locked until the chime barrel completes rotation and releases the strike.

The coordination between chime and strike involves multiple levers and linkages. Study your specific movement carefully to understand how chime completion releases the strike. Some designs use a lever that rides on the chime barrel. Others use linkage from the chime gathering pallet. Ensure all coordination components move freely without binding.

Sometimes warning pins can be at correct positions but timing still fails due to worn or damaged coordination linkage. Check for bent levers, weak springs, or binding pivots in the coordination mechanism. These components must function precisely for proper chime-strike sequencing even when warning pins are correctly positioned.

Spring Tension Adjustments

Quarter Rack Spring Requirements

The quarter rack spring must provide enough tension to keep the rack firmly engaged with the gathering pallet during tooth collection. Insufficient tension allows the rack to bounce or vibrate, causing slippage. The rack may appear to engage a tooth but then slip out of engagement before the gathering pallet advances to collect the next tooth.

Test current spring tension by observing rack behavior during operation. The rack should remain stable and steady as the gathering pallet rotates through teeth. Any jumping, vibrating, or bouncing indicates inadequate spring tension. The rack should press firmly against the pallet throughout the gathering process.

Increasing spring tension involves bending the spring to create more pressure or replacing the spring with a stronger one. Be cautious increasing tension too much. Excessive tension can overload the chime train causing it to run slowly or stop entirely. The goal is enough tension for secure engagement without overburdening the mechanism.

Double Lever Spring Considerations

The double lever system that lifts the rack at quarter hours also requires proper spring tension. This spring must be strong enough to lift the rack reliably when activated but must also allow the rack to fall freely when released. Weak spring creates erratic lifting behavior. The rack may not lift fully or may hesitate during operation.

Sometimes the wrong spring ends up installed during previous repairs. The spring may be left-handed when it should be right-handed or vice versa. While a reversed spring might work, it doesn't provide optimal geometry for the leverage system. Consider replacing with correct spring orientation if available.

In some cases, turning a spring around to reverse its facing can temporarily solve tension problems. This workaround isn't ideal but may function adequately if the correct spring isn't available. The turned spring may fatigue faster than properly oriented springs, requiring eventual replacement, but it can provide immediate improvement.

Hammer Tension Springs

The springs that tension the hammer shanks also matter for overall chime operation. These springs must provide enough pressure to ensure hammers strike bells cleanly but not so much that they load down the chime train. Each hammer needs individual attention since springs can weaken differently over time.

Test hammer spring tension by manually lifting each hammer and feeling the resistance. Tension should be similar across all hammers. Weak springs allow hammers to strike softly or miss notes entirely. Excessive tension overloads the chime barrel rotation, potentially contributing to gathering problems.

Adjust hammer springs by bending the spring wire or moving spring mounting positions. Most designs allow fine-tuning without spring replacement. Make small adjustments and test results. Hammer tension affects both sound quality and mechanical loading, so proper balance matters for reliable chime operation.

Self-Correction Mechanism Setup

Understanding Self-Correction Function

The self-correction mechanism ensures the chime barrel stops in exactly the right position after each quarter. A lever with a hook skims across the chime barrel surface. The barrel has notches positioned at correct stopping points. When a notch passes under the lever, the hook drops into the notch and stops barrel rotation precisely.

This system compensates for small variations in gathering and stopping that might accumulate over time. It prevents gradual drift where the barrel ends up slightly out of position after each quarter. Without self-correction, small errors compound until the chime plays completely wrong sequences.

Self-correction can't fix major problems like severe rack slippage. If the barrel under-rotates significantly, the next notch may not reach the correction lever. The lever misses its chance to correct position and the error propagates through subsequent quarters. Self-correction works only when the system operates reasonably close to correct timing.

Proper Lever Positioning

The self-correction lever must be positioned very close to the chime barrel surface. The hook should just skim across the barrel exterior. Too much clearance and the hook won't drop into notches reliably. Too little clearance and the lever drags on the barrel creating friction and potential jamming.

Check lever position by observing how close the hook comes to the barrel during rotation. The clearance should be minimal - perhaps the thickness of a sheet of paper. The lever should not visibly bend or deflect as it rides across the barrel surface. Any bending indicates too much friction.

Adjust lever position by bending its mounting arm carefully. Work slowly and test frequently. Small position changes make significant differences in function. The adjustment requires good lighting and close observation to achieve proper clearance without introducing binding.

Synchronizing Self-Correction with Quarter Rack

The self-correction mechanism must be synchronized with the quarter rack system. The barrel notches must align with correct stopping points that correspond to completed note sequences. If notches are positioned wrong relative to note patterns, the self-correction will stop the barrel at incorrect positions.

Verify synchronization by manually advancing through a complete chime cycle. At each quarter hour, check that the barrel stops with the correction lever engaged in a notch. The barrel should be positioned so the next quarter's notes begin at the correct sequence point. Any misalignment between notches and note patterns requires correction.

Correcting synchronization may involve repositioning the self-correction lever or adjusting how the chime barrel mounts on its arbor. Some designs allow barrel rotation adjustment while others require careful setup of the entire chime train. Consult service documentation for your specific movement before attempting synchronization changes.

Systematic Troubleshooting Approach

Starting with Known-Good Reference

Begin troubleshooting by establishing one known-good reference point. Set the chime barrel so the first quarter plays correctly with all four notes in proper sequence. This gives you a baseline. Now observe what happens at subsequent quarters. The errors you see reveal which components are failing.

If the second quarter plays the last four notes of the third quarter instead of its own eight notes, the gathering system is collecting only one tooth instead of two. This tells you the rack isn't falling far enough or the gathering pallet is slipping after collecting the first tooth. Focus diagnostic efforts on rack fall distance and gathering engagement.

If quarters play random numbers of notes with no pattern, multiple problems exist simultaneously. You may have rack slippage plus warning pin issues plus self-correction problems all working against you. In this case, address warning pins first, then rack engagement, then self-correction. Trying to fix everything at once leads to confusion about what changes helped versus hurt.

Documenting Changes and Results

Keep careful notes about what you adjust and what results occur. Write down spring tension changes, gathering pallet repositioning, and any other modifications. Note how the chime behaves after each change. This documentation helps you track progress and identify which changes actually improved operation.

Take photos or videos at each stage. Herschede movements are complex and easy to lose track of during extended repair sessions. Visual references showing component positions before and after changes prove invaluable. Videos of chime operation show problems more clearly than trying to remember what you saw.

Be prepared for the repair to take multiple sessions. These movements don't yield to quick fixes. Allow time between adjustment sessions for the movement to run through multiple cycles. Sometimes problems only appear after several hours of operation. Patience and systematic approach beat rushed attempts to force immediate resolution.

Knowing When to Seek Expert Help

Herschede tubular bell movements represent the upper tier of clockmaking complexity. They were designed to be serviced by mechanically-inclined professionals rather than casual owners. If you've worked through systematic troubleshooting without success, professional help may be necessary.

Obtain Steven Conover's book "How to Repair Tubular Bell Clocks" before attempting any repairs. This book provides detailed diagrams and procedures specific to these movements. The information is difficult to convey through forum posts or short articles. Investment in proper reference material pays dividends in successful repairs.

Consider whether the movement may have accumulated wear requiring parts replacement rather than adjustment. Worn gathering pallet surfaces, damaged rack teeth, or fatigued springs may be beyond adjustment capabilities. Professional clockmakers can assess whether parts replacement is necessary and source appropriate components.

Common Mistakes to Avoid

Assuming Self-Correction Will Fix Problems

Don't assume erratic chiming will self-correct if you just let the clock run. While minor synchronization issues sometimes resolve over time, fundamental problems with rack gathering or warning pin positioning won't fix themselves. Continued operation with severe problems can cause additional wear damage requiring more extensive repair.

The self-correction mechanism helps maintain synchronization after the system is properly set up. It can't compensate for major errors in gathering or severe rack slippage. If chiming is consistently wrong, the clock needs repair intervention, not just more running time.

Making Too Many Simultaneous Changes

Avoid changing multiple things at once. When you adjust warning pins, rack springs, and gathering pallets simultaneously, you can't determine which change helped and which hurt. Make one adjustment, test thoroughly, document results, then proceed to the next change based on observed behavior.

If you make multiple changes and things get worse, you won't know which change to reverse. Systematic single-variable changes allow you to build on successes and back out failures. This takes more time but leads to more reliable repair outcomes.

Ignoring Tubular Bell Order

Always verify that tubular bells hang in correct order even during testing. Incorrect bell arrangement creates wrong note sequences that have nothing to do with mechanical problems. You could spend hours adjusting gathering systems while the actual problem is simply reversed bells.

Check bell order by striking each bell with the movement stopped and comparing tones to a known correct sequence. Most Westminster chimes follow standard patterns. If tones don't ascend or descend as expected, bells may be out of order. Correct this before pursuing mechanical adjustments.

FAQs

Why does my Herschede play the first quarter correctly but subsequent quarters play wrong notes?

This classic symptom indicates quarter rack gathering problems. The first quarter works because it requires gathering only one tooth from the rack. This simple operation succeeds even when the system has issues. Subsequent quarters require gathering multiple teeth in sequence - two for second quarter, three for third quarter, four for the hour. The gathering pallet is slipping during multi-tooth collection. Each tooth that slips causes the chime barrel to under-rotate. You hear fewer notes than required or wrong note sequences because the barrel isn't rotating far enough. Check rack spring tension, examine gathering pallet and rack teeth for wear, and verify the rack falls appropriate distances for each quarter based on the rotating disc segments.

Where should the warning pins be positioned on a Herschede movement?

The chime warning pin should lock with the gathering pallet at the three o'clock position. The strike warning pin should lock at nine o'clock. These positions ensure proper timing where the chime plays completely before the strike fires. Warning pins often shift from correct positions if someone has adjusted gathering pallets during previous repairs or if the movement experienced impact during moving. Always verify actual pin positions rather than assuming they're correct. Watch where pins engage during operation and reposition gathering pallets as needed to achieve proper locking positions. After repositioning, verify that the strike holds in warning while the chime plays and only releases after the chime completes its sequence.

What causes the quarter rack to slip during gathering?

Rack slippage has multiple potential causes. Insufficient rack spring tension allows the rack to bounce or vibrate rather than pressing firmly against the gathering pallet. The rack appears to engage a tooth but slips out before the pallet advances to collect the next tooth. Worn rack teeth or gathering pallet surfaces from years of operation reduce engagement quality. Even microscopic wear on teeth edges or pallet corners creates slippage. Excessive hammer tension springs overload the chime train. The added resistance makes gathering more difficult and promotes slippage. The rack may not be falling far enough due to problems with the rotating disc that controls fall distance. Check spring tension first, examine teeth and pallet for wear under magnification, verify disc rotation, and consider whether hammer springs need adjustment.

Can I adjust my Herschede without the Conover book?

While basic troubleshooting is possible without the book, successful repair of complex Herschede problems really requires Steven Conover's "How to Repair Tubular Bell Clocks." The book provides detailed diagrams showing component relationships and specific procedures for adjustment. These movements are complex enough that conveying complete repair information through forum posts or short articles is impractical. The book covers gathering pallet positioning, self-correction mechanism setup, rack spring adjustment, and numerous other details essential for proper repair. If you're serious about repairing Herschede movements, the book represents a worthwhile investment. The author also answers emails if you encounter problems after following book procedures. Without proper reference material, you risk making things worse through incorrect adjustments.

Why does my clock chime inconsistently - sometimes right, sometimes wrong?

Inconsistent behavior proves components aren't maintaining proper engagement. Consistent problems suggest adjustment issues where something is positioned wrong but functions predictably. Inconsistent problems point to slippage or wear where engagement works sometimes but fails other times. The gathering pallet may be worn enough that it usually slips but occasionally catches properly. Springs may be weak enough that tension varies with temperature or position. The rack may have damage on some teeth but not others. One cycle uses good teeth and works properly while the next cycle uses damaged teeth and slips. Check for wear on all engaged surfaces. Test spring tension thoroughly. Observe whether the problem appears at specific quarters consistently or truly randomly. Truly random failures suggest wear rather than simple misadjustment.

Should the strike hammer rest close to the bell or several inches away?

The strike hammer resting position doesn't significantly matter as long as the hammer functions properly during striking. Many Herschede movements position the hammer several inches from the bell in resting position. The gathering pallet and hammer lifting mechanism bring the hammer up to proper striking position during operation. If the hammer strikes the bell cleanly and returns to rest without causing problems, the resting distance is acceptable. However, if the hammer stops partway raised rather than returning fully to rest, you have gathering pallet problems. The gathering should complete fully, allowing the hammer to drop completely. Partial raising indicates the gathering pallet is stopping before collecting all required teeth. This points to the same rack slippage issues causing note sequence problems.

What if adjusting warning pins makes the chiming worse?

If chiming worsens after warning pin adjustment, you moved pins in the wrong direction or changed the wrong component. Return gathering pallets to their original positions using your photos or reference marks. Start over with careful observation of where pins currently lock. Note whether the chime jams, whether the strike fires during chiming, or whether coordination between trains has improved or degraded. Warning pin adjustment affects timing coordination between chime and strike trains. If you fix one problem but create another, you may be adjusting only one pin when both need repositioning. The chime and strike pins work together to create proper sequence. Adjust both to achieve correct three o'clock and nine o'clock positions. Some movements use non-standard positions. Verify your specific movement's requirements before assuming three and nine are correct.
