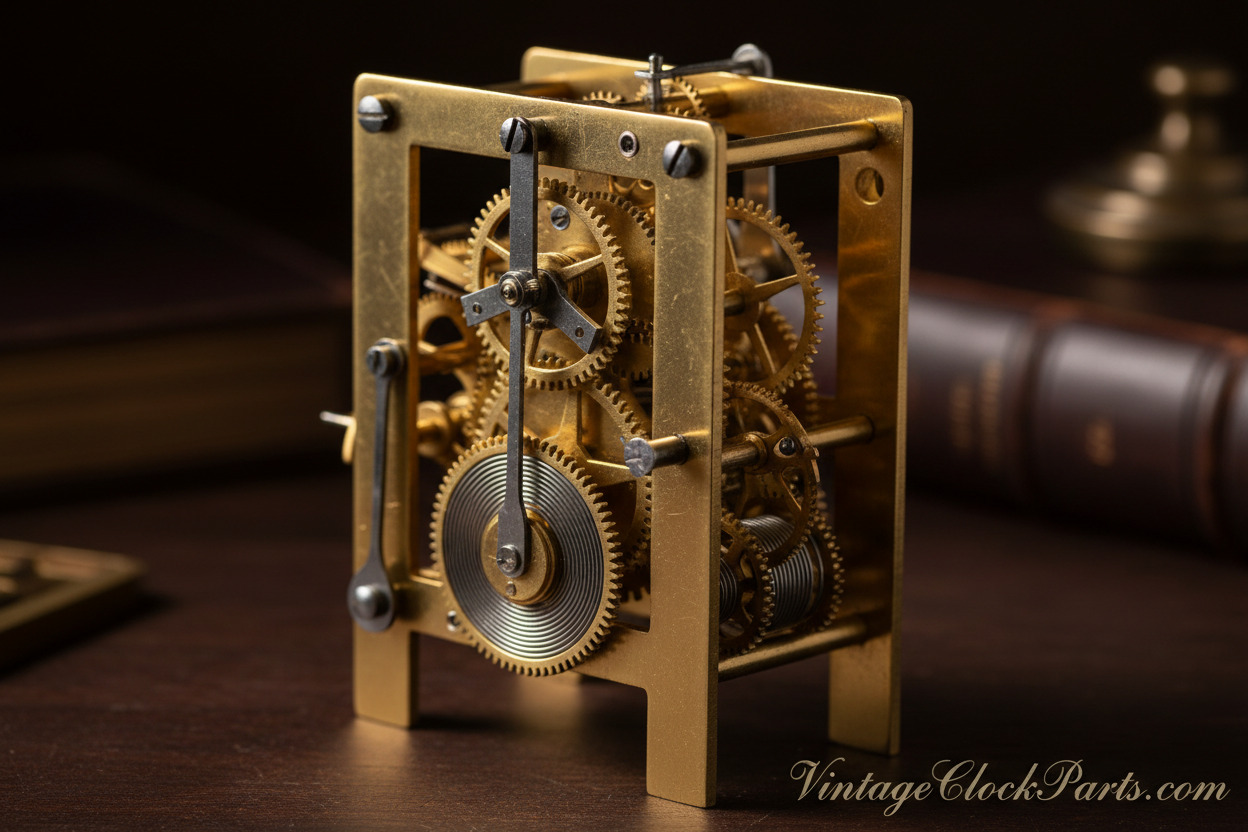

Hermle Clock Losing Time After Service: Slipping Gears, Bent Arbors, and Beat Rate Diagnosis

A Hermle clock that loses time significantly — a minute or more per thirty minutes — after bushing work or a complete service is one of the most frustrating diagnostic scenarios in clock repair because all the obvious checks may pass: the pendulum swings with good amplitude, the tick is strong and consistent, no gears are visibly binding, the time train coasts freely with the verge removed, the hands are not catching on the dial, and the weight is hanging correctly with full tension applied to the time train. Everything appears to be working, yet the clock loses time at a rate that cannot be corrected through normal pendulum length adjustment. This symptom — dramatic time loss that exceeds what pendulum rate adjustment can compensate for — indicates that something beyond normal adjustment range is affecting the rate, and the diagnostic approach must shift from rate adjustment to fault identification.

This guide covers the complete diagnostic sequence for a clock losing time dramatically after service — how to verify beat rate against the movement's rated specification and why this is the first quantitative step, what slipping gears feel and behave like versus normal clutch function, how a misplaced bushing affects movement geometry and whether it can cause time loss or gain, how bent arbors produce an intermittent slow-tick/no-tick pattern that accumulates as rate loss, how the crutch pin seating in the pendulum leader affects whether the escapement drives the pendulum correctly in both directions, how the minute hand clutch and hour cannon friction can cause apparent time loss without obvious hand slippage, the high-speed train test for identifying intermittent mechanical faults, and how to use a movement stand and beat amplitude monitor to observe the movement in operation under controlled conditions.

Establishing the Beat Rate Before Any Other Diagnosis

Why Beat Rate Measurement Comes First

The only physically meaningful way to determine why a clock is losing time is to first establish what rate it is actually running at in beats per hour, then compare that rate against the movement's rated specification. A clock that is losing a minute every thirty minutes is running at a rate approximately 3.3 percent slower than it should — which corresponds to either a pendulum that is approximately 6.6 percent too long for the rated beat rate, or a beat rate that is actually lower than the rated value due to some mechanical cause. Knowing which of these is the case determines the entire subsequent diagnostic direction. If the measured beat rate is close to the rated specification, the pendulum is the problem — it is too long, and should be shortened or the movement's beat rate specification should be checked against the actual pendulum in the clock. If the measured beat rate is substantially lower than the rated specification, something mechanical is causing the escapement to release teeth at a lower rate than the movement was designed for.

Measure the beat rate using a clock timing application on a smartphone or a dedicated beat counter, running the clock for at least ten to fifteen minutes to get a stable average. Many Hermle movements have the beat rate or pendulum length rating stamped on the rear plate — finding this specification and comparing it to the measured rate provides an immediate diagnostic direction. A measured rate significantly lower than the rated specification while the pendulum amplitude appears healthy is a strong indicator of intermittent stopping and restarting — where the clock is not actually running continuously but is periodically pausing for short periods that accumulate as apparent rate loss. This specific symptom pattern requires different investigation than straightforward pendulum length mismatch.

Pendulum Length and Rate Relationship

Physics is unambiguous about pendulum rate: shortening the pendulum increases the rate, and lengthening it decreases the rate. If reducing the pendulum length by an inch produces no measurable improvement in the rate — if the clock continues to lose time at approximately the same rate regardless of where the bob is positioned — the pendulum is not the cause of the rate loss and further adjustment of the bob is not the correct diagnostic direction. This is a critical diagnostic conclusion: when bob adjustment through the full available range produces no measurable rate change, the cause of the rate loss is mechanical, not pendulum-geometric. At this point, investigation should shift to gear train integrity, clutch condition, crutch pin seating, and intermittent stopping causes rather than continuing to manipulate the pendulum.

The practical test is to shorten the pendulum by a meaningful amount — half an inch to an inch — and measure the rate change. If the rate improves proportionally to the length change, the pendulum length was the cause and further adjustment will reach the correct rate. If shortening produces no improvement or an improvement far smaller than physics predicts, a mechanical fault is present and must be found before rate adjustment is meaningful. A movement that loses significant time regardless of pendulum length is not being controlled by the pendulum at all — something is allowing the gear train to advance faster than the pendulum governs, or the pendulum is not consistently governing the train for reasons that must be identified.

Diagnosing Slipping Gears in the Time Train

How a Slipping Gear Causes Time Loss

A gear wheel that has come loose on its arbor — where the friction or press fit between the wheel and the arbor has been compromised — will rotate with the arbor for most of each revolution but slip at some point in its rotation, allowing the arbor to advance relative to the wheel without the wheel advancing proportionally. In the time train, a slipping gear allows the escape wheel to advance faster than the motion work tracks, because the slipping gear decouples the mechanical relationship between the escape wheel arbor and the motion work for the duration of the slip. The hands therefore lag behind the escapement counting, producing apparent time loss that is proportional to how much the wheel slips per revolution. A wheel that slips a few teeth per revolution will produce a few minutes of time loss per hour — exactly the symptom described in severe rate loss that cannot be corrected by pendulum adjustment.

Slipping gears in Hermle movements can occur when a movement is subjected to physical shock during transport — the shock force can dislodge the friction fit between a wheel and its arbor without any visible damage to the teeth or the arbor. A clock that the customer reports as keeping excellent time until a house move, after which it would not run or keep time correctly, should always be evaluated for slipping gears as a primary hypothesis, because the transport shock is a plausible mechanism for creating exactly this type of fit failure. The wheel will look normal, sit normally on the arbor, and turn normally during manual rotation testing — the slippage only occurs under the consistent torque of the mainspring or weight, and may only be detectable by careful observation of the gear position relative to its arbor during powered operation.

Testing for Slipping Gears

The minute clutch friction test proposed for Hermle movements is a practical first screening for slipping in the motion work area: use a wooden spaghetti stick or similar flexible instrument to advance the minute hand through a full revolution, applying only the gentle force that the spaghetti stick can transmit without buckling. If the minute hand advances easily through a full revolution with minimal force, the clutch friction is insufficient and the clutch is slipping — the hands are not being driven by the time train reliably. If the minute hand requires meaningful force to advance — if the spaghetti stick bends or buckles before the hand moves — the clutch has adequate friction and is not the cause of the apparent time loss.

For slippage deeper in the train — at wheel-to-arbor fits rather than at the motion work clutch — detection requires observing the train under powered operation while tracking relative positions of wheel and arbor. Make a small pencil mark spanning the joint between a suspect wheel and its arbor, then run the clock for fifteen to thirty minutes and check whether the mark has shifted — if the mark now shows a gap or offset, the wheel has slipped relative to the arbor. This test is most practical for the center wheel arbor and the 2nd wheel arbor, which are most commonly involved in slippage failures. A slipping center wheel arbor is particularly common in movements that have sustained transport shock because this arbor carries the highest sustained torque load in the time train.

Minute Hand Clutch and Hour Cannon Diagnosis

Distinguishing Clutch Slippage from Motion Work Binding

The minute hand clutch in a Hermle movement is designed with a specific friction torque — enough to allow the hands to be set by turning the minute hand without driving the gear train backward, but firm enough to transmit the time train torque to the hands reliably during normal operation. If the clutch friction is at the borderline of these two requirements — not quite firm enough to transmit torque consistently under all conditions — the clutch may slip intermittently rather than consistently. Intermittent clutch slippage produces an irregular rate loss that varies from day to day, unlike a consistently slipping clutch which produces a predictable and reproducible rate error. The clock may keep correct time for several hours, then lose several minutes during a period when the clutch intermittently releases, then correct itself when the clutch re-engages normally.

The reciprocal problem — binding in the motion work that imposes drag on the time train — can also produce apparent time loss by loading the train enough to slow the pendulum amplitude marginally, which reduces the effective drive impulse and makes the clock more susceptible to stopping. Remove the dial, disengage the hour cannon from the minute wheel, and observe whether the time train runs more freely and at a higher pendulum amplitude without the motion work load. If amplitude improves noticeably when the hour cannon is removed, the motion work friction is contributing to the power budget problem and must be corrected by cleaning and proper lubrication of the motion work pivots and cannon pinion bearing surfaces.

Crutch Pin Seating in the Pendulum Leader

A subtle cause of time loss that is easily overlooked — and that produces a characteristic symptom pattern — is the crutch pin not being correctly seated through the slot in the pendulum leader. When the crutch pin rests in the slot correctly, the crutch pushes the pendulum on one side of the swing and pulls it back on the other side, providing symmetric drive in both directions. When the crutch pin is merely resting against the side of the leader rather than through the slot, the crutch pushes the pendulum correctly in one direction but on the return swing the crutch must catch up to the pendulum rather than pulling it — the return drive is missing or delayed, and the pendulum swings asymmetrically with reduced amplitude. The characteristic symptom is a pendulum that appears to swing with reasonable arc when first started but gradually loses amplitude over the first few hours of running, as the asymmetric drive accumulates an imbalance that progressively shortens the swing.

Verify crutch pin seating by observing the pendulum leader from behind the movement while the clock is running. The crutch pin should be visible through the slot and should clearly push the leader in one direction and pull it in the opposite direction symmetrically. If the crutch pin is riding against the side of the leader rather than through the slot, stop the pendulum, correctly seat the pin through the slot, and restart — the pendulum amplitude should improve immediately if the crutch seating was the cause of the reduced drive. Correct crutch pin engagement is one of the easiest adjustments to verify and requires only visual inspection from behind the movement, so it should always be included in the diagnostic sequence for a clock that appears to run but loses time or amplitude progressively.

Intermittent Stopping and the Bent Arbor Diagnosis

How Intermittent Stopping Produces Rate Loss

A clock that experiences brief complete stops — where the escapement pauses for a fraction of a second before resuming — will appear to run continuously to casual observation but will accumulate significant rate loss as the stopped periods add up. Each pause, however brief, represents lost escapement advances that the hands never recover. A clock that pauses for one second out of every sixty will run approximately 1.67 percent slow, which is close to the rate loss described in this diagnostic scenario. The pauses may be too brief and infrequent to hear as a clear stoppage — the tick may simply sound weaker or softer at intervals rather than stopping completely — but the cumulative effect on timekeeping is significant.

Beat amplitude monitoring is the most reliable tool for detecting intermittent stopping. A beat amplitude monitor — a device or application that measures the sound intensity of each tick and tock — will reveal whether the tick-tock intervals are consistent or whether some intervals are noticeably softer or absent. A consistent pattern of soft tick, normal tock, soft tick, normal tock indicates an escapement problem where the entry and exit pallets are not receiving equal drive. Random soft ticks or skipped beats at irregular intervals indicate intermittent mechanical interference somewhere in the train — a bent arbor, a loose gear that rotates to a different mesh position periodically, or a slightly misplaced bushing that creates increased friction at specific rotational positions. Running the movement under a beat amplitude monitor for at least several hours — not just minutes — is necessary to reveal intermittent faults that occur infrequently.

Bent Arbor Diagnosis and the High-Speed Train Test

A bent arbor in the time train produces a characteristic friction pattern: as the arbor rotates, the bent portion alternately increases and decreases the mesh depth between that wheel and its neighboring pinion. At the position of maximum mesh depth — when the bent portion is closest to the neighboring wheel — the mesh is tighter than design tolerance and the train stalls or slows significantly. At the position of minimum mesh depth, the train runs freely. The result is a periodic variation in train speed synchronized with the rotation rate of the bent arbor's wheel, which produces alternating fast and slow periods in the escapement rate. If the arbor rotates once every few seconds, the variation will be rapid and audible as an uneven tick. If the arbor rotates once every few minutes, the variation will be slow enough to appear as gradual rate loss rather than an audible irregularity.

The high-speed train test is an efficient method for detecting bent arbors and other intermittent mechanical faults. Remove the pallets from the movement, lubricate all pivot holes generously with clock oil to reduce friction, wind the time train fully while preventing the escape wheel from turning, and then release the escape wheel and allow the train to run at its maximum speed without escapement control. Listen for any variation in the high-pitched whirring sound the train produces — a consistent, even sound indicates no mechanical fault in the train, while speed oscillations, intermittent clunking, or irregular pitch variations in the sound indicate a problem. The high-speed run reveals faults that are too infrequent or subtle to detect during normal pendulum-controlled operation, because the faster rotation rate brings faults through their problematic angular positions many times per second rather than once per minute or less. Place the movement on a movement stand during this test to keep it stable and positioned for observation from all angles.

Misplaced Bushing and Its Effect on Movement Geometry

A bushing that has been installed off-center — where the new bushing hole is not concentric with the original pivot hole center — changes the effective arbor center position and alters the mesh depth between that wheel and its neighbors. If the bushing is offset toward the worn side of the original hole rather than centered on the original hole position, the arbor is displaced toward the adjacent gear, increasing mesh depth and adding friction to the train. This friction would be expected to reduce pendulum amplitude and cause the clock to slow or stop under low-power conditions, not to cause consistent time loss in a movement that appears to have healthy amplitude and strong tick. Misplaced bushing as the sole cause of significant rate loss while amplitude remains good is unlikely — but as a contributing factor that reduces the power margin available to the train, it can push a movement with another marginal fault over the threshold from barely running to exhibiting obvious symptoms.

Verify bushing concentricity by assembling the movement with only the affected wheel and its immediate neighbors between the plates and rotating the wheel slowly by hand, feeling for any position-dependent resistance. A correctly centered bushing will produce smooth, consistent resistance throughout the full rotation. A misplaced bushing will produce increased resistance at the angular position where the displaced pivot is closest to the neighboring wheel, and reduced resistance at the opposite position. This position-dependent friction pattern is the diagnostic signature of a misplaced bushing and distinguishes it from generalized contamination or lubrication problems that produce consistent friction throughout the rotation.

Suspension Spring and Hanger Verification

Wrong Suspension Spring as a Rate Cause

An incorrect suspension spring — one that is thicker, thinner, or a different length than the movement specification requires — can affect the rate in ways that exceed the adjustment range of the pendulum bob, because the suspension spring contributes to the effective stiffness of the pendulum system and therefore to its natural period. A suspension spring that is significantly too thick makes the pendulum stiffer than designed, shortening its effective period and causing the clock to run fast. A spring that is too thin or too long makes the pendulum more flexible and slower, causing the clock to run slow — which matches the symptom of time loss that cannot be corrected by shortening the pendulum. If the suspension spring was disturbed during the bushing work — replaced with a different spring from the parts box, stretched during handling, or reinstalled at a different effective length by repositioning the pendulum hanger — the resulting rate error may exceed what bob adjustment can compensate for.

Verify suspension spring specification by measuring its width, thickness, and free length, then comparing against the Hermle specification for the 241 movement. Hermle suspension springs are specified by caliber and the correct replacement dimensions are available from Hermle parts references or clock supply catalogs. A spring that differs significantly from the specification in thickness is the most likely source of out-of-range rate error, because thickness affects the spring's contribution to pendulum stiffness more than width or length within normal variation ranges. When a suspension spring of uncertain specification is in place after service work, replacing it with a verified correct specification spring is a simpler and more reliable correction than attempting to compensate for an unknown spring stiffness through other adjustments.

Pendulum Hanger Length and Effective Pendulum Center

The pendulum hanger — the suspension rod that connects the suspension spring to the pendulum rod — is part of the effective pendulum length measurement. If the hanger has been replaced with one of a different length during service, the effective distance from the suspension pivot point to the center of mass of the pendulum bob changes, shifting the pendulum's natural period away from the design specification. A hanger that is 1.5 inches shorter than the original effectively shortens the pendulum by 1.5 inches, requiring the bob to be raised 1.5 inches to compensate — which may move the bob beyond the available adjustment range or may not be sufficient compensation if the hanger change is large. When a replacement hanger has been fitted, verify its length against the original or against movement specifications before attempting rate adjustment through the bob, because bob adjustment cannot compensate for a hanger that is dramatically incorrect in length.

Using a Movement Stand for Systematic Diagnosis

Advantages of Movement Stand Testing

Testing a clock movement on a movement stand rather than in its case provides several diagnostic advantages that are not available when working with a cased movement. A movement on a stand can be observed from all angles simultaneously — front, back, both sides, and above — without the obstruction of the case walls, dial, and door. The pendulum can be observed in relation to the crutch from directly behind the movement, confirming crutch pin seating that cannot be verified from the front. The gear train can be observed during running without removing any plates or covers. The beat amplitude monitor can be positioned for optimum sound pickup. And the movement can be oriented at different angles to determine whether gravity-related binding — where a pivot sits against one side of a worn hole because of the weight of the gear — changes when the movement is tilted, which indicates a worn pivot hole that needs bushing rather than cleaning.

A movement stand also allows the pendulum length to be easily verified against a calculated specification without case constraints. Hang a pendulum of the theoretically correct length for the movement's rated beat rate and confirm that it keeps correct time in free air without any case interference or constraint. If the movement keeps correct time in the stand with the correct pendulum, the case installation is causing the problem — the pendulum is contacting the case back, the suspension spring is being pinched, or the movement is hanging at an angle that changes the effective pendulum length. If the movement loses time even in the stand with the correct pendulum, the fault is internal to the movement and must be found through the diagnostic sequence described in this guide.

Documenting the Diagnostic Process

A clock that has required multiple disassembly and reassembly cycles without the problem being resolved benefits from a systematic documentation approach that records what was observed at each step and what each test result indicated. Without documentation, it is easy to lose track of which hypotheses have been tested and eliminated, and to repeat diagnostic steps that have already been performed without result. Note the measured beat rate, the pendulum amplitude observations, the results of each mechanical test performed, and the specific position of the movement when each test was run. This documentation also provides a basis for explaining the diagnosis to the customer — particularly important when the customer's account of the clock's history before service does not match the mechanical condition found during service, which is a common situation in clock repair where customers may be uncertain about the clock's actual history or may have had other service attempted before bringing the clock to the current technician.

Hermle 241 Movement Specifics

Movement History and Variant Differences

The Hermle 241 is a weight-driven bim-bam strike wall clock movement produced over several decades, and Hermle made design changes to various components including the escape wheel profile across the production run. A movement from the late 1980s may have a different escape wheel design than a movement from the early 1970s, and these differences are not always interchangeable. When a replacement escape wheel from a later-production spare movement is installed in an earlier-production 241, the pallet geometry may not match correctly even if the wheel appears to fit, because the tooth profile and depth changed between production runs. This mismatch can cause shallow escapement engagement that produces weak impulse, reduced amplitude, and rate loss even when the movement otherwise appears to function correctly. When an escape wheel source is uncertain — particularly when sourcing from spare movements of different production years — verify the tooth profile compatibility before installation rather than assuming dimensional fit implies functional compatibility.

The Hermle 241 is also one of the more challenging Hermle movements to reassemble correctly after full disassembly, because the strike and chime lever positions must be in specific relationships at the point of plate closure and certain components must be held in specific positions while the plates are brought together. An incorrectly assembled 241 may appear to function during initial testing but produce rate errors, strike timing problems, or intermittent stopping symptoms as the incorrectly positioned components create friction or interference at specific points in the train rotation. When a 241 has been disassembled and reassembled multiple times in the course of diagnosing a rate problem, the possibility that incorrect reassembly is contributing to the symptom should not be dismissed — systematic disassembly and careful reassembly with photographs and reference documentation at each stage is the only way to rule this out definitively.

Bushing Work Quality Assessment

Bushing work on the escape wheel pivot and star wheel pivot of a Hermle 241 addresses two of the most critical wear points in the movement — the escape wheel pivot is the last arbor in the time train before the escapement, and any additional friction at this pivot directly reduces the impulse available to the pendulum. A correctly installed bushing at the escape wheel pivot should show no increase in friction compared to a new movement — the new bushing hole should be concentric with the original hole position, correctly sized for the pivot diameter with the appropriate running clearance, and correctly chamfered at both ends to prevent pivot shoulder binding. A bushing that passes all of these criteria will produce a movement that runs better after service than before, with improved amplitude and more reliable operation. A bushing that fails any of these criteria will add friction that may not be immediately apparent but will show up in the rate and amplitude data when measured carefully.

The drop test — where the movement is held with the escape wheel at the top and allowed to fall a short distance, then caught, while observing whether the gear train coasts freely — is a useful quick check of overall train friction after assembly but does not reveal intermittent problems or position-dependent friction from a misplaced bushing. Supplement the drop test with hand-rotation testing of each wheel individually, with beat amplitude monitoring under actual running conditions, and with the high-speed train test if intermittent stopping is suspected. These complementary tests together provide a comprehensive assessment of movement condition that the drop test alone cannot provide.

FAQs

Why is my Hermle clock losing time even after I rebushed it?

Dramatic time loss that exceeds pendulum adjustment range after bushing work can have several causes: a slipping gear wheel on its arbor due to transport shock or press fit failure, a suspension spring of incorrect specification, a pendulum hanger of incorrect length, a misplaced bushing adding friction at specific rotational positions, a bent arbor causing intermittent mesh tightening, or incorrect crutch pin seating in the pendulum leader. The first diagnostic step is to measure the actual beat rate and compare it to the movement's rated specification — this immediately indicates whether the pendulum is the problem or whether something mechanical is causing the rate to deviate from what the pendulum should produce.

How do I test for a slipping gear in a clock movement?

Make a small pencil mark spanning the joint between a suspect wheel and its arbor, run the clock for fifteen to thirty minutes, and check whether the mark has shifted — any gap or offset in the mark indicates slippage. For the minute hand clutch specifically, try advancing the minute hand through a full revolution using a wooden spaghetti stick — if the hand turns easily with minimal force, the clutch is too loose and is slipping. For gears deeper in the train, the high-speed test with pallets removed and generous lubrication allows direct observation of any irregularity in train speed that correlates with a specific gear's rotation position.

Can a misplaced bushing cause time loss?

A bushing installed off-center from the original pivot hole position adds friction to the train by displacing the arbor toward the neighboring wheel, increasing mesh depth and contact pressure at the meshing point. This friction reduces pendulum amplitude and power margin. While misplaced bushing alone is unlikely to cause dramatic rate loss in a movement with otherwise healthy power, it can push a movement with other marginal conditions over the threshold from borderline running to obvious time loss symptoms. Verify bushing concentricity by rotating the affected wheel by hand between plates and feeling for position-dependent resistance — a correctly centered bushing produces consistent resistance throughout the full rotation.

What does intermittent stopping look like and how does it cause time loss?

Intermittent stopping produces ticks that sound normal at some intervals and softer or absent at other intervals — a pattern detectable with a beat amplitude monitor but often inaudible in casual listening. Each pause, however brief, represents escapement advances that the hands never recover, accumulating as rate loss. A movement pausing for one second out of every sixty will run approximately 1.67 percent slow — about one minute per hour. Beat amplitude monitoring over several hours of operation is the most reliable way to detect this pattern, because intermittent faults may occur infrequently enough that short observation periods miss them entirely.

How does a bent arbor cause a clock to lose time?

A bent arbor rotates through a cycle of varying mesh depth with its neighboring pinion — tight mesh when the bent portion is closest to the neighbor, loose mesh at the opposite position. At the tight mesh position, the train stalls or slows significantly, producing a periodic pause or slowdown synchronized with that arbor's rotation rate. The result is alternating fast and slow periods in the escapement rate that accumulate as net rate loss. The high-speed train test — running the movement at full speed without escapement control — reveals bent arbors as speed oscillations or irregular sounds that occur at a predictable frequency corresponding to the affected gear's rotation rate.

Should I use a movement stand when diagnosing rate problems?

Yes — a movement stand provides diagnostic advantages not available when the movement is in its case. The movement can be observed from all angles during running, the crutch-to-pendulum relationship can be confirmed from directly behind, the gear train is visible during operation, a beat amplitude monitor can be optimally positioned, and the pendulum can be tested at the theoretically correct length without case constraints. If the movement keeps correct time on the stand with the correct pendulum but loses time in the case, the case installation is causing the problem — pendulum contact with the case, a pinched suspension spring, or the movement hanging at an angle that changes the effective pendulum length.

What is the correct lubrication for a Hermle 241 movement after bushing work?

Apply light clock oil to all pivot holes in both time and strike trains using a fine applicator — a tiny drop per pivot hole, drawn in by capillary action, not pooled or running. The escape wheel pivot holes receive a small amount of escapement oil rather than general clock oil, and the escapement pallet contact faces receive a dedicated escapement oil in a very small quantity. The mainspring receives mainspring grease applied to the coils after the spring is removed from the barrel for cleaning. Wheel teeth and pinion leaves do not receive lubrication — these surfaces should be clean and dry. Over-lubrication at any pivot hole will cause oil to migrate onto wheel teeth and other surfaces where it does not belong, attracting debris and eventually requiring re-service to correct.
