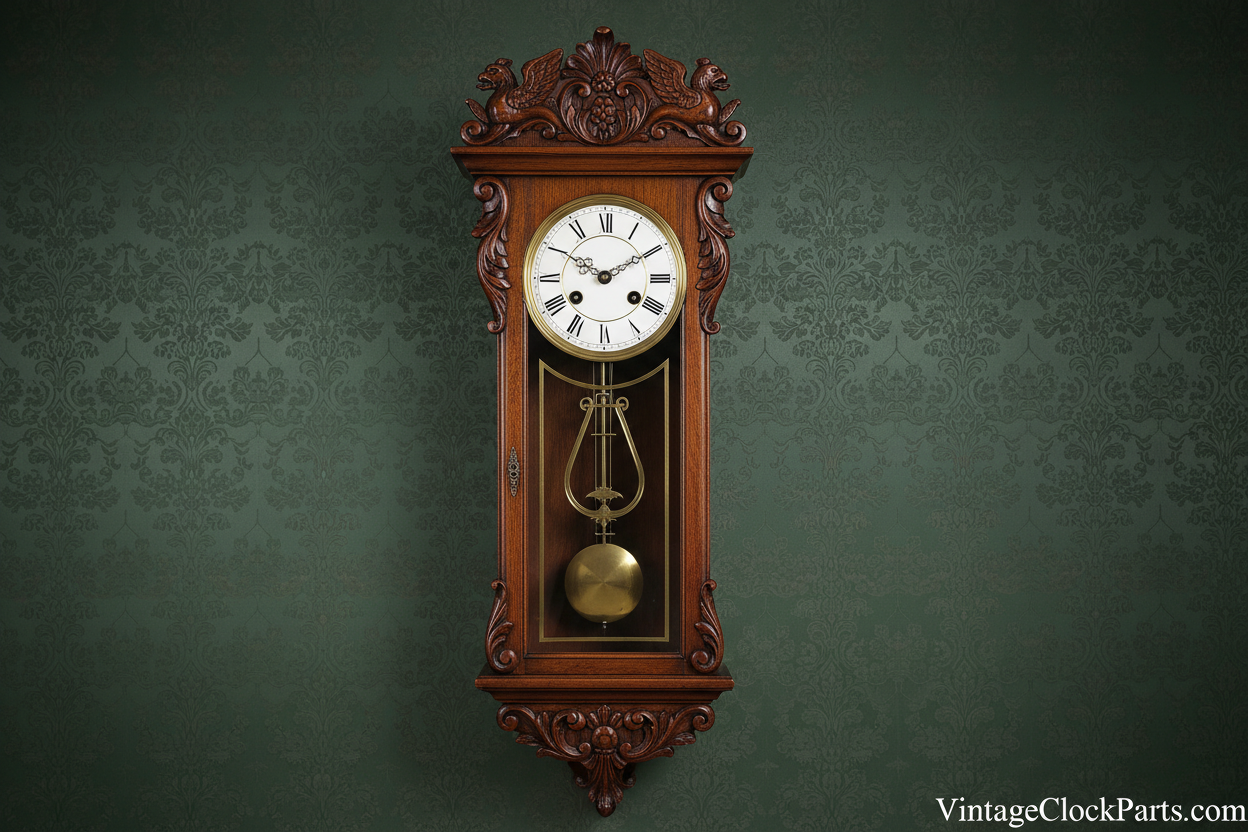

Gustav Becker Cable Crossing and Winding Problems

Gustav Becker weight-driven clocks frequently develop problems with cable crossing over itself during winding, creating nested tangles that cause the clock to stop prematurely even though weights remain well above the case floor. This frustrating issue stems from the combination of small drum diameters, cable memory from previous nesting, improper bracket positioning, and movement tilt within the case. This guide covers complete diagnosis and repair of cable winding problems in Gustav Becker movements. You'll learn how to identify whether cable length is excessive and creating slack conditions that lead to nesting, correct pulley bracket positioning to allow proper cable alignment during winding, techniques for winding cable parallel on drums under tension to eliminate crossing, when to replace brass cable with braided nylon line to prevent memory issues, and how to diagnose unrelated escapement problems that may masquerade as power loss. The key to solving cable crossing problems is understanding that braided cable has long memory and requires proper initial winding with maintained tension to establish correct patterns on the drum.

Understanding Cable Winding Problems

Why Small Drums Create Trouble

Gustav Becker movements typically use relatively small diameter winding drums compared to other weight-driven clocks. Drums measuring 1 inch in diameter are common. Small drums create more cable management problems than large drums for several reasons. The tighter curve means cable wraps more severely around the drum perimeter. This severe wrapping accentuates any tendency for the cable to migrate or stack improperly.

Large weights on large drums rarely have cable problems. The weight provides substantial tension keeping everything aligned. Small weights on small diameter drums represent the worst case scenario. Limited tension combined with tight drum curvature creates constant trouble. Even properly wound cable on small drums wants to migrate and stack given any opportunity.

The drum should fill with cable in a single layer working from front to back. As you wind, the pulley rotates to accommodate the growing cable layer. This rotation is normal and indicates proper single-layer winding. When cable crosses over itself, you're building a second layer before the first layer completely fills the drum. This crossing creates binding and eventually causes the movement to stop.

Cable Memory and Nesting

Braided cable has long memory. Once cable develops a nested or tangled configuration, it remembers that shape. Even after you straighten and properly wind the cable, it wants to return to the memorized pattern. This memory effect causes freshly wound cable to gradually migrate on the drum and eventually recreate the crossing pattern it learned previously.

Cable memory explains why some cables wind properly the first time after careful attention but then revert to crossing behavior on subsequent windings. The cable temporarily complies with your careful winding but gradually works back toward its memorized shape. If you lose tension at any point, the cable immediately reverts to the remembered pattern and creates a bird's nest.

New cable doesn't have established memory. This is why replacing old nested cable with fresh braided nylon line often solves persistent winding problems. The new material hasn't learned bad habits. However, new cable can develop memory quickly if allowed to nest even once. Maintain proper tension and winding technique from the first installation to prevent teaching new cable bad patterns.

Proper Cable Length

Cable should be long enough to form one complete layer on the winding drum with an inch or two extra. This typically equals one to one and a half laps around the drum. When the weight rests on the case floor, a small amount of cable should remain wound on the drum. The cable should never go completely slack with the weight at bottom.

Excessive cable length creates problems. When the weight reaches bottom, excess cable creates slack. If someone winds the clock from this slack state, they're starting the winding process without proper tension. This guarantees nesting and crossing. The cable must maintain tension throughout its entire range of motion from fully wound to weight at bottom.

Check your cable length by lowering the weight to the case floor. The pulley should still show cable wraps on the drum. If the cable hangs completely slack with no wraps remaining on the drum, you have too much length. Shorten the cable until proper length is achieved. This prevents slack conditions that promote nesting.

Pulley Bracket Positioning

Understanding Bracket Function

The pulley bracket serves as a stop and cable guide. When fully wound, the top of the pulley should contact the bracket. This contact prevents overwinding. The bracket angle should position the cable coming around the pulley in direct alignment with where the cable winds onto the drum. Proper alignment ensures smooth cable flow without forcing the cable into awkward angles.

The moving cable should never touch the bracket. Only the pulley top contacts the bracket at full wind. Once the clock runs for a few hours and the pulley descends, the bracket is completely out of play. It's only relevant at the fully wound position. If cable touches the bracket during normal operation, the bracket position is wrong and needs correction.

The bracket attaches to the movement plate with screws or rivets. Most brackets can be repositioned by loosening mounting screws, adjusting angle, and retightening. Some brackets may require careful bending to achieve proper alignment. Be cautious bending - the horizontal arms holding the movement are strong, but the back plate can easily crack if you apply force incorrectly.

Correct Bracket Alignment

Position the bracket so cable hangs almost touching the bracket but actually missing it. The clearance should be minimal - perhaps 1/8 inch or less. When the pulley winds up fully, it should tuck into the bracket space. The cable should drop straight down past the bracket without deflection.

Both time side and strike side brackets should position identically relative to their respective pulleys. If one bracket is positioned differently than the other, the odd one likely needs adjustment. Compare the two sides carefully. The side that winds properly shows you what correct bracket position looks like.

After repositioning a bracket, test wind the clock slowly while watching cable behavior. The cable should wind smoothly onto the drum in a single layer working from front to back. The pulley should rotate gradually as the drum fills. If cable immediately starts traveling or crossing, the bracket adjustment didn't solve the problem. Look for other causes like cable memory or movement tilt.

Threading Through Bracket Slots

Some bracket designs include slots for cable routing. The wider rectangular slot guides the cable from pulley to drum. Cable should pass through this wider slot. The narrower slot is for securing the cable end at the drum. Proper threading through these slots helps maintain correct cable alignment during winding.

If cable isn't threaded through the proper slots, it may work at unusual angles causing migration on the drum. Check that your cable follows the intended path through all bracket features. Compare both sides again - the properly functioning side shows correct threading.

Don't force cable into slots that resist. If threading seems difficult, you may have the wrong slot or the bracket may need repositioning. The cable should pass through slots easily with no binding or friction. Any resistance indicates alignment problems that need correction before the clock will wind properly.

Winding Techniques for Parallel Cable

Establishing Proper Initial Winding

To establish proper cable pattern, remove the movement from the case and mount it on a test stand. This allows you to wind the cable carefully under controlled conditions without case interference. Wind slowly and deliberately, maintaining constant tension throughout the process. Watch the cable constantly as it winds onto the drum.

As you wind, the cable may want to travel diagonally across the drum. Intervene immediately when you see this happening. Use a small screwdriver or your fingers to gently nudge the cable back into proper position. Keep the cable winding parallel to the drum axis in a single layer. This active intervention teaches the cable the correct pattern.

Continue winding until the drum is nearly full. The cable should sit in neat parallel wraps with no crossing or overlap. Once wound correctly, hang the weights and let the movement sit for several days. The maintained tension while sitting helps the cable learn and retain the correct shape. This "training period" with proper tension can help overcome previous memory.

Heat Treatment Considerations

Some clockmakers apply gentle heat to wound cables to help eliminate memory. A hair dryer on low setting directed at the wound drum for a few minutes provides mild heat. The theory is that warming the cable while it's held in the correct pattern helps it forget previous bad shapes and adopt the new configuration.

This technique is controversial and not universally accepted. Excessive heat could damage cable material or create other problems. If you try this approach, use only gentle warmth - not enough to be uncomfortable to touch. The goal is mild warming, not cooking the cable. Never use direct flame or high heat sources.

Whether heat actually helps or not, the most important factor remains maintaining proper tension while the cable sits in correct configuration. Several days of consistent tension does more to eliminate memory than any brief heat treatment. Combine both approaches if desired, but don't skip the extended tension period.

Winding Inside the Case

Winding with the movement installed in the case is different than winding on a test stand. You can't see the drum during winding, making it impossible to spot problems as they develop. The case walls may interfere with cable routing or pulley movement. These factors make initial proper winding more difficult in the case.

For problematic cables, establish correct pattern on a test stand first. After the cable has been properly wound and tensioned for several days on the stand, reinstall the movement in the case. The cable is more likely to maintain proper pattern during subsequent in-case windings once it has learned the correct configuration.

When winding in the case, use a mirror to observe what you can of the drum. Hold tension on the cable as you wind to prevent slack. Wind slowly and steadily. Stop immediately if you feel unusual resistance or hear odd sounds. These signals indicate the cable is stacking or crossing. Let down and try again rather than forcing the wind to completion.

Replacing Cable with Braided Nylon

When Replacement is Necessary

If cable persistently crosses despite proper winding technique, correct bracket positioning, and adequate training period under tension, the cable itself is the problem. Severe memory from years of nesting can be impossible to eliminate. Kinked, twisted, or damaged cable will never wind properly regardless of technique. These situations require cable replacement.

Multiple rotations of twist in the cable cause odd behavior. The cable may appear straight hanging free but reveals twist when wound. This twist causes migration on the drum as the cable tries to unwind itself. Check for twist by hanging the weight and observing cable behavior. If the weight rotates or the cable shows spiral patterns, twist is present and replacement is needed.

Old deteriorated cable loses flexibility. The individual strands may be broken or corroded. This damage affects how the cable bends around pulleys and winds on drums. Even if the cable isn't obviously nested or kinked, deterioration can prevent proper winding. When in doubt, replace rather than fight with marginal cable.

Selecting Replacement Line

Braided nylon line in .75mm or .030 inch diameter works well for most Gustav Becker movements. This size provides good strength while fitting drum grooves properly. Solid braid construction is essential - hollow braids collapse under weight and cause problems. Purchase line specifically intended for clock use or quality fishing line in solid braid construction.

Paracord can work if you select appropriate diameter and construction. Standard paracord may be too thick for small drums. Test fit before cutting to length. The line should sit in any drum grooves without binding but also without excessive play. Too-thin line migrates easily. Too-thick line won't fit properly in grooves.

Avoid cable with stiff or wiry feel. Flexible line works better around small pulleys and winds more reliably on small drums. Test the line by bending it sharply. It should flex easily without kinking or taking a permanent set. Materials that kink easily will develop the same memory problems you're trying to eliminate by replacing the old cable.

Installation and Initial Setup

Cut new line to proper length - enough for one complete drum layer plus 1-2 inches. Attach the line to the drum following manufacturer's original configuration. Some drums have holes for threading and knotting. Others use set screws to pinch the line end. Study the original installation method before removing old cable so you can recreate it with new line.

For attaching line to weight eyes, use a lark's head knot. Create a loop about 3 inches long and tie a simple overhand knot in the loop. Work the knot until the loop measures about 5/8 inch. Insert the loop through the weight eye, then pull the long tail through the loop. This creates a secure compact connection that never loosens. Leave a 2-inch tag and singe the end with a lighter to prevent fraying.

After installation, wind the new line carefully on a test stand using proper technique. The new line has no memory so it's critical to establish correct patterns from the first winding. Take your time and do it right. Once new line learns proper pattern, it maintains that pattern reliably. Teach it wrong from the start and you'll fight the same problems with new line that you had with old cable.

Movement Tilt and Positioning

How Tilt Affects Cable Winding

Movement tilt within the case can cause cable stacking problems even when everything else is correct. If the movement tilts forward with the dial leaning out from the wall, gravity pulls cables toward the front of the drums. This creates uneven cable distribution and promotes stacking. The effect is subtle but significant over time.

Check movement position by observing whether it sits plumb or leans. Use a small level on the movement plate to verify vertical position. Many mounting brackets sag downward at the front over years of weight-bearing. This sag creates forward tilt. The heavier the weights, the more likely this sagging occurs.

Forward tilt doesn't necessarily prevent the clock from running. The timekeeping and strike mechanisms tolerate reasonable tilt. However, cable winding behavior is very sensitive to tilt. Even slight angles affect how cable distributes on drums during winding. If one side consistently winds properly while the other doesn't, check for tilt favoring the problem side.

Correcting Tilt

To correct tilt, remove the mounting bracket from the case. The bracket is usually cast or stamped metal with horizontal arms that support the movement. These brackets can often be straightened in a vise using careful technique. Support the horizontal arms properly to avoid breaking the weaker back plate portion.

Use a machinist's square to check bracket angles. The horizontal arms should be perpendicular to the back plate. Use a small plastic hammer to tap the bracket into alignment. Work slowly and check frequently. Metal brackets can break if forced too aggressively. Cast brackets are particularly fragile and require gentle persuasion rather than heavy force.

After straightening the bracket, reinstall and verify that the movement sits plumb. Test wind the clock and observe cable behavior. Correcting tilt often solves persistent one-sided cable problems that resisted all other fixes. If both sides have cable problems, tilt probably isn't the primary cause. Focus on cable memory, bracket position, and winding technique instead.

Alternative Mounting Solutions

If the original bracket cannot be straightened without risk of breakage, consider alternative mounting. Wooden shims behind the bracket can adjust angle. Place thin wood pieces between bracket and case at strategic locations to tilt the movement into proper position. This approach avoids stressing the bracket material.

Some movements mount using screws through the case back into threaded holes in the movement. These installations allow angle adjustment by varying how far each screw engages. Threading some screws deeper than others tilts the movement. Use this method carefully - excessive tilt can cause other problems with timekeeping or strike operation.

Ensure mounting screws are tight. Loose mounting allows the movement to shift position over time. This shifting can gradually introduce tilt where none existed originally. Check all mounting points annually and snug any loose fasteners before tilt becomes significant enough to cause cable problems.

Diagnosing Unrelated Stopping Problems

When Cable Isn't the Problem

Sometimes clocks stop prematurely with weights still high, leading to assumptions that cable winding is the problem. However, cable may wind perfectly while the clock stops for unrelated reasons. Before blaming cable, verify that the cable actually winds properly. Remove the movement and examine the drum carefully. Look for crossed cable, stacking, or overlapping wraps.

If cable sits in neat parallel single-layer wraps on the drum, cable isn't your problem. The clock is stopping due to other issues - likely escapement problems, pivot wear, or excessive friction. Replacing perfectly good cable won't fix escapement issues. Focus diagnostic efforts on the actual problem area rather than pursuing cable replacement unnecessarily.

Pay attention to when stopping occurs. If the clock runs for varying amounts of time before stopping, escapement or friction problems are likely. Cable problems typically cause consistent stopping at similar weight positions. Cable crossing creates predictable binding that occurs at the same point in the wind cycle. Random stopping points suggest other causes.

Escapement Problems Masquerading as Power Loss

Bent crutch positioning can cause stopping that appears to be power-related. If the crutch angles excessively from the case, the verge may not center properly in the escape wheel. This misalignment creates catching that stops the clock. The pendulum stops at an angle with a pallet resting against an escape wheel tooth.

Test this by observing pendulum stop position. If it consistently stops cocked to one side rather than hanging straight, escapement alignment is wrong. Power problems typically allow the pendulum to stop in any random position. Consistent angled stopping indicates that the verge-to-escape-wheel relationship needs correction.

Check crutch position carefully. The crutch should angle perpendicular to the movement back plate, not lean toward or away from the case. Gentle bending can correct improper angles. Place a screwdriver shaft under the crutch and apply careful pressure to adjust angle. Test the movement by powering the second wheel with finger pressure while moving the crutch manually. The escape wheel should advance smoothly without catching.

Pallet Depth and Lock Issues

Dead beat escapements require precise pallet depth. The escape wheel teeth must land on the dead faces of the pallets, not on the entrance or exit faces. Landing on the wrong surfaces converts the escapement to recoil action and causes significant power loss. The clock may run initially but stop as mainspring or weight power diminishes.

Check pallet action by manually moving the crutch while observing where escape wheel teeth contact the pallets. Look for the tooth landing consistently on the flat dead face. If teeth land on angled faces, adjust pallet depth. Most Gustav Becker movements adjust via a rotating disc on the front or screws on the back holding the anchor.

Be cautious adjusting pallet depth. Make very small changes and test between adjustments. Power the second wheel manually and observe smooth operation before assuming adjustment is correct. Blindly rotating the adjustment disc without verification can make things worse. Only adjust if you've confirmed that improper depth is actually the problem.

Test Stand Recommendations

Why Test Stands Matter

Working on weight-driven clocks without a proper test stand creates unnecessary difficulty. You need the movement removed from the case with weights hanging freely to observe operation clearly. A test stand provides this capability. The movement mounts to the stand using its normal bracket. Weights hang below with full travel available for extended testing.

Test stands allow you to wind cable carefully while watching the drum directly. You can intervene immediately when cable starts misbehaving. You can observe escapement operation without case interference. You can verify proper function before reinstalling in the case. These capabilities make diagnosis and repair much more efficient and reliable.

Build a simple test stand from wood if commercial stands aren't available. Create a vertical frame tall enough for weights to hang their full drop distance. Mount the movement bracket to this frame. Ensure the stand is sturdy enough to handle the weight without tipping. A heavy base or clamps to the workbench provide needed stability.

Working With Case-Mounted Pendulum

Gustav Becker clocks sometimes mount the pendulum suspension spring to the case itself rather than to the movement. This creates challenges for test stand operation. You can't run the movement on the stand with normal pendulum suspension. The movement must return to the case for powered testing with pendulum.

Despite this limitation, test stands remain valuable. Use the stand for cable winding observation and verification. Use manual power application to test escapement function - power the second wheel with your finger while moving the crutch by hand. This reveals escapement problems without requiring powered operation. For final testing with pendulum, return the movement to the case.

Alternatively, create a temporary pendulum suspension on your test stand. Mount a suitable spring to the stand framework positioned to accept the movement's crutch. This allows powered testing on the stand. The temporary suspension doesn't need to match the original exactly - it just needs to support pendulum operation for testing purposes.

FAQs

Why does only one side have cable crossing problems while the other winds perfectly?

When one side winds properly and the other doesn't, the problem isn't universal to the movement design. Check movement tilt first - slight forward lean can favor one side over the other. Compare bracket positioning between sides - the problem side bracket may be positioned differently than the good side. Examine cable condition - one cable may have worse memory or damage than the other. The problem side cable likely has history of nesting that created memory the other cable doesn't have. Try winding the problem side on a test stand with careful attention and maintained tension. If it still crosses after proper initial winding and training period, replace that cable with new braided nylon while keeping the good original cable on the working side.

How do I wind the cable parallel without it traveling across the drum?

Wind slowly while actively guiding the cable. Remove the movement and mount it on a test stand for best visibility. As you wind, watch the cable constantly. When it starts to migrate diagonally, stop and nudge it back to proper position using a small screwdriver or your fingers. Keep intervening every time it tries to travel. Maintain consistent tension throughout winding - never allow slack. This active involvement teaches the cable correct pattern. After winding perfectly, hang the weights and let it sit under tension for several days. This training period helps the cable memorize correct configuration. The first proper winding is most critical - cable learns patterns from initial installation. Take your time and get it right from the start.

Should I replace brass cable with braided nylon line?

Replace cable when it persistently crosses despite proper technique, shows obvious damage or kinking, has multiple twist rotations that cause odd behavior, or has been severely nested for years creating impossible-to-eliminate memory. Brass cable with these conditions will never wind properly. New braided nylon in .75mm solid braid construction works well for Gustav Becker movements. The new material has no memory and will maintain proper patterns if installed correctly from the start. However, don't automatically blame cable for all winding problems. Verify that bracket position is correct and movement sits plumb before replacing cable. Cable that winds in neat parallel wraps is fine and doesn't need replacement even if the clock stops for other reasons like escapement problems.

What cable length do I need for my Gustav Becker clock?

Cable should be long enough to form one complete layer on the winding drum plus 1-2 inches extra. This typically equals one to one and a half laps around the drum. When the weight rests on the case floor, a small amount of cable should remain wound on the drum. Test proper length by lowering the weight to bottom - you should still see cable wraps on the drum. If the cable hangs completely slack with no wraps remaining, you have excessive length. Too much cable creates slack conditions when weights reach bottom. If someone winds from this slack state, nesting is guaranteed. Shorten cable until proper length is achieved. The cable must maintain tension throughout its entire range of motion from fully wound to weight at bottom.

How do I know if the pulley bracket position is correct?

The cable should hang almost touching the bracket but actually missing it by about 1/8 inch. When fully wound, the pulley top should contact the bracket as a stop. The bracket angle should align the cable coming around the pulley directly with where cable winds onto the drum. The moving cable should never touch the bracket during operation. Compare both time and strike side brackets - they should position identically relative to their pulleys. If one side positions differently, it likely needs adjustment. The side that winds properly shows correct bracket position. After repositioning, test wind slowly while watching cable behavior. Cable should wind smoothly in single layer working front to back. If cable immediately travels or crosses, bracket adjustment didn't solve the problem.

My clock stops with weights still high. Is this always a cable problem?

No. Premature stopping with high weights has multiple possible causes. Remove the movement and examine the drum carefully. If cable sits in neat parallel single-layer wraps, cable isn't the problem. Look for escapement issues instead. Bent crutch causing misalignment stops clocks with symptoms similar to power loss. If the pendulum consistently stops cocked to one side rather than hanging straight, suspect crutch position. Improper pallet depth where teeth land on wrong pallet surfaces causes power loss. Worn pivots or excessive friction anywhere in the train can stop the clock. Cable crossing creates predictable binding at similar weight positions each time. Random stopping points suggest other causes. Don't replace perfectly good cable when escapement or mechanical problems are the actual cause.

Can I fix cable problems without removing the movement from the case?

You can make some adjustments through the case back door, but this approach severely limits visibility and access. You can't see the drum during winding to spot problems developing. You can't easily adjust bracket positions. You can't establish proper initial cable winding with confidence. For persistent cable problems, remove the movement and work on a test stand. This provides clear observation of the drum during winding. You can intervene immediately when cable misbehaves. You can verify proper bracket position and movement tilt. After establishing correct cable pattern on the stand, reinstall the movement. The trained cable is more likely to maintain proper winding during subsequent in-case operations. The extra effort removing the movement pays off in easier diagnosis and more reliable repairs.
