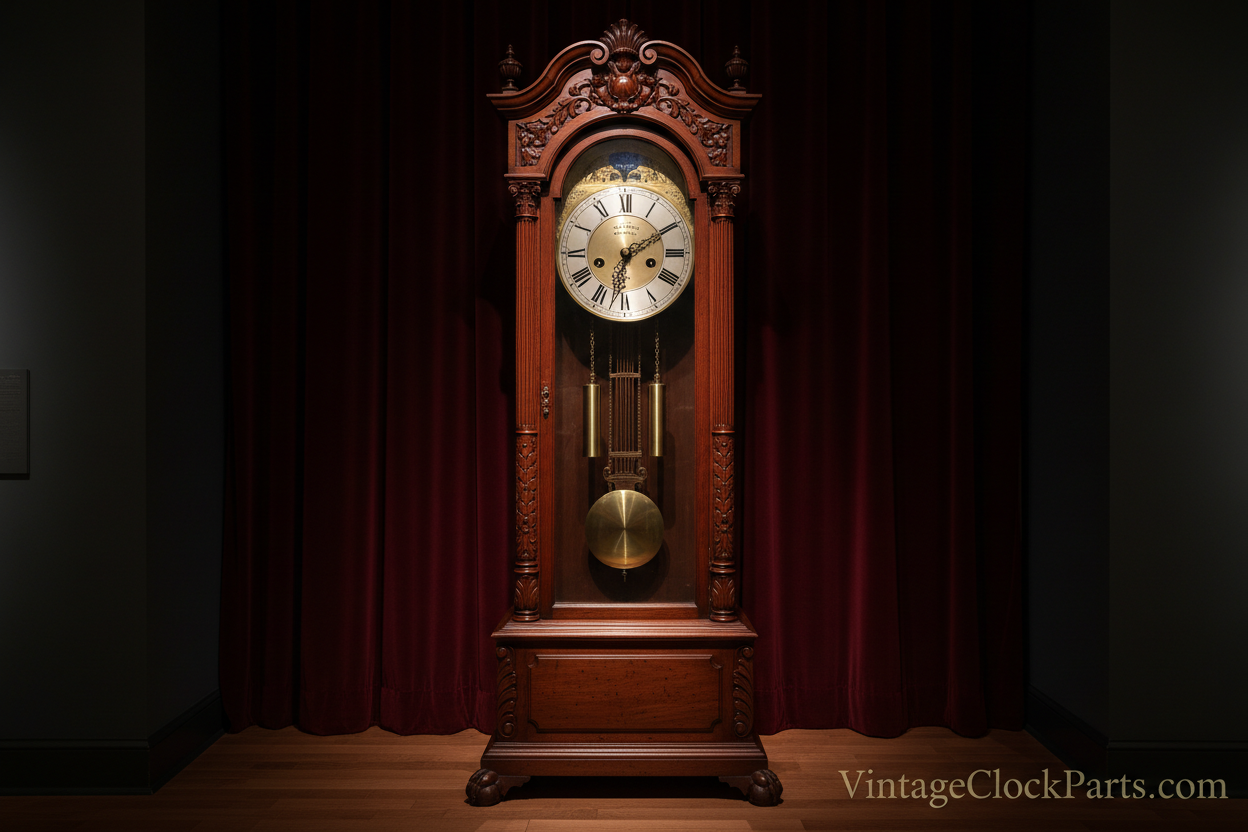

Grandfather Clock Weight Cable Replacement Complete Guide

Grandfather clock weight cable deterioration represents critical safety issue requiring immediate attention because failing cable creates risk of heavy cast-iron weights falling through clock case bottom or damaging floor where typical weight is 8-12 pounds concentrated in small area creating substantial impact force if cable breaks during winding or operation. Traditional gut cable - natural material made from animal intestines - shows visible deterioration through fuzzing, thinning, and discoloration indicating imminent failure though many clockmakers continue operating clocks with visibly-damaged cable accepting catastrophic failure risk rather than performing straightforward preventive replacement. Cable inspection should occur during routine service checking for fraying at winding barrel exit point where cable experiences greatest stress plus verifying adequate cable diameter maintaining designed weight capacity without excessive stretching creating irregular winding or shortened run time from reduced effective barrel capacity.

Replacing grandfather clock weight cable requires careful measurement ensuring proper length preventing weights hitting floor during normal operation while providing adequate winding turns maintaining full eight-day run without cable crossing over itself on barrel creating binding or irregular operation. Modern replacement options include traditional natural gut maintaining historical authenticity plus synthetic braided cable offering superior strength and longevity though requiring verification of diameter compatibility with existing barrel groove dimensions preventing improper winding or excessive wear. This guide covers understanding why natural gut cable fails through aging and environmental factors creating brittleness and reduced tensile strength, selecting proper cable diameter matching original specifications ensuring adequate weight capacity without excessive thickness creating winding problems, determining correct cable length through mathematical calculation based on barrel dimensions and drop distance, installing replacement cable using proper knotting technique securing cable to barrel without slipping, plus maintaining ratchet click assembly preventing cable unwinding creating sudden weight drop damaging clock or surroundings during normal operation or service work.

Understanding Weight Cable Function and Failure

Traditional Gut Cable Construction

Traditional grandfather clock weight cables use natural gut - material manufactured from animal intestines processed into strong flexible cordage serving marine fishing and musical instrument applications plus clock weight suspension. Gut cable manufacturing involves cleaning and processing intestinal material into strips then twisting multiple strips together creating multi-strand cordage. Typical clock gut uses three-strand construction providing balanced strength and flexibility enabling smooth winding on barrel while maintaining adequate tensile strength supporting heavy cast-iron weights. Quality gut cable shows consistent diameter throughout length with smooth surface free from irregularities or weak points creating stress concentrations prone to premature failure.

Gut cable offers advantages including low stretch characteristics maintaining consistent clock run time, smooth surface enabling quiet operation without squeaking or binding, and traditional appearance appropriate for antique clock restoration maintaining historical authenticity. However gut shows disadvantages including sensitivity to environmental conditions where humidity variations cause swelling and shrinkage potentially affecting diameter and strength, susceptibility to insect damage particularly from moths or carpet beetles attacking protein-based material, plus limited lifespan compared to synthetic alternatives where aging creates progressive deterioration requiring periodic replacement maintaining safe reliable operation.

Modern gut cable manufacturing maintains traditional techniques though quality varies substantially between suppliers. Premium gut intended for musical instrument use - particularly violin and harp strings - shows superior consistency and strength compared to economy clock gut though costs significantly more. However recognize that even premium gut shows finite lifespan perhaps 20-30 years under ideal conditions though actual service life depends on environmental factors including humidity variations, temperature extremes, exposure to atmospheric pollutants, plus mechanical stress from weight loading and winding cycles. Therefore periodic cable inspection and preventive replacement represents essential maintenance preventing catastrophic failure creating safety hazards or clock damage from falling weights.

Cable Deterioration Mechanisms

Gut cable deterioration occurs through multiple mechanisms creating progressive strength loss eventually resulting in catastrophic failure. Primary mechanism is protein breakdown from aging where natural proteins in gut material gradually degrade through oxidation and hydrolysis creating brittleness and reduced tensile strength. Visible symptoms include surface fuzzing where individual fibers separate from main cordage creating rough texture, color changes from original tan or cream to darker brown indicating oxidation damage, plus diameter reduction from fiber loss creating thinning particularly evident at high-stress points like barrel exit where cable experiences greatest flexing and abrasion during winding cycles.

Environmental factors accelerate deterioration. High humidity causes gut swelling creating internal stress plus promoting biological growth including mold or mildew attacking material. Conversely low humidity causes excessive drying creating brittleness and cracking. Temperature cycling creates expansion and contraction generating fatigue stress accelerating failure. Atmospheric pollutants particularly sulfur dioxide or nitrogen oxides from combustion sources create acidic conditions attacking protein structure. Therefore clocks in environmentally-controlled spaces show substantially longer cable life compared to clocks in uncontrolled environments experiencing wide humidity and temperature swings plus exposure to atmospheric contaminants.

Mechanical stress from weight loading plus winding cycles creates fatigue damage accumulating over time. Cable experiences tensile stress from suspended weight - perhaps 10-12 pounds creating substantial load on small-diameter cordage. Additionally winding creates flexing stress as cable winds onto barrel then unwinds during clock operation. High-stress point is barrel exit where cable bends sharply transitioning from straight vertical drop to curved winding on barrel surface. This location typically shows first visible deterioration including fuzzing, thinning, or discoloration requiring close inspection during routine service. If deterioration is evident, immediate replacement is essential preventing catastrophic failure potentially occurring without warning during normal operation or winding.

Synthetic Cable Alternatives

Modern synthetic cables offer superior strength and longevity compared to traditional gut though require careful selection ensuring compatibility with existing clock design. Braided polyester or nylon cable provides excellent tensile strength resisting environmental degradation plus showing minimal stretch maintaining consistent clock run time. Typical synthetic clock cable uses braided construction - perhaps 16-strand braid - creating smooth flexible cordage enabling proper winding on barrel without kinking or binding. However synthetic cable diameter must match original gut specifications ensuring proper fit in barrel grooves preventing cable crossover or irregular winding creating operational problems.

Advantages of synthetic cable include immunity to biological attack eliminating insect damage concerns, minimal environmental sensitivity maintaining consistent properties despite humidity or temperature variations, plus exceptional longevity potentially lasting decades without replacement under normal operating conditions. Additionally synthetic cable shows superior abrasion resistance compared to gut reducing wear at barrel exit point extending service life substantially. However disadvantages include potential incompatibility with historical restoration standards where authenticity requires traditional materials, plus possible aesthetic differences where synthetic cable may show different color or surface texture compared to original gut affecting clock appearance particularly in high-visibility installations.

Select synthetic cable carefully matching diameter to original gut specifications. Measure existing gut diameter using micrometer or caliper at unworn section away from barrel exit point obtaining accurate baseline. Common clock gut diameters range from 1.4mm to 1.8mm depending on weight and manufacturer though specific dimensions vary substantially. Order synthetic replacement matching measured diameter within 0.1mm tolerance ensuring proper barrel fit. Additionally verify cable construction - braided construction preferred over twisted construction because braiding provides more consistent diameter and smoother surface plus resists unwinding under tension maintaining integrity during installation and operation. Test sample length before complete installation verifying proper winding behavior and adequate strength under full weight load.

Cable Replacement Procedure

Determining Proper Cable Length

Calculate required cable length ensuring adequate drop distance for normal operation without weights hitting floor while providing sufficient winding turns on barrel maintaining full clock run without cable crossing over itself creating binding. Start by measuring drop distance - vertical distance from barrel to floor when weights hang at lowest position. Add 6-12 inches safety margin preventing weights contacting floor even if clock runs slightly beyond normal winding interval. This establishes minimum cable length for drop portion. However total required cable length includes additional length winding onto barrel during operation creating stored cable reserve enabling clock running full interval between windings.

Calculate barrel winding capacity determining how much cable winds onto barrel during full eight-day run. Measure barrel diameter - typically 2-3 inches for grandfather clock time and strike barrels. Calculate barrel circumference using formula circumference equals pi times diameter where pi is approximately 3.14. This gives cable length per barrel revolution. Multiply by number of turns barrel rotates during full run - typically 6-8 turns for eight-day movement though varies by specific design. Result is total cable length winding onto barrel during operation. Add this to drop distance plus safety margin obtaining total required cable length. However recognize calculation provides estimate - verify actual requirement by measuring removed original cable if possible or testing with temporary cable ensuring adequate length before cutting permanent replacement.

Standard cable length for typical grandfather clock is approximately 21 feet or 6.4 meters providing adequate length for both time and strike weight cables. This length typically suffices for clocks with 6-7 foot drop distance plus normal barrel capacity. However tall-case clocks or designs with large-diameter barrels may require longer cable. Conversely small movements or short-drop applications need less cable. Therefore verify specific requirements rather than assuming standard length fits all applications. Additionally recognize that cable sold in bulk enables cutting to exact required length though pre-cut cable may waste material if dimensions don't match application. Order adequate length enabling trimming to precise requirement after test fitting rather than ordering minimal length risking inadequate length requiring second cable purchase.

Removing Old Cable

Remove weights carefully supporting weight while unhooking from cable preventing sudden drop potentially damaging floor or clock case. Place weights in secure location away from work area preventing tripping hazards. Let down remaining cable tension using winding key slowly releasing click allowing barrel rotating backwards under spring tension. Never release click suddenly - controlled letdown prevents rapid barrel rotation creating safety hazard plus potential damage to ratchet mechanism from impact loading. After tension is released, remove old cable from barrel by accessing cable attachment point inside barrel through hole in barrel wall or removing barrel from movement for direct access to cable knot.

Cable attachment typically uses simple overhand knot on cable end fed through hole in barrel wall with knot inside barrel preventing cable pulling through during operation. Locate hole by rotating barrel slowly examining inner wall surface. Some designs use multiple holes enabling different cable routing options - note which hole contains cable before removal ensuring proper reinstallation. Extract knotted cable end using dental pick, bent wire hook, or needle-nose pliers accessing through barrel hole. This can be tedious particularly if knot is tight or cable end is buried under wound cable layers. Patient persistence succeeds - avoid excessive force risking barrel damage or tool breakage.

After removing cable, inspect barrel interior for debris, old lubricant, or damage. Clean barrel thoroughly removing accumulated dust or contamination potentially interfering with smooth cable winding. Additionally inspect barrel grooves - spiral channels guiding cable winding in organized layers preventing cable crossing over itself. Damaged or worn grooves may require barrel replacement or professional repair though minor wear is acceptable if grooves still provide adequate cable guidance. Verify ratchet click mechanism operates properly engaging ratchet teeth preventing unwanted barrel rotation. Worn or damaged click components require replacement maintaining safe operation preventing sudden weight drop from click failure during winding or operation.

Installing New Cable

Install replacement cable starting with proper knot securing cable to barrel. Form simple overhand knot approximately 2 inches from cable end creating bulky knot preventing cable pulling through barrel hole. Feed unknotted cable end through barrel hole from outside working inward so knot ends up inside barrel. Pull cable through until knot seats firmly against barrel inner wall. Verify knot security by pulling cable firmly - knot should not slip through hole or show any looseness indicating inadequate retention. If knot pulls through or appears questionable, tie larger knot perhaps figure-eight or double overhand creating more bulk ensuring secure retention under full weight load.

Wind cable onto barrel manually guiding cable into grooves ensuring organized winding without cable crossing over itself or riding up on previous cable layer. Start at one barrel edge winding progressively across barrel width following groove pattern. Apply modest tension during winding creating firm cable layer without excessive tightness potentially distorting barrel or creating binding during subsequent operation. Continue winding until approximately 3-4 turns are on barrel establishing proper cable base for subsequent operation. However don't wind full cable length onto barrel - leave sufficient unwound cable enabling weights hanging at normal operating height when barrel is in letdown position.

Thread cable through any guides or pulleys routing cable to weight attachment point. Most grandfather clocks use simple vertical drop from barrel to weight though some designs incorporate pulleys redirecting cable path. Ensure cable runs freely through guides without binding or excessive friction creating power loss. Attach weight to cable end using secure connection - typically hook on weight engaging loop in cable end or knot below weight preventing weight sliding off cable. Verify attachment security by supporting weight and testing connection under load. After confirming secure attachment, carefully lower weight to hanging position verifying adequate drop distance without weight contacting floor at fully-let-down position. If weight contacts floor, shorten cable by removing additional cable from barrel or adjusting cable routing reducing effective drop distance.

Ratchet Click Assembly Maintenance

Click Function and Adjustment

Ratchet click assembly prevents barrel rotating backwards under weight tension maintaining cable wound on barrel during normal operation plus preventing sudden unwinding if weight is removed or cable breaks. Assembly consists of ratchet wheel attached to barrel showing teeth on perimeter, click - spring-loaded pawl engaging ratchet teeth preventing reverse rotation, and click spring providing engagement force. Proper click function requires adequate spring tension pushing click firmly into ratchet teeth creating secure engagement preventing accidental release while enabling click lifting during controlled letdown for service or cable replacement.

Test click function by attempting to rotate barrel backwards against weight tension. Properly-functioning click prevents any backward rotation - barrel should feel absolutely locked preventing movement. If barrel shows any backward movement even slight amount, click engagement is inadequate requiring adjustment or component replacement. Additionally verify click releases properly when lifted during controlled letdown. Click should lift easily using finger pressure or small tool allowing smooth controlled barrel rotation. Excessively tight click requiring substantial lifting force indicates binding or corrosion requiring cleaning and lubrication. Conversely click lifting too easily suggests inadequate spring tension requiring spring adjustment or replacement.

Adjust click tension by bending click spring increasing or decreasing engagement force. Most click springs use brass construction showing modest thickness perhaps 0.020 to 0.030 inch enabling careful bending without fracture risk. To increase tension, bend spring creating more curvature pushing click more firmly into ratchet teeth. To decrease tension, straighten spring slightly reducing engagement force. Make small adjustments testing function after each modification avoiding excessive bending potentially creating spring fatigue or fracture. However recognize that extremely worn click or ratchet teeth may prevent adequate function despite proper spring tension requiring component replacement rather than continued adjustment attempting to compensate for wear damage.

Click Spring Replacement

Replace worn or damaged click spring maintaining secure barrel retention. Original springs often use brass construction showing adequate strength though brass fatigues over decades of operation creating progressive weakening eventually resulting in inadequate click engagement. Modern replacement springs preferably use spring steel providing superior strength and fatigue resistance ensuring reliable long-term operation. However verify spring dimensions match original specifications - length, width, thickness - ensuring proper fit and function. Additionally check spring attachment method - some designs use riveted spring while others use screw attachment or slip-fit retention requiring different replacement techniques.

Riveted click spring replacement requires drilling out original rivet then installing replacement spring using new rivet or converting to screw attachment. Drill rivet carefully using bit diameter matching rivet shaft avoiding excessive hole enlargement damaging mounting point. After rivet removal, clean mounting surface removing any burrs or debris. Install replacement spring using appropriate-sized screw plus washer distributing clamping force preventing spring distortion. Alternatively use new rivet if proper riveting equipment is available though screw attachment provides easier future service enabling spring replacement without drilling. Verify spring position after installation ensuring proper alignment with ratchet teeth creating reliable engagement throughout ratchet rotation.

Click wear occurs through repeated engagement and disengagement wearing click face contacting ratchet teeth. Inspect click tip under magnification noting any notching, rounding, or irregular wear creating poor engagement. Minor wear is acceptable though substantial damage requires click replacement. Additionally verify click pivot shows no excessive wear creating looseness affecting click alignment with ratchet teeth. Worn pivot requires bushing work or click replacement depending on specific design and wear severity. After any click or spring service, test assembly thoroughly verifying reliable operation under full weight load confirming secure barrel retention preventing unwanted rotation creating safety hazards or operational problems.

FAQs

What diameter gut cable should I use for grandfather clock weights?

Use gut cable diameter approximately 1.4mm to 1.8mm for typical grandfather clock weights depending on specific weight and manufacturer where heavier weights require larger diameter cable maintaining adequate tensile strength without excessive stretching. Measure existing cable diameter using micrometer or caliper at unworn section away from barrel exit point obtaining accurate baseline for replacement selection. Common specification is 1.6mm diameter gut providing adequate strength for weights up to approximately 12-15 pounds though verify specific requirements based on actual weight plus safety margin. Natural gut cable typically sold with diameter range rather than precise specification because biological material shows inherent variation - for example cable may be specified as 1.4-1.6mm indicating diameter varies within this range. When ordering replacement gut select specification encompassing measured original diameter ensuring adequate strength while maintaining compatibility with barrel groove dimensions preventing cable riding out of grooves during winding creating irregular operation. Additionally recognize that excessively thick cable may not fit properly in barrel grooves creating winding problems while inadequately thin cable risks premature failure from overloading. Therefore accurate measurement and proper specification matching represent essential steps ensuring successful cable replacement maintaining safe reliable operation. Modern synthetic braided cable offers alternative providing superior strength and environmental resistance though requires diameter matching original gut specifications ensuring barrel compatibility.

How long should grandfather clock weight cable be?

Grandfather clock weight cable length typically is approximately 21 feet or 6.4 meters for standard eight-day movement though specific requirements vary based on case height barrel diameter and movement design requiring calculation or measurement rather than assuming standard length fits all applications. Calculate required length by measuring drop distance from barrel to floor when weights hang at lowest position then adding 6-12 inches safety margin plus additional length winding onto barrel during full clock run. Barrel winding length calculation uses barrel circumference multiplied by number of turns during eight-day run where typical barrel rotates 6-8 turns storing substantial cable length. For example 2.5-inch diameter barrel has circumference approximately 7.85 inches and rotating 7 turns during run stores approximately 55 inches of cable. Adding 72-inch drop distance plus 6-inch safety margin gives total requirement approximately 133 inches or 11 feet per weight. However this represents minimum - actual cable typically includes additional margin ensuring adequate length under all operating conditions. Standard 21-foot cable length enables cutting to proper dimension for both time and strike weights with modest waste. Measure removed original cable if possible obtaining exact requirement before cutting replacement. Alternatively install temporary test cable determining proper length before final installation. Cable too short risks weights hitting floor during normal operation potentially damaging clock or floor while excessively long cable wastes material though creates no operational problems. Therefore err toward slightly longer cable trimming to exact requirement after test fitting confirming adequate drop distance and proper winding behavior.

Can I use synthetic cable instead of natural gut?

Yes you can use synthetic braided cable instead of natural gut providing superior strength longevity and environmental resistance though verify diameter compatibility with barrel grooves plus consider historical authenticity requirements for valuable antique clocks where modern materials may affect value or appearance. Synthetic polyester or nylon braided cable shows excellent tensile strength resisting environmental degradation including humidity variations temperature extremes and atmospheric pollutants that attack natural gut creating progressive deterioration. Additionally synthetic cable is immune to biological attack eliminating insect damage from moths or carpet beetles plus shows minimal stretch maintaining consistent clock run time without periodic adjustment. Typical braided construction using 16 or more strands creates smooth flexible cordage enabling proper barrel winding without kinking or binding. However synthetic cable diameter must match original gut specifications within approximately 0.1mm tolerance ensuring proper fit in barrel grooves preventing cable crossover or irregular winding. Measure existing gut carefully then order synthetic replacement matching measured diameter. Additionally consider cable color where natural gut shows tan or cream appearance while synthetic cable may be white black or colored potentially affecting clock aesthetics particularly in high-visibility installations. For historically-significant clocks or formal restorations maintaining authenticity use traditional natural gut despite inferior longevity. For practical long-term reliability particularly in clocks experiencing frequent use or challenging environmental conditions synthetic cable represents superior choice providing decades of maintenance-free service. Test sample length before complete installation verifying proper winding behavior and adequate strength under full weight load confirming suitability for specific application.

How do I secure cable to winding barrel?

Secure cable to winding barrel by forming simple overhand knot approximately 2 inches from cable end then feeding unknotted end through hole in barrel wall from outside working inward so knot ends up inside barrel creating bulky knot preventing cable pulling through hole under weight tension. Locate cable attachment hole by examining barrel inner wall - typically hole is small diameter perhaps 1/8 inch positioned near one barrel end. Some barrels show multiple holes enabling different cable routing options where you should note which hole contained original cable before removal ensuring proper reinstallation maintaining designed cable path. After threading cable through hole pull cable until knot seats firmly against barrel inner wall then verify security by pulling cable firmly testing knot retention. Knot should not slip through hole or show any looseness indicating inadequate retention under full weight load. If knot pulls through or appears questionable tie larger knot perhaps figure-eight or double overhand creating more bulk ensuring secure retention. Alternatively some designs use metal ferrule crimped onto cable end creating permanent attachment though this requires special crimping tools plus properly-sized ferrules matching cable diameter. Simple knot method works reliably for most applications providing adequate security without special tools or materials. After securing cable to barrel wind several turns onto barrel manually guiding cable into grooves establishing proper winding base before attaching weight and operating clock. Verify cable remains secure during initial operation checking for any slipping or loosening requiring knot adjustment or replacement. Properly-secured cable should show no movement at barrel attachment throughout normal operation and winding cycles maintaining reliable weight suspension without risk of sudden detachment creating safety hazard.

Why does my weight cable keep breaking?

Weight cable keeps breaking because cable is undersized for weight creating excessive tensile stress beyond material strength capacity, cable shows deterioration from aging or environmental damage creating weakened sections prone to failure, or barrel exit point shows sharp edge or burr creating stress concentration cutting cable during winding cycles. First verify cable diameter is adequate for weight - measure weight using scale then select cable specification providing adequate tensile strength with safety margin. Natural gut cable approximately 1.6mm diameter typically supports 12-15 pound weight though exact capacity varies by cable quality and construction. If weight exceeds cable capacity or cable is marginal size premature failure results requiring larger diameter cable maintaining adequate strength. Second inspect cable for deterioration including fuzzing thinning or discoloration indicating aging damage requiring immediate replacement before catastrophic failure occurs. Natural gut shows finite lifespan perhaps 20-30 years under ideal conditions though environmental factors including humidity variations temperature extremes and atmospheric pollutants accelerate deterioration requiring more frequent replacement. Third examine barrel exit point where cable leaves barrel checking for sharp edges burrs or rough surfaces creating abrasion damage. Use fine file or emery cloth smoothing barrel edge creating radius preventing cable cutting during operation. Additionally verify barrel grooves guide cable properly preventing cable riding out of grooves creating rubbing against barrel edges accelerating wear. Finally consider synthetic braided cable replacement providing superior strength and abrasion resistance compared to natural gut eliminating recurring failure problems. Synthetic cable typically lasts decades without replacement under normal operating conditions providing reliable long-term service without periodic cable replacement creating ongoing maintenance burden and safety concerns from potential sudden failure.

How do I maintain ratchet click preventing weight drops?

Maintain ratchet click preventing weight drops by verifying adequate click spring tension creating secure engagement with ratchet teeth, ensuring click face shows no excessive wear creating poor tooth engagement, plus confirming click pivot shows minimal looseness maintaining proper alignment with ratchet wheel. Test click function by attempting to rotate barrel backwards against weight tension where properly-functioning click prevents any backward rotation creating absolutely locked feel. If barrel shows any backward movement adjust click spring tension by bending spring creating more curvature pushing click more firmly into ratchet teeth. Make small adjustments testing function after each modification avoiding excessive bending potentially creating spring fatigue or fracture. Additionally inspect click face under magnification noting any notching rounding or irregular wear. Minor wear is acceptable though substantial damage requires click replacement restoring proper engagement geometry. Verify click pivot shows no excessive wear creating looseness affecting alignment - worn pivot requires bushing work or click replacement depending on specific design. Consider replacing original brass click spring with spring steel replacement providing superior strength and fatigue resistance ensuring reliable long-term operation. After any click service apply modest lubrication to click pivot using light clock oil enabling smooth click movement without excessive friction though avoid lubricating click face or ratchet teeth because oil attracts dust creating contamination interfering with reliable engagement. Test assembly thoroughly under full weight load confirming secure barrel retention throughout complete winding cycle. Click failure represents serious safety hazard creating sudden weight drop potentially damaging clock case floor or causing personal injury therefore maintaining reliable click function represents essential preventive maintenance requiring periodic inspection and service as needed.

Should I replace both weight cables even if only one shows wear?

Yes replace both weight cables when either shows significant wear because cables experience similar operating conditions and aging creating comparable deterioration where second cable likely approaching failure point requiring replacement soon anyway making simultaneous replacement more efficient than separate service calls plus ensuring matched cable properties maintaining consistent operation. Natural gut cable deteriorates through protein breakdown from aging environmental exposure and mechanical stress accumulating over time. If one cable shows visible deterioration including fuzzing thinning or discoloration indicating imminent failure the other cable likely shows similar though perhaps less obvious damage. Replacing both cables simultaneously prevents scenario where recently-replaced cable operates reliably while neglected original cable fails shortly afterward requiring second disassembly and service creating additional work. Additionally replacing both cables ensures matched properties including diameter strength and stretch characteristics creating balanced operation where both weights behave identically maintaining proper strike train timing. Mismatched cables with different diameters or stretch properties may create operational irregularities affecting timekeeping or strike function requiring adjustment or additional service. Cable replacement represents straightforward task consuming perhaps 1-2 hours for complete service including both cables. Material cost is modest - 21-foot cable length typically costs $10-20 depending on material quality. Therefore efficiency and reliability considerations favor replacing both cables during single service rather than piecemeal replacement creating multiple service episodes. However if one cable shows catastrophic failure while other appears nearly new with no visible deterioration single cable replacement is acceptable though perform thorough inspection of remaining cable verifying adequate condition for continued service. Mark replacement date enabling future service planning based on known cable age rather than waiting for visible deterioration creating potential safety hazards from unexpected failure.
