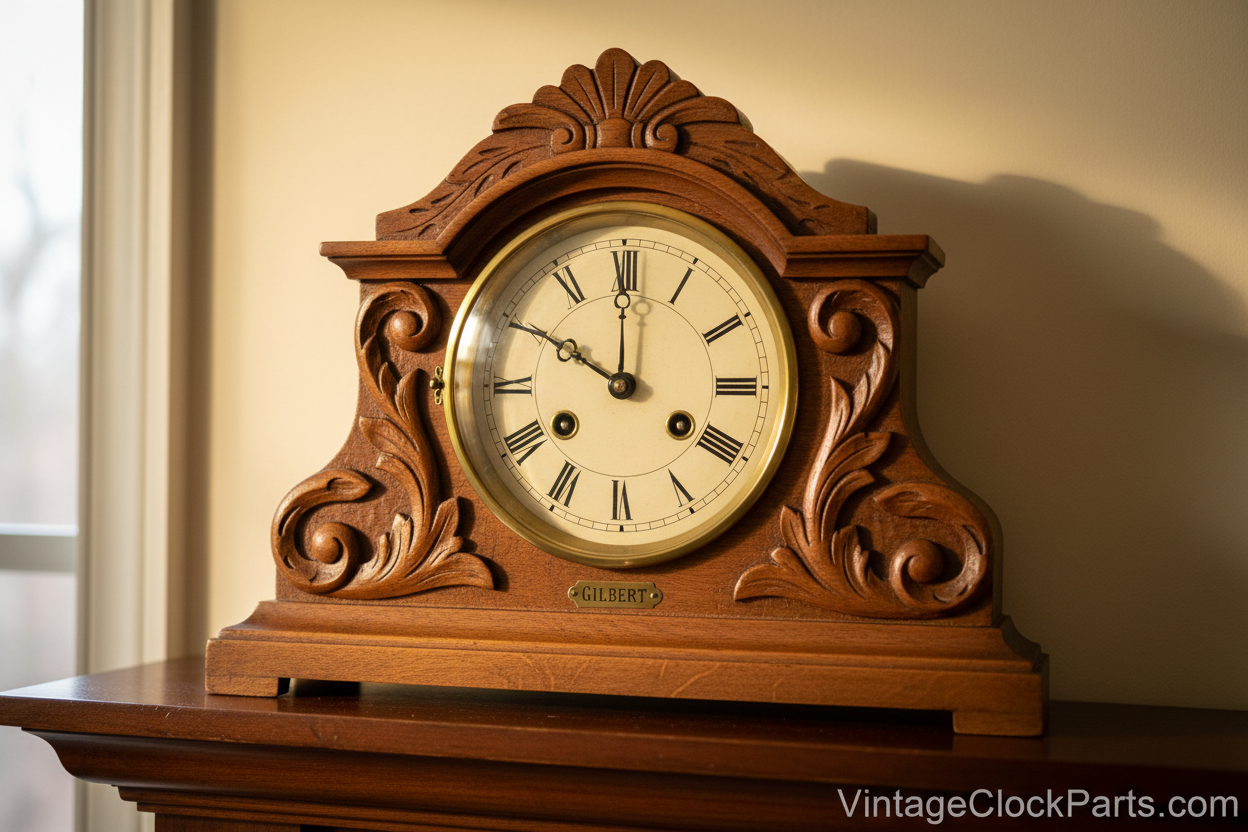

Gilbert Clock Geneva Stop Works Adjustment and Setup Guide

Gilbert eight-day clock movements with Geneva stop works that prevent winding after partial rotation reveal the frustrating problem where incorrect stop positioning creates strike train lock-up despite apparent correct long tooth and short valley alignment. When clockmakers reassemble movements after cleaning and position removable stop gears on winding arbors, the temptation to orient long teeth relative to stationary stop gears without considering winding direction and spring tension creates conditions where stops prevent proper operation rather than enhancing it. This deceptive assembly challenge occurs because Geneva stops function through differential tooth counts creating progressive alignment where eight-tooth removable gear meshing with nine-tooth fixed gear advances one position per winding arbor revolution requiring proper initial positioning accounting for winding direction and desired running range between fully wound and operational limit. This guide covers complete Geneva stop work adjustment from understanding operating principles to final verification. You'll learn how differential tooth counts create stopping mechanism through progressive tooth alignment completing full cycle in eight or nine revolutions, proper adjustment procedure winding springs nearly full then backing off one-half to two turns positioning long tooth into short valley considering winding direction, verifying correct installation by attempting wind confirming stops prevent over-winding rather than locking strike train, understanding that stops optimize mainspring operating range preventing isochronal error from excessive winding while extending running time beyond typical eight days, and troubleshooting common errors including reversed stops allowing wind but preventing operation and incorrect positioning causing premature stopping before optimal spring utilization. The key to successful Geneva stop adjustment is recognizing that stops are timing mechanisms not safety devices with optimal positioning creating mainspring operating window from slightly-less-than-fully-wound to adequate remaining tension providing consistent timekeeping throughout extended running period while preventing both over-winding rate variations and under-winding power loss.

Understanding Geneva Stop Works

Operating Principle

Geneva stop works consist of two gears with different tooth counts meshing to create stopping mechanism. The removable gear mounts on winding arbor typically having eight teeth. The fixed gear rivets to movement plate typically having nine teeth. One tooth on removable gear is longer than others. One valley on fixed gear is shorter than others. These special features create stopping action.

The tooth count difference creates progressive alignment. Each complete winding arbor revolution advances the long tooth one position relative to short valley. With eight teeth on removable gear and nine on fixed gear, complete alignment cycle requires eight or nine revolutions depending on counting method. When long tooth enters short valley, the mechanism locks preventing further rotation. This provides winding limit without requiring mainspring to reach solid stop.

The mechanism is reversible. Unwinding rotates arbor opposite direction progressively separating long tooth from short valley. After approximately eight full rotations, opposite extreme is reached where stops again lock. This creates operating window - the range between stops - where clock functions. Outside this window at either extreme, stops prevent movement in locked direction while allowing movement in opposite direction.

Purpose and Benefits

Geneva stops serve multiple purposes beyond simple over-winding prevention. Primary function is optimizing mainspring operating range. Mainsprings deliver inconsistent power across full range. When fully wound, excessive force causes clock to run fast. When nearly unwound, insufficient force causes running slow or stopping. Stops limit operation to middle mainspring range where power delivery is most consistent.

This creates improved timekeeping accuracy compared to clocks without stops. Rate variations from mainspring force changes are minimized. The clock maintains more consistent speed throughout running period. For precision timekeeping, this is valuable improvement. However, accuracy improvement is modest - stops don't transform shelf clock into chronometer but do reduce observable rate variation.

Extended running time is secondary benefit. By preventing full winding, stops allow additional turns before reaching actual spring coil contact. The springs can unwind through greater range without hitting physical limits. Some movements with stops run nine or ten days between windings compared to typical eight-day specification. This provides winding schedule flexibility and demonstrates manufacturer's quality emphasis.

Common Misconceptions

Over-winding prevention is often cited as stop work purpose but this is misleading. Mainsprings cannot be over-wound in sense of damage from excessive winding. The springs reach coil contact preventing further winding long before damage occurs. You can't break mainspring by winding too much - it simply stops accepting additional turns when coils compress fully.

The myth persists because winding beyond stop works requires forcing mechanism. If stop teeth become damaged allowing winding past intended limit, the increased force feels like over-winding. However, the resistance comes from damaged stops binding not from mainspring distress. Properly functioning stops don't prevent damage - they optimize performance through limiting operating range.

Another misconception claims stops reduce mainspring power protecting movements from excessive force. However, backing off one or two turns from fully wound doesn't dramatically reduce available power. The difference is modest affecting primarily rate consistency not overall force delivery. Movements designed for stop works don't require them for mechanical protection - they're designed handling full mainspring power throughout intended range.

Proper Adjustment Procedure

Initial Setup

Begin adjustment with both mainsprings let down completely. This provides known starting point preventing confusion about current spring tension. Clean and service movement before stop work adjustment. Proper stop function requires well-maintained movement. Attempting to optimize stop positioning on movement with other problems wastes effort since underlying issues prevent reliable operation regardless of stop adjustment.

Wind each mainspring to point of being nearly fully wound. Don't force final winding - stop when resistance increases noticeably indicating coils approaching contact. You want springs wound to near maximum without compressing coils solidly. This represents one extreme of operating range. The stop work will limit winding to point slightly before this position.

Back off each spring one-half to two full turns. Conservative adjustment uses two turns. Aggressive adjustment uses one-half turn. Most clockmakers prefer one to one-and-half turns as compromise. This backing off creates clearance between coils eliminating contact-related friction while keeping springs in strong portion of power curve. The exact amount isn't critical - anywhere in this range works satisfactorily.

Stop Positioning

With springs backed off desired amount, position removable stop gear on winding arbor. Orient long tooth to engage short valley on fixed gear in locked position. The positioning should prevent winding in normal winding direction. Test immediately by attempting to wind using winding key. If positioned correctly, stop prevents further winding creating solid mechanical stop.

If winding remains possible after stop installation, positioning is incorrect. Remove stop gear and try again with long tooth on opposite side of short valley. The correct position depends on winding direction. For clockwise winding, long tooth goes on short valley's clockwise side. For counter-clockwise winding, long tooth goes on counter-clockwise side. This seems obvious but confusion occurs easily during actual assembly.

Secure stop gear to arbor using original retention method. Most Gilbert movements use friction fit or small retaining clamp. Ensure stop gear seats fully on arbor without axial play. Loose stops shift during operation changing effective positioning. The gear must maintain precise position throughout winding and unwinding cycles. Test retention by attempting to shift gear axially - it should be completely secure.

Verification Testing

After positioning both stops, perform comprehensive verification. First, confirm stops prevent winding. Use winding key attempting to wind each arbor. The stops should create solid mechanical resistance. If any winding motion occurs, stops are positioned incorrectly requiring removal and repositioning. Don't accept marginal stop function - the engagement should be definite and immediate.

Second, verify clock operates normally. Start pendulum and allow clock to run several hours minimum. Both time and strike trains should function properly. If strike train locks up or fails to operate, strike side stop is positioned incorrectly. The stop is preventing operation rather than limiting winding range. This is most common error - reversed stop orientation.

Third, monitor long-term operation. Allow clock to run complete cycle until stops lock at opposite extreme. Most movements should run eight to ten days. If clock stops sooner, either stops are positioned too conservatively or movement has other problems limiting running time. If clock runs excessively long - beyond ten days - verify it actually stopped from stops rather than power loss. Measure winding arbor position at stopping confirming lock-up at stop rather than insufficient mainspring power.

Understanding Tooth Count Mathematics

Differential Counting Principle

The eight-tooth and nine-tooth configuration creates nine-revolution cycle. Each winding arbor turn rotates removable eight-tooth gear completely while fixed nine-tooth gear rotates eight-ninths revolution. The removable gear makes complete rotation while fixed gear falls one tooth behind. After nine complete winding arbor revolutions, both gears return to original alignment completing full cycle.

However, from practical perspective, available winding range is eight full turns between stops. The ninth revolution returns to starting position creating lock-up. So effective operating window is eight revolutions - adequate for eight-day clock operation with margin for extended running. This explains why movements with stops often run nine days providing one-day grace period before actual stopping.

Different tooth count combinations create different revolution ranges. Some movements use seven and eight teeth providing seven-turn window. Others use nine and ten teeth providing nine-turn window. Manufacturers selected tooth counts matching desired running duration and mainspring characteristics. Replacing stops with incorrect tooth counts changes operating window potentially preventing proper function.

Long Tooth and Short Valley

The long tooth and short valley create actual locking mechanism. Without these features, differential tooth counts would create rotational lag but no stopping action. The special features convert progressive misalignment into physical interference. When long tooth reaches short valley position, it attempts to enter but valley depth is insufficient. The tooth contacts valley bottom creating mechanical lock.

Long tooth extends beyond standard tooth tips approximately fifty percent. This extra length ensures contact with valley bottom before standard teeth engage valley walls. The timing is critical - premature engagement of standard teeth would prevent long tooth from reaching valley creating incomplete lock with potential for slipping under high loads.

Short valley depth is approximately half normal valley depth. The shallow bottom provides contact surface for long tooth while preventing standard teeth from bottoming. The geometry creates unambiguous stopping action. There's no gradual increase in resistance - the transition from free rotation to locked is immediate and obvious. This clear feedback helps during adjustment confirming proper stop positioning.

Directional Considerations

Winding direction determines proper stop orientation. Clockwise winding requires different positioning than counter-clockwise winding. The long tooth must lead short valley in winding direction creating interference as they approach alignment. If long tooth trails short valley in winding direction, they separate rather than engage allowing unrestricted winding.

Most American movements wind counter-clockwise on time side and clockwise on strike side though variations exist. Always observe actual winding direction rather than assuming standard configuration. Misidentifying winding direction causes reversed stop installation allowing wind but preventing operation - the most frustrating error in stop work adjustment.

Verify winding direction by observing arbor rotation during winding with mainspring let down. Mark arbor position then wind one full turn noting rotation direction. This eliminates assumption errors. When in doubt, test both long tooth positions - one will prevent winding while other allows it. The position preventing winding is correct assuming springs are backed off from fully wound as described in adjustment procedure.

Common Problems and Solutions

Strike Train Lock-Up

Most common stop work error creates strike train that won't operate despite time side functioning normally. This indicates strike side stop is positioned allowing initial winding but then locking train before adequate unwinding. The stop prevents operation rather than limiting winding range. This occurs when long tooth orientation is reversed relative to winding direction.

Diagnose by observing strike train behavior immediately after winding. If strike fails from initial wind, stop positioning is wrong. Let down strike mainspring completely. Wind strike spring to nearly full tension as described in adjustment procedure. Back off desired amount then reposition stop with long tooth on opposite side of short valley. This reverses stop orientation correcting the error.

Test correction by winding strike train and verifying operation. The strike should function normally immediately after winding. If problem persists after reversing stop position, other issues prevent strike operation. Don't assume stop works are problem if reversing position doesn't help. Look for bent levers, missing springs, or damaged gears preventing strike train operation independent of stop work configuration.

Inadequate Running Time

Clocks stopping before expected eight-day duration indicate several possible problems. First possibility is stops are positioned too conservatively. If backing off three or four turns before positioning stops, the operating window may not include sufficient mainspring range. Reposition stops with more aggressive adjustment - one turn from fully wound - extending available operating range.

Second possibility is movement has other problems limiting running time independent of stop work. Worn pivots, dirty bearings, or damaged gears create excessive friction exhausting mainspring power before stops lock. Test by removing stop gears and allowing clock to run without stops. If running time doesn't improve significantly, stops aren't limiting factor. Address underlying movement problems through proper cleaning and repair.

Third possibility is mainsprings themselves are inadequate for movement. Weak springs from aging or incorrect replacement don't provide force for full eight-day operation. New mainsprings may be necessary. Some movements accept various spring sizes - verify installed springs match movement specifications. Undersized springs work initially but lack power for extended running.

Premature Winding Lock-Up

Clocks where stops prevent winding after only few turns indicate stop positioning catches long tooth too early in winding cycle. This occurs when springs aren't backed off adequately before stop installation. The stops engage before reaching intended operating range creating short running duration. Reposition stops with springs wound more fully then backed off to proper point.

Another cause is damaged stop gears. If teeth are bent or worn, engagement occurs at incorrect positions. Examine both gears carefully under magnification. Tooth tips should be sharp and uniform. Valley depths should be consistent except designed short valley. Any visible damage indicates gear replacement is necessary. Attempting to adjust around damaged gears creates frustration without achieving reliable operation.

Occasionally stops are mismatched - removable and fixed gears from different movements installed together. Tooth counts must be appropriate combination like eight/nine or seven/eight. Random combinations may mesh but don't provide proper differential advancement creating functioning stop work. If uncertainty exists about original stop work configuration, research movement specifications confirming correct tooth counts before spending time on adjustment.

Advanced Considerations

Mainspring Power Curves

Mainspring force delivery isn't linear throughout unwinding. Maximum force occurs at approximately three-quarters wound position not fully wound. As spring approaches complete winding, coil compression creates resistance reducing net available force. This seems counter-intuitive but is documented behavior. Geneva stops positioned backing off one turn from fully wound place operation near force peak.

As spring unwinds, force decreases gradually. The rate of decrease is approximately linear through middle range then accelerates near complete unwinding. Stops positioned properly keep operation within middle range avoiding both compressed coil resistance at high tension and low force at near-complete unwinding. This provides most consistent power delivery throughout running period.

However, practical impact on shelf clock operation is modest. These aren't precision chronometers where small force variations significantly affect timekeeping. Most movements tolerate force variations across wide mainspring range. The benefit of stop works is real but don't expect transformation from mediocre timekeeper to precision instrument. Stops optimize operation within movement's inherent capabilities.

Isochronal Error Reduction

Isochronal error refers to pendulum period changes with amplitude variations. Higher amplitude creates slightly longer period. Lower amplitude creates slightly shorter period. This affects timekeeping as mainspring force changes throughout running week. Strong mainspring drives larger pendulum swings running fast. Weak mainspring creates smaller swings running slow.

Geneva stops reduce but don't eliminate this error. By limiting mainspring range, amplitude variations are reduced. The pendulum swings within narrower range creating more consistent periods. However, escapement design and pendulum characteristics also affect isochronal performance. Stops help but aren't complete solution. Proper escapement adjustment and appropriate pendulum design are equally important.

Short pendulum clocks benefit most from stops. These movements are particularly sensitive to amplitude changes. The shorter period means small variations create larger percentage changes in timekeeping. Long pendulum clocks show less sensitivity - the longer period dilutes impact of small amplitude variations. This explains why stop works appear more frequently on short pendulum movements where benefits are most pronounced.

Historical Context

Geneva stop works represent quality feature in American clockmaking. Not all eight-day movements include stops - their presence indicates manufacturer emphasis on performance optimization. Movements with stops generally reflect higher grade production with attention to details beyond basic functionality. This makes stop-equipped movements desirable to collectors appreciating craftsmanship.

However, stops create service complexity requiring understanding for proper adjustment. Many clockmakers unfamiliar with these mechanisms struggle with reassembly after cleaning. This leads to non-functional clocks despite thorough mechanical service. Understanding stop work principles and adjustment procedures prevents this frustration enabling successful service of these quality movements.

Modern perspective questions stop work value. Contemporary manufacturing could achieve similar benefits through improved mainspring design and better escapements. The added complexity of stops may not justify modest performance improvement they provide. However, historical movements benefit from preserving original mechanisms. Removing stops simplifies service but eliminates interesting feature distinguishing these movements. Preserve stops when possible maintaining historical integrity.

Practical Service Tips

Documentation During Disassembly

Before removing stop gears during movement disassembly, photograph their positions. Mark stop gear orientation relative to winding arbor using grease pencil or permanent marker. Note which side of short valley the long tooth occupies. This documentation enables return to original configuration if adjustment problems occur. Original factory setting provides known-good baseline for troubleshooting.

Some movements have additional marks or references indicating proper stop positioning. Look carefully at gears and plates for stampings, paint marks, or deliberate scratches. Factory workers sometimes marked proper alignment helping assembly. These marks may be subtle or obscured by age but can provide valuable guidance. Don't assume absence of visible marks means none exist - careful examination under magnification may reveal forgotten indicators.

Record running duration before disassembly. Wind clock fully noting winding arbor position. Allow clock to run until stopping recording number of days. This establishes baseline performance. After reassembly and stop adjustment, compare new running duration to original. Significant changes indicate stop positioning differs from original configuration. Adjust stops achieving similar or improved running time.

Working Without Original Stops

Occasionally movements are missing stop gears requiring replacement. Clock supply houses stock various stop work configurations but exact matching is uncommon. Measure tooth counts on remaining gears determining required combination. If fixed plate gear is present with nine teeth, you need eight-tooth removable gear. If fixed plate gear has eight teeth, you need seven-tooth removable.

Tooth profile must also match. Some stops have pointed teeth. Others have rounded teeth. The profiles should be similar for proper meshing. Significant profile differences create binding or incomplete engagement. If perfectly matching replacements aren't available, machine shop can modify available gears to proper tooth count. However, cost may exceed value except for particularly significant movements.

Test fit replacement gears before final installation. Mount temporary stop on arbor rotating through full range observing meshing. Binding or rough spots indicate poor fit. Gears should mesh smoothly throughout rotation with only deliberate interference at long tooth/short valley engagement. If binding occurs elsewhere, different replacement gears are necessary or modification is required.

Alternative to Stops

If reliable stop work operation cannot be achieved, removing stops entirely is acceptable alternative. Let down mainsprings. Remove both stop gears. Reassemble movement without stops. The clock functions normally with slightly different operating characteristics. Running duration may change - some movements run longer without stops while others show no difference.

Without stops, observe winding carefully. Stop when mainspring resistance increases noticeably indicating coil contact approaching. Don't force final winding attempting to squeeze additional turns. The increased friction from compressed coils can stop movement or create increased wear. Back off half turn from point of noticeable resistance creating safe operating margin.

Mark winding arbors indicating safe winding limit. Use grease pencil or small paint mark showing recommended maximum wind position. This provides visual reminder preventing accidental over-winding. Update marks if mainsprings are replaced since replacement springs may have different characteristics affecting proper winding limit. Simple visual indicators prevent problems making stop work absence transparent during normal operation.

FAQs

How do I know if my Geneva stops are positioned correctly?

Correctly positioned Geneva stops create solid mechanical resistance preventing winding when winding key is applied after initial setup positioning stops with mainsprings backed off one to two turns from fully wound. Test immediately after positioning by attempting to wind using winding key - stops should prevent further winding creating definite immediate resistance. Verify clock operates normally by starting pendulum and allowing several hours running. Both time and strike trains should function properly. If strike train locks up or fails to operate, strike side stop is positioned incorrectly allowing wind but preventing operation. This is most common error occurring when long tooth orientation is reversed relative to winding direction. Monitor long-term operation allowing clock to run complete cycle until stops lock at opposite extreme. Most movements should run eight to ten days. Premature stopping indicates stops positioned too conservatively or movement has other problems. Extended running beyond ten days suggests stops aren't actually limiting operation. Always test stop function by attempting wind after installation and observing initial operation before declaring successful adjustment.

What causes my strike train to lock up after installing Geneva stops?

Strike train lock-up after Geneva stop installation indicates stop is positioned allowing initial winding but then locking train before adequate unwinding with long tooth orientation reversed relative to winding direction. This occurs when long tooth is positioned on wrong side of short valley for actual winding direction. The stop prevents operation rather than limiting winding range. Diagnose by observing strike immediately after winding - if strike fails from initial wind, stop positioning is wrong. Correct by letting down strike mainspring completely, winding to nearly full tension, backing off one to two turns, then repositioning stop with long tooth on opposite side of short valley. This reverses stop orientation correcting the error. Test correction by winding strike train and verifying operation. Strike should function normally immediately after winding. If problem persists after reversing stop position, other issues prevent strike operation independent of stop work configuration. Look for bent levers, missing springs, or damaged gears preventing strike train operation. Winding direction determines proper stop orientation - clockwise winding requires different positioning than counter-clockwise winding with long tooth leading short valley in winding direction creating interference as they approach alignment.

How many turns should I back off the mainspring before setting the stops?

Back off mainsprings one-half to two full turns from nearly fully wound position before positioning Geneva stops with most clockmakers preferring one to one-and-half turns as compromise. Conservative adjustment uses two turns providing maximum clearance between coils eliminating contact-related friction. Aggressive adjustment uses one-half turn keeping springs in strongest portion of power curve. The exact amount isn't critical - anywhere in this range works satisfactorily. Wind each mainspring to point of being nearly fully wound without forcing final winding. Stop when resistance increases noticeably indicating coils approaching contact. This represents maximum spring tension without coil compression. Then back off desired amount creating clearance. The backing off provides operating window where mainspring delivers consistent power avoiding both compressed coil resistance at excessive winding and low force at near-complete unwinding. This positioning keeps operation within middle mainspring range where power delivery is most consistent. If clock shows insufficient running time, reposition stops more aggressively backing off only one turn. If clock runs fast immediately after winding, reposition stops more conservatively backing off two turns reducing initial mainspring force.

Can I remove Geneva stops if I can't get them to work properly?

Yes, removing Geneva stops entirely is acceptable alternative if reliable operation cannot be achieved allowing clock to function normally with slightly different operating characteristics. Let down mainsprings completely. Remove both stop gears from winding arbors. Reassemble movement without stops. Running duration may change - some movements run longer without stops providing more than eight days while others show no significant difference. Without stops, observe winding carefully stopping when mainspring resistance increases noticeably indicating coil contact approaching. Don't force final winding attempting additional turns as increased friction from compressed coils can stop movement or create excessive wear. Back off half turn from point of noticeable resistance creating safe operating margin. Mark winding arbors using grease pencil or paint indicating safe winding limit providing visual reminder preventing accidental over-winding. However, stops represent quality feature indicating manufacturer emphasis on performance optimization. Preserve stops when possible maintaining historical integrity and original design intent. Only remove as last resort when proper adjustment cannot be achieved after understanding principles and following correct procedures.

Why does my clock with Geneva stops only run five days instead of eight?

Insufficient running duration indicates either stops positioned too conservatively limiting available mainspring range or movement has underlying problems preventing proper eight-day operation independent of stop configuration. Test by removing stop gears and allowing clock to run without stops. If running time improves significantly to eight days or more, stops were limiting factor requiring repositioning. Adjust stops more aggressively backing off only one turn from fully wound instead of two turns extending available operating range. If running time doesn't improve without stops, movement has other problems including worn pivots creating excessive friction, dirty bearings preventing smooth rotation, damaged gears binding during operation, or inadequate mainsprings lacking force for extended running. These require proper cleaning, bushing work if pivot holes are worn, or mainspring replacement if springs are weak. Verify mainsprings match movement specifications as incorrect replacement springs may be undersized. Some movements accept various spring sizes - installed springs should provide adequate force for intended eight-day duration. Premature stopping before stops lock indicates power loss from friction or inadequate springs rather than stop work limitations.

What is the purpose of Geneva stop works on clocks?

Geneva stop works optimize mainspring operating range preventing isochronal error from excessive winding while extending running time beyond typical eight days rather than preventing over-winding damage. Primary function is limiting operation to middle mainspring range where power delivery is most consistent. Mainsprings deliver inconsistent power across full range - when fully wound, excessive force causes fast running, when nearly unwound, insufficient force causes slow running or stopping. Stops limit operation to range where force is consistent creating improved timekeeping accuracy compared to clocks without stops. Extended running time is secondary benefit as preventing full winding allows additional turns before reaching actual spring coil contact enabling nine or ten day operation between windings. Over-winding prevention is common misconception as mainsprings cannot be over-wound in damage sense - springs reach coil contact preventing further winding before damage occurs. Stops don't prevent mechanical damage but optimize performance through limiting operating range. This represents quality feature in American clockmaking with stop-equipped movements reflecting higher grade production and manufacturer attention to performance details beyond basic functionality.

How do tooth count differences create the stopping mechanism?

Eight-tooth removable gear meshing with nine-tooth fixed gear creates progressive alignment where each winding arbor revolution advances long tooth one position relative to short valley completing full cycle in nine revolutions. Each complete winding arbor turn rotates removable eight-tooth gear completely while fixed nine-tooth gear rotates eight-ninths revolution. The removable gear makes complete rotation while fixed gear falls one tooth behind. After nine complete winding arbor revolutions, both gears return to original alignment completing full cycle. However, from practical perspective, available winding range is eight full turns between stops since ninth revolution returns to starting position creating lock-up. The long tooth and short valley create actual locking mechanism. Without these features, differential tooth counts would create rotational lag but no stopping action. When long tooth reaches short valley position, it attempts to enter but valley depth is insufficient. The tooth contacts valley bottom creating mechanical lock. Different tooth count combinations create different revolution ranges - seven and eight teeth provide seven-turn window while nine and ten teeth provide nine-turn window. Manufacturers selected tooth counts matching desired running duration and mainspring characteristics.
