Introduction

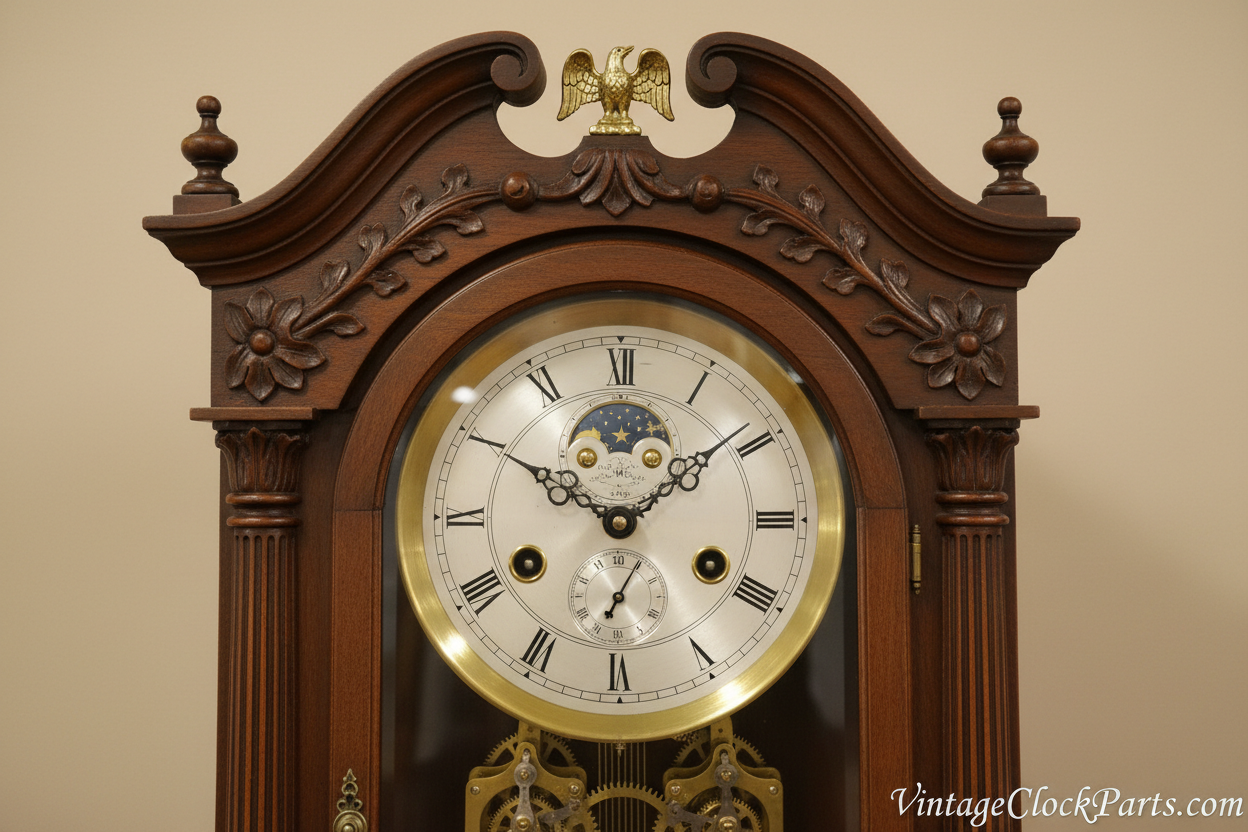

The Urgos 32/1‑A is a well‑known German grandfather clock movement used in many Howard Miller and Barwick clocks. Over time, these movements often develop chime issues such as weak chimes, incomplete sequences, or failure to start. Most problems trace back to hammer lift, worn bushings, or improper alignment of the Urgos leader and suspension system. This guide explains how to diagnose and correct the most common chime problems in the Urgos 32/1‑A movement.
Understanding the Urgos 32/1‑A Movement
Chime train design
The chime train powers the Westminster melody. Any friction or wear reduces power and causes hesitation.
Strike train
The strike train counts the hours. Misalignment or worn pivots can cause locking or weak strikes.
Time train
The time train drives the escapement. Power loss here affects beat, amplitude, and accuracy.
Urgos leader and suspension
The leader connects the pendulum to the escapement. Incorrect leader alignment causes beat issues and exposes power loss.
Hammer lift system
Hammers must lift evenly and fall freely. Excessive lift is a major cause of chime‑train stalling.
Common Chime Problems in Urgos Movements
Chimes start but stall
Often caused by worn bushings, dirty pivots, or excessive hammer lift.
Chimes out of sequence
Improper synchronization or bent lifting levers can cause timing issues.
Weak or uneven chimes
Hammer alignment, rod clearance, or drum friction may be the cause.
Chime train won’t start
Binding in the train, worn pivots, or incorrect warning/locking alignment are common culprits.
Pendulum amplitude weak
Indicates power loss in the time train, often from worn pivots or a misaligned Urgos leader.
Diagnosing the Issue
Check hammer lift height
Hammers should lift only enough to produce a clear tone. Over‑lifting dramatically increases load.
Inspect the Urgos leader
Ensure the leader hangs straight, engages the crutch properly, and does not rub the case or chime rods.
Check pivot wear
Oval pivot holes or rough pivots reduce power and cause hesitation in all trains.
Test the chime train by hand
With the movement let down, gently advance the chime train to feel for binding or friction.
Evaluate drum and pin condition
Ensure the chime drum rotates freely and that pins are straight and clean.
Correcting the Problem
Adjust hammer lift
Reduce lift to the minimum needed for a clean strike. This restores chime‑train power.
Realign the Urgos leader
Ensure the leader is centered, straight, and properly engaged with the crutch.
Rebush worn pivot holes
Properly centered bushings restore depthing and improve power transmission.
Clean and polish pivots
Dirty or rough pivots dramatically reduce power. Clean and polish for smooth operation.
Correct drum or pinning issues
Ensure the chime drum rotates freely and that pins lift the hammers evenly.
Troubleshooting Flowcharts
If the chime train stalls
Check hammer lift → Check pivots → Check bushings → Check drum → Check mainspring/weight power
If the chimes sound weak
Check hammer alignment → Check rod clearance → Check lift height → Check drum friction
If the chimes are out of sequence
Check drum alignment → Check lifting levers → Check pin timing
If the pendulum swing is weak
Check Urgos leader → Check crutch → Check pivot wear → Check escapement
If the chime train won’t start
Check warning → Check release → Check pivots → Check bushings
Common Mistakes to Avoid
Over‑lifting the hammers
Too much lift dramatically increases load on the chime train.
Ignoring Urgos leader alignment
A misaligned leader causes beat issues and exposes power loss.
Oiling worn bushings
Oil cannot compensate for wear. Bushings must be replaced.
Skipping pivot polishing
Dirty or rough pivots are a major cause of power loss.
Forcing the chime train
Forcing can bend pins or damage the drum.
Checklist for Final Verification
• Urgos leader straight and centered
• Hammer lift correctly adjusted
• Pivots polished and clean
• Bushings properly centered
• Chime drum rotates freely
• Movement runs reliably through full chime cycle
FAQs
Why does my Urgos 32/1‑A chime weakly?
Often due to excessive hammer lift or worn pivots.
Why won’t the chime train start?
Binding, worn bushings, or incorrect warning alignment are common causes.
Can a misaligned Urgos leader stop the clock?
Yes. Leader alignment directly affects beat and power.
Why are the chimes out of sequence?
Usually due to drum misalignment or bent lifting levers.
Do Urgos movements wear out?
Yes, especially pivot holes—but most can be restored with proper service.
