Introduction
Ingraham mantel clocks use a count-wheel strike system that must be precisely timed for the chimes to sound correctly. When the clock strikes the wrong number, skips, or stops mid-sequence, the cause is usually a misaligned count wheel, sticky hammer, or strike train timing issue. This guide explains how the Ingraham strike system works and how to diagnose and correct common chime errors.
How the Ingraham Strike System Works
The count wheel
The count wheel determines how many times the hammer strikes. Each notch corresponds to a specific hour count.
The stop lever
The stop lever drops into the count wheel notch to end the strike sequence. If misaligned, the clock strikes incorrectly.
The strike train
The strike train powers the hammer sequence. Dirt, wear, or friction can cause hesitation or incomplete striking.
The hammer and rod system
The hammer must lift and fall freely. If it binds or sits too close to the rod, the chime will sound weak or fail.

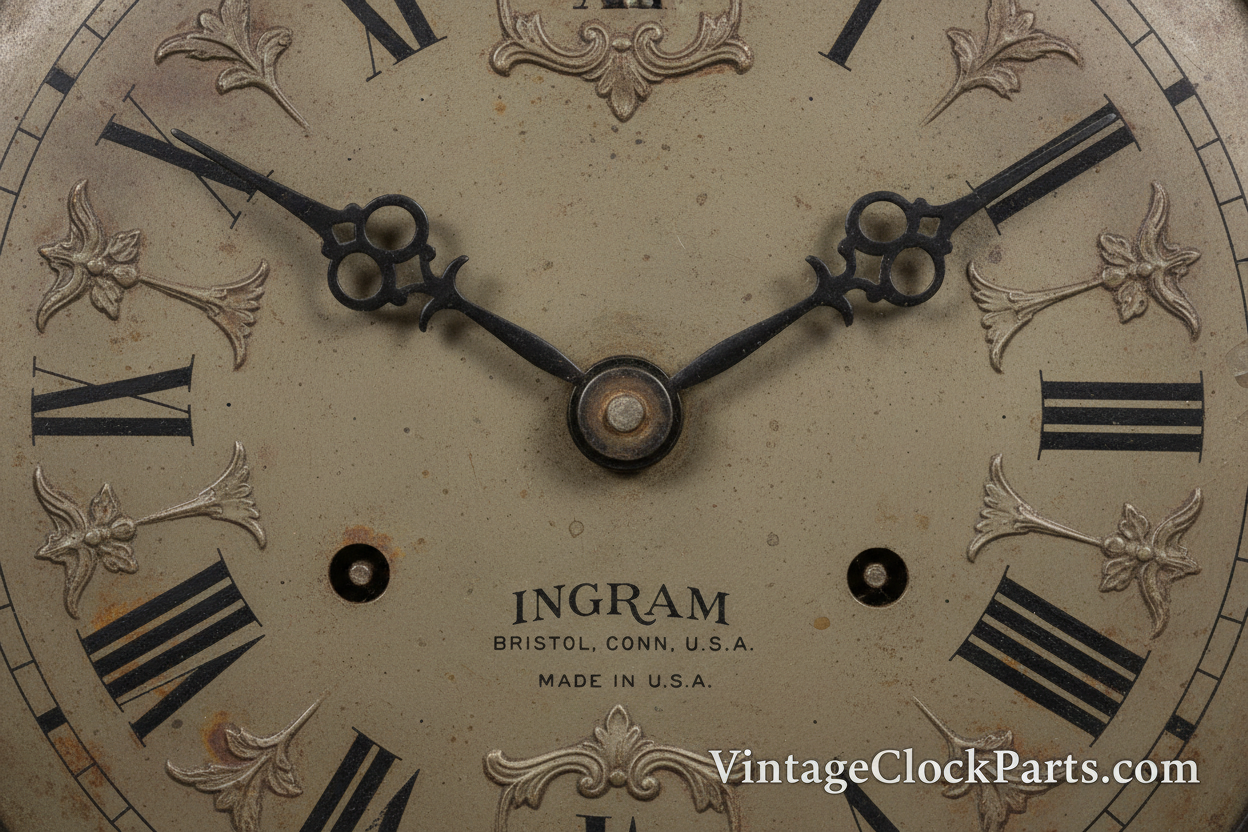

Dial and hand alignment
A misaligned dial or hour hand can cause the strike count to disagree with the displayed time.
Diagnosing Chime Errors
Clock strikes the wrong number
The count wheel is out of sync with the hour hand or the stop lever is not dropping correctly.
Clock skips strikes
A sticky hammer, worn pivot, or weak strike train power may prevent full hammer lift.
Clock stops mid-strike
The stop lever may be catching early or the train may be binding.
Hammer double-strikes
Hammer tail may be too close to the rod or the lift pin may be worn.
Strike does not start
The warning lever or count wheel may be misaligned, preventing release.
Correcting the Problem
Resetting the count wheel
Manually advance the strike train until the stop lever drops into the correct notch for the hour.
Adjusting the stop lever
Ensure the lever drops fully into the notch and does not ride the edge.
Cleaning and lubricating pivots
Dirt or dried oil reduces strike train power. Clean pivots and apply fresh oil sparingly.
Adjusting hammer position
Ensure the hammer lifts cleanly and falls freely without resting on the rod.
Checking hand alignment
Ensure the hour hand is tight on the tube and matches the strike count.
Advanced Strike Troubleshooting
Worn count wheel notches
Rounded or damaged notches cause inconsistent stopping. Repair or replace as needed.
Weak hammer return spring
A weak spring causes sluggish hammer action and muted chimes.
Lift pin wear
Worn lift pins may fail to raise the hammer fully.
Strike train depthing
Worn bushings cause poor depthing and reduced power.
Case interference
Loose case panels or chime blocks can vibrate against the rods, muting the sound.
Troubleshooting Flowcharts
If the clock strikes the wrong number
Check hour hand → Reset count wheel → Check stop lever → Verify notch alignment
If the strike stops mid-sequence
Check stop lever → Check train power → Check hammer lift → Check pivot wear
If the hammer lifts but makes no sound
Check rod clearance → Check hammer tail → Check rod tightness → Check case interference
If the chime is weak
Check hammer return → Check rod clearance → Check lift pin → Check strike train power
If the strike does not start
Check warning lever → Check count wheel → Check release timing → Check train freedom
Common Mistakes to Avoid
Forcing the count wheel
Always advance the strike train gently to avoid bending pins.
Over-bending hammer rods
Small adjustments are enough. Excess bending causes misalignment.
Oiling the hammer tails
Oil attracts dirt and causes sticking. Only pivots receive oil.
Ignoring hand alignment
A loose hour hand causes the strike count to disagree with the dial.
Skipping bushing inspection
Worn bushings reduce strike train power and cause inconsistent striking.
Checklist for Final Verification
• Count wheel synchronized
• Stop lever drops correctly
• Hammer lifts and falls cleanly
• Chime rods vibrate freely
• Strike train runs with full power
• Ingraham 8-day movement operates reliably
FAQs
Why does my Ingraham clock strike the wrong number?
The count wheel is out of sync or the stop lever is misaligned.
Why does the strike stop halfway?
Weak power or early stop lever engagement is usually the cause.
Why is the chime weak?
Hammer return issues or rod interference are common problems.
Does the pendulum affect the strike?
Indirectly. Poor beat or pendulum alignment can reduce overall movement power.
Can the strike be reset manually?
Yes. Advancing the strike train allows you to realign the count wheel.
