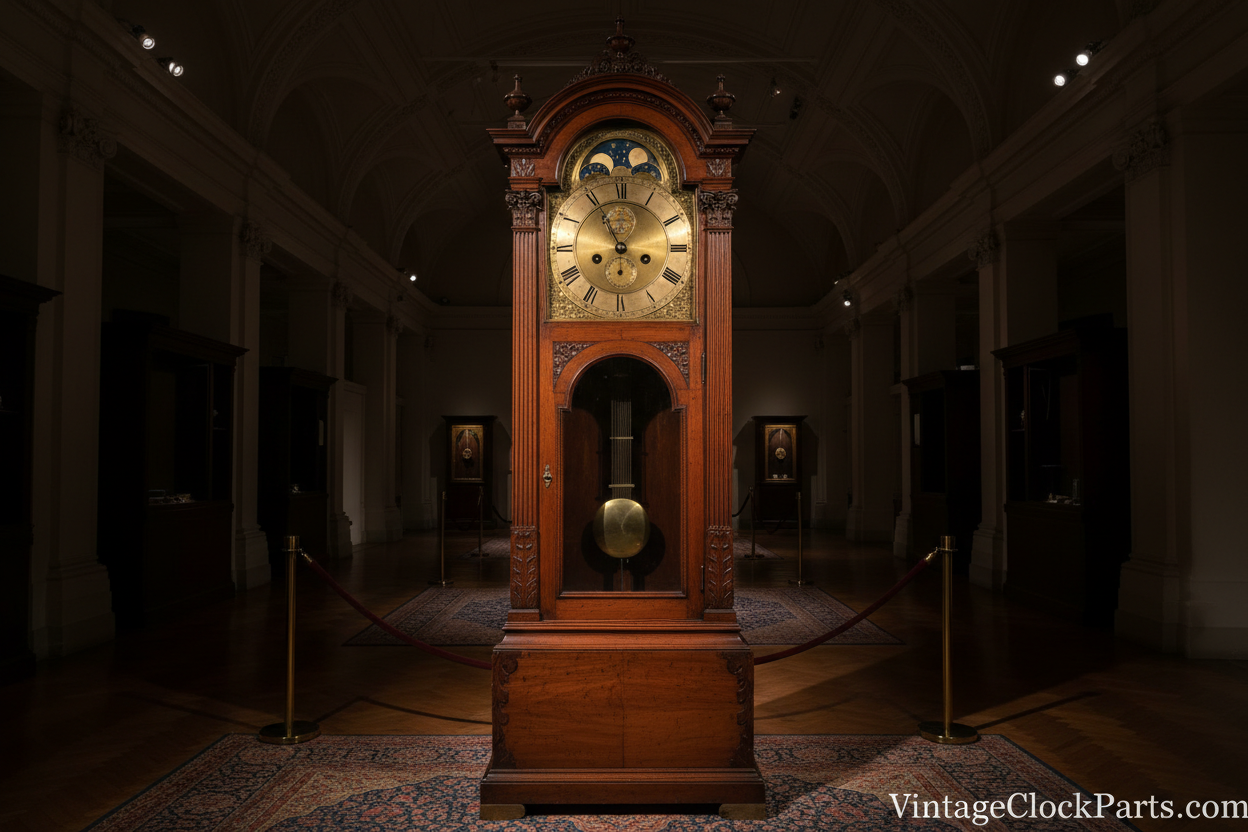

English Longcase Clock Fly Governor Strike Speed Repair Guide

English longcase clocks striking so rapidly that hours become uncountable reveal failed fly governor where friction spring providing controlled resistance has broken loose allowing fly to spin freely on arbor without creating drag regulating strike speed. The fly - air brake governor at end of strike train - must grip arbor firmly enough maintaining momentum during operation but loosely enough slipping slightly during sudden stop at strike completion preventing shock damage. When friction spring breaks or works loose from age or failed repair, fly rotates without resistance causing strike train to accelerate uncontrollably making twelve o'clock sound like machine gun fire impossible to count.

This common problem in 30-hour and 8-day English movements requires proper fly friction spring repair not amateur workarounds like adding weight to fly blades or using excessively heavy strike weight that create worse problems through increased wear and potential component damage. This guide covers understanding fly governor operation, diagnosing friction spring failures, proper repair techniques restoring correct spring tension, and explaining why cut-away fly designs in English longcase clocks don't indicate damage but represent original factory configuration providing clearance for anchor pallet arms in compact movement layouts.

Understanding English Longcase Fly Governors

How Fly Governors Regulate Strike Speed

Fly governor is rotating air brake mounted at end of strike train arbor. Large diameter vanes rotating at high speed create air resistance proportional to rotational velocity squared. This aerodynamic drag opposes strike weight power creating equilibrium speed where power input equals drag losses. As strike train accelerates, drag increases rapidly limiting maximum speed to safe controllable rate enabling clear distinct strikes audible throughout hour count. Without adequate drag, strike weight power accelerates train to excessive speeds creating blurred indistinct strikes impossible to count accurately.

Critical element is friction spring providing controlled grip between fly and arbor. Spring wraps around arbor creating pressure maintaining fly rotation with arbor during normal operation. However, spring must allow slight slippage during two critical moments. First, at strike initiation when train suddenly releases creating instantaneous acceleration, fly inertia resists immediate acceleration causing momentary slippage until fly achieves operating speed. Second, at strike completion when train stops abruptly, fly inertia wants continued rotation causing slippage preventing shock loading that might damage arbor pivots or wheel teeth.

Proper friction spring tension balances these competing requirements. Insufficient tension allows fly to slip continuously during operation preventing drag development - strike runs uncontrolled at excessive speed. Excessive tension prevents protective slippage during starts and stops creating shock loads potentially breaking pivots or arbor. Original clockmakers achieved proper balance through careful spring selection and adjustment creating reliable long-lasting operation. However, decades of use plus amateur repair attempts often destroy original spring function requiring proper restoration achieving factory-intended performance.

Common Fly Problems in Antique Movements

Most frequent fly problem is broken or displaced friction spring. Spring is thin tempered steel bent to specific shape providing radial pressure against arbor. Age, corrosion, or excessive stress breaks spring eliminating friction. Additionally, spring may work loose from mounting - originally riveted, brazed, or mechanically secured to fly body. Loose spring rotates with arbor rather than providing pressure creating completely free-spinning fly without any governing action whatsoever causing extreme strike acceleration.

Another common problem is amateur repair using solder attempting to reattach broken spring. Solder heat destroys spring temper eliminating springiness required for proper function. Soldered spring acts like rigid bar providing no controlled friction - either excessively tight preventing any slippage creating shock damage or loose from poor solder joint providing inadequate friction allowing excessive strike speed. Professional repair requires mechanical spring attachment preserving temper enabling proper resilient grip without heat damage affecting spring properties.

Less obvious problem is worn or damaged arbor surface where spring contacts. Years of operation with abrasive contamination or corrosive attack creates rough irregular surface preventing consistent spring contact. Friction becomes unpredictable varying with rotational position creating erratic strike speeds. Additionally, bent arbor from impact or improper handling creates eccentric rotation where fly wobbles rather than spinning true. Wobbling fly creates varying air resistance plus irregular spring contact producing inconsistent governing action requiring arbor straightening before spring repair provides reliable improvement.

Why Cut-Away Flies Are Not Damage

English 30-hour longcase movements often show flies with cut-away sections removing portions of vane area. Modern clockmakers unfamiliar with these designs assume damage or amateur modification requiring restoration to complete circular vanes. However, cut-aways are original factory configuration providing clearance for anchor pallet arms in compact movement layouts where fly must mount close to escapement. Without cut-aways, rotating fly would strike anchor pallets during operation creating interference preventing strike function.

Cut-away designs appear throughout English clockmaking period from earliest examples through late production. This isn't short-lived fashion but established practice continuing over century indicating successful engineering solution to space constraints in 30-hour movements. Later movements with more generous spacing between components don't require cut-aways using full-circle flies creating stronger drag from complete vane area. However, compact early movements benefit from cut-away design enabling proper component spacing within limited case depth.

Importantly, cut-away flies work perfectly well when friction spring functions correctly. Reduced vane area creates less drag but this is compensated by appropriate strike weight selection and gearing ratios. System reaches equilibrium at proper strike speed despite reduced fly area. Problems arise only when friction spring fails allowing free rotation destroying governing action regardless of vane configuration. Therefore, encountering cut-away fly doesn't indicate need for replacement with full-circle design but simply requires proper friction spring restoration achieving original factory performance.

Diagnosing Fly Governor Problems

Testing Fly Friction

Simple test reveals friction spring condition. With movement stopped and strike train not under power, manually rotate fly observing resistance. Properly functioning friction spring creates modest resistance - fly shouldn't spin freely like wheel bearing but shouldn't require excessive force rotating. Ideal resistance allows rotating fly with two-finger pressure but fly stops quickly when released rather than coasting multiple revolutions from momentum. Free-spinning fly indicating no resistance proves friction spring failure requiring immediate attention.

Additionally, test during actual striking operation provides dynamic assessment. Observe fly during strike cycle watching for smooth acceleration to operating speed followed by steady rotation then controlled deceleration at strike completion. Fly should maintain relatively constant speed throughout strike not showing progressive acceleration indicating inadequate drag. At strike completion, fly should decelerate smoothly showing slight overrun from inertia then stopping. Abrupt stop without any overrun suggests excessive friction preventing protective slippage risking shock damage. Continued spinning after strike completion indicates insufficient friction causing ongoing problems.

Listen carefully to strike sounds during testing. Proper strike speed creates clear distinct sounds easily countable even at twelve o'clock. Each hammer blow is audible as separate event with brief silence between strikes. Excessive strike speed creates blurred sound where individual strikes merge into continuous buzz or rattle impossible to count. Additionally, excessive speed may cause calendar wheel jumping with each strike from shock loading - visible symptom of inadequate fly governing requiring correction preventing long-term damage from repeated impacts.

Inspecting Friction Spring Condition

Visual inspection reveals friction spring problems. Remove fly from movement for detailed examination. Look for broken spring showing clean fracture or missing spring fragments. Inspect spring mounting point checking for loose rivets, failed brazing, or previous solder repair attempts. Spring should be firmly attached to fly body without movement. Additionally, examine spring shape looking for deformation, cracks, or corrosion weakening material. Spring should maintain uniform curve providing consistent pressure around arbor circumference.

Test spring tension manually. Grasp spring ends attempting to spread them apart. Proper spring resists spreading requiring significant force. Weak spring spreads easily indicating lost temper from age or heat exposure. Additionally, check spring for permanent set - deformation where spring no longer returns to original shape after bending. Set spring indicates fatigue or heat damage requiring replacement rather than simple remounting. However, spring showing good resilience without set may be salvageable through proper remounting even if currently loose or displaced.

Inspect arbor surface where spring contacts. Look for wear grooves, corrosion pitting, or damage creating irregular surface. Smooth shiny arbor indicates good condition. Rough corroded surface requires polishing before spring installation ensuring consistent contact. Additionally, check arbor straightness by rolling on flat surface or mounting in v-blocks rotating slowly observing runout. Bent arbor requires straightening before fly reinstallation preventing erratic operation from eccentric rotation. These systematic inspections identify all problems requiring correction ensuring successful repair rather than addressing only obvious spring failure while leaving other problems creating continued difficulties.

Understanding Weight and Speed Relationships

Strike weight provides power driving strike train. Heavier weight creates more power enabling faster operation. However, fly drag limits maximum speed regardless of available power. Proper system uses strike weight matched to movement design providing adequate power for reliable hammer operation while fly maintains speed within acceptable range. Using excessively heavy weight attempting to overcome other problems creates dangerous situation where strike train exceeds design limits potentially causing damage even with functioning fly.

If fly functions correctly but strike still seems too fast, first suspect is excessive strike weight. Weigh strike weight comparing to typical values for similar movements. English 30-hour movements typically use 7-10 pound combined weight split between going and striking trains. Individual strike weight is approximately 3.5-5 pounds. Weight substantially exceeding this range may be replacement from different clock or amateur modification attempting to force operation despite other problems. Reducing to appropriate weight often solves excessive speed complaints when fly is functioning properly.

However, reducing strike weight as attempted solution for failed fly doesn't address root problem. Inadequate friction still exists even with lighter weight. Strike may run slower temporarily but remains uncontrolled and may lack power for reliable hammer operation particularly at beginning of wind cycle when weight position provides maximum leverage. Proper solution always requires addressing fly friction spring failure directly ensuring controlled strike operation throughout full weight drop range from freshly wound to nearly unwound positions.

Proper Fly Friction Spring Repair

Why Adding Weight to Fly Fails

Amateur repair sometimes adds weight to fly vanes attempting to slow strike through increased fly inertia. This fundamentally misunderstands fly function. Fly works through aerodynamic drag not mass inertia. Adding weight increases rotational inertia requiring more energy for acceleration and deceleration but doesn't increase air resistance at steady-state operation. Strike train still accelerates to excessive speed - just takes slightly longer reaching that speed. Once at speed, strike runs as fast as before weight addition because drag hasn't increased significantly.

Additionally, added weight creates new problems. Increased inertia during stops creates higher shock loads potentially damaging pivots or stop pins. These components designed for normal fly mass not modified heavier assembly. Repeated shock loading from excessive inertia causes premature wear or catastrophic failure. Furthermore, unbalanced weight addition - common when amateur adds material to single vane or limited area - creates vibration during rotation. Vibration causes needle oscillation, erratic timekeeping, and accelerated wear throughout movement from dynamic loading not present in balanced original design.

Most problematically, weight addition provides false sense of success masking underlying friction spring failure. Strike may improve temporarily from combination of added inertia and coincidental friction increase from weight installation disturbing loose spring. However, fundamental problem remains uncorrected. Spring continues degrading eventually failing completely despite added weight creating worse emergency requiring more extensive repair than if proper spring restoration was performed initially. Therefore, weight addition represents failed strategy wasting time and potentially creating damage while postponing necessary proper repair.

Mechanical Spring Attachment Methods

Proper friction spring repair uses mechanical attachment preserving spring temper. Riveting represents traditional method creating permanent reliable connection. Small rivet passes through spring and fly body then upset forming head securing assembly. However, riveting requires proper tools and technique. Improper riveting work-hardens spring material or creates uneven pressure distribution affecting spring function. Additionally, rivet must be sized correctly - too large weakens fly body, too small provides inadequate retention allowing spring working loose from vibration.

Alternative method uses spring wire or piano wire creating wrapped retainer. Wire passes through groove or hole in arbor adjacent to fly body then loops around securing spring ends. Wire tension provides clamping force holding spring firmly against fly while allowing spring to maintain proper curve providing arbor pressure. This approach requires no heat avoiding temper damage and is fully reversible enabling future service without destructive disassembly. Wire diameter should match groove width preventing excessive play while avoiding binding preventing proper spring function.

Another approach uses small screw and clamp plate securing spring to fly body. Plate spreads clamping force over spring area preventing concentrated stress that might crack spring. Screw provides adjustable tension enabling optimization during installation and allowing subsequent adjustment if initial setting proves incorrect. However, screw must not contact spring at point where bending occurs preventing stress concentration causing premature fatigue failure. Additionally, screw thread must engage adequate fly material thickness preventing stripping from vibration during operation.

Adjusting Spring Tension After Installation

After spring installation, testing and adjustment achieves proper tension. Begin conservatively with moderate tension then increase incrementally if needed. Too-loose adjustment is safer than too-tight during initial testing. Install fly on arbor then manually rotate feeling resistance. Proper tension requires modest two-finger pressure for rotation. If fly spins freely, increase spring tension. If rotation requires excessive force, reduce tension. Make small adjustments testing after each change approaching optimal setting gradually.

Test during actual strike operation confirming proper function. Let movement strike observing fly behavior. Fly should accelerate smoothly reaching steady speed quickly without excessive initial slippage. During strike, fly should rotate steadily without progressive acceleration or erratic speed changes. At strike completion, observe deceleration and stopping behavior. Slight overrun - perhaps half revolution maximum - indicates proper slippage cushioning sudden stop. Immediate stop without overrun suggests excessive tension risking shock damage. Continued spinning after strike stops indicates inadequate tension requiring increase.

Listen to strike sound quality during testing. Clear distinct countable strikes confirm proper speed regulation. Blurred sounds indicate inadequate governing requiring tension increase. Additionally, observe calendar wheel during strikes. Wheel should remain stationary during strikes showing no jumping or movement. Calendar wheel jumping indicates excessive strike speed creating shock impacts - increase fly friction reducing strike speed eliminating impacts. Multiple test cycles throughout complete wind provides comprehensive assessment ensuring proper function under all power conditions from freshly wound to nearly run down.

When Fly Replacement Is Necessary

Some flies are beyond economical repair requiring replacement. Cracked fly body from corrosion or impact cannot provide reliable spring mounting even with perfect spring installation. Crack propagates from vibration during operation eventually causing complete failure potentially creating emergency situation if fly disintegrates during strike. Additionally, fly with severely corroded or damaged arbor bore won't maintain proper positioning during rotation. Excessive bore clearance allows fly wobbling creating erratic governing plus accelerated wear from misalignment.

Replacement flies are available from specialized suppliers or can be fabricated by competent machinist. However, proper fly selection requires matching original specifications. Vane area, overall diameter, bore size, and mass must approximate original design maintaining proper strike speed and power requirements. Using incorrect fly changes system dynamics potentially creating either inadequate governing from undersized fly or excessive drag from oversized fly preventing reliable operation throughout weight drop range. When possible, retain and repair original fly preserving correct specifications and maintaining authenticity.

For movements with cut-away flies, replacement must include appropriate cut-aways in correct locations. Simply installing generic full-circle fly creates interference with anchor pallets preventing strike operation. Custom fabrication reproducing original cut-away geometry may be necessary if suitable replacement isn't available commercially. This specialized work requires skilled machinist understanding English longcase movement geometry enabling proper clearance determination. However, investment in correct fly provides long-term reliable operation compared to botched repair or incorrect replacement creating ongoing problems requiring repeated attention.

Related Strike Mechanism Problems

Weak Hammer Return Spring

Hammer return spring pulls hammer back to rest position after striking allowing next strike cycle to begin. Weak spring creates delayed return allowing hammer to rest against bell damping vibration reducing sound clarity. Additionally, weak spring may not return hammer completely before next strike cycle begins causing partial stroke creating weak unclear sound. If strike sounds weak or muffled despite proper fly governing, suspect weak hammer return spring requiring replacement or adjustment.

Hammer return spring is typically flat spring steel strap attached to hammer assembly at one end and anchored to movement plate or bracket at opposite end. Spring provides restoring force pulling hammer away from bell after impact. Testing requires manual hammer operation. Lift hammer manually then release observing return motion. Hammer should snap back quickly and decisively without hesitation. Slow return or failure to achieve full rest position indicates weak spring. Additionally, listen to strike sound comparing initial strikes to later strikes in sequence. Progressive sound degradation suggests hammer not fully returning between strikes creating cumulative problems worsening throughout strike sequence.

Spring replacement or adjustment requires careful bending avoiding breaking brittle aged spring steel. Support spring near bend point using pliers or specialized spring bending tool. Make small incremental bends testing after each adjustment. Excessive bending creates overstressed spring that breaks during operation requiring complete replacement. If spring shows cracks, severe corrosion, or previous failure repairs, replacement is safer option than adjustment risking catastrophic failure during operation. Modern spring steel may be softer than original requiring thicker section achieving equivalent force - don't assume exact dimensional match provides equivalent performance without testing actual function.

Excessive Strike Weight Problems

Using excessively heavy strike weight creates multiple problems beyond just fast striking. Heavy weight creates high loads on strike train wheels and pinions accelerating wear particularly in bearing surfaces experiencing concentrated stress from power transmission. Additionally, heavy weight creates high shock loads during hammer blows potentially damaging stop pins, hammer pivots, or striking surfaces. These impacts create progressive damage worsening with continued operation eventually causing catastrophic failure requiring expensive repair.

Proper strike weight for English 30-hour movement is typically 3.5-5 pounds for strike train alone or 7-10 pounds combined weight split between going and striking trains. Eight-day movements use lighter weights - approximately 8-12 pounds combined due to longer drop distance providing equivalent energy delivery with reduced mass. Weighing existing weights compares to typical values revealing whether replacement occurred using incorrect weight from different movement type. However, don't assume all movements use identical weights - variations exist based on gearing ratios, fly size, and hammer mass requiring judgment about acceptable range rather than rigid specifications.

If excessive weight is discovered, reducing to appropriate mass solves multiple problems simultaneously. Strike speed moderates even without fly repair though proper fly function remains essential for controlled operation. Wear rate reduces protecting bearing surfaces from excessive loading. Shock impacts during strikes decrease protecting components from damage. However, don't reduce weight excessively attempting to compensate for other problems. Inadequate strike weight creates weak strikes or complete strike failure particularly late in wind cycle when reduced weight position provides minimal leverage. Proper weight selection balances adequate power throughout wind cycle against minimizing wear and impact damage.

Strike Train Friction and Binding

Strike train contamination or binding creates similar symptoms to fly governor failure. Dirty bearings, worn pivots, or binding gear meshes create friction resisting rotation. To overcome friction, heavier weight becomes necessary. However, heavy weight creates excessive speed when overcoming friction allowing rapid acceleration. Strike appears fast and erratic with varying speeds depending on exact friction conditions during different portions of strike cycle. This mimics fly governor problems though actual cause is strike train condition not fly function.

Systematic strike train inspection identifies friction sources. With both mainsprings let down completely removing all power, manually rotate strike train wheels observing resistance. Wheels should rotate freely without binding or rough spots. Hesitation or catching during rotation indicates bearing problems, bent pivots, or wheel damage requiring correction. Additionally, check all gear meshes observing tooth engagement. Proper mesh shows teeth rolling smoothly without excessive clearance or tight spots indicating proper spacing and alignment. Poor mesh creates resistance consuming power requiring heavier weight for reliable operation.

Correcting strike train problems requires comprehensive service including complete disassembly, thorough cleaning, inspection for wear or damage, proper bushing as needed, and systematic reassembly with correct lubrication. Quick cleaning without disassembly rarely achieves adequate improvement - pivot holes need complete contamination removal impossible without disassembly. Additionally, worn pivot holes require bushing restoring proper clearances preventing binding. After proper service, strike train operates smoothly on appropriate weight without requiring excessive mass forcing operation through contamination or wear. This proper foundation enables fly governor to control speed effectively throughout wind cycle achieving reliable accurate strike function.

English Longcase Movement Characteristics

Single Hand Versus Two Hand Movements

English longcase clocks were produced with either single hour hand or dual hour-and-minute hands throughout longcase production period. Single hand clocks aren't exclusively early examples but continued manufacture well into painted dial period and beyond. This parallel production reflected market segmentation where economical single hand clocks served customers not requiring minute precision while more expensive two hand clocks provided greater accuracy for those needing or wanting detailed time information. Understanding this parallel production prevents mistaken assumptions about clock age based solely on hand configuration.

Single hand movements are mechanically simpler requiring only motion works driving hour hand from center arbor. Minute hand requires additional gearing increasing complexity and cost. Additionally, single hand eliminates motion work friction reducing power requirements enabling longer running times from given mainspring or weight. This practical advantage combined with lower manufacturing cost made single hand clocks attractive to rural or working-class customers where precise minute information provided little practical benefit given daily routine flexibility not requiring exact timing.

Dating single hand movements requires examining other features including dial characteristics, case style, and maker information rather than assuming early date from hand configuration. Painted dial single hand clocks from late 1700s and early 1800s are relatively common indicating continued single hand production long after minute hands became standard on higher-grade clocks. Posted frame construction appearing on some painted dial single hand examples suggests limited production volumes for this market segment by later period when cast frame construction dominated mainstream production.

Thirty Hour Versus Eight Day Movements

English longcase movements are produced in either 30-hour or 8-day variants. Thirty-hour movements use suspended weight on endless rope or chain requiring daily winding pulling one weight end down while opposite end rises. Eight-day movements use separate weights on individual lines winding each train separately with winding squares through dial. Thirty-hour movements are generally simpler and less expensive but require daily attention. Eight-day movements provide convenience through weekly winding but cost more from additional complexity and larger case requirements accommodating longer weight drop.

Thirty-hour movements often feature posted frame construction with turned pillars connecting plates. Later examples may use cast or forged frames resembling 8-day construction but maintaining 30-hour winding mechanism. Strike trains in 30-hour movements may drive separate strike bells or chimes depending on grade and period. Higher-grade 30-hour movements include sophisticated features like calendar mechanisms, moon phases, or musical complications demonstrating that 30-hour designation doesn't necessarily indicate inferior quality but reflects different market segment prioritizing daily interaction over extended running.

Eight-day movements dominate later production periods and higher-grade clocks. These movements feature cast or forged frames providing structural rigidity supporting longer mainspring power and heavier components. Strike mechanisms on 8-day clocks often include Westminster chimes, tubular gongs, or elaborate musical arrangements. Weight shells typically use more refined materials and finishing compared to 30-hour iron weights. However, well-made 30-hour movements from quality makers often equal or exceed timekeeping performance of mediocre 8-day examples demonstrating that running duration doesn't directly correlate with quality or accuracy - proper construction and maintenance determine actual performance regardless of design category.

FAQs

Why does my English longcase clock strike so fast I can't count?

English longcase clock strikes too fast to count because fly governor friction spring providing controlled resistance has broken loose allowing fly to spin freely on arbor without creating drag regulating strike speed. Fly is air brake governor at end of strike train that must grip arbor firmly enough maintaining momentum during operation but loosely enough slipping slightly during sudden stop at strike completion. When friction spring breaks or works loose from age or failed repair fly rotates without resistance causing strike train to accelerate uncontrollably. Test fly friction by manually rotating fly with movement stopped where properly functioning friction spring creates modest resistance allowing rotation with two-finger pressure but fly stops quickly when released. Free-spinning fly indicating no resistance proves friction spring failure requiring spring repair or replacement. Additionally inspect friction spring for broken mounting loose rivets failed brazing or previous solder repair attempts where spring should be firmly attached to fly body without movement. Proper repair uses mechanical spring attachment preserving spring temper through riveting wrapped wire retainer or screw and clamp plate avoiding heat damage from soldering that destroys spring resilience required for correct function.

Can I fix fast striking by adding weight to the fly?

No you cannot fix fast striking by adding weight to fly because this fundamentally misunderstands fly function where fly works through aerodynamic drag not mass inertia. Adding weight increases rotational inertia requiring more energy for acceleration and deceleration but doesn't increase air resistance at steady-state operation where strike train still accelerates to excessive speed just taking slightly longer reaching that speed. Once at speed strike runs as fast as before weight addition because drag hasn't increased significantly. Additionally added weight creates new problems where increased inertia during stops creates higher shock loads potentially damaging pivots or stop pins designed for normal fly mass not modified heavier assembly. Furthermore unbalanced weight addition common when amateur adds material to single vane creates vibration during rotation causing needle oscillation erratic timekeeping and accelerated wear throughout movement. Most problematically weight addition provides false sense of success masking underlying friction spring failure where strike may improve temporarily but fundamental problem remains uncorrected and spring continues degrading eventually failing completely despite added weight. Proper solution requires addressing fly friction spring failure directly through mechanical spring repair preserving temper ensuring controlled strike operation throughout full weight drop range.

What are cut-away sections in English longcase fly vanes?

Cut-away sections in English longcase fly vanes are original factory configuration providing clearance for anchor pallet arms in compact movement layouts where fly must mount close to escapement and without cut-aways rotating fly would strike anchor pallets during operation creating interference preventing strike function. Cut-away designs appear throughout English clockmaking period from earliest examples through late production representing established practice continuing over century indicating successful engineering solution to space constraints in 30-hour movements. Later movements with more generous spacing between components don't require cut-aways using full-circle flies creating stronger drag from complete vane area but compact early movements benefit from cut-away design enabling proper component spacing within limited case depth. Importantly cut-away flies work perfectly well when friction spring functions correctly where reduced vane area creates less drag but this is compensated by appropriate strike weight selection and gearing ratios. System reaches equilibrium at proper strike speed despite reduced fly area where problems arise only when friction spring fails allowing free rotation destroying governing action regardless of vane configuration. Therefore encountering cut-away fly doesn't indicate need for replacement with full-circle design but simply requires proper friction spring restoration achieving original factory performance.

How do I repair broken fly friction spring?

Repair broken fly friction spring using mechanical attachment preserving spring temper where riveting represents traditional method creating permanent reliable connection using small rivet passing through spring and fly body then upset forming head securing assembly. However riveting requires proper tools and technique where improper riveting work-hardens spring material or creates uneven pressure distribution affecting spring function. Alternative method uses spring wire or piano wire creating wrapped retainer where wire passes through groove or hole in arbor adjacent to fly body then loops around securing spring ends providing clamping force holding spring firmly against fly while allowing spring to maintain proper curve. Another approach uses small screw and clamp plate securing spring to fly body where plate spreads clamping force over spring area preventing concentrated stress. After spring installation test and adjust achieving proper tension where begin conservatively with moderate tension then increase incrementally if needed making small adjustments testing after each change. Proper tension requires modest two-finger pressure for manual rotation where fly should accelerate smoothly during strike reaching steady speed quickly then showing slight overrun perhaps half revolution maximum at strike completion indicating proper slippage cushioning sudden stop. Never use solder attempting to reattach broken spring because solder heat destroys spring temper eliminating springiness required for proper function.

What strike weight should English 30-hour longcase use?

English 30-hour longcase movement should use approximately 3.5-5 pounds strike weight for strike train alone or 7-10 pounds combined weight split between going and striking trains where specific weight depends on gearing ratios fly size and hammer mass. Eight-day movements use lighter weights approximately 8-12 pounds combined due to longer drop distance providing equivalent energy delivery with reduced mass. Weigh existing weights comparing to typical values revealing whether replacement occurred using incorrect weight from different movement type. Using excessively heavy strike weight creates multiple problems beyond just fast striking where heavy weight creates high loads on strike train wheels and pinions accelerating wear particularly in bearing surfaces plus creates high shock loads during hammer blows potentially damaging stop pins hammer pivots or striking surfaces. If excessive weight is discovered reducing to appropriate mass solves multiple problems where strike speed moderates wear rate reduces and shock impacts decrease. However don't reduce weight excessively attempting to compensate for other problems where inadequate strike weight creates weak strikes or complete strike failure particularly late in wind cycle when reduced weight position provides minimal leverage. Proper weight selection balances adequate power throughout wind cycle against minimizing wear and impact damage requiring judgment about acceptable range rather than rigid specifications.

Why does weak hammer return spring affect strike sound?

Weak hammer return spring affects strike sound because spring pulls hammer back to rest position after striking and weak spring creates delayed return allowing hammer to rest against bell damping vibration reducing sound clarity. Additionally weak spring may not return hammer completely before next strike cycle begins causing partial stroke creating weak unclear sound. Hammer return spring is typically flat spring steel strap attached to hammer assembly at one end and anchored to movement plate or bracket at opposite end providing restoring force pulling hammer away from bell after impact. Test by lifting hammer manually then releasing observing return motion where hammer should snap back quickly and decisively without hesitation. Slow return or failure to achieve full rest position indicates weak spring. Additionally listen to strike sound comparing initial strikes to later strikes in sequence where progressive sound degradation suggests hammer not fully returning between strikes creating cumulative problems worsening throughout strike sequence. Spring replacement or adjustment requires careful bending avoiding breaking brittle aged spring steel where support spring near bend point making small incremental bends testing after each adjustment. If spring shows cracks severe corrosion or previous failure repairs replacement is safer option than adjustment risking catastrophic failure during operation.

How do I know if strike problems are fly or strike train friction?

Determine whether strike problems are fly or strike train friction through systematic testing where fly problems show as free-spinning fly with no resistance during manual rotation while strike train friction shows as resistance binding or rough spots during manual wheel rotation with mainsprings completely let down. Test fly friction by manually rotating fly observing resistance where properly functioning friction spring creates modest two-finger pressure requirement but fly stops quickly when released. Free-spinning fly indicates friction spring failure while excessive resistance suggests over-tight spring. Test strike train by manually rotating strike train wheels with all power removed where wheels should rotate freely without binding or rough spots and hesitation or catching during rotation indicates bearing problems bent pivots or wheel damage. Additionally check all gear meshes observing tooth engagement where proper mesh shows teeth rolling smoothly without excessive clearance or tight spots. Strike train contamination or binding creates symptoms similar to fly governor failure where dirty bearings worn pivots or binding gear meshes create friction requiring heavier weight for operation but heavy weight creates excessive speed when overcoming friction. Correcting strike train problems requires comprehensive service including complete disassembly thorough cleaning inspection for wear proper bushing as needed and systematic reassembly with correct lubrication creating smooth operation enabling fly governor to control speed effectively.

Were single hand English longcase clocks only made early?

No single hand English longcase clocks were not only made early but continued manufacture throughout longcase production period well into painted dial period and beyond representing parallel production reflecting market segmentation. Single hand clocks served customers not requiring minute precision while more expensive two hand clocks provided greater accuracy for those needing detailed time information. Single hand movements are mechanically simpler requiring only motion works driving hour hand from center arbor where minute hand requires additional gearing increasing complexity and cost. Additionally single hand eliminates motion work friction reducing power requirements enabling longer running times making single hand clocks attractive to rural or working-class customers where precise minute information provided little practical benefit. Dating single hand movements requires examining other features including dial characteristics case style and maker information rather than assuming early date from hand configuration. Painted dial single hand clocks from late 1700s and early 1800s are relatively common indicating continued single hand production long after minute hands became standard on higher-grade clocks. Posted frame construction appearing on some painted dial single hand examples suggests limited production volumes for this market segment by later period when cast frame construction dominated mainstream production.
