Introduction

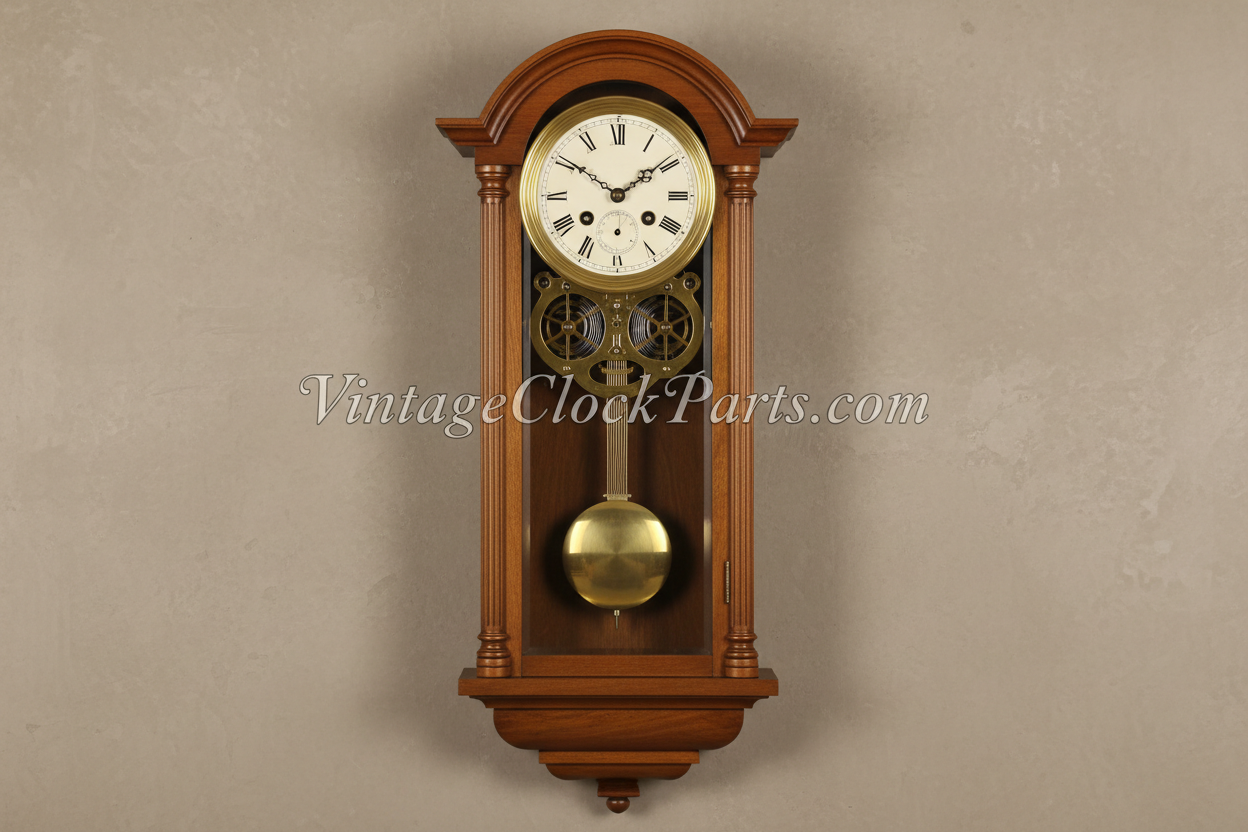

In weight‑driven clocks such as Vienna regulators, the amount of weight applied to the train can influence power delivery, pendulum amplitude, and overall rate stability. While the pendulum determines the timekeeping rate, changes in power can indirectly affect how consistently the pendulum swings. This guide explains how weights influence clock speed and how to diagnose rate issues caused by power variations.
How Weights Influence Clock Speed
Pendulum determines the rate
The pendulum’s length sets the timekeeping rate; weights do not directly change the beat frequency.
Power affects amplitude
More power increases pendulum amplitude slightly, which can shift the effective rate depending on escapement design.
Escapement sensitivity
Some escapements run slightly faster or slower depending on how deeply the pallets lock and how strong the impulse is.
Friction compensation
Heavier weights can overcome friction that would otherwise reduce amplitude and cause slow running.
Train efficiency
Wear, dirt, or poor depthing can make the clock sensitive to small changes in weight.
Common Symptoms Related to Weight Changes
Clock runs slow with lighter weights
Reduced power lowers pendulum amplitude or causes shallow impulse.
Clock runs fast with heavier weights
Increased impulse can shift the escapement’s effective rate.
Erratic rate
Wear or friction makes the clock overly sensitive to small power changes.
Weak tick‑tock
Indicates insufficient power or friction in the train.
Clock stops before weights reach the bottom
Train drag or worn pivots require more power than the design intended.
How to Diagnose Weight‑Related Rate Issues
Check pendulum amplitude
Low amplitude indicates power loss or friction.
Inspect escapement action
Deep lock or weak impulse can cause slow running.
Evaluate train freedom
Spin test wheels to identify hesitation or drag.
Check pivot and bushing condition
Oval holes or rough pivots reduce power and affect rate stability.
Verify correct weight size
Using weights heavier or lighter than the original design affects performance.
Correcting the Problem
Step 1: Clean and service the movement
Dirt and dried oil increase friction and make the clock sensitive to weight changes.
Step 2: Polish pivots and bush worn holes
Restoring smooth pivot action improves power delivery.
Step 3: Adjust escapement depth
Proper lock and impulse ensure stable rate regardless of weight variation.
Step 4: Verify correct weight size
Use weights appropriate for the movement’s design to maintain consistent power.
Step 5: Observe rate over several days
Vienna regulators are sensitive instruments and require long‑term observation for accurate regulation.
Troubleshooting Flowcharts
If the clock runs slow
Low power → Reduced amplitude → Deep lock → Train drag
If the clock runs fast
High power → Increased impulse → Shallow lock → Escapement shift
If the rate is erratic
Wear → Pivot friction → Variable impulse → Inconsistent amplitude
If the clock stops
Insufficient weight → Train drag → Worn pivots → Escapement stall
If amplitude is low
Power loss → Dirty pivots → Barrel drag → Poor depthing
Common Mistakes to Avoid
Using weights that are too heavy
Excessive power accelerates wear and can damage the movement.
Using weights that are too light
Insufficient power causes weak impulse and slow running.
Ignoring escapement condition
Even small issues in the escapement affect rate stability.
Assuming weights directly change speed
The pendulum sets the rate; weights influence it indirectly through power.
Skipping long‑term testing
Vienna regulators require multi‑day observation for accurate regulation.
Checklist for Final Verification
• Correct weights installed
• Escapement depth correct
• Pivots polished
• Train free and balanced
• Pendulum amplitude strong
• Rate stable over several days
FAQs
Do heavier weights make a clock run faster?
Not directly—heavier weights change impulse and amplitude, which can shift the effective rate.
Why does my clock run slow with lighter weights?
Reduced power lowers amplitude and weakens impulse.
Can incorrect weights stop the clock?
Yes—too little power cannot overcome friction.
Does the pendulum still control the rate?
Yes—the pendulum sets the beat frequency, but power affects stability.
Is this common in Vienna regulators?
Yes—these clocks are sensitive to power variations and require precise setup.
