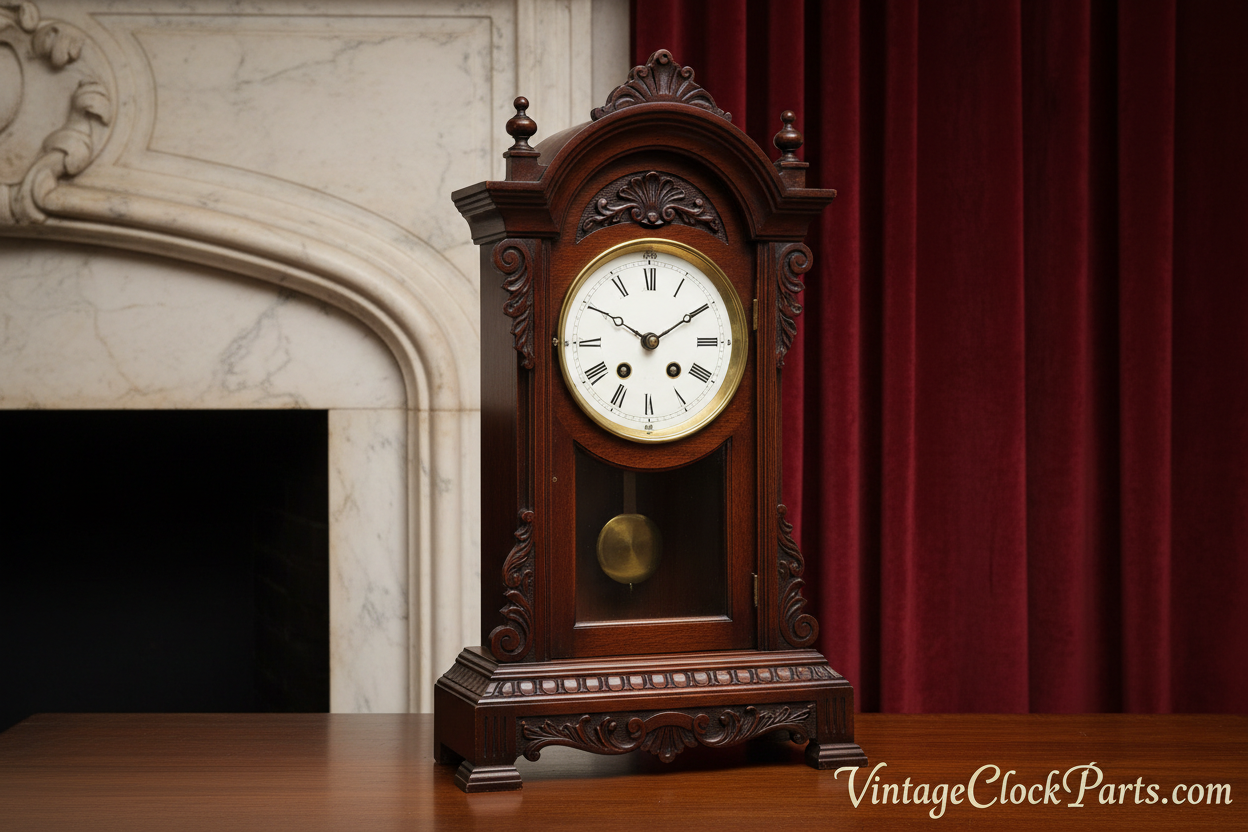

E.N. Welch Movement Diagnostic Repair Complete Guide

E.N. Welch movement diagnosis challenges clockmakers because worn movements showing multiple problems create difficulty determining which issue represents actual cause versus mere symptom of underlying power delivery failure. Classic diagnostic scenario is clock that operated reliably for decades suddenly refusing to run beyond few days after extended storage period where clockmaker discovers punched pivot holes throughout movement suggesting previous amateur repairs attempting to compensate for worn bushings without proper professional bushing replacement. Clock appears fundamentally sound during initial inspection - movement winds properly without obvious mechanical damage - yet refuses maintaining consistent beat drifting in and out creating unstable operation eventually stopping despite adequate mainspring tension. However proper systematic diagnosis reveals that insufficient power reaching escapement from excessive pivot friction plus improper escapement adjustment with excessive drop and inadequate lock combine creating marginal operation barely functioning under ideal conditions failing completely under slightest additional stress.

Understanding proper diagnostic sequence prevents wasting effort addressing symptoms rather than causes where attempting to adjust beat or modify escapement geometry before restoring proper power delivery to escape wheel creates frustration from treating secondary effects while ignoring primary problem. Worn pivot holes create excessive friction robbing power throughout gear train preventing adequate energy transmission to escapement regardless of escapement adjustment quality. Punched holes - amateur repair technique hammering metal around worn pivot hole attempting to reduce clearance - provide temporary improvement but fail long-term because punching work-hardens brass creating brittle surface prone to accelerated wear plus creates irregular hole geometry preventing smooth pivot rotation. This guide covers understanding systematic diagnostic approach identifying worn pivot holes before disassembly through second-wheel rock test revealing excessive clearance, determining whether apparent beat problems represent true escapement geometry issues or merely symptoms of inadequate power delivery, adjusting recoil escapement locks and drops achieving proper impulse and recoil after restoring power, plus using vernier caliper technique for controlled precise verge pallet spacing adjustment avoiding excessive modification ruining escapement geometry requiring costly verge replacement.

Understanding E.N. Welch Movement Design

Simple Robust Construction

E.N. Welch manufactured reliable affordable spring-driven movements throughout late 1800s and early 1900s serving American clock market with quality timepieces using proven recoil escapement design. Typical Welch movement uses simple gear train - mainspring barrel drives center wheel carrying minute hand, center wheel drives third wheel, third wheel drives escape wheel. Recoil escapement uses two-pallet verge with entrance and exit pallets engaging escape wheel teeth creating characteristic tick-tock sound plus visible recoil where escape wheel pauses and backs up slightly after each impulse before advancing to next tooth. This recoil action distinguishes recoil escapement from deadbeat escapement showing no backward motion.

Welch movements were designed for longevity through generous proportions and quality materials though decades of operation inevitably create wear at pivot points. Brass movement plates show gradual enlargement of pivot holes from constant rotation wearing away metal particularly at high-speed pivots like escape wheel and third wheel rotating many times per hour. Steel pivots also show wear developing grooves where pivot contacts brass bushing creating rough surface preventing smooth rotation. Therefore century-old Welch movements commonly require comprehensive pivot hole rebushing plus pivot polishing restoring designed clearances and smooth surfaces enabling efficient power transmission throughout gear train.

Calendar movements add complexity through additional gearing driving calendar hand showing date. Calendar mechanism is gear-driven from motion works typically using Geneva stop mechanism or similar design advancing calendar hand once per 24 hours at midnight. Calendar complication adds minimal friction to movement though provides additional pivot points potentially requiring bushing work during comprehensive restoration. Calendar hand setting typically uses separate mechanism independent of time setting enabling calendar adjustment without affecting timekeeping though specific designs vary between production periods requiring careful observation during disassembly ensuring proper reassembly maintaining original function.

Common Wear Patterns

Welch movements show predictable wear patterns enabling systematic diagnosis. Escape wheel and third wheel pivot holes wear most rapidly because these wheels rotate fastest - escape wheel making perhaps 8-10 revolutions per minute while third wheel rotates once per minute. Center wheel rotates once per hour showing less wear though still requires attention during comprehensive restoration. Second wheel - large wheel nearest mainspring barrel - rotates very slowly showing minimal wear in typical operation. Therefore diagnostic focus emphasizes high-speed wheel pivot holes where wear creates greatest power loss through excessive friction and clearance enabling pivot wobbling creating binding as pivot contacts hole edge during rotation.

Pivot wear manifests as grooved surface where pivot has run in brass bushing. Examine pivots under magnification observing circumferential groove creating step between worn section and unworn pivot shoulder. Deep groove indicates substantial wear requiring pivot polishing removing damaged surface and restoring smooth cylindrical profile. However recognize that excessive polishing reduces pivot diameter potentially creating loose fit in properly-sized bushing requiring undersize bushing or pivot buildup through electroplating restoring original dimensions. Therefore polish conservatively removing only damaged surface avoiding unnecessary diameter reduction complicating subsequent bushing work.

Punched holes represent amateur repair technique attempting to reduce clearance in worn pivot hole without proper bushing installation. Clockmaker uses center punch or similar tool hammering around hole perimeter displacing metal inward reducing hole diameter. This technique provides temporary improvement reducing excessive clearance though creates multiple problems. Punching work-hardens brass making material brittle prone to cracking. Punched surface is irregular creating rough non-cylindrical hole preventing smooth pivot rotation. Additionally punching creates stress concentration around hole potentially causing plate cracking under continued operation. Therefore proper restoration removes all punched material through reaming or drilling installing proper brass bushing creating smooth cylindrical hole with designed clearance enabling decades of reliable operation.

Why Clocks Stop After Storage

Clocks operating continuously often overcome modest wear through momentum and consistent lubrication distribution. Running clock maintains oil film on pivots through constant rotation preventing metal-to-metal contact. Additionally continuous operation keeps lubricants fluid preventing thickening or congealing creating increased friction. However extended storage period allows lubricants to migrate away from pivot points through gravity or evaporation. Remaining oil thickens becoming sticky rather than fluid increasing starting friction substantially. Therefore clock that operated acceptably despite worn pivots and marginal lubrication fails starting after storage because thickened lubricants create excessive friction preventing adequate power delivery to escapement.

Additionally storage orientation affects lubrication distribution. Clock stored horizontally experiences different gravity effects compared to normal vertical wall mounting. Oil migrates to lowest points in gear train potentially leaving critical pivot points dry. Dust accumulation during storage creates abrasive contamination mixing with remaining lubricants forming grinding compound accelerating wear during initial operation after storage. Therefore comprehensive service after extended storage requires complete disassembly cleaning removing all old contaminated lubricants plus inspection of all pivots and pivot holes identifying wear requiring bushing work before reassembly with fresh appropriate clock oil ensuring reliable long-term operation.

Mainspring condition also affects post-storage operation. Springs sitting idle for years may develop set - permanent deformation creating reduced power output. Additionally spring lubrication deteriorates becoming sticky preventing smooth unwinding creating jerky power delivery to gear train. Test mainspring condition by fully winding then allowing controlled letdown observing smooth consistent unwinding. Jerky motion or binding indicates deteriorated spring lubrication or damaged spring requiring service. Replace questionable mainsprings rather than attempting service - modern replacement springs are inexpensive and ensure reliable power delivery avoiding future service calls from marginal spring performance creating unreliable timekeeping.

Systematic Diagnostic Approach

Second-Wheel Rock Test

Identify worn pivot holes before disassembly using second-wheel rock test recommended by experienced clockmakers. Look down into movement from top locating second wheel - large wheel nearest mainspring barrel. Apply strong finger pressure back and forth to wheel rim while observing all visible arbors throughout gear train under magnification. Any arbors showing substantial back-and-forth jumping movement indicate excessive clearance in pivot holes requiring bushing work. Mark all locations showing excessive movement using fine-point permanent marker creating reference during subsequent disassembly ensuring you address all worn areas without missing critical pivot holes.

This diagnostic technique works because second wheel connects through gear train to all other wheels. Rocking second wheel back and forth transmits motion throughout entire gear train causing pivots with excessive clearance to jump visibly in worn holes. Properly-fitted pivots show minimal movement - perhaps slight wobble from designed clearance - while worn pivots jump substantially back and forth creating obvious visual indication of problem areas. Additionally this test reveals worn areas that may not be obvious during static inspection where pivot appears adequately supported but excessive clearance enables substantial movement under load during operation creating binding and power loss.

Perform rock test systematically observing each arbor individually rather than trying to watch entire movement simultaneously. Start with escape wheel arbor noting any jumping motion then move to third wheel arbor, center wheel arbor, and finally second wheel arbor itself. Note not just presence of movement but also direction - does pivot jump side-to-side, up-and-down, or both indicating oval hole from wear. Record observations creating comprehensive map of required bushing work before disassembly enabling efficient restoration addressing all problem areas during single service rather than discovering additional worn areas during reassembly requiring second disassembly wasting time and effort.

Low-Power Roll Test

Test power delivery through gear train using low-power roll test identifying friction problems invisible during normal operation. Completely let down mainspring tension then wind mainspring approximately 3 clicks or quarter-turn from fully-relaxed position creating minimal power. Remove pendulum and verge assembly enabling escape wheel free rotation without escapement resistance. Allow movement running at reduced power observing smooth consistent rotation. Stop escape wheel with finger then release allowing restart. Repeat this start-stop test perhaps 50 times noting whether movement restarts consistently or shows hesitation indicating friction binding.

This test reveals marginal friction problems masked by full mainspring power. Movement with adequate power overcomes modest friction readily though same friction prevents operation under reduced power conditions. Additionally observe whether power delivery is consistent or wavering - does escape wheel rotation speed vary periodically suggesting bent pivot or tight bushing creating increased friction at specific rotational position. Consistent smooth rotation under low power indicates gear train is mechanically sound with adequate clearances and minimal friction. Hesitation, binding, or inconsistent rotation indicates problem requiring correction before addressing escapement adjustment or other refinements.

However recognize test limitations - completely free-spinning wheels without load provides incomplete assessment. Some friction problems only manifest under actual escapement loading where impulse transmission creates forces absent during free running. Therefore use low-power roll test as initial screening identifying obvious problems though don't assume movement is perfect simply because it passes this test. Subsequent testing under full power with escapement installed provides comprehensive assessment revealing problems invisible during preliminary testing enabling complete diagnosis before finalizing repair strategy and parts requirements.

Identifying Symptoms Versus Causes

Distinguish between problem causes and problem symptoms avoiding wasted effort treating effects while ignoring underlying issues. Drifting out of beat represents classic symptom rather than cause where insufficient power to escapement creates small pendulum swing making minor beat error appear significant creating instability. Consider hypothetical scenario - clock is out of beat by one degree and pendulum swings 20 degrees total arc. One degree error relative to 20-degree swing is barely noticeable creating stable operation. However if power decreases and pendulum swing reduces to perhaps 3 degrees total arc, that same one-degree beat error now represents substantial fraction of total swing creating very noticeable instability and drift.

Therefore attempting to perfect beat adjustment before restoring adequate power to escapement wastes effort because beat problems will diminish or disappear entirely once escapement receives proper power enabling larger pendulum swing. Additionally recognize that minimal recoil indicates inadequate power or improper escapement adjustment rather than representing independent problem. Recoil escapement should show visible backward motion of escape wheel after each tick - perhaps 10-15 degrees depending on specific design. Minimal or absent recoil indicates either insufficient power preventing proper impulse or excessive drop in escapement allowing escape wheel teeth falling too far before engaging pallet creating weak impulse insufficient for proper recoil action.

Systematic diagnosis addresses power delivery first through comprehensive bushing work and pivot polishing eliminating friction throughout gear train. After restoring power assess escapement function under proper operating conditions determining whether recoil and beat are acceptable or require adjustment. This sequence prevents making unnecessary escapement modifications attempting to compensate for inadequate power where modifications prove counterproductive once power is restored creating over-aggressive escapement requiring subsequent correction. Therefore patience in following proper diagnostic sequence ultimately saves time and prevents permanent damage to escapement geometry requiring costly component replacement rather than simple adjustment achieving reliable long-term operation.

Comprehensive Bushing and Pivot Work

Proper Bushing Installation

Install proper brass bushings in all worn pivot holes replacing punched holes with professionally-fitted bushings ensuring decades of reliable operation. Select bushing stock matching movement plate thickness - typically 0.030 to 0.050 inch depending on specific Welch model. Drill out existing hole using drill bit diameter matching bushing outside diameter creating clean cylindrical hole perpendicular to plate surface. Ream hole if necessary achieving proper diameter for interference fit where bushing presses into hole requiring modest force without excessive resistance risking plate distortion or bushing damage during installation.

Press bushing into prepared hole using arbor press or bushing tool ensuring bushing seats flush with plate surface or slightly recessed enabling subsequent finishing. Stake bushing from both sides using smooth-faced staking tool creating modest material displacement securing bushing against rotation during operation. Avoid excessive staking creating unsightly deformation - goal is secure retention not massive material displacement. After staking, ream bushing bore to proper diameter for specific pivot. Proper clearance allows pivot rotating freely with minimal friction while preventing excessive wobble creating binding during operation. Test clearance under magnification observing slight side-to-side movement of oiled pivot confirming adequate clearance without excessive looseness.

Chamfer bushing inside edges on both plate surfaces creating smooth entry preventing pivot shoulder binding during endshake movement. Use countersink or chamfering tool creating approximately 45-degree chamfer removing sharp edge without excessive material removal. Additionally ensure adequate endshake - clearance between arbor shoulder and plate surface - enabling wheel moving slightly along arbor axis without binding. Typical endshake is 0.003 to 0.006 inch providing adequate clearance preventing binding while minimizing excessive movement affecting gear mesh quality. Test endshake by pressing wheel along arbor observing movement under magnification confirming proper clearance throughout assembly.

Pivot Polishing Technique

Polish all worn pivots restoring smooth cylindrical surface enabling efficient rotation in bushed holes. Examine each pivot under magnification identifying circumferential groove where pivot has run in brass bushing. Use pivot polisher or Jacot tool supporting pivot in appropriate-sized runner enabling rotation under Arkansas stone or diamond lap creating polished surface. Rotate pivot steadily under light pressure removing damaged surface material without excessive diameter reduction. Check diameter frequently using micrometer avoiding over-polishing creating undersize pivot requiring special bushing or pivot buildup restoring proper dimensions.

For pivots showing severe wear or damage requiring substantial material removal consider pivot replacement through cutting off damaged pivot and installing new pivot stock. This technique requires lathe work turning new pivot to proper diameter and length then pressing into wheel arbor using appropriate adhesive like Loctite providing secure retention. However recognize that pivot replacement represents advanced technique requiring precision machining equipment and substantial skill - consult experienced clockmaker or send wheel to professional wheel service if pivot replacement appears necessary but exceeds your capabilities avoiding permanent damage to valuable original wheel through amateur attempts at advanced repairs.

After polishing verify pivot straightness through rotation test. Chuck pivot in lathe or drill press rotating slowly while observing free end under magnification. Bent pivot shows visible wobble during rotation indicating straightening is needed before installation. Straighten bent pivot through careful manipulation using appropriate tools - perhaps smooth-jaw pliers or specialized straightening fixture - applying gradual pressure rather than sudden force risking pivot fracture. Test straightness frequently during correction process avoiding over-correction creating reverse bend requiring additional manipulation potentially work-hardening pivot material creating brittleness prone to future breakage under normal operating stress.

Testing After Bushing Work

After completing bushing and pivot work test each wheel assembly individually before final movement assembly. Install wheel in bushed plate rotating by hand under magnification observing smooth consistent rotation without binding or hesitation. Apply light finger pressure to wheel rim verifying pivot shows slight side-to-side movement confirming adequate clearance. Additionally test endshake pressing wheel along arbor observing modest axial movement without excessive looseness. Wheels failing these tests require additional work - perhaps bushing reaming creating proper diameter or adjusting endshake through spacer washers achieving designed clearance before proceeding with complete movement assembly.

Recognize that excessively tight bushings represent common error particularly among less-experienced clockmakers attempting to eliminate all pivot clearance achieving zero-wobble fit. However completely tight pivot creates excessive friction preventing efficient rotation plus prevents oil retention at pivot-bushing interface accelerating wear. Proper pivot fit allows modest movement observable under magnification with adequate oil film - typically appears as slight glistening around pivot showing oil presence. Completely dry-looking pivot or pivot showing no observable clearance indicates too-tight bushing requiring reaming to proper diameter avoiding premature wear and operational problems from inadequate lubrication and excessive starting friction.

Recoil Escapement Adjustment

Understanding Lock Drop and Recoil

Recoil escapement function depends on proper relationship between escape wheel teeth and verge pallets achieving correct lock, drop, and recoil. Lock is distance escape wheel tooth engages pallet face after impulse completes - deeper lock provides greater pendulum swing though creates more friction. Drop is distance escape wheel rotates after releasing from one pallet before engaging opposite pallet - excessive drop wastes power and reduces impulse while inadequate drop prevents proper release causing clock stopping. Recoil is backward rotation of escape wheel after tooth drops onto pallet caused by pendulum momentum overcoming escape wheel pressure - visible recoil indicates proper impulse and adequate pendulum swing confirming healthy escapement function.

Proper escapement adjustment balances these competing requirements achieving reliable operation with adequate pendulum swing without excessive friction. Ideal adjustment shows modest lock perhaps 0.015 to 0.025 inch deep creating secure engagement preventing accidental release while minimizing friction drag on pallet face. Drop should be minimal - perhaps 0.020 to 0.030 inch - providing adequate clearance ensuring reliable release while minimizing wasted rotation between impulses. Recoil should be visible - perhaps 10-15 degrees backward rotation - indicating pendulum receives adequate impulse creating momentum sufficient to drive escape wheel backward against mainspring power demonstrating healthy power delivery throughout entire escapement cycle.

Evaluate escapement adjustment through careful observation during operation. Watch escape wheel motion during tick-tock cycle noting whether wheel pauses briefly on pallet face indicating adequate lock then releases dropping onto opposite pallet then recoiling backward before next impulse. Inadequate lock shows wheel barely engaging pallet creating unstable operation prone to accidental release. Excessive drop shows wheel rotating substantial distance between pallets wasting power and creating weak impulse insufficient for proper recoil. Absent recoil indicates either inadequate power delivery or improper adjustment preventing pendulum achieving sufficient momentum creating backward escape wheel motion essential for recoil escapement proper function.

Adjusting Pallet Spacing

Adjust pallet spacing using controlled bending technique achieving proper lock and drop without excessive modification risking permanent damage to verge. Most common adjustment closes pallet spacing reducing drop and increasing lock where excessive drop indicates pallets are too far apart allowing escape wheel rotating too far between impulses. Use vernier caliper measuring distance between entrance pallet tip and exit pallet inside face establishing baseline measurement. Calculate required adjustment - typically 0.010 to 0.015 inch for initial correction - then bend verge carefully achieving approximately half desired movement recognizing that metal springback requires over-bending to achieve final dimension.

Perform bending using controlled technique preventing excessive stress concentration creating permanent deformation or cracking. Secure verge in padded vise protecting pallet surfaces from damage. Use steel tool - perhaps old glass cutter blade or similar device - applying steady pressure at verge center pushing pallets together. Measure frequently during bending process checking progress toward target dimension. Make small adjustments perhaps 0.003 to 0.005 inch per bending operation testing escapement function between adjustments rather than attempting large single adjustment risking over-correction requiring reverse bending potentially work-hardening material creating brittleness prone to future failure.

After pallet spacing adjustment test escapement function installing verge in movement and operating under power. Observe drop on both pallets noting whether escape wheel rotation appears equal during tick and tock indicating balanced adjustment. Unequal drop suggests pallet spacing is improved but not optimal - perhaps entrance pallet needs moving closer to escape wheel while exit pallet is correctly positioned. However recognize that perfect equality may be impossible if escape wheel teeth show variation in length or spacing from wear or manufacturing tolerances. Achieve best practical adjustment creating reliable operation with visible recoil on both pallets accepting modest inequality rather than pursuing impossible perfection risking permanent damage through excessive adjustment attempts.

Verge Position Adjustment

Adjust overall verge position relative to escape wheel achieving proper engagement depth after pallet spacing is correct. Move verge closer to escape wheel in small increments perhaps 0.005 inch per adjustment testing operation between moves. Verge too far from escape wheel creates excessive drop wasting power and preventing proper recoil. Verge too close creates inadequate drop preventing reliable release causing clock stopping when tooth binds on pallet face unable to clear for next impulse. Optimal position shows minimal drop with reliable release plus visible recoil on both pallets confirming adequate impulse transmission to pendulum.

Test adjustment by moving verge progressively closer until escapement fails to release - tooth remains locked on pallet preventing operation. Then back off slightly perhaps 0.003 to 0.005 inch creating adequate clearance for reliable release while maintaining minimal drop. This approach ensures you achieve closest practical verge position maximizing impulse and recoil without risking binding from inadequate clearance. However recognize that this aggressive adjustment creates sensitivity to external factors - dust accumulation, oil thickening, or minor wear may create future binding requiring slight position adjustment maintaining reliable long-term operation under real-world conditions rather than ideal clean freshly-lubricated test conditions.

Additionally verify verge mounting security ensuring verge saddle - bracket securing verge to back plate - shows no looseness on mounting pivot. Loose saddle creates erratic escapement function where verge position varies during operation creating intermittent binding or excessive drop depending on instantaneous saddle position. Tighten loose saddle through careful staking or replacement of worn pivot bushing achieving secure stable mounting. Test saddle security by attempting to move verge assembly observing any play indicating inadequate retention requiring correction before finalizing escapement adjustment avoiding wasted effort adjusting escapement that will drift out of adjustment from loose mounting during subsequent operation.

FAQs

Why does my E.N. Welch clock drift in and out of beat?

E.N. Welch clock drifts in and out of beat because insufficient power reaching escapement from worn pivot holes creates small pendulum swing making minor beat error appear significant creating instability where beat problems represent symptom of inadequate power delivery rather than true escapement geometry issue. Consider that out-of-beat portion of pendulum swing is small fixed amount determined by physical escapement geometry - perhaps one degree assuming clock is level and crutch adjusted properly. If escapement receives adequate power creating 20-degree pendulum swing that one-degree error is barely noticeable creating stable operation. However if power decreases from worn pivot holes creating excessive friction and pendulum swing reduces to perhaps 3 degrees total arc that same one-degree error now represents substantial fraction of total swing creating very noticeable instability and apparent drift. Therefore attempting to perfect beat adjustment before restoring adequate power through comprehensive bushing work wastes effort because beat problems diminish or disappear entirely once escapement receives proper power enabling larger pendulum swing. Additionally minimal recoil visible during operation confirms inadequate power or improper escapement adjustment where proper recoil escapement should show visible backward motion of escape wheel after each tick indicating healthy impulse transmission. Therefore systematic repair addresses power delivery first through bushing all worn pivot holes plus polishing all worn pivots eliminating friction throughout gear train then assessing escapement function under proper operating conditions determining whether beat and recoil adjustments are needed after power restoration.

What is the second-wheel rock test and how do I perform it?

Second-wheel rock test identifies worn pivot holes before disassembly by applying strong finger pressure back and forth to second wheel rim while observing all visible arbors throughout gear train under magnification where any arbors showing substantial back-and-forth jumping movement indicate excessive clearance in pivot holes requiring bushing work. Look down into movement from top locating second wheel which is large wheel nearest mainspring barrel then apply strong finger pressure to wheel rim rocking back and forth. This motion transmits through gear train to all other wheels causing pivots with excessive clearance to jump visibly in worn holes while properly-fitted pivots show minimal movement. Mark all locations showing excessive movement using fine-point permanent marker creating reference during subsequent disassembly ensuring you address all worn areas. Perform test systematically observing each arbor individually starting with escape wheel arbor noting any jumping motion then moving to third wheel arbor center wheel arbor and second wheel arbor itself. Note not just presence of movement but also direction where pivot jumping side-to-side indicates horizontal hole wear while up-and-down jumping indicates vertical wear or oval hole from combined wear patterns. This diagnostic technique works because second wheel connects through gear train to all other wheels transmitting test motion throughout entire mechanism revealing worn areas that may not be obvious during static inspection where pivot appears adequately supported but excessive clearance enables substantial movement under load during operation creating binding and power loss requiring professional bushing work restoring proper clearances.

Why do punched pivot holes fail and require proper bushing?

Punched pivot holes fail long-term because punching work-hardens brass creating brittle surface prone to accelerated wear plus creates irregular hole geometry preventing smooth pivot rotation where amateur repair technique hammering metal around worn pivot hole attempting to reduce clearance provides only temporary improvement without addressing underlying wear problem. Clockmaker uses center punch or similar tool hammering around hole perimeter displacing metal inward reducing hole diameter which initially reduces excessive clearance improving operation. However punching creates multiple problems undermining long-term reliability. Punching work-hardens brass making material brittle prone to cracking where repeated stress during operation causes work-hardened material fracturing rather than flexing. Punched surface is irregular creating rough non-cylindrical hole preventing smooth pivot rotation where pivot contacts high spots creating friction and power loss. Additionally punching creates stress concentration around hole potentially causing plate cracking under continued operation particularly if multiple rounds of punching have occurred creating severely work-hardened material prone to catastrophic failure. Therefore proper restoration removes all punched material through reaming or drilling installing proper brass bushing creating smooth cylindrical hole with designed clearance enabling decades of reliable operation. Professional bushing uses soft annealed brass providing smooth cylindrical bore properly sized for specific pivot creating minimal friction while preventing excessive clearance enabling pivot wobbling creating binding as pivot contacts hole edge during rotation. Bushing installation represents permanent solution requiring proper tools and technique though provides reliability impossible to achieve through repeated punching creating progressive deterioration requiring increasingly frequent service ultimately resulting in unrepairable plate damage.

How do I adjust recoil escapement lock and drop?

Adjust recoil escapement lock and drop by changing pallet spacing using controlled bending technique plus adjusting overall verge position relative to escape wheel achieving proper engagement depth creating reliable operation with visible recoil on both pallets. Start by measuring distance between entrance pallet tip and exit pallet inside face using vernier caliper establishing baseline measurement. Excessive drop indicates pallets are too far apart requiring closing adjustment reducing spacing. Secure verge in padded vise protecting pallet surfaces then use steel tool like old glass cutter blade applying steady pressure at verge center pushing pallets together. Make small adjustments perhaps 0.003 to 0.005 inch per bending operation measuring frequently and testing escapement function between adjustments rather than attempting large single adjustment risking over-correction. After achieving improved pallet spacing adjust overall verge position moving verge closer to escape wheel in small increments testing operation between moves. Move verge progressively closer until escapement fails to release where tooth remains locked on pallet preventing operation then back off slightly perhaps 0.003 to 0.005 inch creating adequate clearance for reliable release while maintaining minimal drop. This approach ensures closest practical verge position maximizing impulse and recoil without risking binding. Proper adjustment shows modest lock perhaps 0.015 to 0.025 inch deep creating secure engagement while minimizing friction plus minimal drop perhaps 0.020 to 0.030 inch providing adequate clearance ensuring reliable release while minimizing wasted rotation between impulses plus visible recoil perhaps 10-15 degrees backward rotation indicating pendulum receives adequate impulse creating momentum sufficient to drive escape wheel backward against mainspring power demonstrating healthy escapement function.

What is low-power roll test and what does it reveal?

Low-power roll test identifies friction problems in gear train by operating movement under minimal mainspring power revealing binding invisible during normal full-power operation where movement with adequate power overcomes modest friction readily though same friction prevents operation under reduced power conditions. Completely let down mainspring tension then wind mainspring approximately 3 clicks or quarter-turn from fully-relaxed position creating minimal power. Remove pendulum and verge assembly enabling escape wheel free rotation without escapement resistance then allow movement running at reduced power observing smooth consistent rotation. Stop escape wheel with finger then release allowing restart repeating this start-stop test perhaps 50 times noting whether movement restarts consistently or shows hesitation indicating friction binding. Additionally observe whether power delivery is consistent or wavering where escape wheel rotation speed varying periodically suggests bent pivot or tight bushing creating increased friction at specific rotational position. Consistent smooth rotation under low power indicates gear train is mechanically sound with adequate clearances and minimal friction requiring only escapement adjustment for reliable operation. Hesitation binding or inconsistent rotation indicates problem requiring correction through bushing work pivot polishing or wheel replacement before addressing escapement adjustment. However recognize test limitations where completely free-spinning wheels without load provides incomplete assessment because some friction problems only manifest under actual escapement loading creating forces absent during free running. Therefore use low-power roll test as initial screening identifying obvious problems though subsequent testing under full power with escapement installed provides comprehensive assessment revealing problems invisible during preliminary testing.

Should I replace escape wheel if teeth appear worn or damaged?

Replace escape wheel if teeth show substantial wear bent tips or inconsistent length preventing proper escapement function though attempt burnishing and careful filing before replacement where professional wheel service can rebuild damaged wheel more economically than complete replacement. Examine escape wheel teeth under magnification noting any bent tips broken teeth or inconsistent tooth length creating variation in drop and impulse during operation. Minor surface roughness responds to burnishing using tweezers sliding tool across each tooth profile following straight side removing microscopic surface imperfections improving friction characteristics. Start at wide tooth base pulling tweezer blades perpendicular to tooth sliding across profile creating polished surface. Repeat on each tooth achieving consistent finish throughout wheel. Test results operating escapement with excess oil on pallets where running with excess oil further burnishes teeth over time creating improved surface finish. However substantial tooth damage including bent tips requiring straightening or shortened teeth from previous amateur filing attempts may require professional wheel service. David LaBounty and other professional wheel services can rebuild escape wheels adding material to damaged teeth through careful brazing or welding then filing to proper profile restoring original function. Alternatively if escape wheel shows damage beyond economical repair replacement wheel from parts supplier provides known-good component though may require verge adjustment or replacement achieving proper pallet spacing for different wheel design. Therefore attempt conservative repairs first through burnishing and controlled filing avoiding permanent modifications then consult professional wheel service if damage exceeds your capabilities avoiding permanent damage to valuable original wheel through amateur attempts at advanced repairs requiring precision machining equipment and substantial experience.

Why does movement run fine when tested but stop after installation in case?

Movement runs fine when tested but stops after case installation because case mounting creates stresses affecting movement geometry where dial mounting screws over-tightened distort movement plates creating binding or pendulum leader contacting case parts during swing creating friction stopping operation. Test movement thoroughly before case installation operating for extended period perhaps 24 hours ensuring reliable consistent operation. During case installation tighten dial mounting screws gradually testing continued operation between tightening steps. Over-tightened mounting screws distort movement plates slightly changing pivot hole geometry creating binding invisible during bench testing. Additionally verify pendulum leader clearance ensuring leader swings freely without contacting case back or movement back plate creating friction or binding. Loose pendulum leader loop jumping on pendulum rod during operation creates erratic timekeeping though shouldn't stop movement completely - tighten leader loop creating secure connection with modest clearance enabling smooth swing without excessive looseness. Verify clock case is level using spirit level because unlevel mounting creates pendulum swing geometry problems where pendulum swings at angle relative to crutch creating binding or unreliable escapement release. Additionally confirm crutch wire doesn't contact any case parts during operation creating friction or binding stopping movement. Some case designs show very tight clearances requiring careful crutch positioning avoiding contact while maintaining proper escapement geometry. Therefore systematic installation checking operation frequently during assembly process identifies specific step causing problem enabling targeted correction rather than complete disassembly attempting to diagnose mysterious failure developing during case installation process affecting multiple variables simultaneously complicating diagnosis.
