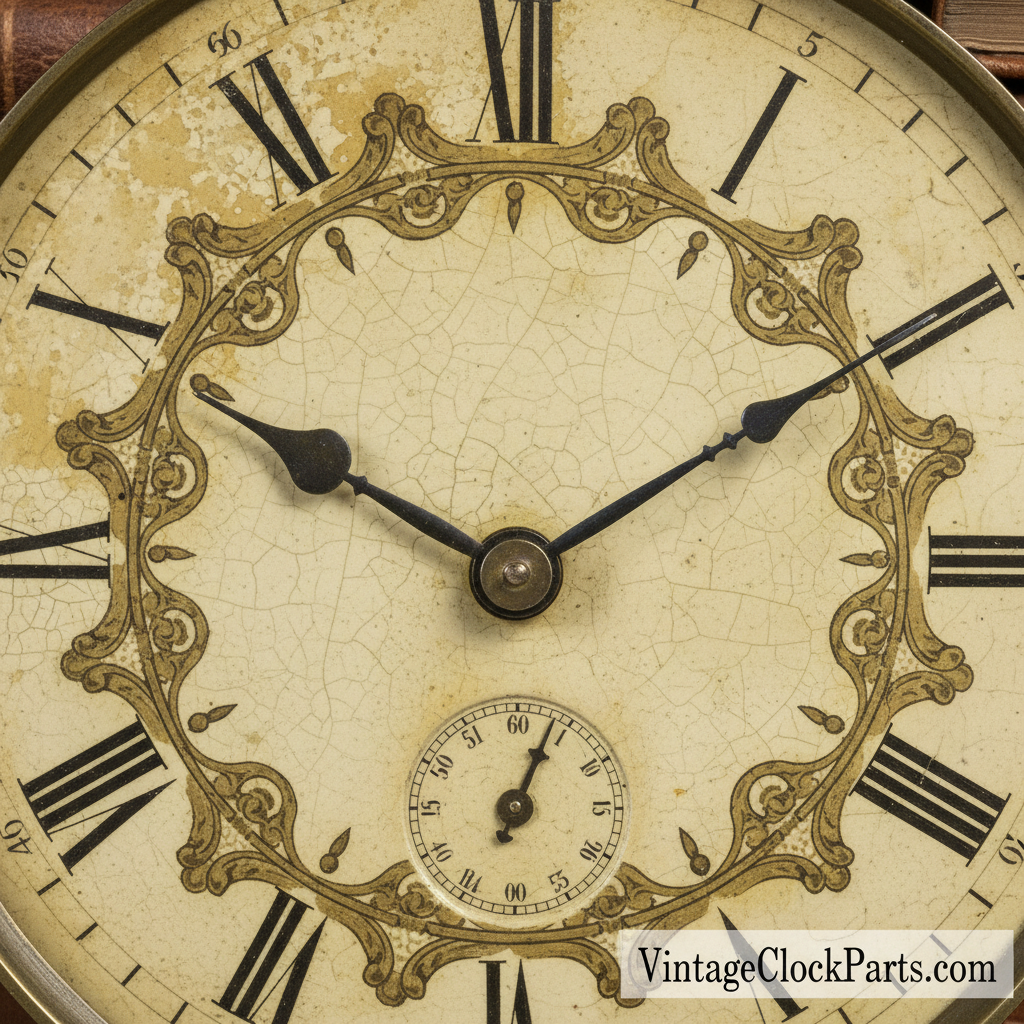

This discussion focuses on whether the bezel, sash, and inner brass ornamentation of an Ingraham mantel clock dial pan can be safely separated when replacing the paper dial.
Understanding the Dial Pan Assembly
Bezel, sash, and dial pan relationship
The bezel is attached to the dial pan by a hinge that appears original and undisturbed. The dial pan includes a sash, an inner brass ornamentation ring, and the central area where the paper dial is mounted.
Original construction intent
These components were not designed for routine disassembly. Manufacturers expected the assembly to remain intact for the life of the clock.
Risks of disassembly
Thin stamped metal can bend, crease, or distort if pried or pressed incorrectly.
Functional condition
The hinge works properly, and the dial pan is structurally sound, reducing the need for separation.
Learning objective
The goal was to understand how the dial pan was assembled and whether safe disassembly is possible for cleaning or repair.
Removing the Bezel
Hinge screw appearance
The hinge appears to have two tiny screws, but they do not turn, suggesting they may be rivets or factory‑set fasteners.
Risk of hinge damage
Attempting removal may break the hinge or distort the bezel.
Recommendation from restorers
Most advised leaving the bezel attached to avoid unnecessary risk.
Functional hinge
Since the hinge operates correctly, removal offers little benefit.
Cleaning without removal
The bezel and sash can be cleaned while still attached to the dial pan.
Is the Inner Brass Ornamentation Removable?
Possibility of a press‑fit
Some believed the inner brass ring might be a separate press‑fitted piece.
Lack of embossing clues
The inside surface shows no matching embossing, suggesting it may be separate.
Risk of bending
Thin metal rings deform easily when pried, making removal risky.
Historical examples
Some clocks have missing inner rings, indicating they may have been separate pieces originally.
General consensus
Even if removable, pressing it out and reinstalling it safely is unlikely.
Can the Sash Be Separated from the Dial Pan?
Crimped or pressure‑bound construction
The sash appears to be crimped or pressure‑fitted to the dial pan.
Not intended for service disassembly
Manufacturers did not design these parts to be separated after assembly.
High risk of distortion
Attempting separation may warp the sash or dial pan.
Cleaning in place
Most restorers recommended cleaning the sash without removing it.
Focus on the dial replacement
The paper dial can be replaced without disassembling the dial pan.
Replacing the Paper Dial
Removing the grommets
The grommets at 4 and 8 o’clock can be removed by bending back the tabs.
Separating the paper dial
Once the grommets are removed, the paper dial can be lifted away from the dial pan.
Previous repair attempts
The existing dial showed incorrect numeral shapes, indicating earlier repairs.
Replacement options
New paper dials are available from clock parts suppliers.
Dial pan remains intact
Replacing the dial does not require disassembling the dial pan components.
FAQs
Can the bezel be removed?
It is not recommended; the hinge is likely factory‑set and may be damaged if forced.
Is the inner brass ring removable?
Possibly, but removal risks bending the thin metal.
Can the sash be separated?
It appears crimped or pressure‑fitted and should not be removed.
How do I replace the paper dial?
Remove the grommets, lift the old dial, and install the new one.
Should I attempt full disassembly?
Most restorers advise against it; these parts were not designed to come apart.
