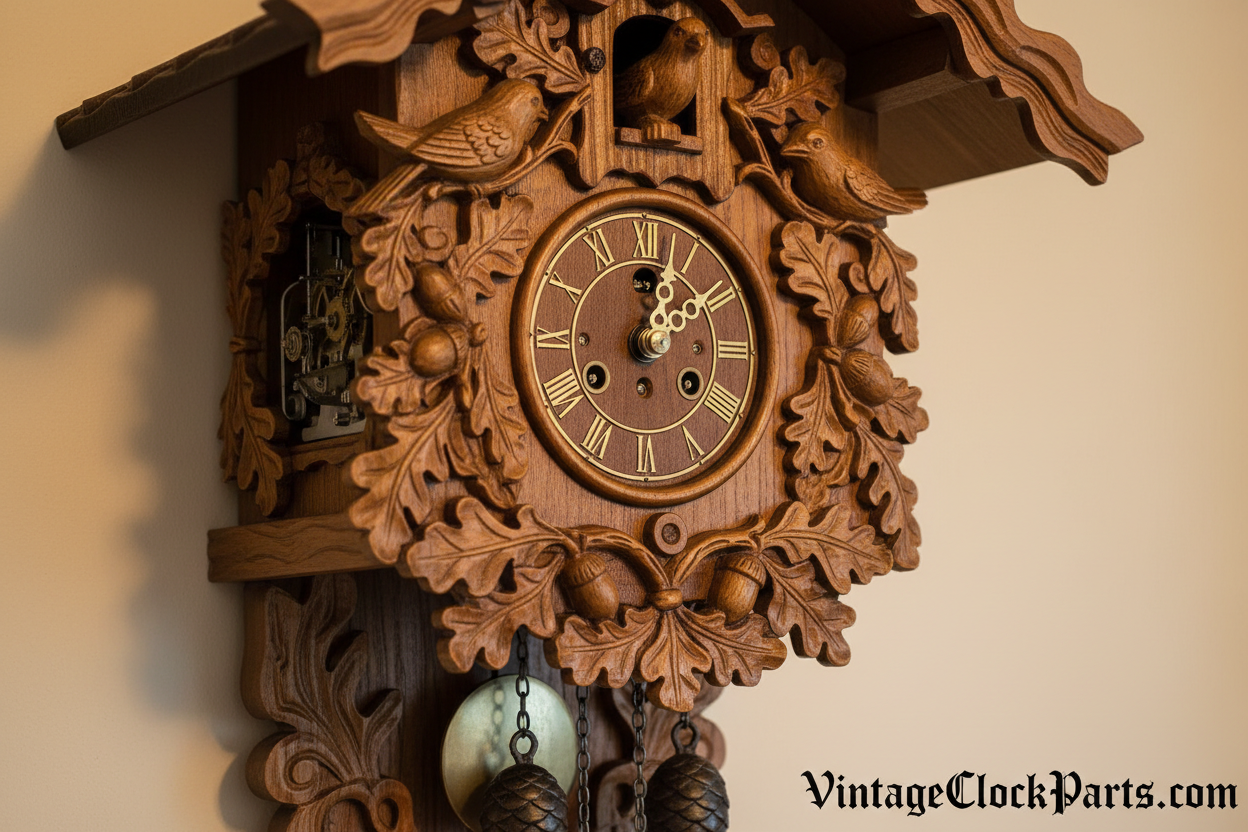

Cuckoo Clock Chain Jumping Off Sprocket: Chain Pitch, Links Per Foot, and Correct Replacement

A cuckoo clock chain that repeatedly jumps off the sprocket wheel is not a random mechanical failure — it is telling you something specific and diagnostic about the relationship between the chain's link pitch and the sprocket's tooth spacing. When a chain sits correctly in a sprocket and the pitch matches, the chain runs smoothly through the full winding cycle without any tendency to climb or derail. When the pitch does not match — because the chain has stretched with wear, because the wrong chain was installed at some point in the clock's history, or because the movement and chain came from different clocks — the chain will seat partially in the sprocket teeth, advance one or two links, and then jump as the misfit accumulates to the point where the chain lifts clear of the sprocket entirely. Understanding that derailing chains are almost always a pitch problem rather than a lubrication problem or a case alignment problem is the starting point for any productive diagnosis.

This guide covers the complete diagnostic and replacement sequence for a cuckoo clock chain that keeps jumping off the sprocket — what chain pitch means and how links per foot specification determines compatibility, the specific chain specifications for Regula 30-hour and 8-day movements versus Hubert Herr 30-hour and 8-day movements and why these differ, how to identify which movement you have when the back plate has no visible markings, how to calculate the correct chain pitch from sprocket tooth count and diameter, how to distinguish worn chains from incorrectly specified chains, the technique for threading new chains onto a wound sprocket without disassembling the movement, and what happens when Regula chain is used on a Hubert Herr movement — the forum thread's actual conclusion — and under what conditions this substitution is acceptable.

Why Cuckoo Clock Chains Jump Off Sprockets

Chain Pitch and Sprocket Tooth Spacing

Every cuckoo clock drive chain has a specific pitch — the distance from the center of one link to the center of the next — that must match the spacing between the sprocket wheel teeth for the chain to seat correctly and advance smoothly. When pitch matches, each sprocket tooth enters a link gap cleanly, engages the link, and releases it cleanly on the other side as the chain advances. When pitch is too large relative to the sprocket tooth spacing — as happens when a chain has stretched through wear, or when a chain from a different movement is installed — the chain links span more than one tooth pitch and the chain sits on top of the sprocket teeth rather than nesting between them. This shallow seating causes the chain to climb incrementally with each advance until it reaches a tipping point and falls off the sprocket entirely. When pitch is too small relative to the sprocket, the chain links are too close together to allow the sprocket teeth to enter the gaps cleanly, and the chain bunches and jams rather than advancing smoothly.

The links per foot specification — the number of links in one foot of chain — is the conventional way of expressing chain pitch for cuckoo clock chains, because it is easier to count links in a known length than to measure the microscopic pitch distance directly. A higher links-per-foot count indicates shorter link pitch; a lower links-per-foot count indicates longer link pitch. The difference between a Regula 30-hour chain at 61 links per foot and a Hubert Herr 30-hour chain at 59 links per foot may seem small in absolute terms — only two links per foot — but it represents a real pitch difference that produces binding and jumping when the wrong chain is used on a sprocket designed for the correct pitch. Two links per foot of pitch mismatch means that over the course of one foot of chain travel, the chain is two link-lengths out of phase with the sprocket teeth, which is enough to cause consistent derailing.

Worn Chain Versus Wrong Chain

Distinguishing between a chain that has stretched through wear and a chain that was incorrectly specified from the beginning determines the correct repair approach. A worn chain that was originally correct for the movement will show visible elongation of the links when compared against a new chain of the same specification — the link metal has deformed under the repeated loading and unloading of the winding cycle, increasing the effective pitch beyond the original specification. A chain that was incorrectly specified from the beginning may show no visible wear but will still derail because the pitch was wrong from the moment of installation. Worn chains show their stretching most clearly in the length of the straight link sections — compare a section of the suspect chain against a new chain of known correct specification and any elongation will be apparent as additional length per link.

In used cuckoo clocks acquired through secondhand markets, wrong-chain installation is at least as common as worn-chain replacement, because clocks in circulation frequently have been worked on by previous owners who may have installed whatever chain was available rather than sourcing the correct specification. A clock bought used that immediately derails chains has very likely had the wrong chain installed before purchase, while a clock that has been running for years but recently started derailing has likely worn its original correct chain to the point where pitch has stretched beyond the tolerance the sprocket can accommodate. Both situations require new chain of the correct specification, but the diagnosis of which situation applies helps calibrate your expectations about what other aspects of the clock's condition may have been compromised by previous ownership.

Chain Specifications for Regula and Hubert Herr Movements

Standard Links-Per-Foot Specifications

The four standard cuckoo clock chain specifications cover the two primary German cuckoo movement manufacturers across their two main movement types. Regula 30-hour movements use chain at 61 links per foot — the most common specification encountered in cuckoo clock repair because Regula 30-hour movements are by far the most prevalent cuckoo movement in circulation. Regula 8-day movements use a heavier chain at 48 links per foot, reflecting the greater power and corresponding heavier sprocket design of the 8-day movement. Hubert Herr Triberg 30-hour movements use chain at 59 links per foot — two links per foot less than Regula 30-hour, a difference that seems modest but is sufficient to cause derailing if the wrong chain is installed. Hubert Herr 8-day movements use chain at 45 links per foot, again reflecting the heavier sprocket design of the 8-day platform. These four specifications cover the great majority of cuckoo clock chain replacement needs, and knowing which movement you have immediately identifies the correct chain specification.

The practical significance of these specifications is that you must identify your specific movement before ordering replacement chain. Ordering generic cuckoo clock chain without identifying the movement manufacturer and type is likely to produce either Regula 30-hour chain — the most commonly stocked specification — which may or may not be correct for your clock. If your clock has a Hubert Herr movement, installing Regula chain will produce a two-link-per-foot pitch mismatch that will cause derailing, which is exactly the same symptom you were trying to cure with the replacement chain. Take the time to identify the movement correctly before sourcing chain, even if it delays the repair by a few days.

Calculating Correct Chain Pitch from Sprocket Dimensions

When movement identification is uncertain, the correct chain specification can be calculated from the sprocket wheel geometry. Count the number of teeth on the sprocket wheel — a typical cuckoo clock sprocket has between six and eight teeth. Measure the effective diameter of the sprocket at the pitch circle — the diameter at which the chain links engage the teeth, which is approximately at mid-tooth height. With the tooth count and effective diameter known, the circumference of the pitch circle can be calculated, and dividing this circumference by the number of teeth gives the tooth-to-tooth spacing, which is the required chain pitch. Convert this pitch to a links-per-foot specification by dividing twelve inches by the pitch in inches and multiplying by two — the factor of two converts tooth pitch to link pitch because each link occupies half of one tooth-to-tooth span.

For a sprocket with seven teeth and an effective diameter of 22mm, this calculation gives a pitch circle circumference of approximately 69mm, divided by seven teeth for a tooth spacing of approximately 9.9mm. Each chain link therefore has a pitch of approximately 4.9mm, which corresponds to approximately 62 links per foot — very close to the Regula 30-hour specification of 61 links per foot, confirming that a 61-link-per-foot chain is the appropriate choice for this sprocket geometry. This calculation method is reliable for confirming movement type when visual identification is uncertain, and it provides an independent check on chain specification that does not depend on manufacturer markings or visual movement identification.

Identifying Regula Versus Hubert Herr Movements

When a cuckoo movement has no markings on the back plate — a common situation with older movements where any original stamps have become obscured — visual identification of the movement manufacturer relies on design details visible in the movement itself. Hubert Herr Triberg movements are characteristically identifiable by the silver-colored lever on the strike side of the movement, a design detail that differs from the brass or darker-finished levers typically used in Regula movements. The back plate shape also provides a clue: Regula movements often show a characteristic harp shape in the back plate cutout pattern, while Hubert Herr movements use a different plate geometry. The cuckoo bird mechanism — the carved wooden cuckoo that appears at the hour — also differs between manufacturers in its mounting and actuation geometry in ways that an experienced technician can use for identification.

In the absence of definitive visual identification, the chain pitch calculation method described above provides an objective measurement-based confirmation. If the calculated pitch closely matches the Regula 30-hour specification of 61 links per foot, use Regula chain. If it closely matches the Hubert Herr 30-hour specification of 59 links per foot, use Hubert Herr chain. If a worn chain is still installed on the movement, measure its current pitch — recognizing that wear has stretched it — and compare against both specifications to determine which it was originally intended to match. A worn chain that still has a pitch closer to 59 links per foot than to 61 links per foot was almost certainly originally a Hubert Herr chain that has stretched with wear.

Sourcing Replacement Cuckoo Clock Chain

Identifying Reliable Chain Suppliers

Replacement cuckoo clock chain is available from specialist clock parts suppliers who stock the correct specifications for both Regula and Hubert Herr movements in both 30-hour and 8-day variants. In the United Kingdom and Europe, Cousins UK is a well-established clock parts supplier that stocks cuckoo chain by specification with clear labeling of links per foot. In North America, clock parts distributors including S&T USA and others stock replacement cuckoo chain. When ordering from any supplier, specify the links-per-foot requirement explicitly rather than relying on descriptive labels such as one-day or eight-day alone, since labeling conventions vary between suppliers and a chain described as one-day may not specify whether it is Regula or Hubert Herr specification.

Chain quality varies significantly between suppliers, and chain from certain sources — particularly very low-cost sources or import chain from quality-uncertain origins — may have inconsistent link pitch, weak link construction, or surface finish problems that cause premature wear or rough running even when the nominal specification is correct. When possible, source chain from established horological supply companies that specialize in clock parts rather than from general marketplace sellers offering chain at unusually low prices. The cost difference between quality chain and cheap chain is small relative to the labor involved in chain replacement and reassembly, and cheap chain that wears quickly or runs roughly will require the same replacement work again within a short period.

Can Regula Chain Work on a Hubert Herr Movement?

The practical question of whether Regula 30-hour chain at 61 links per foot is usable on a Hubert Herr 30-hour movement designed for 59 links per foot has a nuanced answer confirmed by real-world experience reported in clock repair forums. The two-link-per-foot pitch difference is at the boundary of what a sprocket can accommodate without binding or jumping. In some Hubert Herr movements with certain sprocket geometries, Regula chain runs acceptably and produces no derailing after the chain has been properly seated and tensioned. In other movements, the same two-link pitch difference causes intermittent jumping that becomes more frequent as the clock is used. The outcome depends on the specific sprocket tooth profile and the engagement depth the sprocket provides for chain links.

If Hubert Herr chain is unavailable or impractically expensive relative to the clock's value, testing Regula chain as a substitution is a reasonable approach provided the test is conducted over enough time to reveal any intermittent jumping tendency. Run the clock for at minimum two full weeks of normal operation before concluding that the Regula chain substitution is successful — a derailing problem that appears only every few days of operation will not be revealed by a short test. If the Regula chain runs without jumping through two weeks of normal operation, it will likely continue to perform acceptably. If jumping occurs during the test period, Hubert Herr specification chain is required regardless of the cost differential, because intermittent derailing will continue and worsen with use.

Installing New Chain Without Full Disassembly

The Chain Threading Technique

The most practical method for installing new cuckoo clock chain without disassembling the movement is to use the existing chain as a guide to pull the new chain into position. Remove the weight from the end of the old chain, then connect the end of the new chain to the bottom link of the old chain using a small wire or by carefully opening and reclosing a link. With the new chain connected to the old, wind the clock as if you were winding it normally — this pulls the new chain up and over the sprocket wheel as the old chain advances through and off the other side. The new chain follows the path of the old chain through the movement and emerges correctly seated on the sprocket without any need to thread it manually through the confined space of the clock case. When the connection point between old and new chain reaches the sprocket, detach the old chain, attach the weight to the new chain end, and the installation is complete.

This threading technique saves considerable time and frustration compared to attempting to install a loose chain through a fully assembled clock case. The geometry of most cuckoo clock cases makes free-threading extremely difficult because the chain must navigate around the weights, past the pendulum, and into position on the sprocket without snagging on any of the internal case structure. Using the old chain as a guide eliminates all of this because the chain's path is already established and the new chain simply follows it. The only situation where this technique is not applicable is when the old chain has already completely separated from the sprocket — in that case, carefully threading the chain manually through the case is necessary before the winding technique can be used to seat it on the sprocket.

Repairing Damaged Chain Links

When replacement chain in the correct specification is not immediately available and the existing chain is the correct specification but has individual damaged or distorted links — rather than being stretched throughout its length — individual link repair is sometimes possible as a temporary measure. Cuckoo clock chain links that have opened slightly can be reclosed carefully using needle-nose pliers, working on one link at a time and checking each reclosed link against an undamaged link for correct geometry before proceeding to the next. A link that has been reclosed to correct dimensions will seat in the sprocket correctly and will not contribute to derailing. This repair is appropriate only for a small number of individually distorted links — if multiple links throughout the chain show distortion or stretching, replacement of the entire chain is the correct solution, not link-by-link repair of a fundamentally worn component.

A reclosed link must be checked for two qualities after repair: correct link length matching undamaged links, and correct joint closure that will not reopen under normal chain tension. A link that closes correctly but has been weakened by the original distortion may open again under the repeated loading of the winding cycle. Test each reclosed link by applying moderate tension in both directions — the link-opening direction and the link-closing direction — and confirm that the joint stays closed under this test load. Any link that shows any tendency to reopen under test tension should be replaced rather than relied upon, because chain failure while the clock is wound can cause damage to the sprocket and to the case if the weight drops suddenly.

Reassembly After Disassembly

When a cuckoo clock has been fully disassembled for chain replacement or other service, correct reassembly requires that certain components be returned to exactly their original positions — particularly the strike and cuckoo train components that must be in specific angular relationships for the clock to strike correctly at the hour and half hour. Photographing the movement from multiple angles before disassembly, and noting the position of every lever, cam, and wheel relative to its neighbors, provides the reference needed to restore the original configuration. The practical discovery made by many first-time cuckoo clock service technicians is that reassembly is significantly more challenging than disassembly, and that some of the difficulty arises from components that can be installed in multiple positions but function correctly in only one. Components that must be reinstalled in exactly their original orientation are rarely obvious until the movement is reassembled and fails to work, at which point the disassembly-and-reassembly cycle must be repeated.

Document especially the position of the count wheel relative to the strike train, the position of the rack and rack hook if the movement uses a rack-and-snail strike system, and the relationship between the lifting cams on the minute arbor and the positions of the hour and half-hour levers. These components must be in specific positions for the strike sequence to begin and end at the correct times relative to the hand positions. A movement reassembled with any of these components one tooth or one position off from their original orientation will produce strike timing errors that may not be immediately obvious but will accumulate over the winding cycle, eventually causing the cuckoo to call at the wrong time or the wrong number of times.

Sprocket Wheel Condition Assessment

Worn Sprocket Teeth and Chain Compatibility

A sprocket wheel that has been run with incorrect chain or with a worn chain for an extended period will show wear on its tooth profiles that is different from the wear produced by correct chain operation. Correct chain wears the sprocket teeth gradually and symmetrically across the tooth face as the chain links engage and release cleanly. Incorrect chain — particularly chain that is too large in pitch — wears the sprocket teeth asymmetrically because the chain makes contact with only part of the tooth profile rather than engaging cleanly. This asymmetric wear rounds the tooth tips and changes the tooth profile in ways that may prevent correct chain from seating properly even after the incorrect chain is replaced. Inspect the sprocket teeth under magnification after removing the old chain — round-tipped, hook-shaped, or notched teeth indicate wear that may affect new chain performance.

Minor sprocket tooth wear that has not significantly altered the tooth profile will typically not affect new correct-specification chain performance. The new chain will seat correctly in the undamaged portion of the tooth profile and run without derailing. Significant tooth wear — where the tooth profile has been fundamentally altered by extended operation with incorrect chain — may require sprocket replacement to achieve reliable chain retention. Sprocket wheels for common Regula and Hubert Herr movements are available from specialist clock parts suppliers and can be replaced without replacing the entire movement, though the replacement requires plate separation and careful reassembly to ensure correct gear meshing and end-shake after the new sprocket is installed.

Sprocket Diameter and Chain Load Calculation

The number of chain links that advance per hour of clock operation can be calculated from the sprocket tooth count and the gear train ratio from the great wheel to the sprocket arbor, providing a useful check on chain specification and wear rate assessment. A sprocket with seven teeth advances seven links per half rotation — one link per tooth per sprocket rotation — and the number of sprocket rotations per hour is determined by the time train gear ratio. This calculation confirms whether the chain and sprocket are correctly matched for the clock's power and timing requirements, and gives an estimate of how many link engagements occur per year that can be used to assess realistic service life expectancy for the chain. A clock striking once per hour and winding twelve hours per day will cycle each chain link through the sprocket approximately three hundred times per year under moderate use, providing a quantitative basis for evaluating chain wear rate against the clock's actual service history.

Cuckoo Clock Weight and Chain System Integration

How Cuckoo Weights Interact With Chain Tension

The cuckoo clock weight hanging from the chain provides the driving force for the time, strike, or music train — depending on which chain it is attached to — and its mass determines the chain tension throughout the winding cycle. Correct chain tension is important for reliable chain seating in the sprocket: a weight that is too light for the movement may allow the chain to go slack during operation, which reduces the chain's engagement force against the sprocket teeth and increases the tendency to derail. A weight that is too heavy for the movement may overload the train and cause excessive wear on the sprocket teeth over time. Correct weight specification for a given Regula or Hubert Herr movement is established by the movement manufacturer and should be matched when sourcing replacement weights.

When a cuckoo clock is acquired with weights that may not be original — a common situation with secondhand clocks that have been assembled from parts of multiple clocks over their history — verifying that the weights are correct for the movement type and caliber is an important step in achieving reliable operation. A movement that is marginally powered due to incorrect light weights may run acceptably under ideal conditions but stop under slight additional friction, dirty pivots, or ambient temperature change, while a movement that is overpowered by excessive weights will wear its components faster than normal and may show accelerated chain and sprocket wear. Three-train musical cuckoo clocks require three separate weights correctly specified for the time, strike, and music trains respectively, and substituting any of these with an incorrect weight creates power imbalance between the trains that affects both sound quality and mechanical reliability.

Chain Position and Weight Hang Verification

After installing new chain, verify that the chain hangs correctly on both sides of the sprocket and that the weight attachment position is correct for the clock's case dimensions. The chain should hang freely without contacting the case interior, the pendulum, or any other chain. In a three-train musical cuckoo movement, three chains hang simultaneously in close proximity, and incorrect chain routing — particularly if chains have been crossed or routed past each other rather than hanging in their correct positions — will cause the chains to contact each other as the weights descend, creating binding that stops the movement or causes chains to jump from their sprockets. Verify correct chain routing by tracing each chain from its sprocket over the movement and down to its weight, confirming that no chain crosses any other chain and that each weight hangs freely in its intended position.

The weight hang position also affects the clock's run time between windings — if the chain is longer than necessary, the weight reaches the floor or the case bottom before the spring is fully run down, wasting potential run time. If the chain is too short, the weight reaches the end of its travel before the clock would naturally run down, requiring winding earlier than necessary. Standard chain length for most cuckoo clock cases is established by the original movement and case combination, and when replacing chain it is appropriate to match the original chain length so that the run time between windings remains consistent with the clock's original design.

FAQs

Why does my cuckoo clock chain keep jumping off the sprocket?

A chain that repeatedly jumps off the sprocket is almost always experiencing a pitch mismatch — the chain link spacing does not match the sprocket tooth spacing, causing the chain to seat incorrectly and derail as the mismatch accumulates through each link engagement. The two most common causes are a worn chain that has stretched beyond its original pitch specification, and an incorrectly specified replacement chain that was installed at some point in the clock's history. Identify the movement manufacturer — Regula or Hubert Herr — and movement type — 30-hour or 8-day — then compare the installed chain's links-per-foot count against the correct specification for that movement. If the chain is the wrong specification or is worn and stretched, replace it with correctly specified chain.

What is the correct chain specification for a Regula cuckoo movement?

Regula 30-hour cuckoo movements use chain at 61 links per foot, which is the most common cuckoo clock chain specification. Regula 8-day movements use a heavier chain at 48 links per foot. These two specifications cover all Regula cuckoo movements. Hubert Herr Triberg movements use different specifications: 59 links per foot for 30-hour movements and 45 links per foot for 8-day movements. Using Regula chain on a Hubert Herr movement or vice versa creates a pitch mismatch that may cause derailing, though the two-link-per-foot difference between Regula 30-hour and Hubert Herr 30-hour chain is small enough that cross-compatibility sometimes works in practice depending on the specific sprocket geometry.

How do I install new cuckoo clock chain without disassembling the movement?

Connect the end of the new chain to the bottom link of the old chain after removing the weight, then wind the clock normally. This pulls the new chain up and over the sprocket as the old chain advances through and off. When the connection point between old and new chain reaches the sprocket, disconnect the old chain and attach the weight to the new chain end. The entire installation is accomplished through the normal winding motion without any need to thread chain manually through the case. This technique requires the old chain to still be on the sprocket — if the chain has completely derailed and separated from the sprocket, manual threading through the case is necessary before the winding technique can be used.

How do I calculate the correct chain pitch if I don't know my movement type?

Count the sprocket teeth and measure the effective sprocket diameter at approximately mid-tooth height. Calculate the pitch circle circumference using the diameter, divide by the tooth count to get tooth-to-tooth spacing, then divide that spacing by two to get the chain link pitch. Convert to links per foot by dividing twelve inches by the link pitch in inches and multiplying by two. Compare the result against the four standard specifications — Regula 30-hour at 61 lpf, Regula 8-day at 48 lpf, Hubert Herr 30-hour at 59 lpf, Hubert Herr 8-day at 45 lpf — to identify the correct specification for your movement. This calculation is reliable for confirming movement type when manufacturer markings are absent.

Can I repair individual distorted chain links rather than replacing the whole chain?

Individual links that have opened slightly can be reclosed carefully with needle-nose pliers, working one link at a time and verifying each reclosed link against an undamaged link for correct geometry. A reclosed link that tests correctly for length and joint security is a viable temporary repair for a small number of individually damaged links. If multiple links throughout the chain show distortion or stretching, replacement of the complete chain is the correct solution — repairing a chain with widespread wear link by link is impractical and the repairs will not last. Any reclosed link that shows any tendency to reopen under moderate test tension should be replaced rather than relied upon.

How do I identify whether my movement is Regula or Hubert Herr?

Hubert Herr Triberg movements are characteristically identifiable by a silver-colored lever on the strike side of the movement. Regula movements typically show a harp shape in the back plate cutout pattern. The cuckoo bird mechanism and its mounting geometry also differ between manufacturers in ways visible on close inspection. If visual identification is uncertain, calculate the correct chain pitch from the sprocket tooth count and diameter as described above — the result will closely match either the Regula or Hubert Herr 30-hour specification and confirms the movement identity without requiring manufacturer markings.

Does the cuckoo weight specification matter for reliable chain operation?

Yes — a weight that is too light for the movement may allow the chain to go slack during operation, reducing chain engagement force against the sprocket teeth and increasing derailing tendency. A weight that is too heavy overloads the train and accelerates sprocket tooth wear. Correct weight specification for the specific Regula or Hubert Herr movement caliber ensures correct chain tension throughout the winding cycle. Three-train musical cuckoo clocks require three correctly specified weights for the time, strike, and music trains respectively — substituting any of these with an incorrect weight creates power imbalance that affects both mechanical reliability and sound quality.
