Introduction

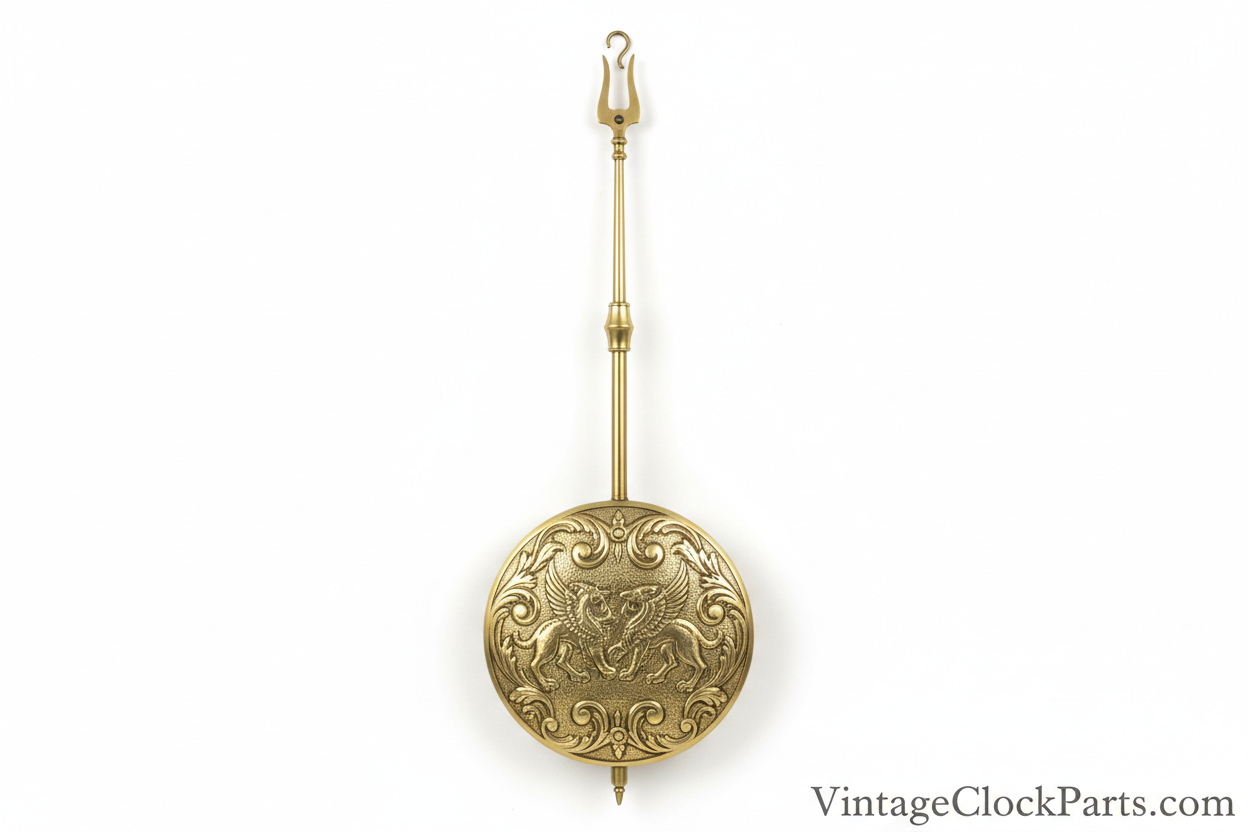

The pendulum is the regulating element of most mechanical clocks. Its length, mass, suspension, and geometry determine the clock’s rate and stability. When the pendulum, pendulum bob, or pendulum rod and spring are out of adjustment, the clock may run fast, slow, or stop entirely. This guide explains how pendulums work and how to diagnose common pendulum-related problems.
How Pendulums Work
Pendulum length
The length of the pendulum determines the clock’s rate. Longer pendulums run slower; shorter pendulums run faster.
Pendulum bob mass
The bob provides inertia. Its weight does not determine the rate, but its position on the rod does.
Pendulum rod
The rod holds the bob and determines the effective length of the pendulum. Rod material affects temperature stability.
Suspension spring
The suspension spring allows the pendulum to swing freely. Its flexibility and condition affect beat and stability.
Anchor and escapement interaction
The escapement impulses the pendulum and maintains its motion. Proper lock and drop are essential for stable timing.
Symptoms of Pendulum Problems
Clock runs fast
The pendulum is too short or the bob is positioned too high.
Clock runs slow
The pendulum is too long or the bob is positioned too low.
Pendulum stops swinging
Beat is off, suspension spring is damaged, or the escapement is not delivering enough impulse.
Pendulum wobbles or twists
The rod is bent or the suspension spring is distorted.
Clock runs inconsistently
Temperature changes, friction, or unstable suspension spring behavior.
Understanding Pendulum Components
The pendulum bob
The bob adjusts the effective length of the pendulum. Raising it speeds the clock; lowering it slows the clock.
The pendulum rod
Rod length and material determine rate stability. Steel rods expand with heat; wood and gridiron rods compensate better.
The suspension spring
The spring must be straight and flexible. Twisted or kinked springs cause erratic motion.
The rating nut
The rating nut moves the bob up or down to adjust the clock’s rate.
The leader
The leader connects the pendulum to the crutch and must move freely without binding.
How to Diagnose Pendulum Problems
Step 1: Check beat
Listen for even tick‑tock spacing. Uneven beat causes the pendulum to lose power.
Step 2: Inspect the suspension spring
Look for bends, twists, or cracks. A damaged spring destabilizes the pendulum.
Step 3: Verify pendulum rod alignment
The rod must be straight. A bent rod shifts the pendulum’s center of mass.
Step 4: Confirm bob position
Ensure the bob is secure and the rating nut is not slipping.
Step 5: Check leader and crutch freedom
The leader must move freely without rubbing or binding.
Step 6: Observe escapement impulse
Ensure the escapement delivers consistent impulse to maintain pendulum motion.
Step 7: Test rate over 24 hours
Make small adjustments and verify timing accuracy across a full day.
Troubleshooting Flowcharts
If the clock runs fast
Lower bob → Check rod length → Check suspension spring → Check escapement lock
If the clock runs slow
Raise bob → Check rod length → Check friction → Check impulse strength
If the pendulum stops
Check beat → Check suspension spring → Check crutch → Check escapement
Common Mistakes to Avoid
Over‑adjusting the rating nut
Small adjustments are sufficient. Large changes cause overshooting.
Ignoring suspension spring condition
Even slight bends affect timing stability.
Assuming bob weight affects rate
Only bob position affects timing, not its mass.
Letting the pendulum rub the case
Any interference causes timing drift.
Adjusting length without checking beat
Beat must be correct before rate adjustments are meaningful.
Checklist for Final Verification
• Pendulum swings freely
• Suspension spring straight and flexible
• Bob secure and correctly positioned
• Rod straight and unobstructed
• Beat even and stable
• Rate consistent over 24 hours
FAQs
Why does my clock run fast?
The pendulum is too short or the bob is too high.
Why does my clock run slow?
The pendulum is too long or the bob is too low.
Why does the pendulum stop?
The beat is off or the suspension spring is damaged.
Why does the pendulum wobble?
The rod is bent or the suspension spring is twisted.
Why does the clock run inconsistently?
Temperature changes, friction, or unstable pendulum suspension.
