Introduction

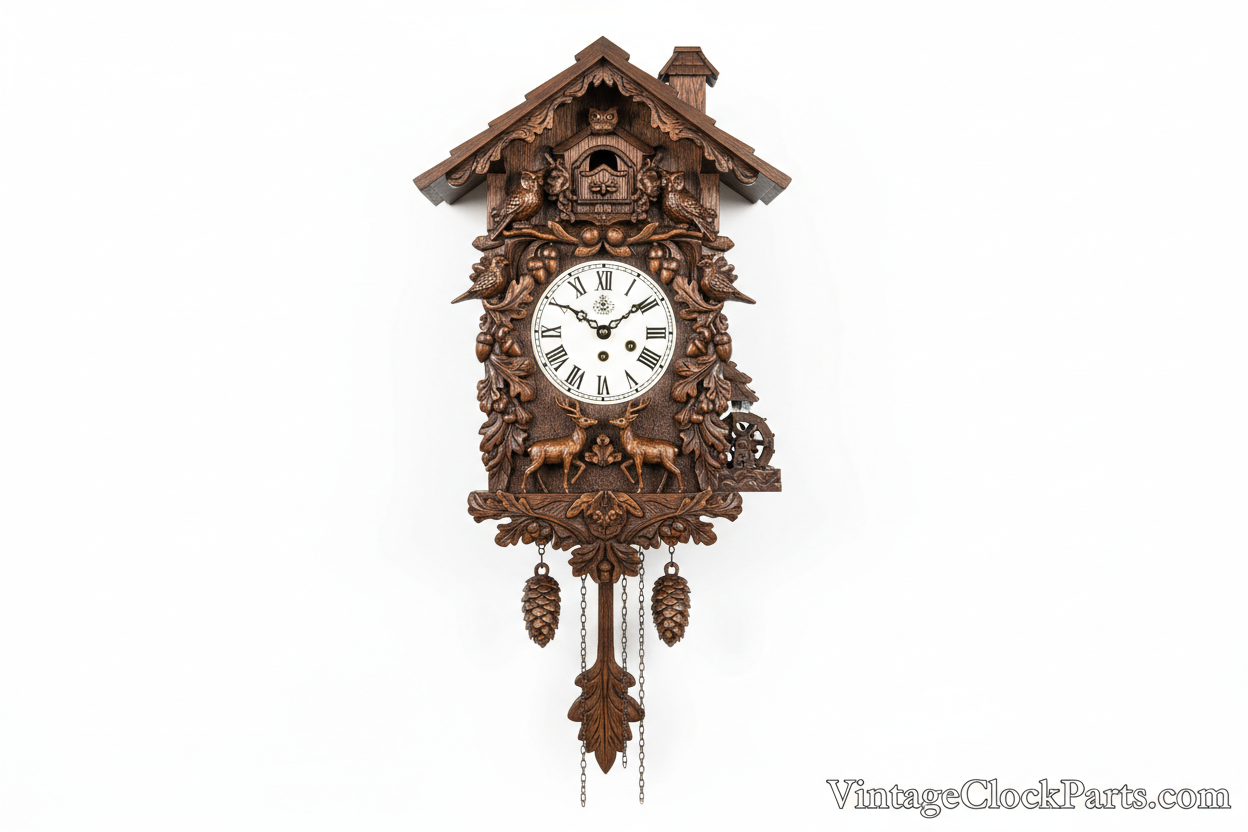

This article summarizes the conditions and repair steps as presented. The project involved restoring a cuckoo clock and adding a custom seesaw mechanism by combining parts from two working clocks.
Initial Clock Condition and Restoration
Clock acquisition
The clock was purchased with missing parts and was not functioning. Repairs were made to restore basic operation.
Motivation for modification
The owner wanted a cuckoo clock with a seesaw feature but could not find a suitable model, so a custom modification was attempted.
Combining two clocks
Two fully working cuckoo clocks were used—one with a seesaw and one without—to create a single enhanced clock.
Movement preparation
Both movements were removed and the plate screws loosened slightly without full disassembly.
Drive‑part swap
The pendulum‑drive component was swapped with the seesaw‑drive component to transfer the seesaw function to the target movement.
Case Modification and Seesaw Installation
Drilling the case
A hole was drilled in the case to accommodate the seesaw base, requiring careful alignment.
Interference with cuckoo door
The seesaw initially touched the cuckoo door, which would have caused the cuckoo to remain open and run continuously.
Adjustment process
Repeated adjustments were made until the seesaw barely touched the door without jamming.
Final positioning
Super glue was used to lock the seesaw in the correct position once alignment was achieved.
Successful operation
The modified movement and seesaw operated correctly after adjustments.
Moving‑Eyes Modification Discussion
Previous attempt by another restorer
A separate project involved adding moving eyes to an early 20th‑century cuckoo clock, but the clock stopped due to added friction.
Weight increase issue
Weights had to be increased from 800 g to 1500 g to keep the clock running, which caused additional problems.
Friction concerns
Eye pivots and lever alignment were suspected sources of excessive friction.
Wire‑balance suggestion
It was suggested that the lever should be centered, with the wire to the eyes emerging from the middle.
Alternative linkage ideas
Using lighter wire, creating a triangular linkage, or attaching wires downward from the eyes were proposed to reduce mass and friction.
Weight and Performance Considerations
Original weight uncertainty
The modified seesaw clock’s original weight was unknown.
Working weight range
The seesaw function operated reliably with weights around 320 g, and likely as low as 275 g.
Mass sensitivity
Small increases in mass can stop a cuckoo movement; minimizing added weight is essential.
Demagnetization check
One suggestion was to test and demagnetize wires if necessary.
Pivot straightness
Straightening eye pivots may reduce friction and improve operation.
Additional Notes
Risk of modification
The project carried the risk of damaging both clocks, but the modification was successful.
Case‑fit challenges
Ensuring the seesaw cleared the cuckoo door was the most difficult part of the installation.
Movement compatibility
Modern movements such as Regula types may behave differently from early 20th‑century movements when modified.
Custom enhancements
Adding animated features can give a clock more character when done carefully.
Community interest
Other restorers expressed interest in attempting similar modifications.
FAQs
How was the seesaw added?
By swapping the seesaw‑drive part into the target movement and drilling the case for installation.
Did the modification require heavier weights?
No; the seesaw worked with weights around 320 g.
Why did the moving‑eyes clock stop?
Likely due to friction and leverage issues in the eye mechanism.
Can friction be reduced?
Yes—use lighter wire, ensure centered linkage, and straighten pivots.
Is modifying cuckoo clocks risky?
Yes, but careful planning and testing can produce successful results.
